PorWest2 - PaoanuiRSouth Details

PropertyValue
Rupture Count38,748
Ruptures Above Sect Min Mag38,739
Ruptures w/ Nonzero Rates325
Magnitude Range[6.85, 8.55]
Length Range[21, 1,076] km
Total Rate1.6034901E-4 /yr
Multi-Fault Rate1.602921E-4 /yr (99.96%)
Directly-Connected Faults8
All Co-Rupturing Faults111

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

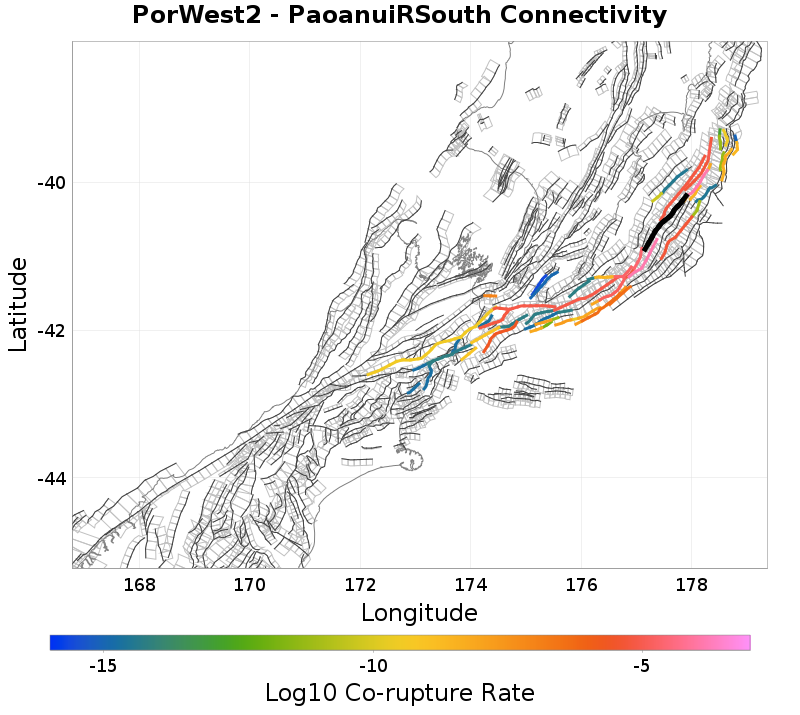

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Porangahau Ridge, 0.14 km away
Porangahau Northeast, 0.63 km away
Porangahau Basin, 0.64 km away
Paoanui Ridge North, 1.28 km away
Omakere South, 2.92 km away
Uruti East - PorWest 1, 3.48 km away
Ritchie West 1, 5.95 km away
Rock Garden - Ritchie East, 6.1 km away
Omakere Ridge, 6.92 km away
Madden Banks, 8.18 km away
Akitio Trough West, 10.35 km away
Pukeroro Ridge, 11.27 km away

Porangahau Ridge, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate0.0

Porangahau Northeast, 0.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count912
Co-rupture Rate2.9805893E-9

Porangahau Basin, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count2,160
Co-rupture Rate1.3278735E-4

Paoanui Ridge North, 1.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count14,108
Co-rupture Rate1.3270724E-4

Omakere South, 2.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count6,756
Co-rupture Rate6.791865E-6

Uruti East - PorWest 1, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count34,240
Co-rupture Rate2.2472468E-5

Ritchie West 1, 5.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count9,484
Co-rupture Rate1.062253E-5

Rock Garden - Ritchie East, 6.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?false
Co-rupture Count3,826
Co-rupture Rate5.5755327E-12

Omakere Ridge, 6.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?false
Co-rupture Count5,284
Co-rupture Rate6.7494566E-6

Madden Banks, 8.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count503
Co-rupture Rate0.0

Akitio Trough West, 10.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count719
Co-rupture Rate4.9974883E-6

Pukeroro Ridge, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?false
Co-rupture Count1,654
Co-rupture Rate4.2066145E-7
