Riversdale Details

Property	Value
Rupture Count	1,668
Ruptures Above Sect Min Mag	1,661
Ruptures w/ Nonzero Rates	35
Magnitude Range	[6.69, 8.40]
Length Range	[16, 703] km
Total Rate	1.9497717E-4 /yr
Multi-Fault Rate	1.9497717E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

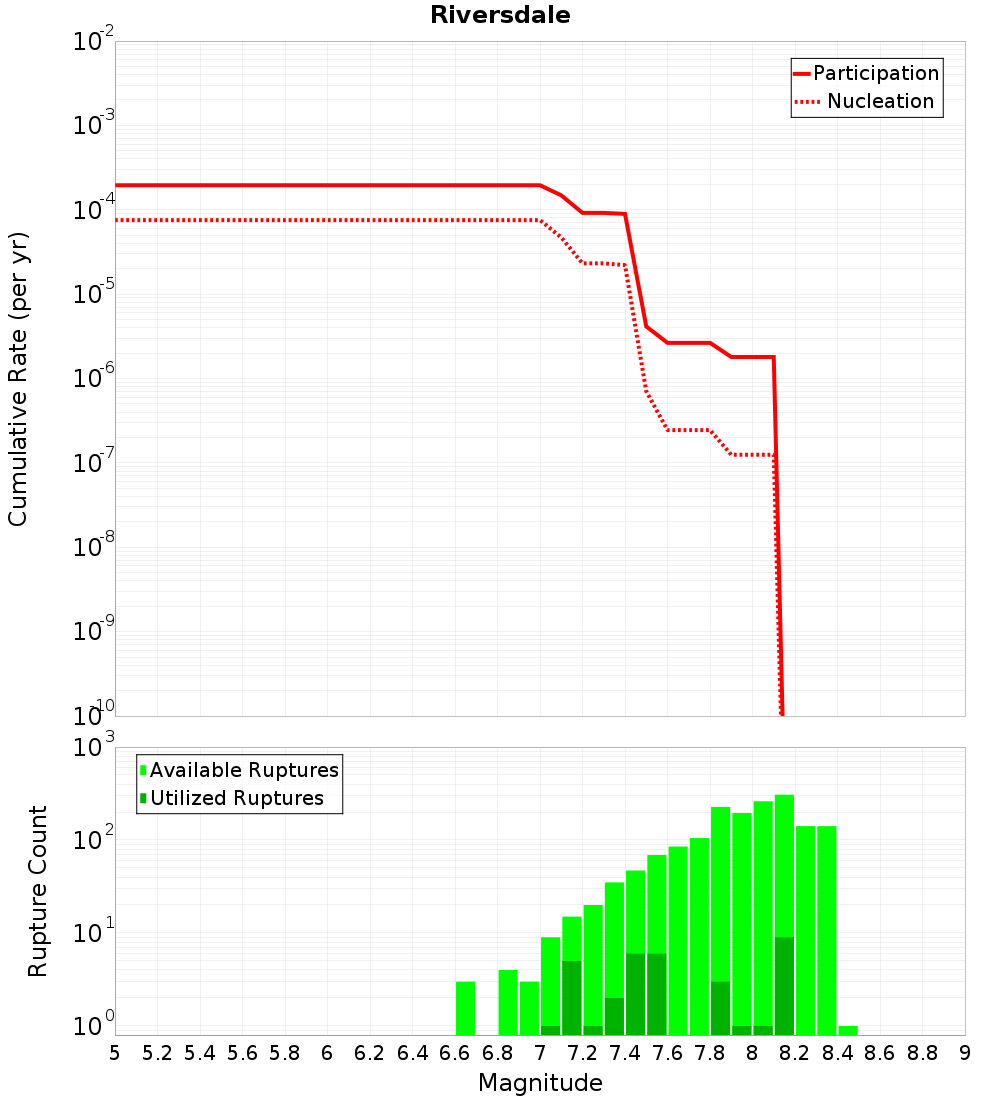

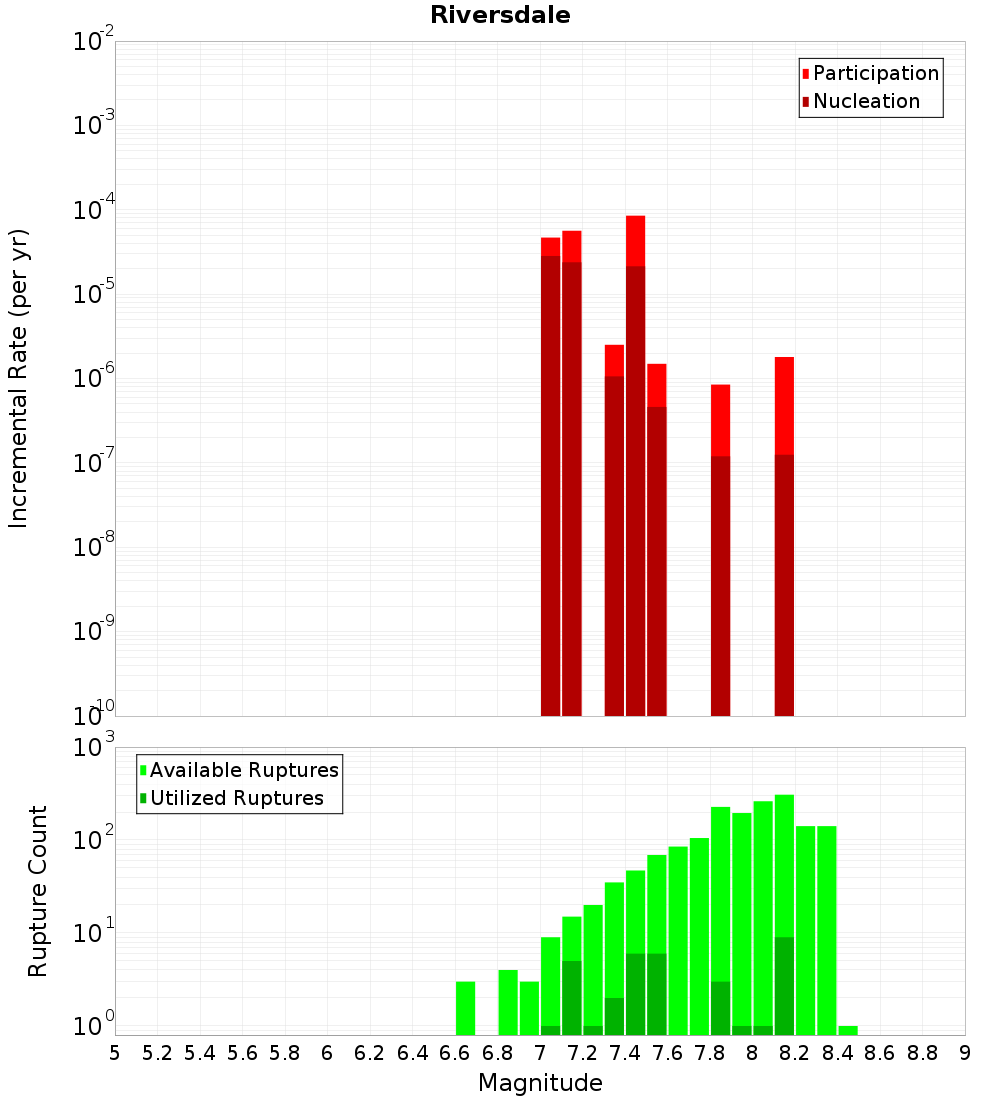

Magnitude-Frequency Distribution

Incremental	Cumulative

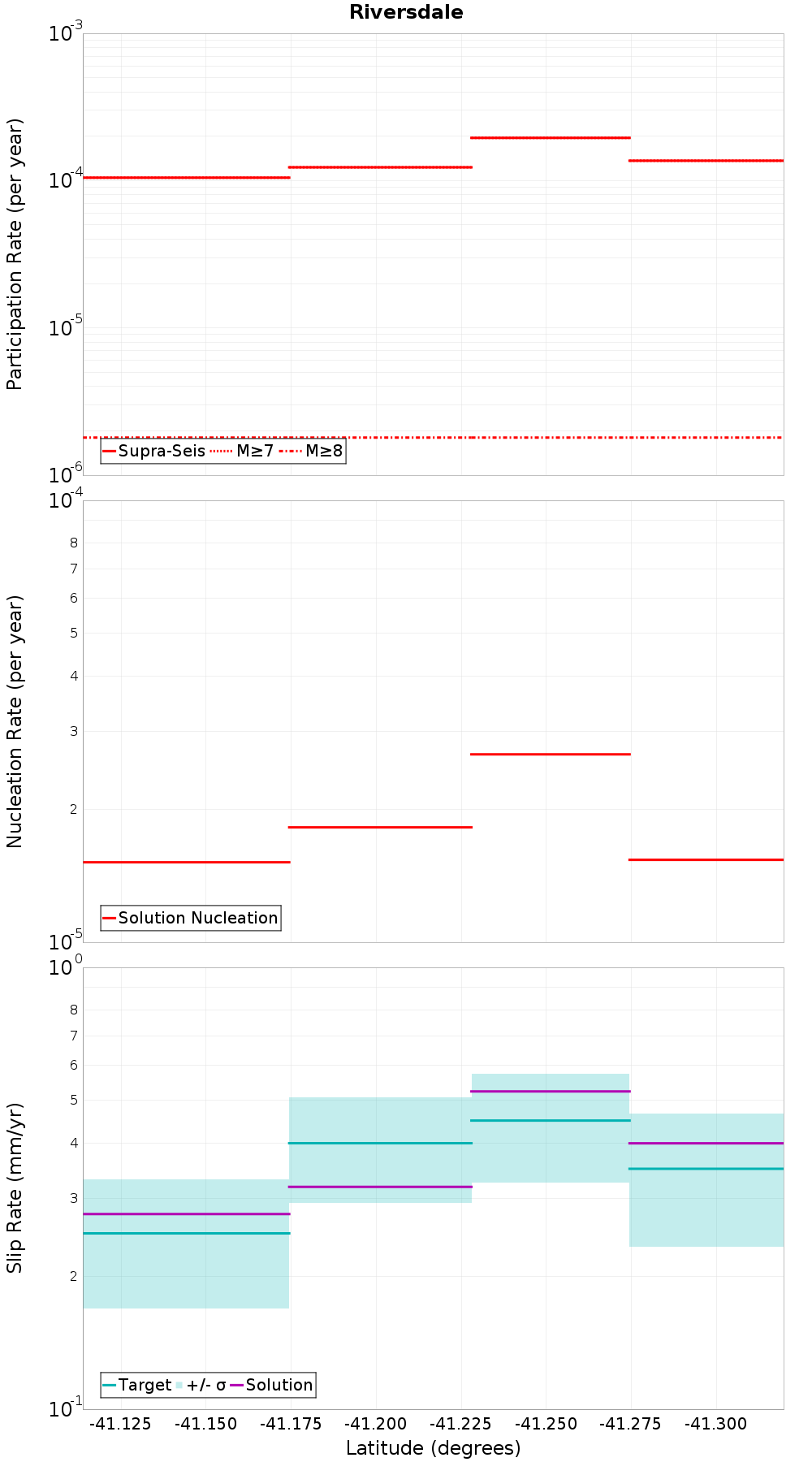

Along-Strike Values

Moment-Rates and b-Values

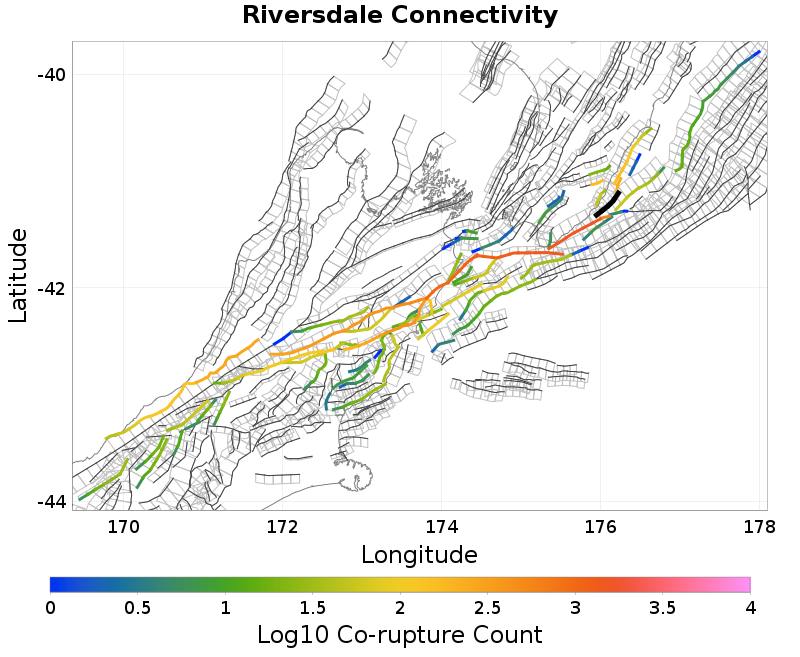

Connectivity

Nearby Sections

Fault Section
Uruti Point, 0.21 km away
Riversdale North, 1.16 km away
Palliser - Kaiwhata, 3.25 km away
Whareama Bank, 5.42 km away
Mataikona, 6.57 km away
Honeycomb, 6.88 km away
Uruti Basin, 8.5 km away
Kaumingi, 9.84 km away
Carterton, 10.74 km away

Uruti Point, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	9.0348905E-5

Riversdale North, 1.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	237
Co-rupture Rate	1.4303211E-4

Palliser - Kaiwhata, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,576
Co-rupture Rate	9.176257E-5

Whareama Bank, 5.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	56
Co-rupture Rate	0.0

Mataikona, 6.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	157
Co-rupture Rate	1.1708448E-5

Honeycomb, 6.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Uruti Basin, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	0.0

Kaumingi, 9.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	157
Co-rupture Rate	5.1945055E-5

Carterton, 10.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	2.2897583E-15
