Ruatoria South 1 Details

Property	Value
Rupture Count	6,163
Ruptures Above Sect Min Mag	6,157
Ruptures w/ Nonzero Rates	51
Magnitude Range	[6.85, 8.48]
Length Range	[21, 727] km
Total Rate	1.725308E-4 /yr
Multi-Fault Rate	1.15216244E-4 /yr (66.78%)
Directly-Connected Faults	5
All Co-Rupturing Faults	33

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

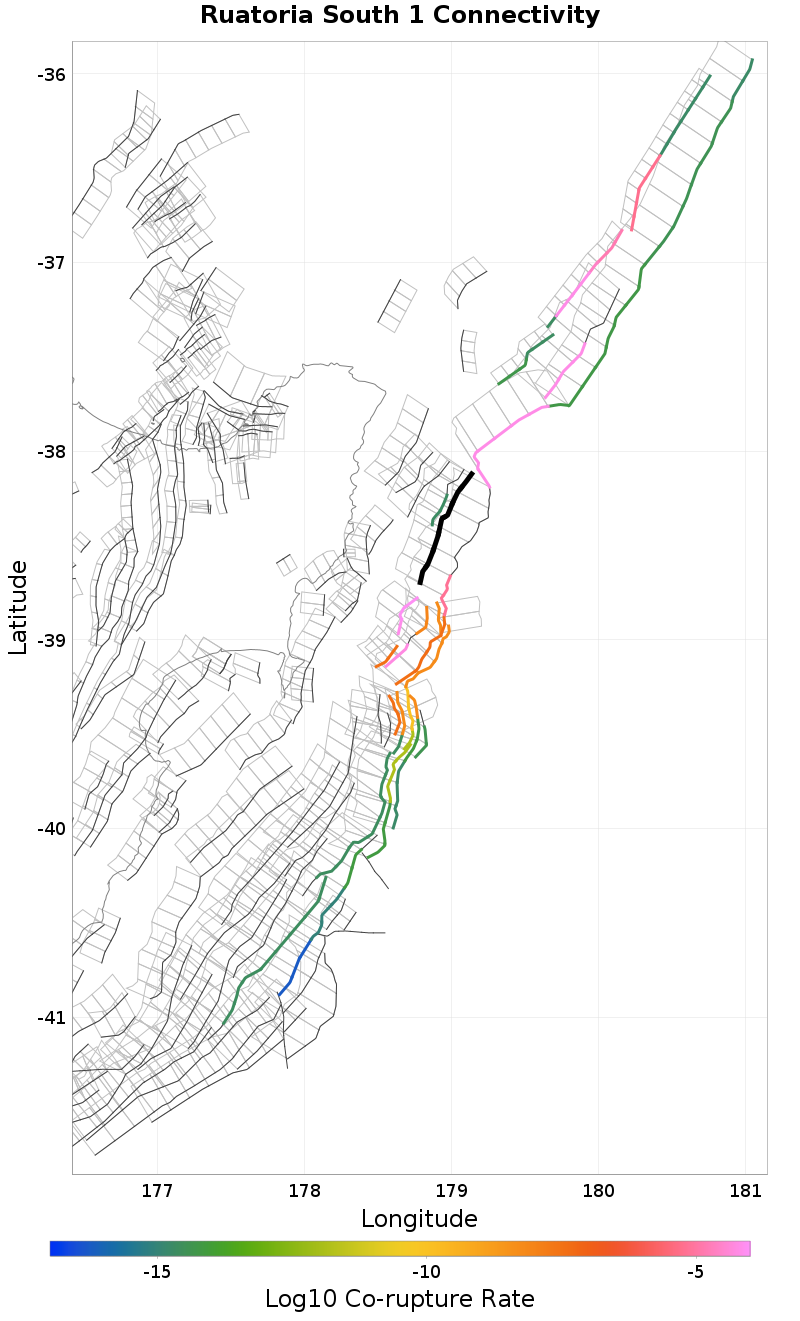

Connectivity

Nearby Sections

Fault Section
Ruatoria South 2, 2.5 km away
Puke Ridge, 3.68 km away
Ruatoria, 4.74 km away
Tuaheni Ridge, 6.85 km away
Ruatoria South 3, 9.68 km away
Paritu Ridge, 10.08 km away

Ruatoria South 2, 2.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	284
Co-rupture Rate	2.0087632E-15

Puke Ridge, 3.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	4,873
Co-rupture Rate	6.777172E-6

Ruatoria, 4.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,165
Co-rupture Rate	6.165204E-5

Tuaheni Ridge, 6.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	373
Co-rupture Rate	8.571756E-5

Ruatoria South 3, 9.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Paritu Ridge, 10.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	526
Co-rupture Rate	5.348588E-5
