Tokomaru Details
| Property | Value |
|---|---|
| Rupture Count | 2,365 |
| Ruptures Above Sect Min Mag | 2,363 |
| Ruptures w/ Nonzero Rates | 181 |
| Magnitude Range | [6.88, 8.50] |
| Length Range | [19, 888] km |
| Total Rate | 2.6458653E-4 /yr |
| Multi-Fault Rate | 2.645827E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 113 |
Table Of Contents

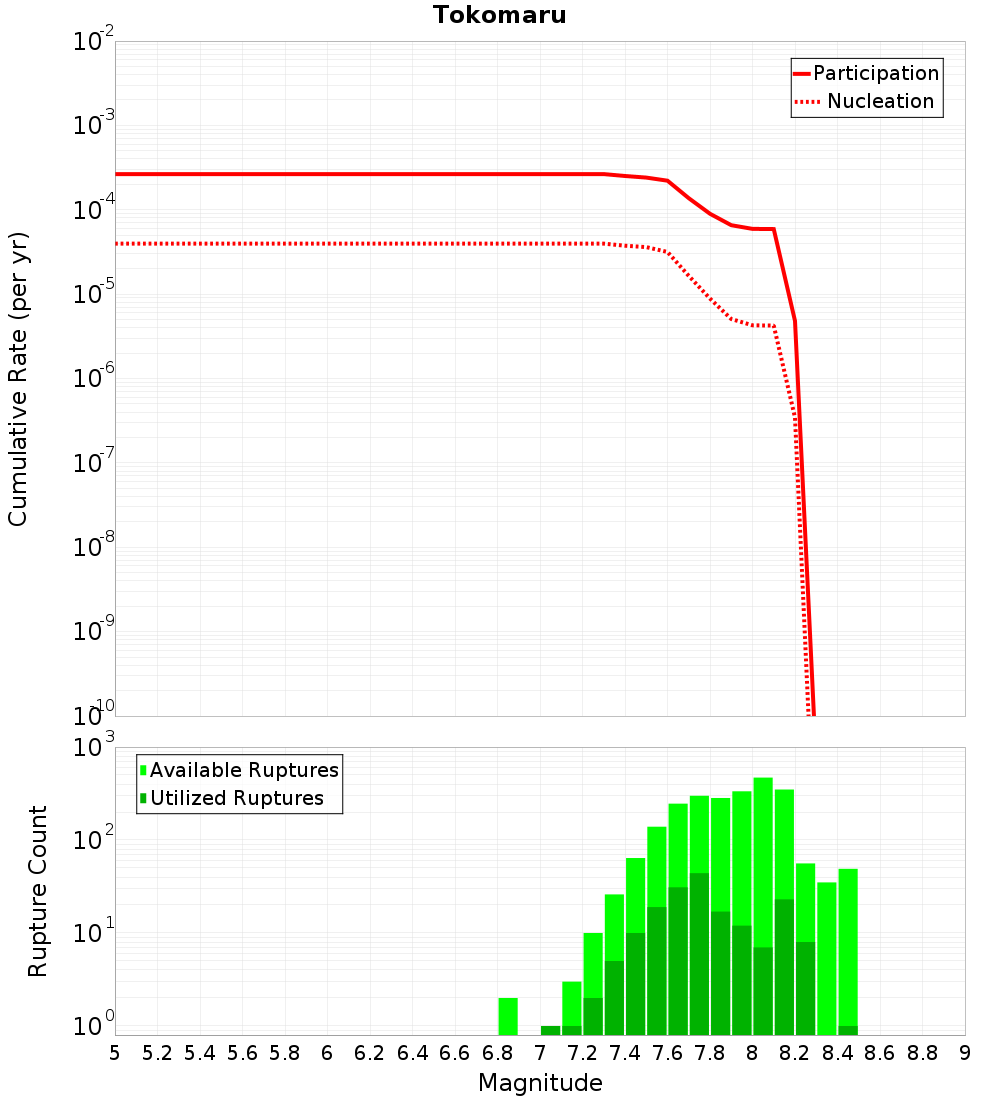

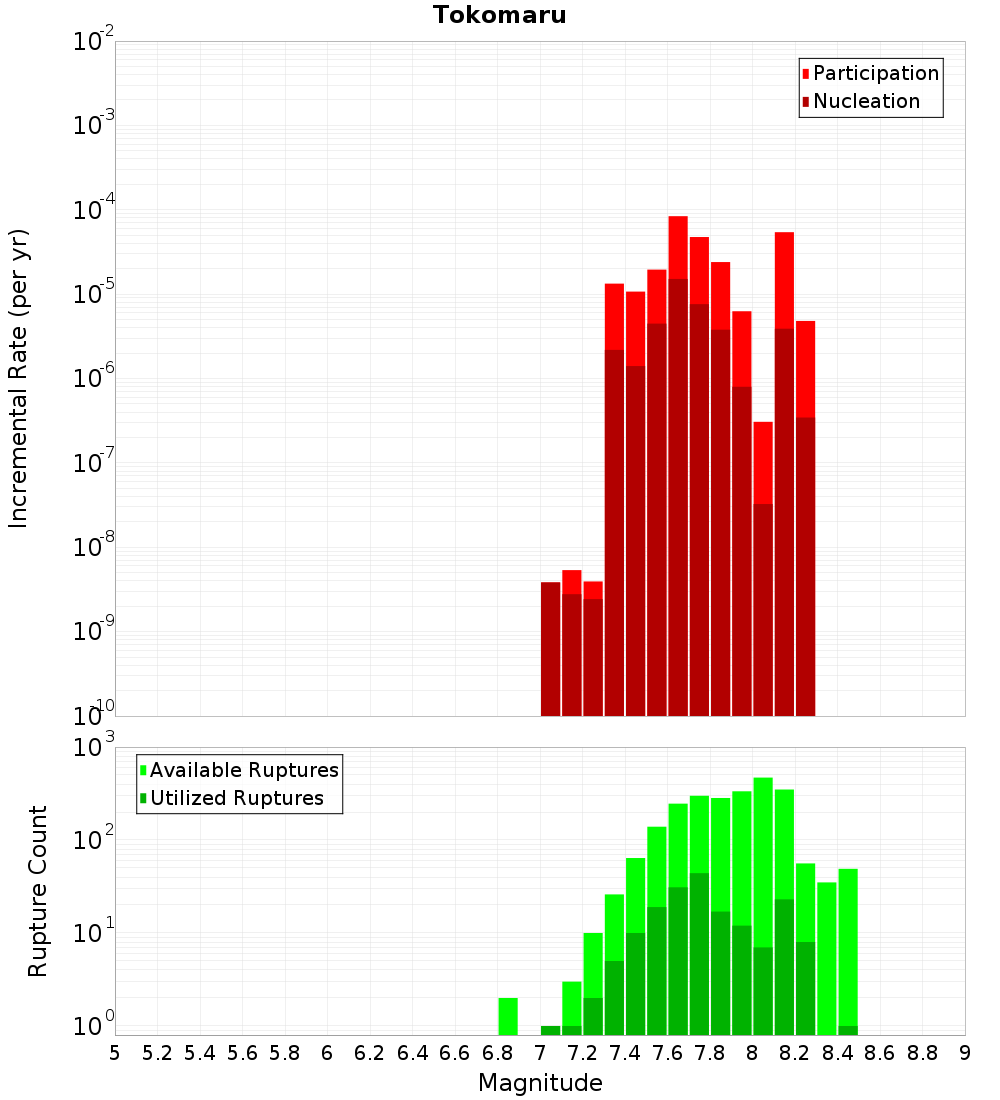

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Wellington: Pahiatua, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 915 |
| Co-rupture Rate | 1.3368604E-4 |
Northern Ohariu, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 595 |
| Co-rupture Rate | 1.2613459E-4 |
Wellington: Tararua 3, 1.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,042 |
| Co-rupture Rate | 3.3132153E-5 |
Otaki Forks: 2, 3.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 407 |
| Co-rupture Rate | 8.6615855E-6 |
Levin Anticline, 5.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pahiatua, 9.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pohangina, 9.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 3.3216947E-5 |
Wairarapa: 3, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Himatangi, 12.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Taonui, 12.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 324 |
| Co-rupture Rate | 3.9421295E-5 |
Poroutawhao, 13.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Stewart, 13.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dreyers Rock, 14.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mohaka: South, 14.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 710 |
| Co-rupture Rate | 6.694825E-5 |
Ruahine: South, 14.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 298 |
| Co-rupture Rate | 3.857094E-5 |
Rauoterangi, 14.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 132 |
| Co-rupture Rate | 3.8143369E-6 |
