Uruti Ridge 2 Details

Property	Value
Rupture Count	29,459
Ruptures Above Sect Min Mag	29,458
Ruptures w/ Nonzero Rates	273
Magnitude Range	[6.83, 8.53]
Length Range	[19, 998] km
Total Rate	4.4920274E-5 /yr
Multi-Fault Rate	4.4920274E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	139

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

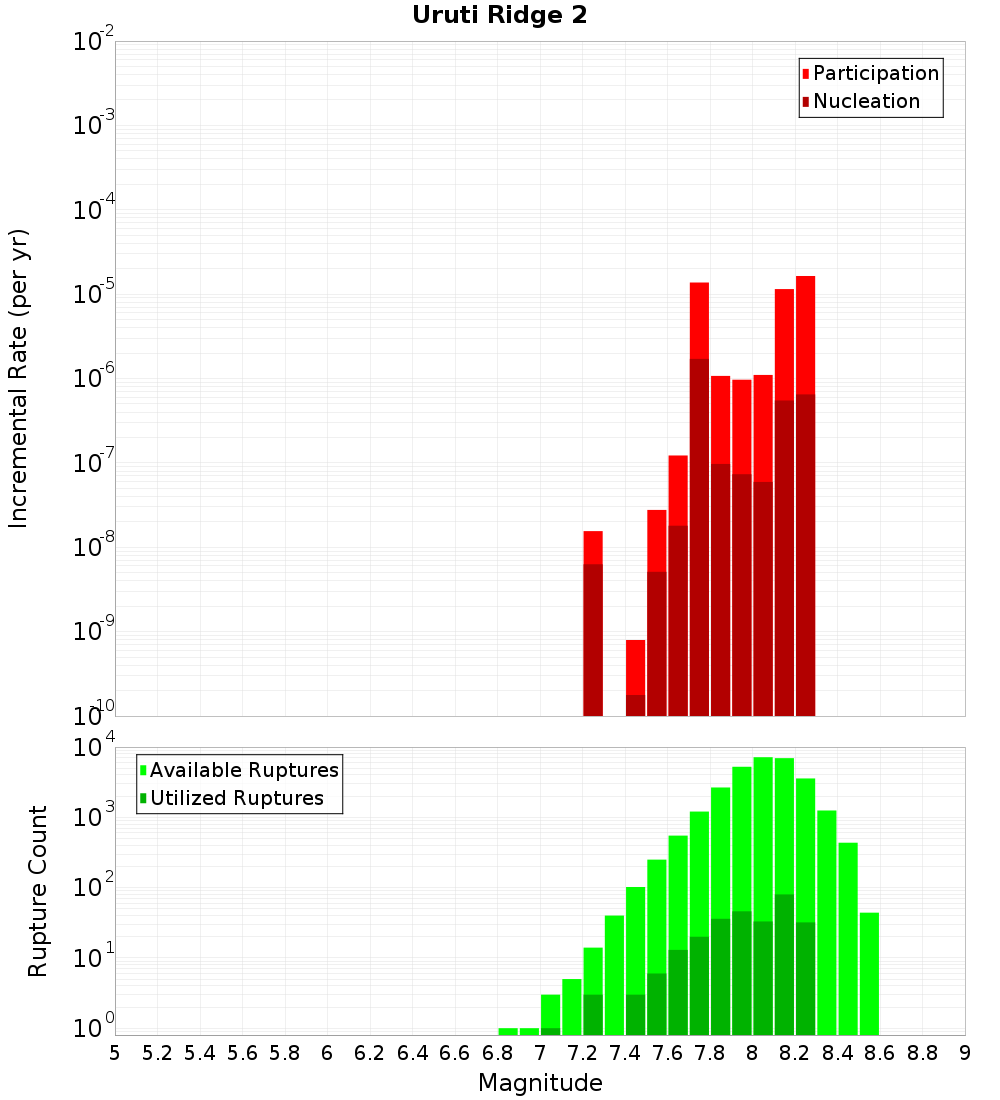

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

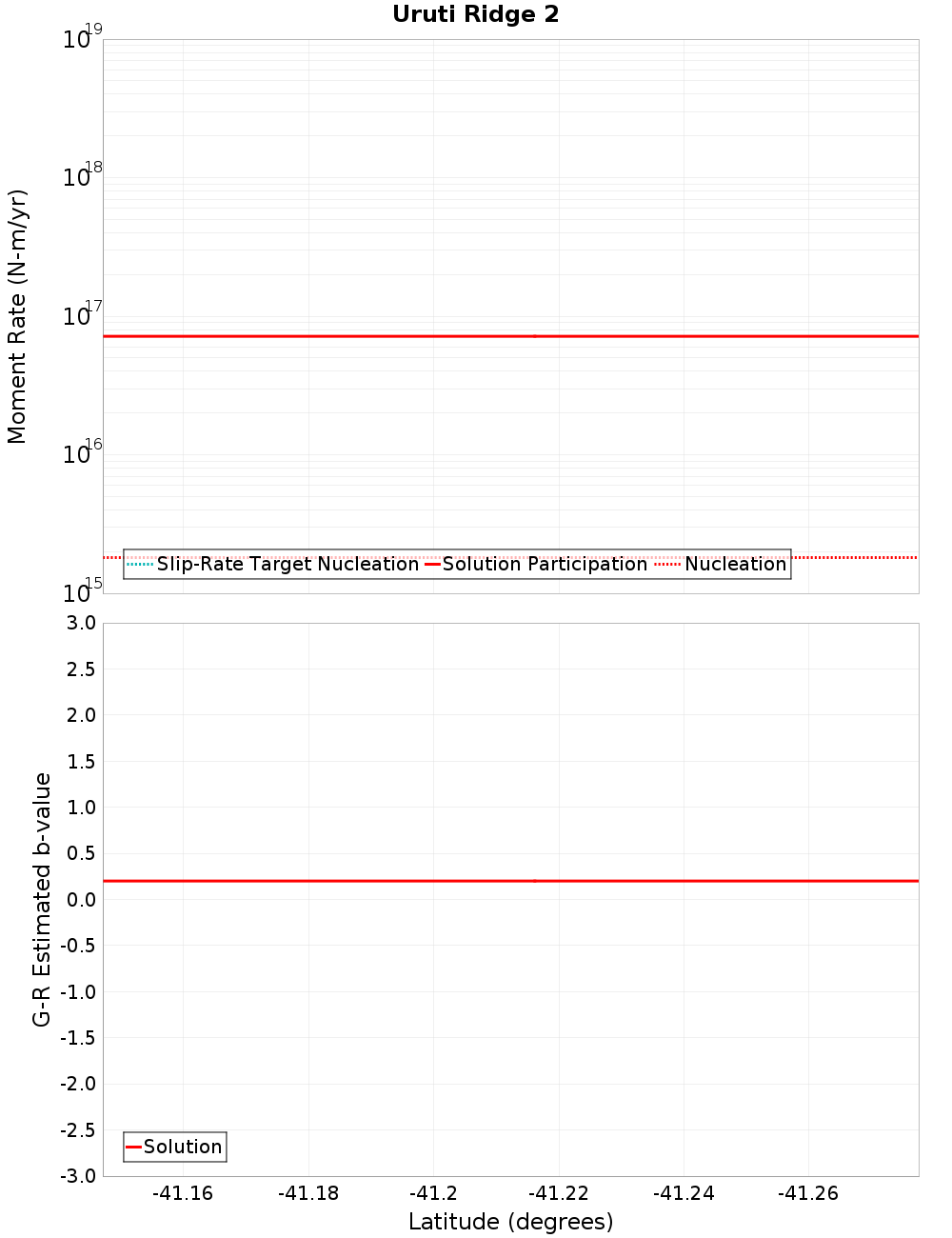

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 0 km away
Porangahau Basin, 0.28 km away
Pukeroro 2, 0.31 km away
Opouawe - Uruti, 2.44 km away
Uruti East - PorWest 1, 2.58 km away
Uruti Basin 2, 2.93 km away
Pukeroro Ridge, 4.47 km away
Aorangi Trough, 7 km away
Uruti North, 8.5 km away
Pahaua, 12.1 km away
Porangahau Ridge, 13.78 km away

Uruti Basin, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	16,843
Co-rupture Rate	1.9078952E-5

Porangahau Basin, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	8,783
Co-rupture Rate	1.825371E-5

Pukeroro 2, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,121
Co-rupture Rate	1.3742185E-5

Opouawe - Uruti, 2.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	20,488
Co-rupture Rate	2.9067063E-5

Uruti East - PorWest 1, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	18,797
Co-rupture Rate	2.5100264E-5

Uruti Basin 2, 2.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukeroro Ridge, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	706
Co-rupture Rate	7.469865E-8

Aorangi Trough, 7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	67
Co-rupture Rate	0.0

Uruti North, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0

Pahaua, 12.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	2,803
Co-rupture Rate	2.039195E-6

Porangahau Ridge, 13.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	4,456
Co-rupture Rate	1.2807424E-5
