Waewaepa Details

Property	Value
Rupture Count	1,633
Ruptures Above Sect Min Mag	1,632
Ruptures w/ Nonzero Rates	285
Magnitude Range	[6.69, 8.41]
Length Range	[16, 763] km
Total Rate	2.1983936E-4 /yr
Multi-Fault Rate	2.1983936E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	65

Table Of Contents

Magnitude-Frequency Distribution

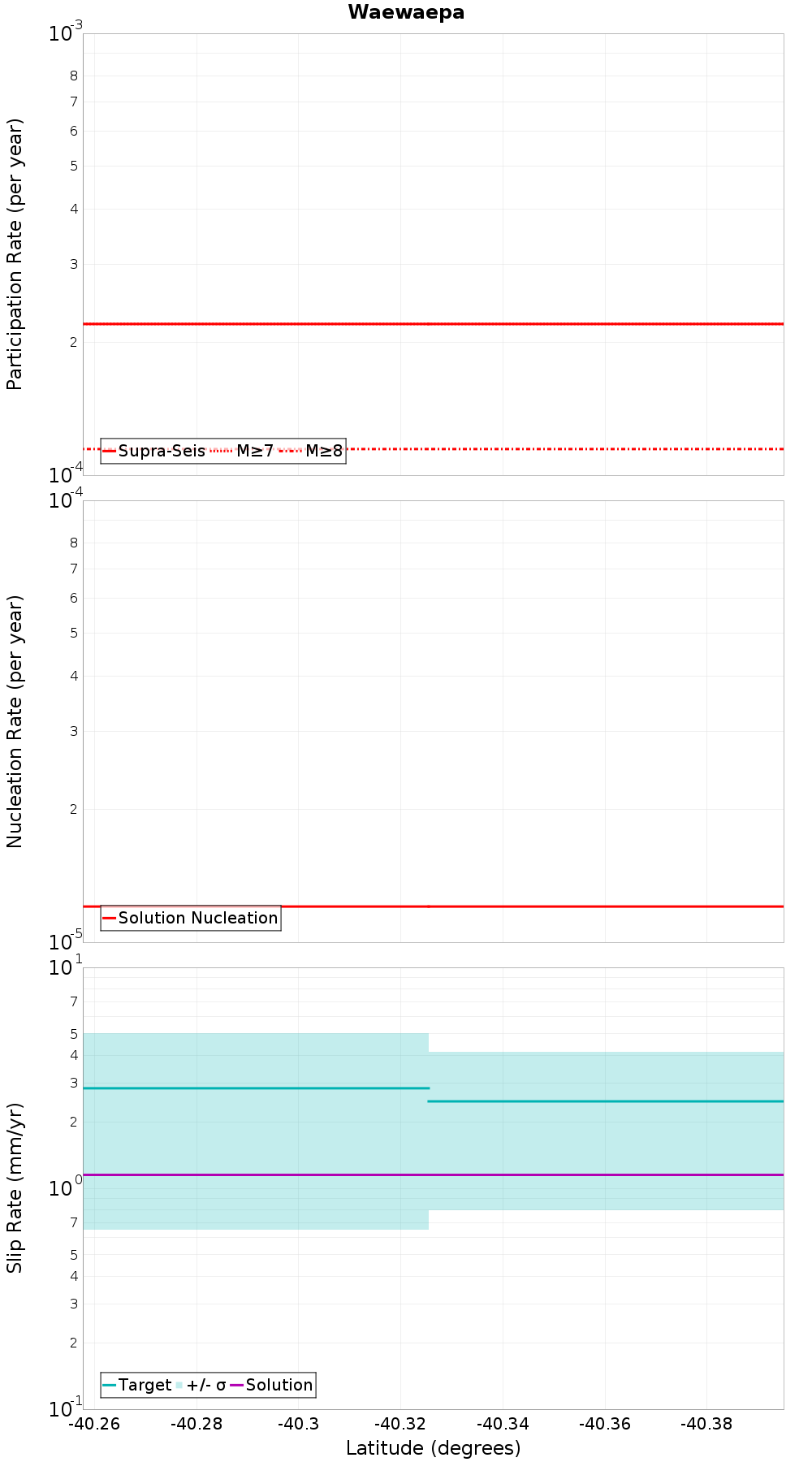

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

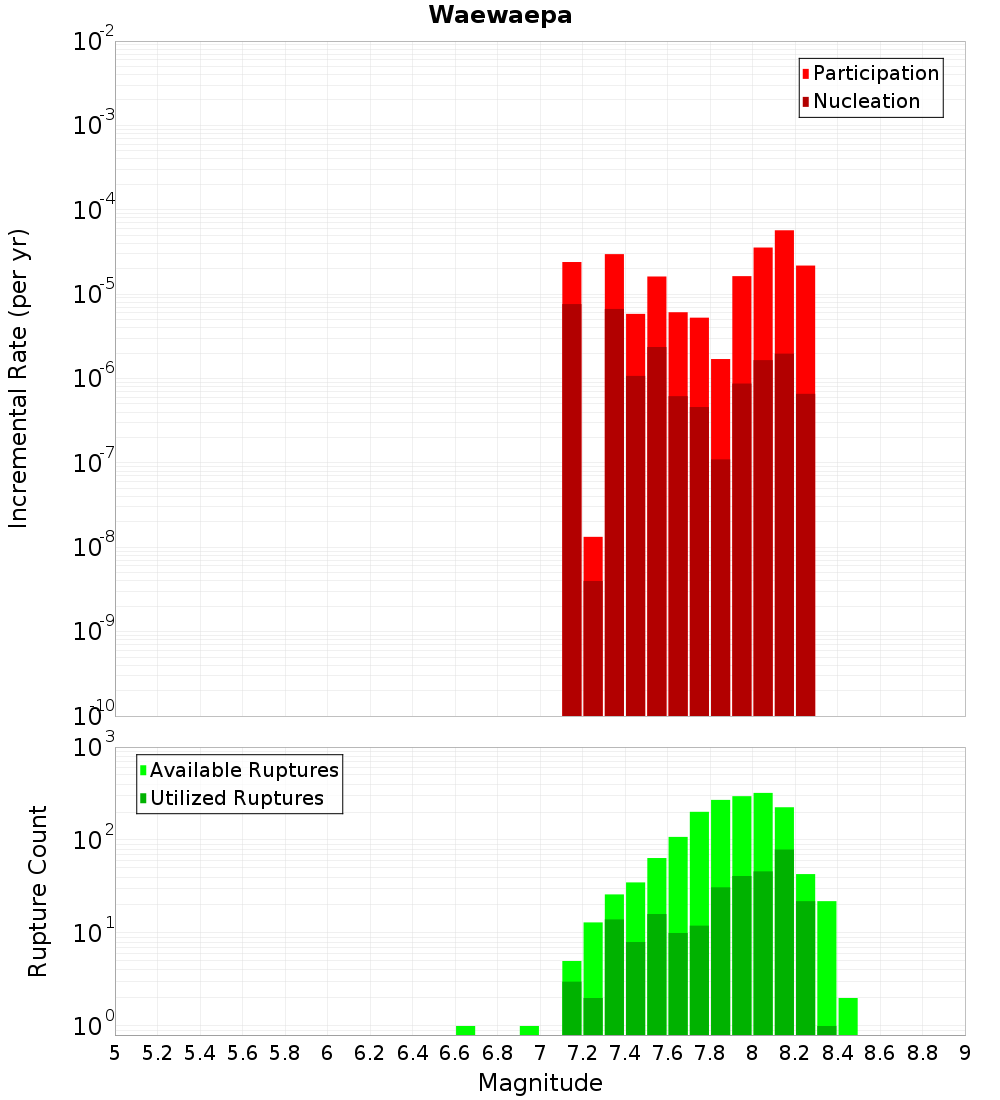

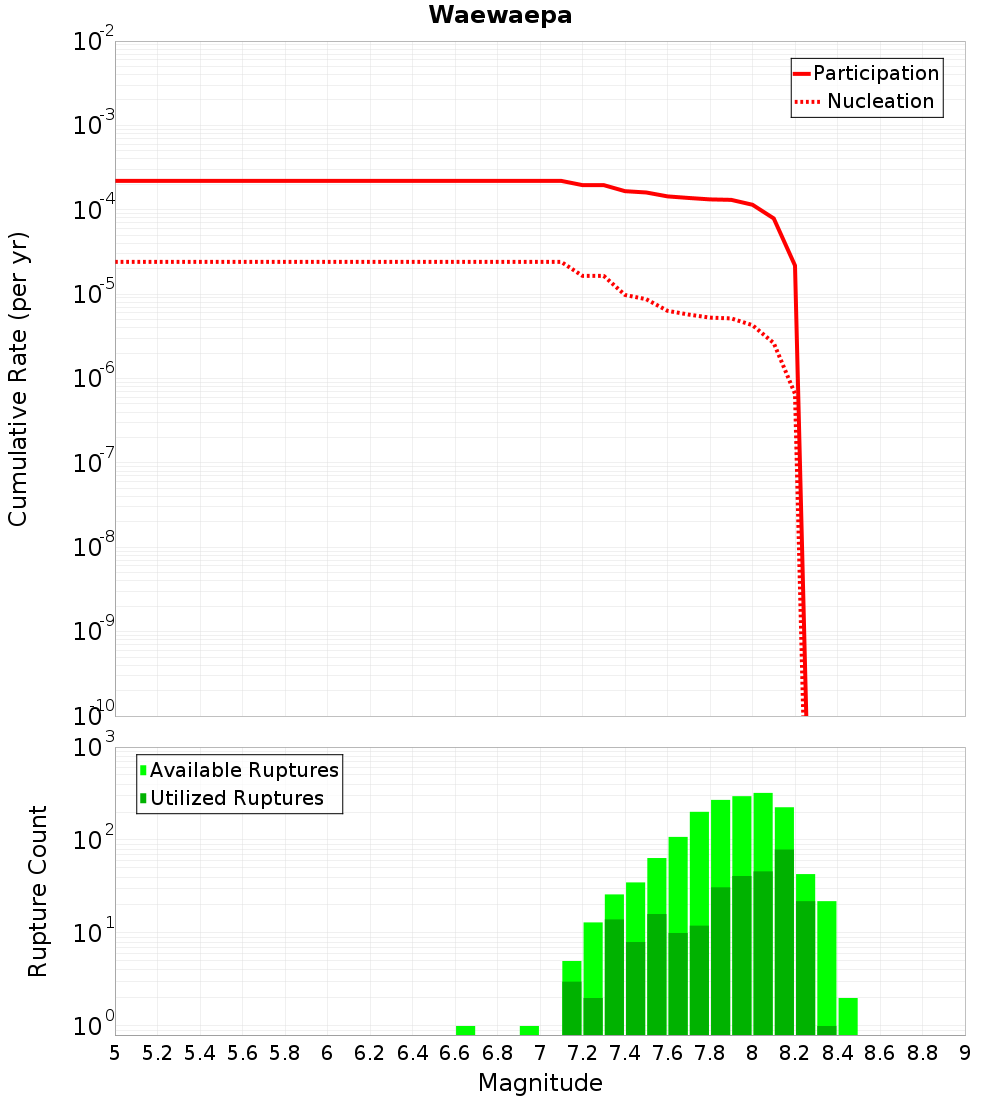

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Makuri - Waewaepa, 0 km away
Clear Hills - Waikopiro, 1.98 km away
Oruawharo - Mangatoro, 3.75 km away
Maunga, 6.07 km away
Waipukaka, 10.92 km away
Pahiatua, 11.54 km away
Saunders Road, 12.74 km away
Woodville, 13.08 km away
Pongaroa - Weber, 13.65 km away
Ruataniwha, 13.99 km away

Makuri - Waewaepa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,594
Co-rupture Rate	1.9403045E-4

Clear Hills - Waikopiro, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oruawharo - Mangatoro, 3.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,120
Co-rupture Rate	1.6506406E-4

Maunga, 6.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 10.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	1.2500259E-6

Pahiatua, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Saunders Road, 12.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	1.2500259E-6

Woodville, 13.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pongaroa - Weber, 13.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 13.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
