Elliott Details

PropertyValue
Rupture Count18,284
Ruptures Above Sect Min Mag18,280
Ruptures w/ Nonzero Rates44
Magnitude Range[6.92, 8.42]
Length Range[24, 849] km
Total Rate9.003623E-4 /yr
Multi-Fault Rate9.003623E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults233

Table Of Contents

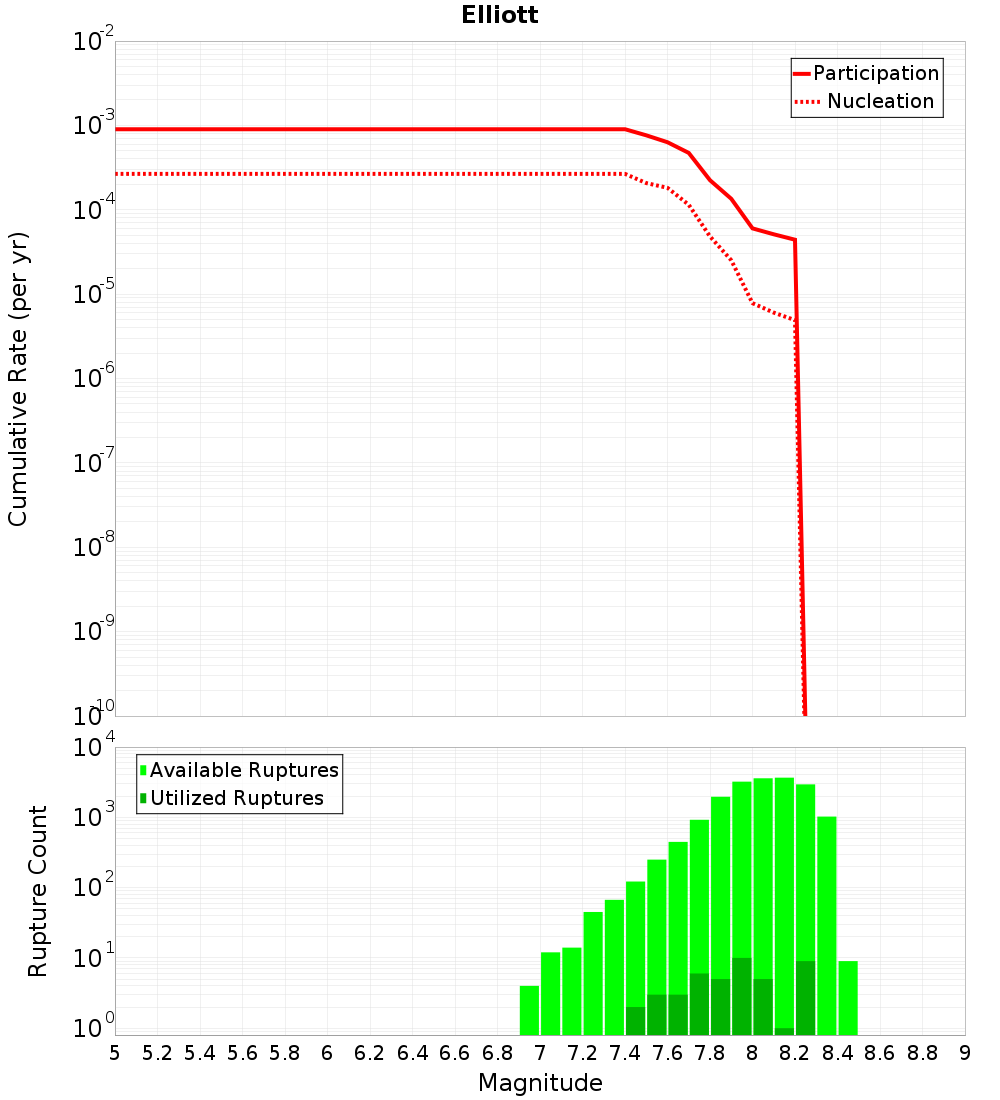

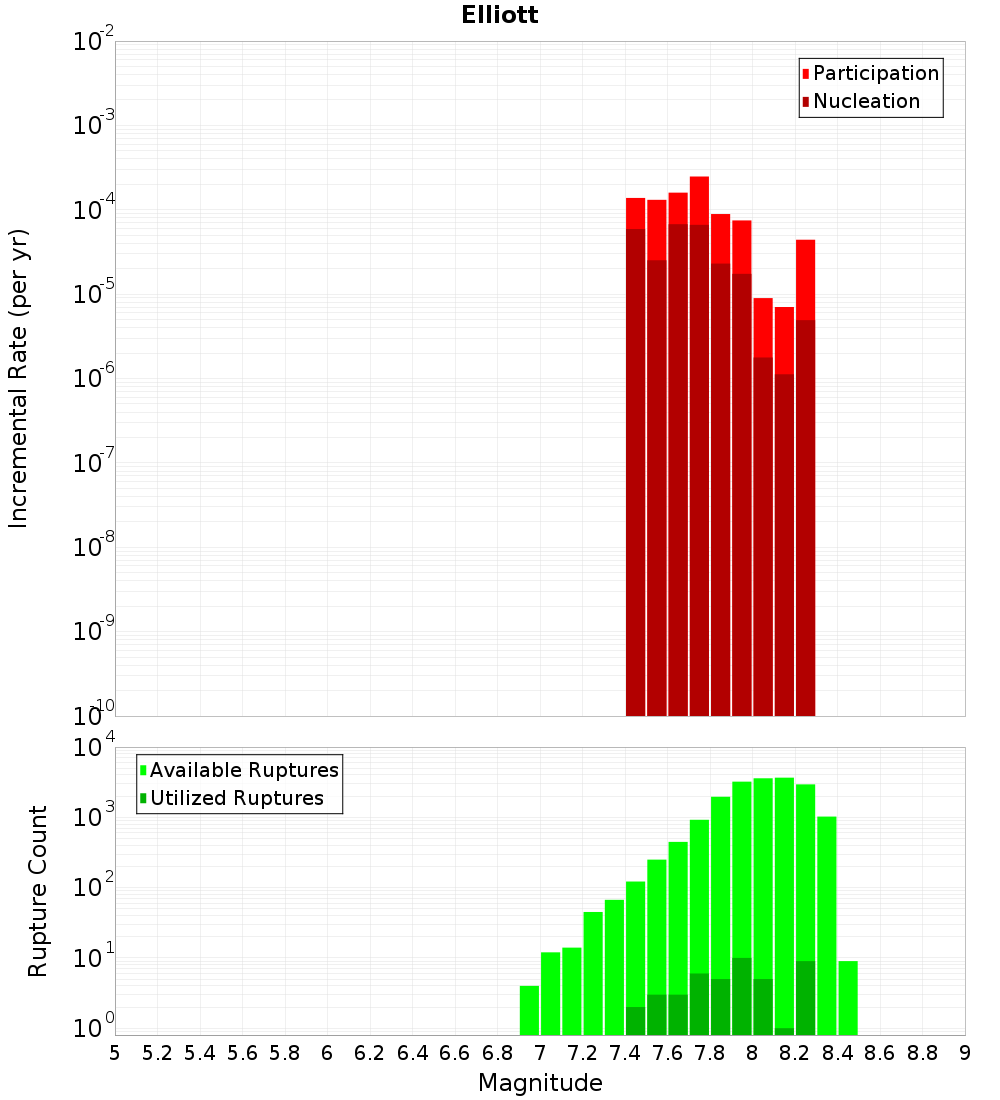

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Clarence: Central, 0 km awayAwatere: Southwest, 10.34 km away
Clarence: Northeast, 0.01 km awayLeader: North, 10.83 km away
Acheron, 0.06 km awayShingle Peak, 10.94 km away
Dillon, 0.15 km awayHope: Conway, 11.08 km away
Clarence: Southwest, 0.33 km awayHanmer, 12.46 km away
Fowlers, 0.4 km awayHope: Hanmer NW, 12.52 km away
Fidget, 3.22 km awayStoneJug, 14.24 km away
Barefell, 8.62 km awayKowhai, 14.44 km away
Awatere: Northeast 1, 9.09 km awayHope: Hamner SE, 14.69 km away
Jordan, 9.95 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?false
Co-rupture Count454
Co-rupture Rate1.4248294E-5

Clarence: Northeast, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count3,107
Co-rupture Rate2.66204E-4

Acheron, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count885
Co-rupture Rate2.1455613E-4

Dillon, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count441
Co-rupture Rate1.1008085E-4

Clarence: Southwest, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count11,825
Co-rupture Rate6.455922E-4

Fowlers, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count1,063
Co-rupture Rate8.973644E-6

Fidget, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count11,412
Co-rupture Rate2.700917E-4

Barefell, 8.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 1, 9.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate0.0

Jordan, 9.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate2.4072385E-4

Awatere: Southwest, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Leader: North, 10.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Shingle Peak, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count786
Co-rupture Rate4.932402E-4

Hanmer, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?false
Co-rupture Count242
Co-rupture Rate3.5516085E-4

Hope: Hanmer NW, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?false
Co-rupture Count419
Co-rupture Rate0.0

StoneJug, 14.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?true
Co-rupture Count265
Co-rupture Rate0.0

Kowhai, 14.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate1.2675981E-4

Hope: Hamner SE, 14.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODEuMGc2ZlhH
Connected?true
Directly Connected?false
Co-rupture Count436
Co-rupture Rate0.0
