Braemar Details

PropertyValue
Rupture Count3,361
Ruptures Above Sect Min Mag3,352
Ruptures w/ Nonzero Rates232
Magnitude Range[6.69, 8.42]
Length Range[14, 574] km
Total Rate0.0011729233 /yr
Multi-Fault Rate0.0011729233 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults72

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

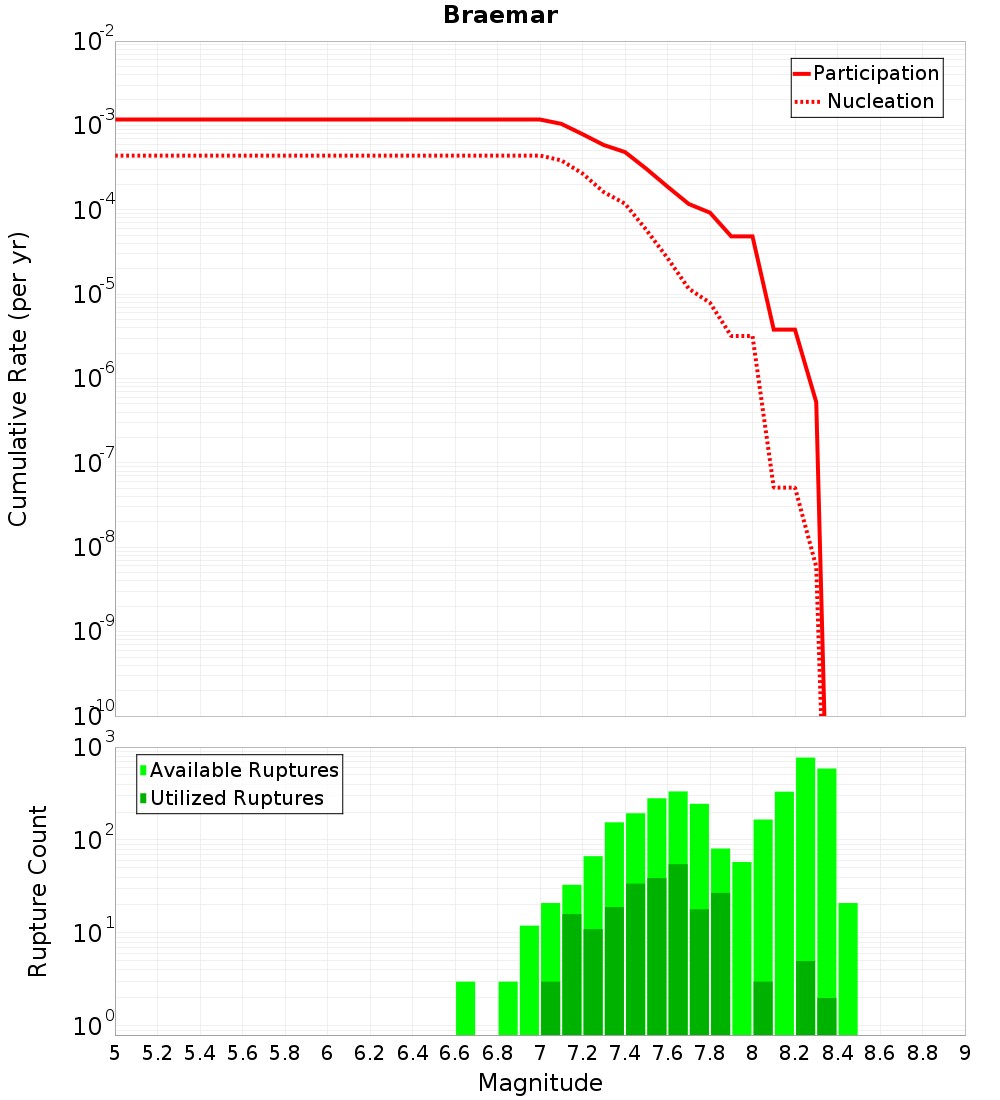

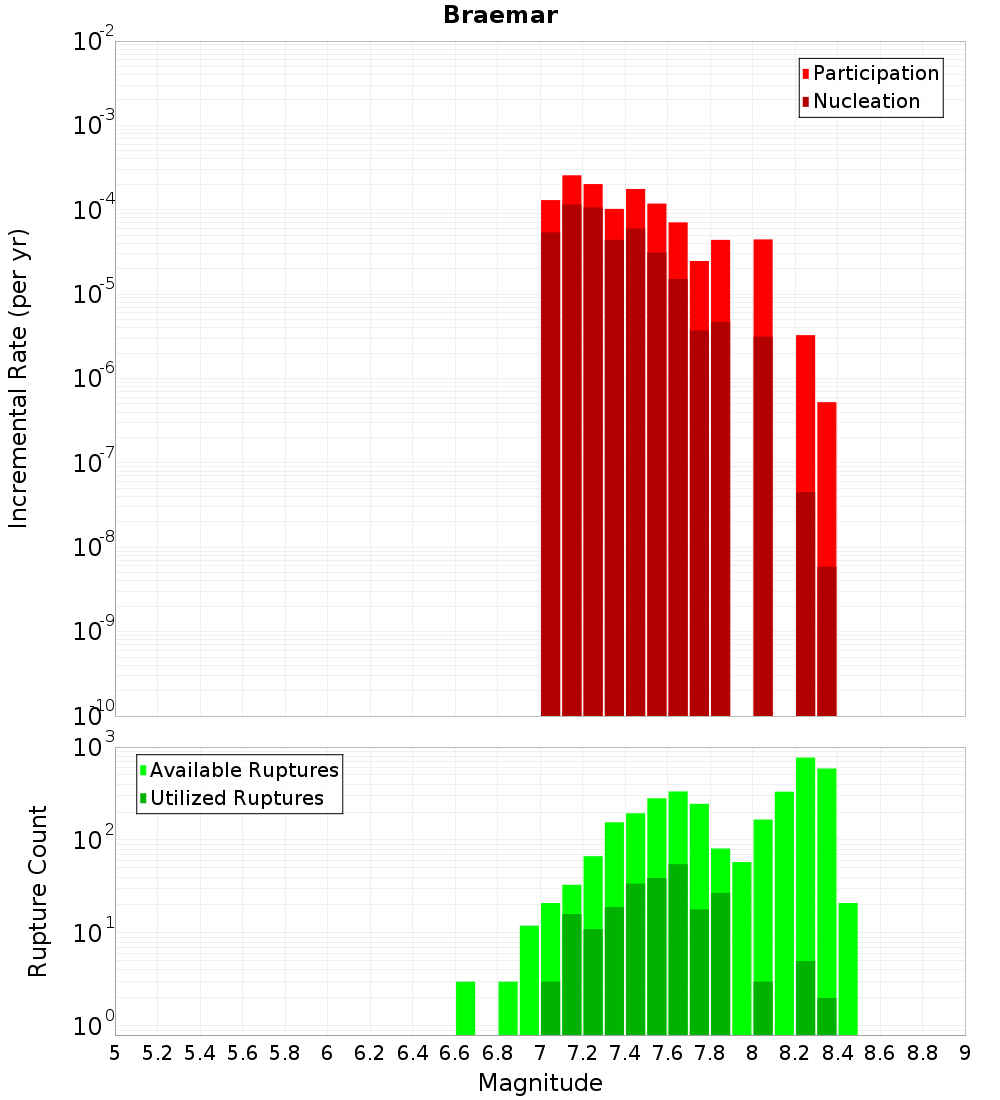

Incremental PlotCumulative Plot

Along-Strike Values

(top)

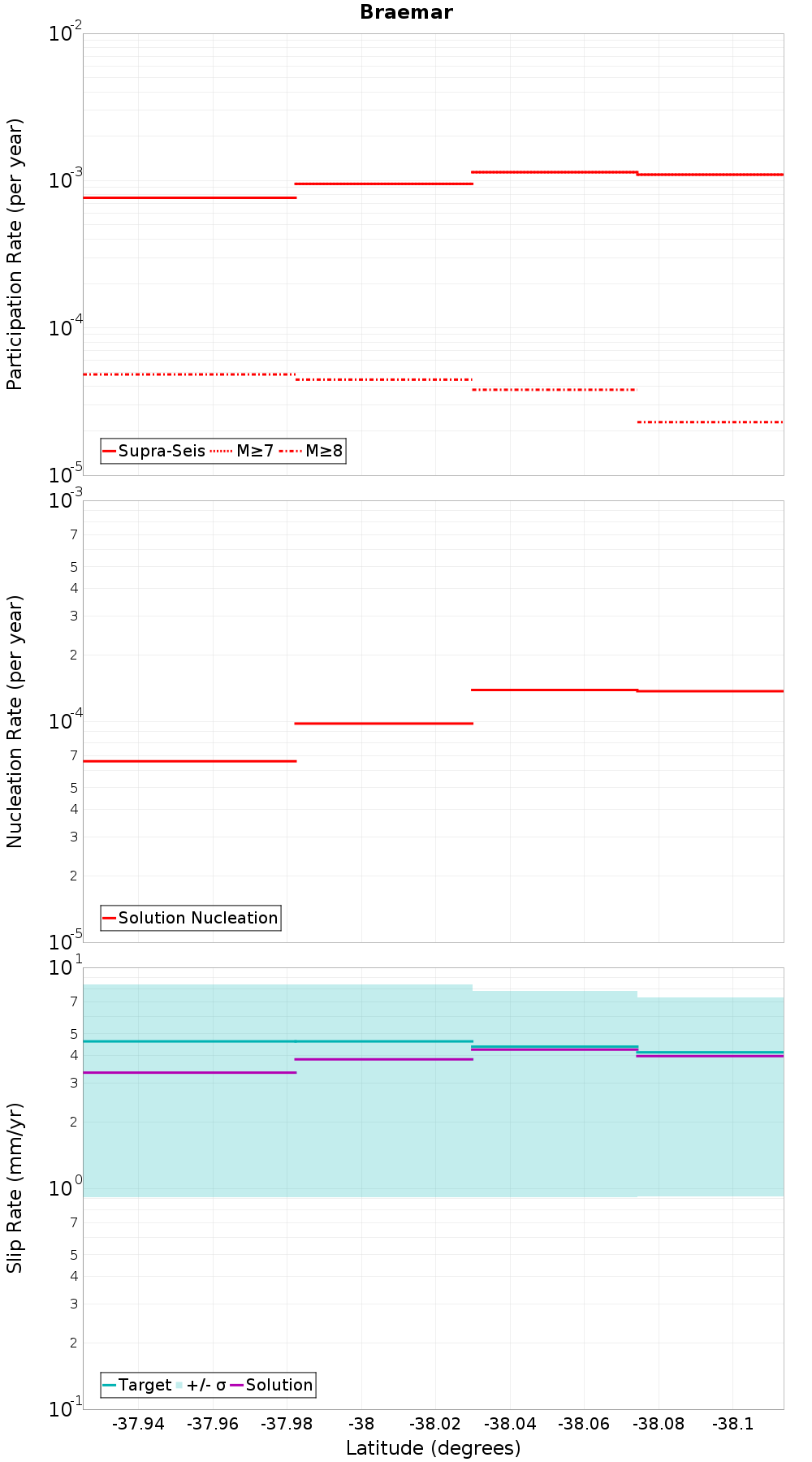

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiohau: North, 0.3 km away
Otakiri, 0.31 km away
Edgecumbe 1987, 0.35 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.71 km away
Whakatane: North, 6.06 km away
Keepa, 10.8 km away
White Island 1, 11.34 km away
EarthquakeFlat - Tumunui, 12.78 km away

Waiohau: North, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,126
Co-rupture Rate0.0

Otakiri, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count942
Co-rupture Rate1.07157946E-4

Edgecumbe 1987, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count378
Co-rupture Rate6.683518E-5

Matata, 0.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,222
Co-rupture Rate4.951213E-4

Edgecumbe Coastal, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count578
Co-rupture Rate1.8089057E-4

Whakatane: North, 6.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate1.4580122E-5

Keepa, 10.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count601
Co-rupture Rate6.1268724E-6

White Island 1, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count1,924
Co-rupture Rate3.797097E-4

EarthquakeFlat - Tumunui, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count427
Co-rupture Rate0.0010209131
