Campbell Hills Details
| Property | Value |
|---|---|
| Rupture Count | 1,520 |
| Ruptures Above Sect Min Mag | 1,519 |
| Ruptures w/ Nonzero Rates | 50 |
| Magnitude Range | [7.02, 8.27] |
| Length Range | [20, 356] km |
| Total Rate | 7.754959E-5 /yr |
| Multi-Fault Rate | 7.754959E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 37 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

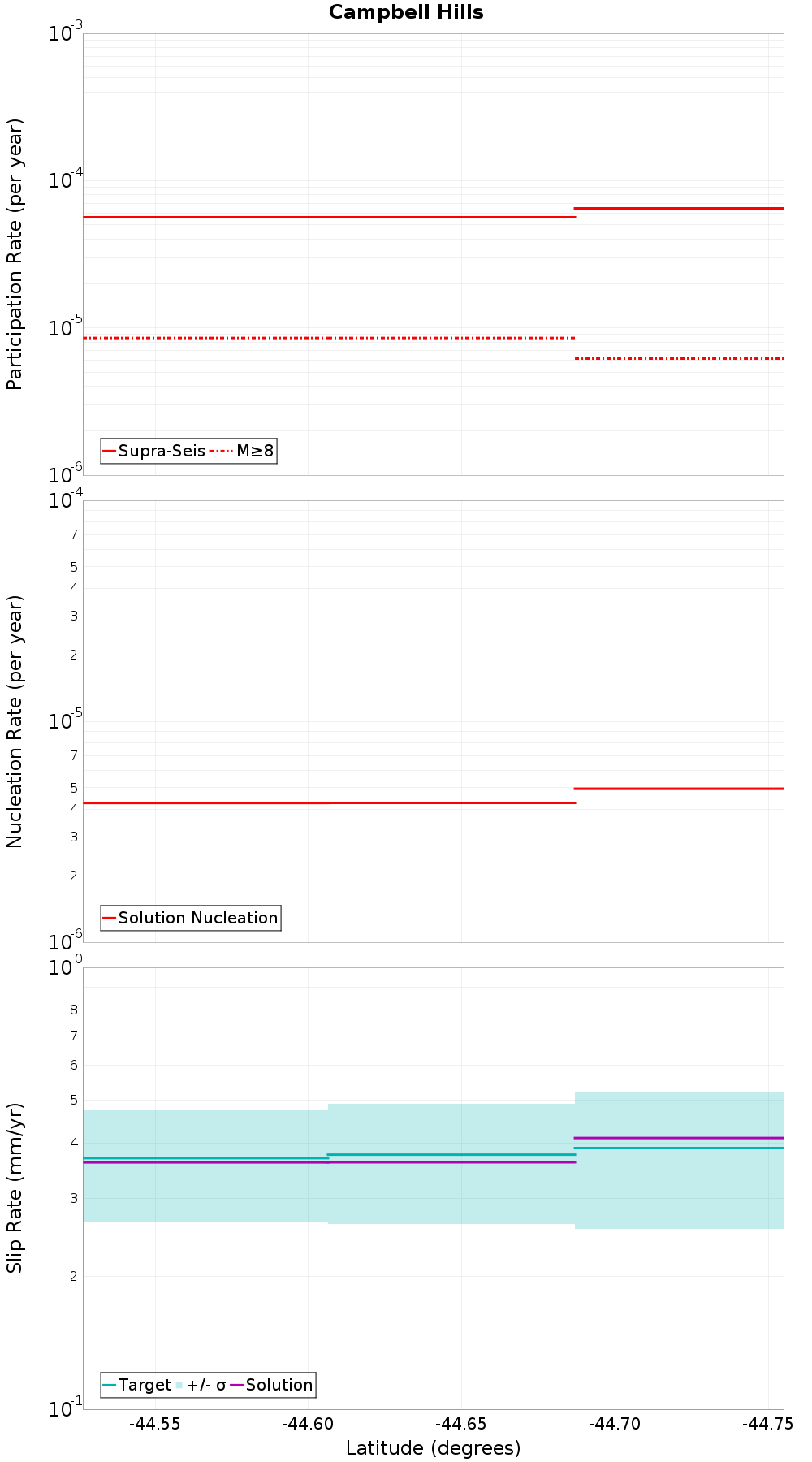

Along-Strike Values
Moment-Rates and b-Values

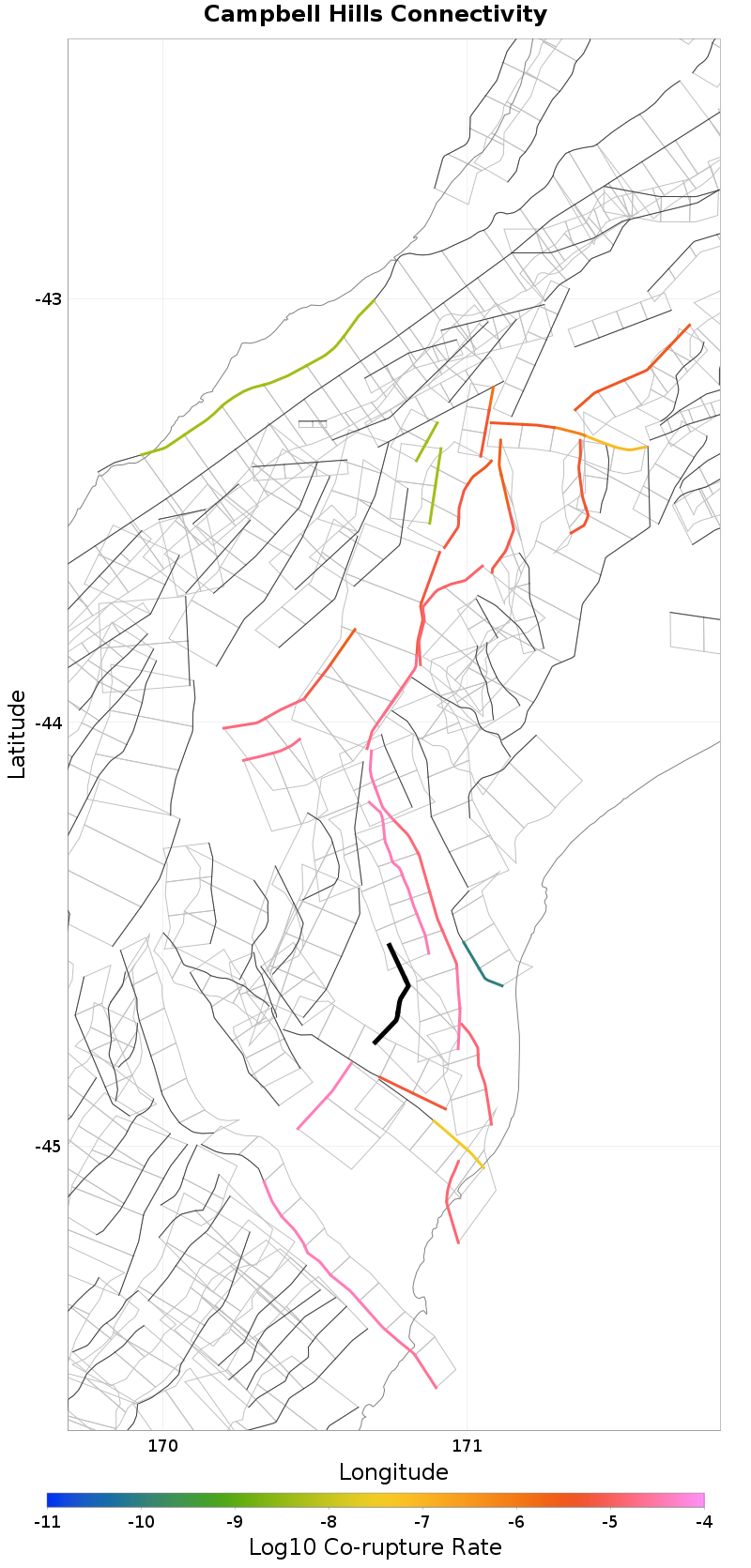

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hunters, 0.1 km away |
| Stonewall, 0.11 km away |
| Waimate, 0.29 km away |
| Chamberlain, 1.74 km away |
| Black Hill, 5.76 km away |
| Waitaki, 8.2 km away |
| Kirkliston, 10.34 km away |
Hunters, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 856 |
| Co-rupture Rate | 3.0446565E-5 |
Stonewall, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39 |
| Co-rupture Rate | 5.7853017E-6 |
Waimate, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 220 |
| Co-rupture Rate | 1.4228508E-5 |
Chamberlain, 1.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,027 |
| Co-rupture Rate | 3.8039427E-5 |
Black Hill, 5.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 233 |
| Co-rupture Rate | 4.1331776E-5 |
Waitaki, 8.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 3.2272922E-8 |
Kirkliston, 10.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
