Esk North Details

PropertyValue
Rupture Count7,478
Ruptures Above Sect Min Mag7,476
Ruptures w/ Nonzero Rates47
Magnitude Range[7.10, 8.50]
Length Range[23, 704] km
Total Rate1.2496441E-4 /yr
Multi-Fault Rate1.2496441E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults133

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

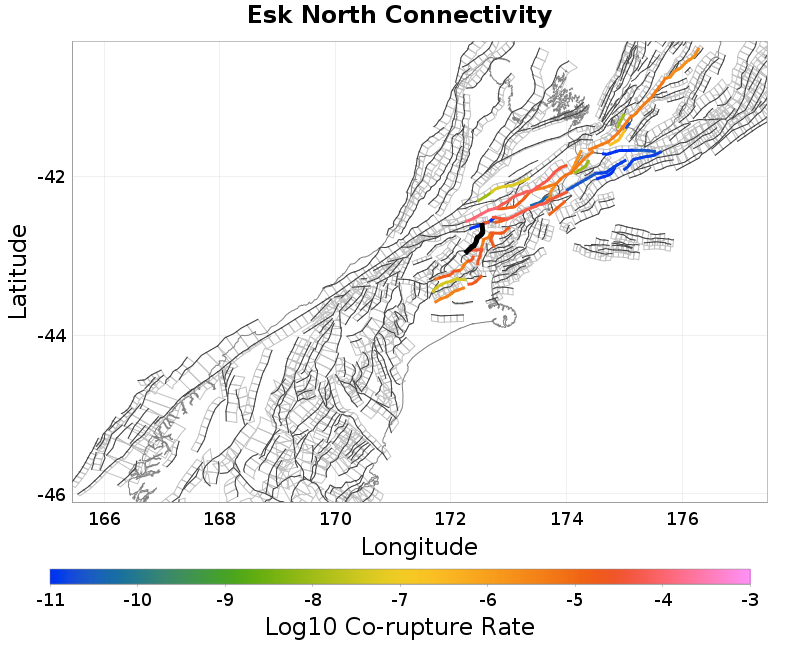

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Kakapo, 0.2 km awayHope: Hamner SW, 9.8 km away
Hope: Hope River, 0.87 km awayHope: Hanmer NW, 9.97 km away
Esk South, 1.09 km awayMt White, 10.75 km away
Pancake, 1.2 km awayLees Valley, 11.43 km away
Virginia, 2.16 km awayMt Culverden, 12.11 km away
Hurunui Peak, 3.73 km awayBalmoral, 13.58 km away
Hope: Kakapo-2-Hamner, 4.29 km awayAlpine: Kaniere to Springs Junction, 14.61 km away
Clarence: Southwest, 8.47 km awayAlpine: Springs Junction to Tophouse, 14.63 km away
Mt Arden, 9.02 km awayDoctors, 14.67 km away
Poulter, 9.41 km away

Kakapo, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count2,561
Co-rupture Rate1.0578227E-11

Hope: Hope River, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,939
Co-rupture Rate0.0

Esk South, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 2.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,482
Co-rupture Rate3.44832E-5

Hurunui Peak, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate5.338775E-6

Hope: Kakapo-2-Hamner, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count3,098
Co-rupture Rate2.4728784E-5

Clarence: Southwest, 8.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count2,363
Co-rupture Rate1.1014372E-4

Mt Arden, 9.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count4,917
Co-rupture Rate2.7930233E-5

Poulter, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SW, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count63
Co-rupture Rate0.0

Hope: Hanmer NW, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count1,023
Co-rupture Rate1.0578227E-11

Mt White, 10.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count4,740
Co-rupture Rate4.149175E-5

Mt Culverden, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate1.8166238E-5

Balmoral, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate1.8166238E-5

Alpine: Kaniere to Springs Junction, 14.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Alpine: Springs Junction to Tophouse, 14.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0
