Fisherman 2 Details

PropertyValue
Rupture Count424
Ruptures Above Sect Min Mag423
Ruptures w/ Nonzero Rates8
Magnitude Range[7.04, 8.09]
Length Range[22, 218] km
Total Rate2.867058E-5 /yr
Multi-Fault Rate2.5262912E-5 /yr (88.11%)
Directly-Connected Faults3
All Co-Rupturing Faults23

Table Of Contents

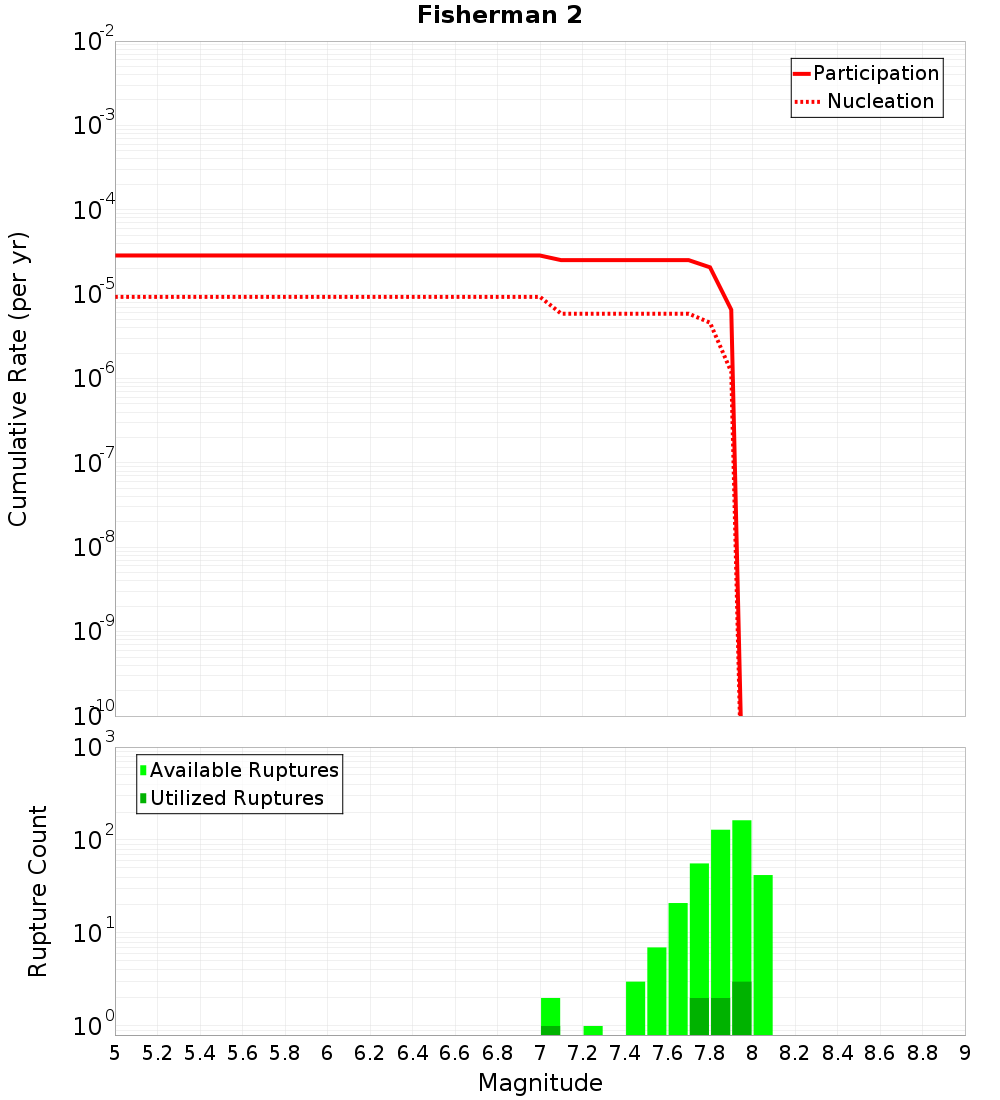

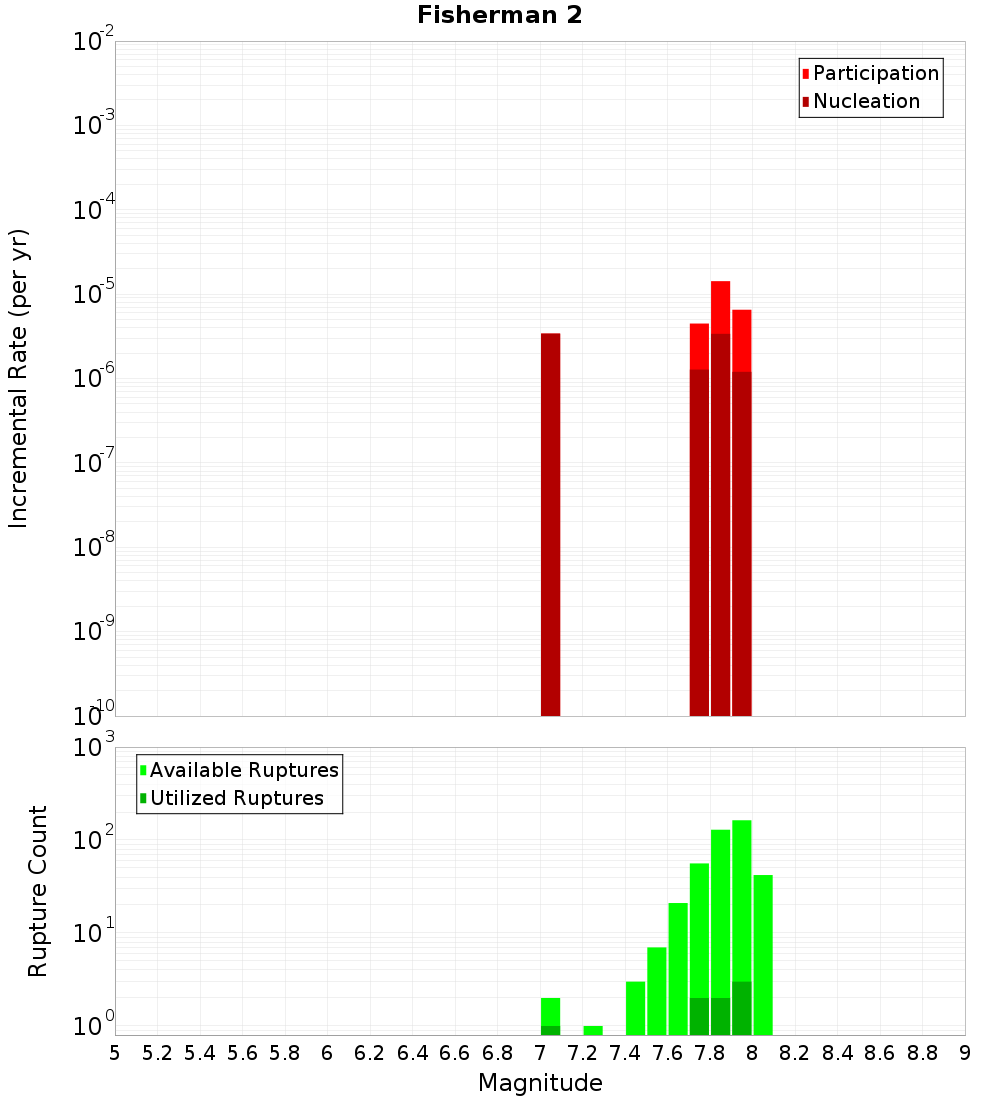

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fisherman 1, 0 km away
Okupe 1, 1.12 km away
Fisherman 3, 1.22 km away
Onepoto, 2.11 km away
Otaheke North, 2.94 km away
Mascarin, 6.96 km away
Otaheke South, 7.88 km away
Poroutawhao, 12.34 km away

Fisherman 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate0.0

Okupe 1, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count399
Co-rupture Rate0.0

Fisherman 3, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate0.0

Onepoto, 2.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count239
Co-rupture Rate2.2876144E-5

Otaheke North, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count205
Co-rupture Rate2.3867692E-6

Mascarin, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate1.66431E-5

Otaheke South, 7.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate0.0

Poroutawhao, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0
