Garvie Details

PropertyValue
Rupture Count3,323
Ruptures Above Sect Min Mag3,322
Ruptures w/ Nonzero Rates40
Magnitude Range[7.47, 8.40]
Length Range[37, 461] km
Total Rate5.7754158E-5 /yr
Multi-Fault Rate5.7754158E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults49

Table Of Contents

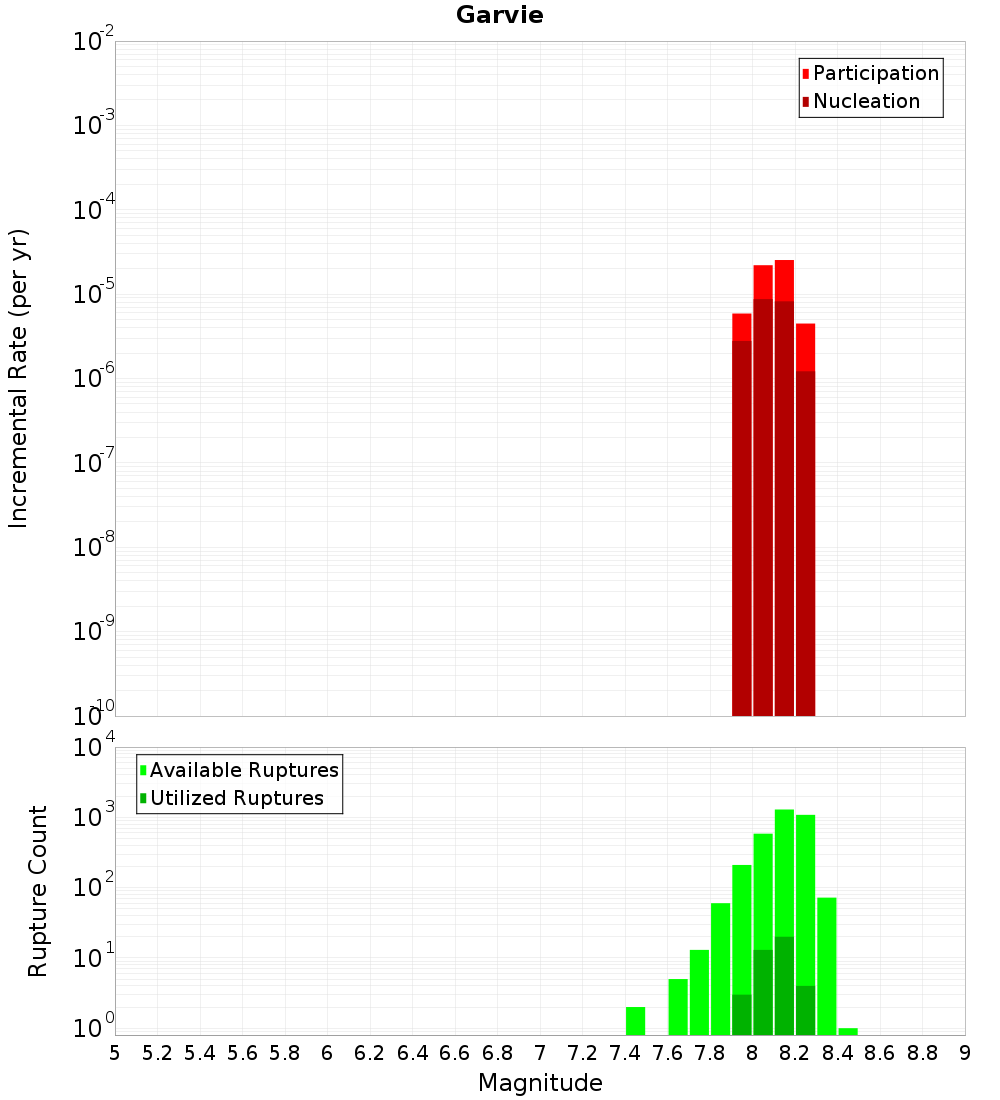

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

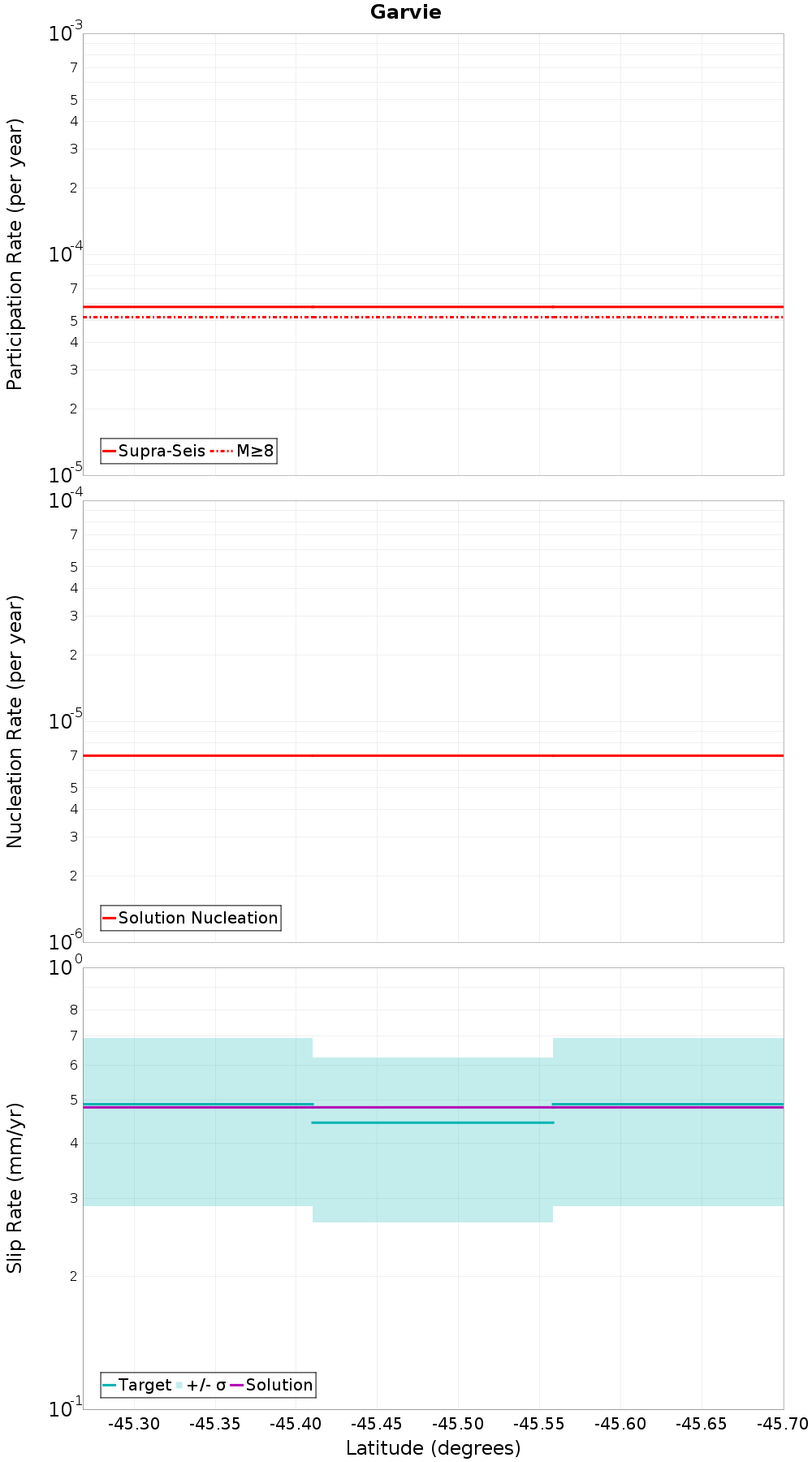

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Old Man, 0.26 km away
Teviot, 0.32 km away
Waikaia, 1.79 km away
Waikaka, 2.18 km away
Roaring Lion, 2.75 km away
Galloway Shanty, 3.61 km away
Nevis, 6.28 km away
Wendon Valley, 6.3 km away
Lake Onslow, 8.15 km away
Pisa, 9.29 km away
Galloway, 9.45 km away
Mid Dome, 11.17 km away
Dunstan, 13 km away
Roaring Meg, 14.32 km away

Old Man, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count405
Co-rupture Rate0.0

Teviot, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate0.0

Waikaia, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,431
Co-rupture Rate1.5419655E-5

Waikaka, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,325
Co-rupture Rate4.23345E-5

Roaring Lion, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,399
Co-rupture Rate0.0

Galloway Shanty, 3.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,434
Co-rupture Rate5.7754158E-5

Nevis, 6.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wendon Valley, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate0.0

Lake Onslow, 8.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pisa, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count1,529
Co-rupture Rate0.0

Galloway, 9.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count345
Co-rupture Rate0.0

Mid Dome, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count136
Co-rupture Rate0.0

Roaring Meg, 14.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count1,499
Co-rupture Rate4.7200465E-5
