Omarama Saddle Details

PropertyValue
Rupture Count3,444
Ruptures Above Sect Min Mag3,441
Ruptures w/ Nonzero Rates49
Magnitude Range[6.92, 8.47]
Length Range[18, 608] km
Total Rate2.2617503E-4 /yr
Multi-Fault Rate2.2617503E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults82

Table Of Contents

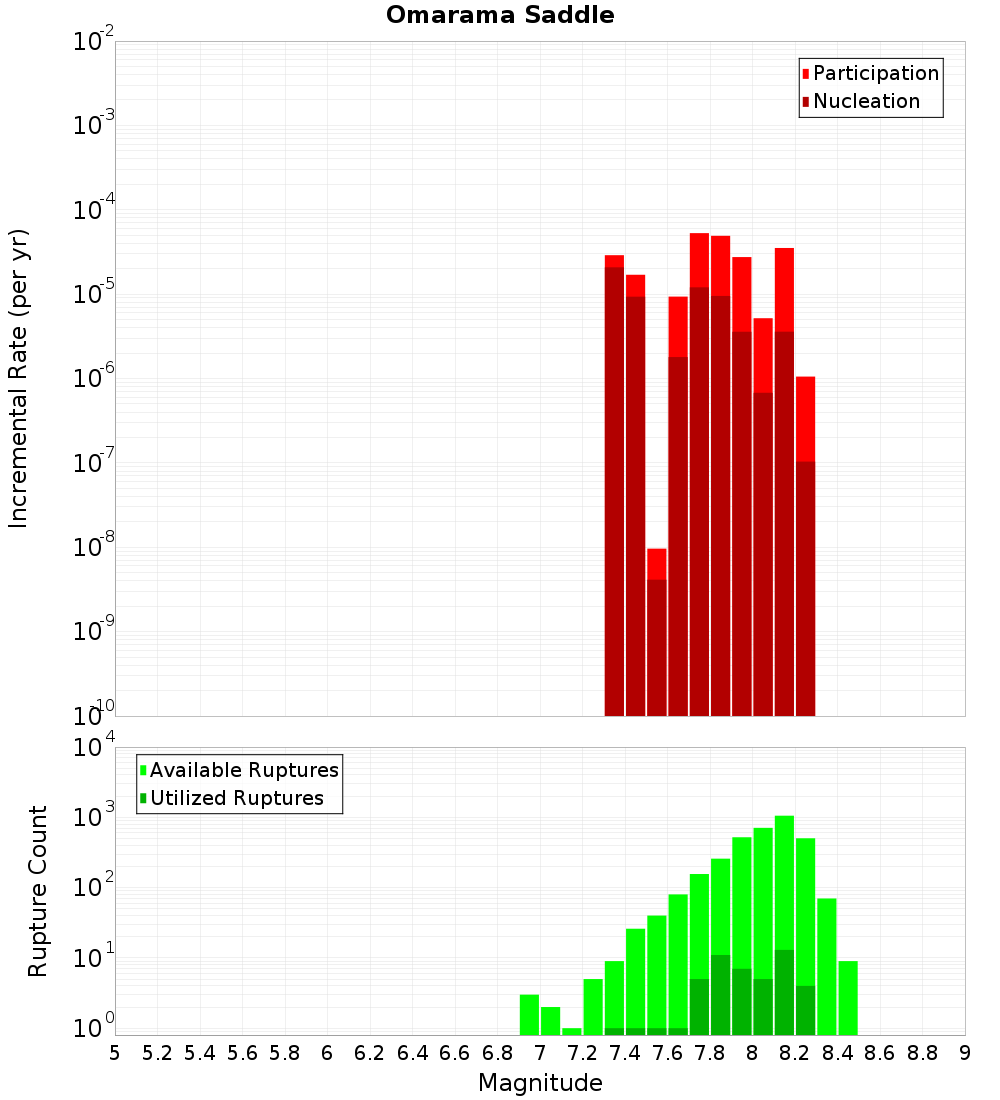

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

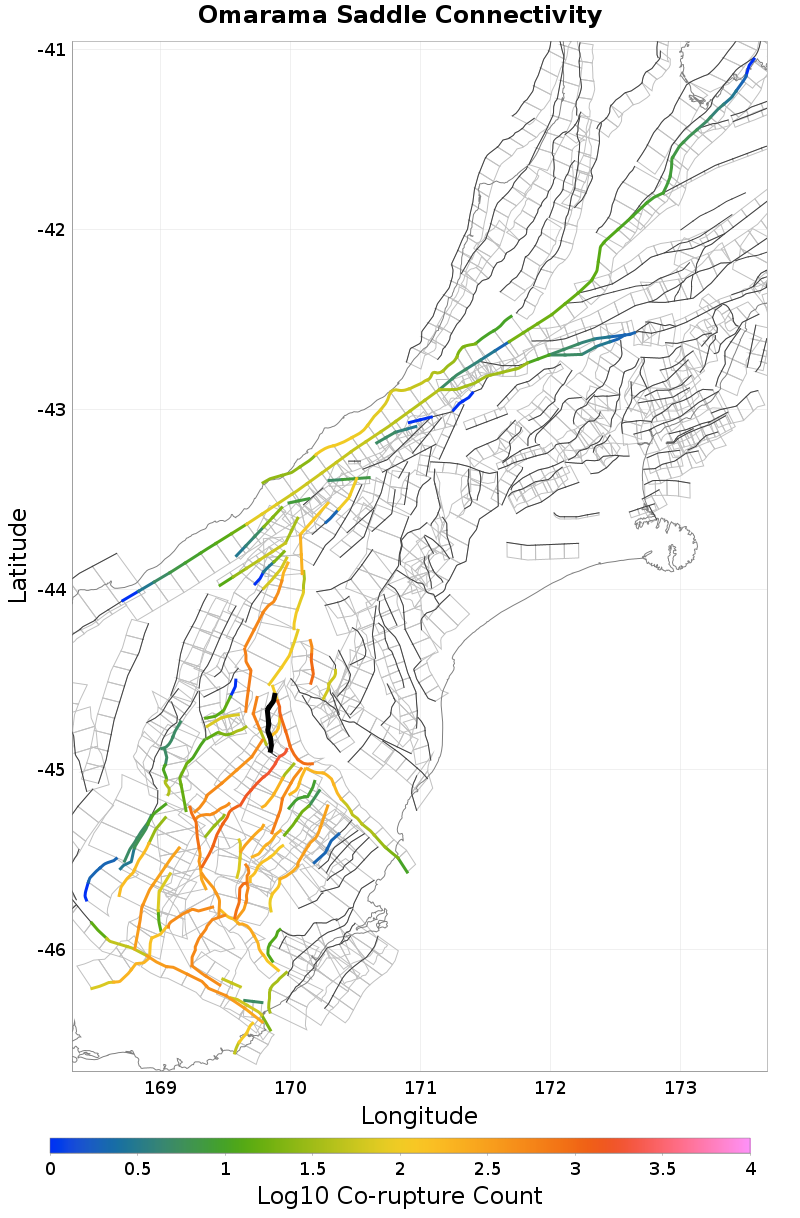

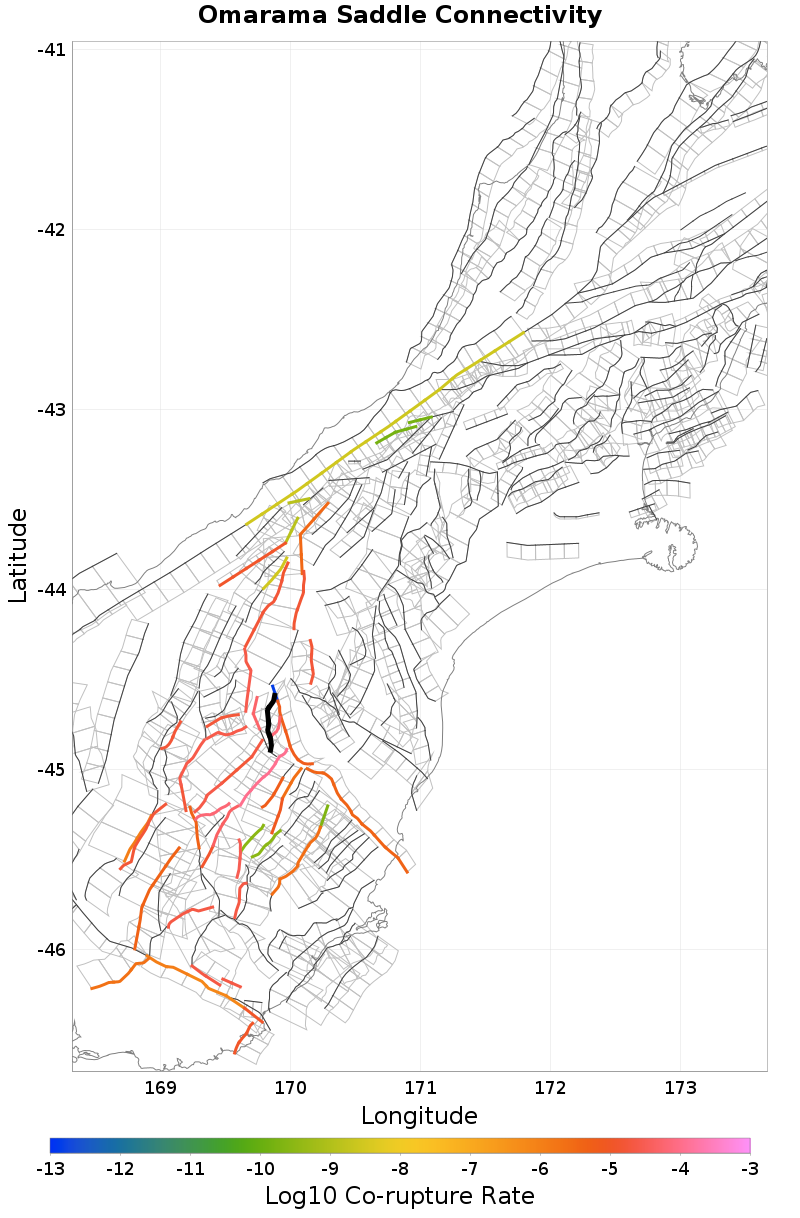

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawkdun, 0.13 km away
Rocks Creek, 0.16 km away
Raggedy - Blackstone, 0.27 km away
Blue Lake, 1.09 km away
Fern Gully, 2.14 km away
Falstone, 4.56 km away
Dunstan, 5.06 km away
Gibson, 6.24 km away
Garibaldi, 7.2 km away
Ostler South, 7.29 km away
Gimmerburn, 11.84 km away
Dromedary, 13.1 km away
Cluden, 13.48 km away

Hawkdun, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,135
Co-rupture Rate6.49901E-6

Rocks Creek, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count158
Co-rupture Rate6.730061E-5

Raggedy - Blackstone, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count1,818
Co-rupture Rate1.1203087E-4

Blue Lake, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count640
Co-rupture Rate4.95301E-5

Fern Gully, 2.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count952
Co-rupture Rate1.7051192E-5

Dunstan, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count696
Co-rupture Rate2.8730143E-5

Gibson, 6.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate0.0

Garibaldi, 7.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count207
Co-rupture Rate5.862968E-6

Ostler South, 7.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count107
Co-rupture Rate0.0

Gimmerburn, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count677
Co-rupture Rate8.10943E-6

Dromedary, 13.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?false
Co-rupture Count704
Co-rupture Rate2.7705108E-5

Cluden, 13.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate2.6041462E-5
