Spylaw Details

Property	Value
Rupture Count	3,529
Ruptures Above Sect Min Mag	3,529
Ruptures w/ Nonzero Rates	15
Magnitude Range	[7.40, 8.48]
Length Range	[31, 525] km
Total Rate	6.831624E-5 /yr
Multi-Fault Rate	6.831624E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	77

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

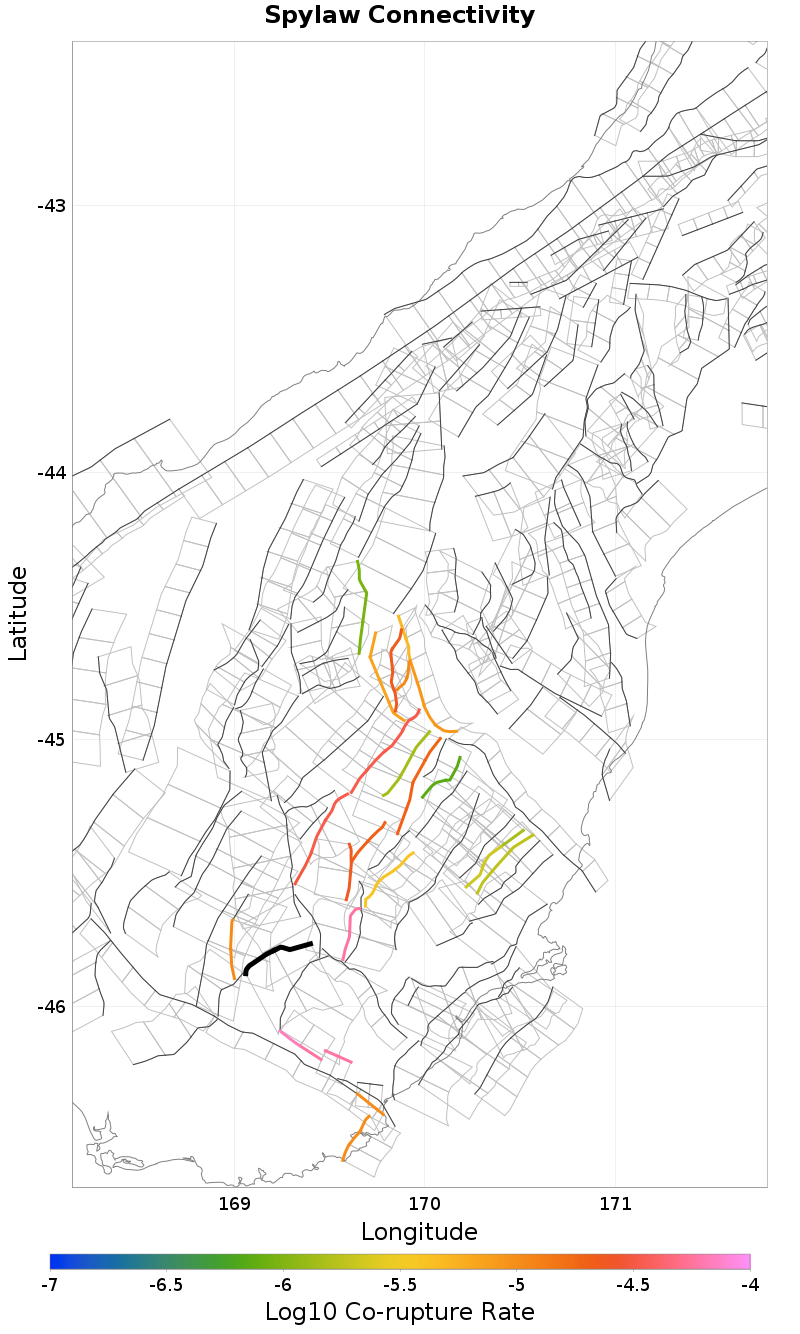

Connectivity
- Nearby Sections

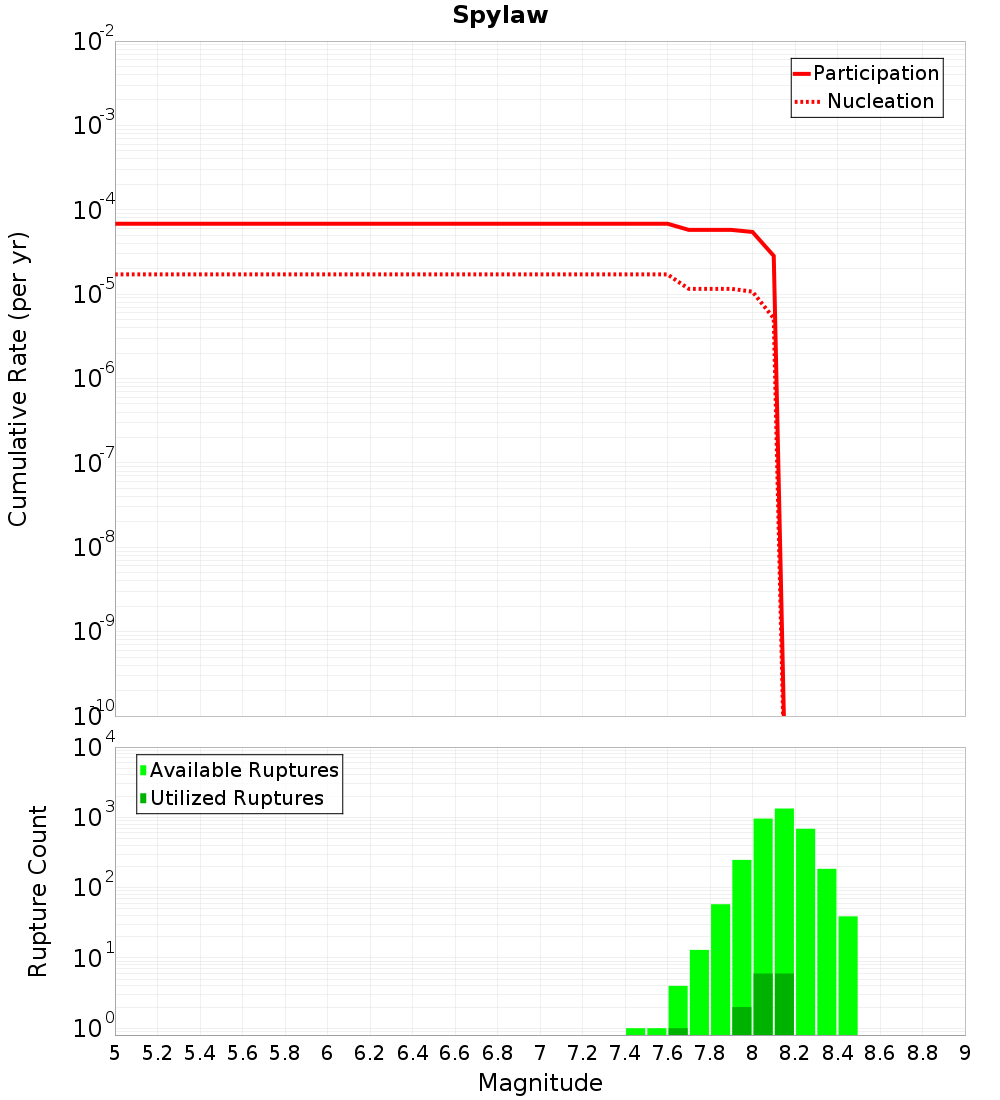

Magnitude-Frequency Distribution

Incremental	Cumulative

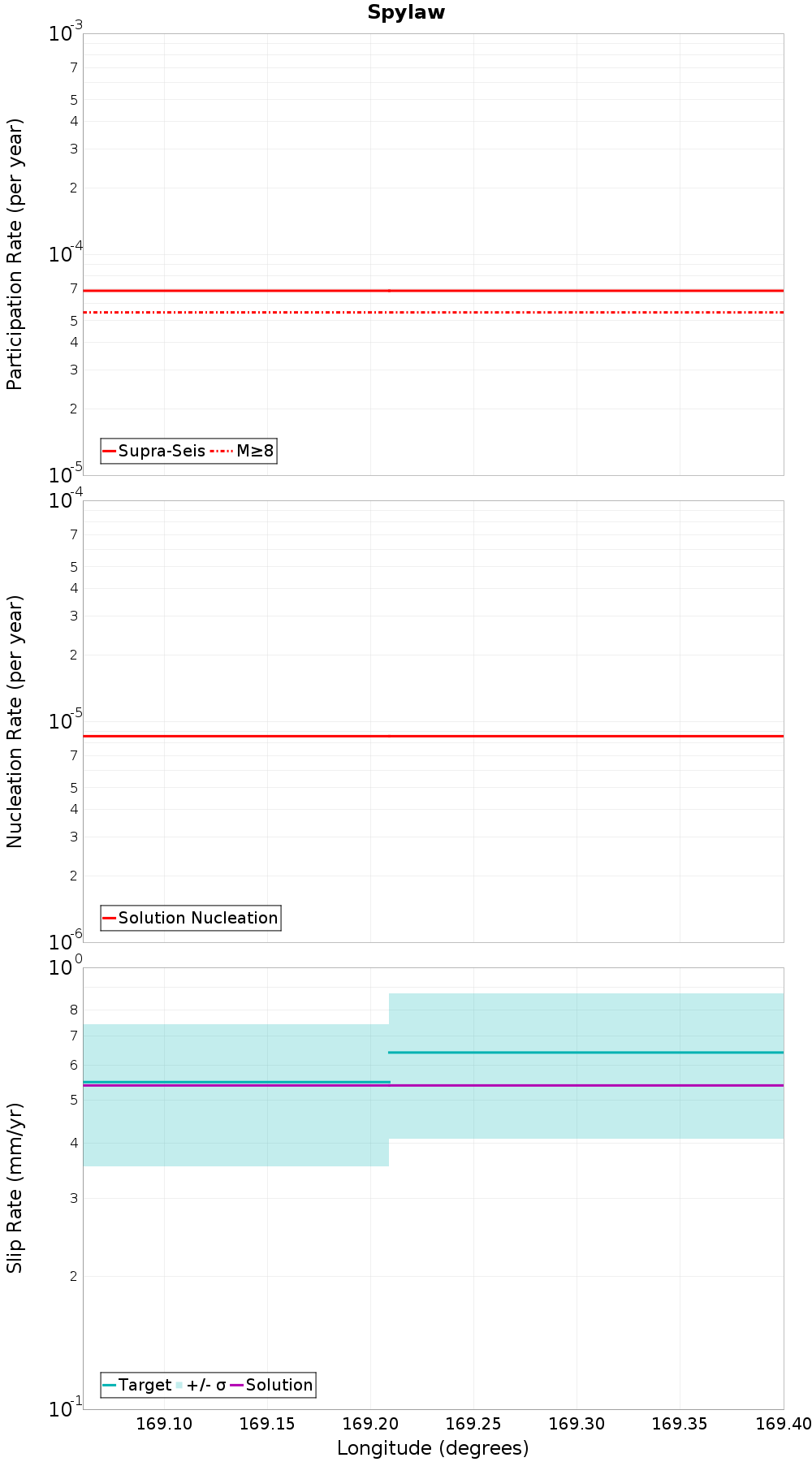

Along-Strike Values

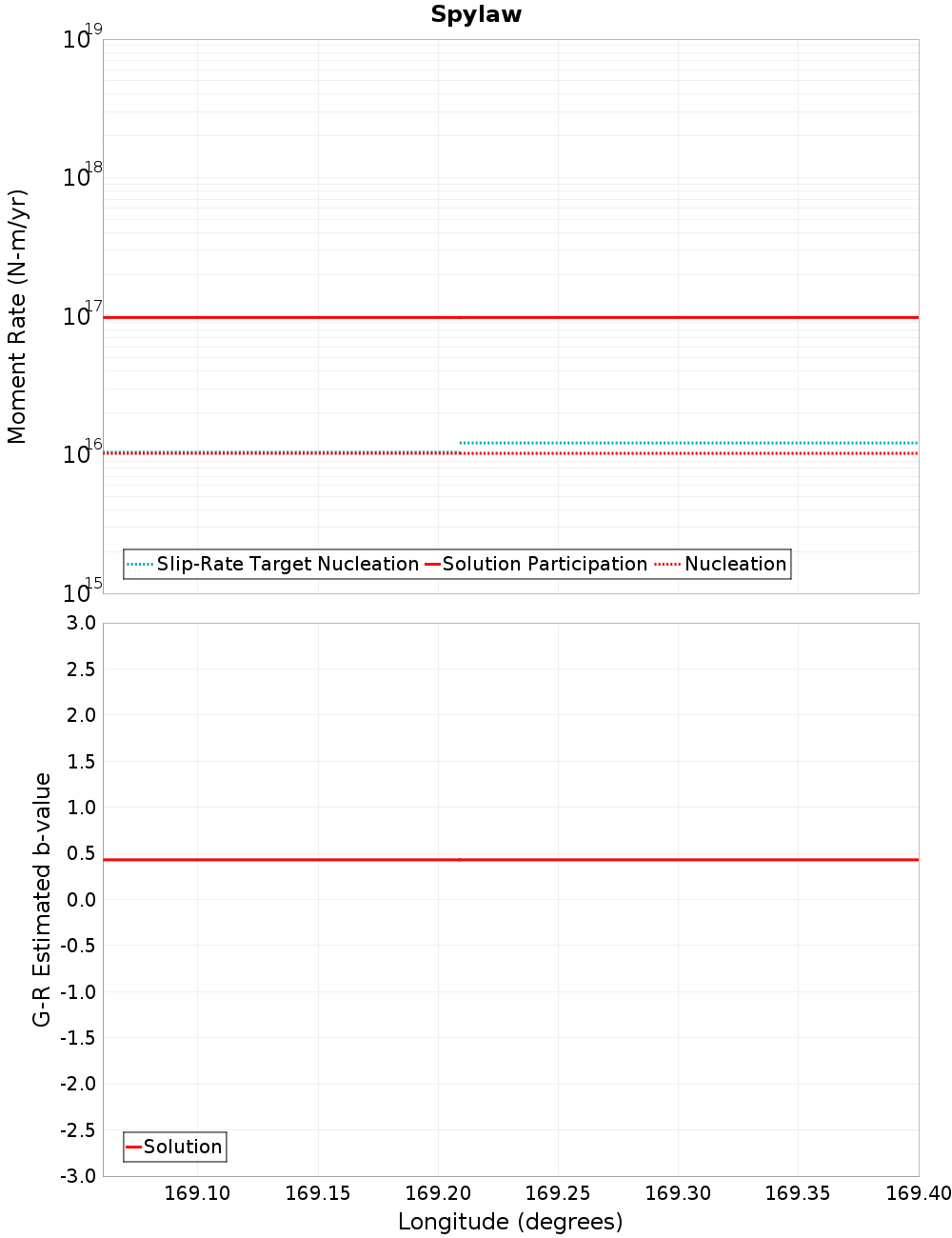

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Beacon Hill, 0.19 km away
Teviot, 0.2 km away
Waikaka, 1.11 km away
Tuapeka, 2.17 km away
Wendon Valley, 3.74 km away
Blue Mountain, 4.01 km away
Backbone, 4.68 km away
Hillfoot, 11.54 km away
Old Man, 11.99 km away
Beaumont River, 12.97 km away

Beacon Hill, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	true
Co-rupture Count	2,900
Co-rupture Rate	6.831624E-5

Teviot, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	true
Co-rupture Count	909
Co-rupture Rate	0.0

Waikaka, 1.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0

Tuapeka, 2.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Wendon Valley, 3.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	1.0577236E-5

Blue Mountain, 4.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	false
Co-rupture Count	807
Co-rupture Rate	0.0

Backbone, 4.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	true
Co-rupture Count	2,620
Co-rupture Rate	5.7739006E-5

Hillfoot, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	false
Co-rupture Count	1,248
Co-rupture Rate	1.0328065E-5

Old Man, 11.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	false
Co-rupture Count	98
Co-rupture Rate	0.0

Beaumont River, 12.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODYuMEJIY3dh
Connected?	true
Directly Connected?	false
Co-rupture Count	1,149
Co-rupture Rate	0.0
