Fisherman 2 Details
| Property | Value |
|---|---|
| Rupture Count | 424 |
| Ruptures Above Sect Min Mag | 423 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [7.04, 8.09] |
| Length Range | [22, 218] km |
| Total Rate | 2.6568696E-5 /yr |
| Multi-Fault Rate | 2.5449892E-5 /yr (95.79%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 23 |
Table Of Contents

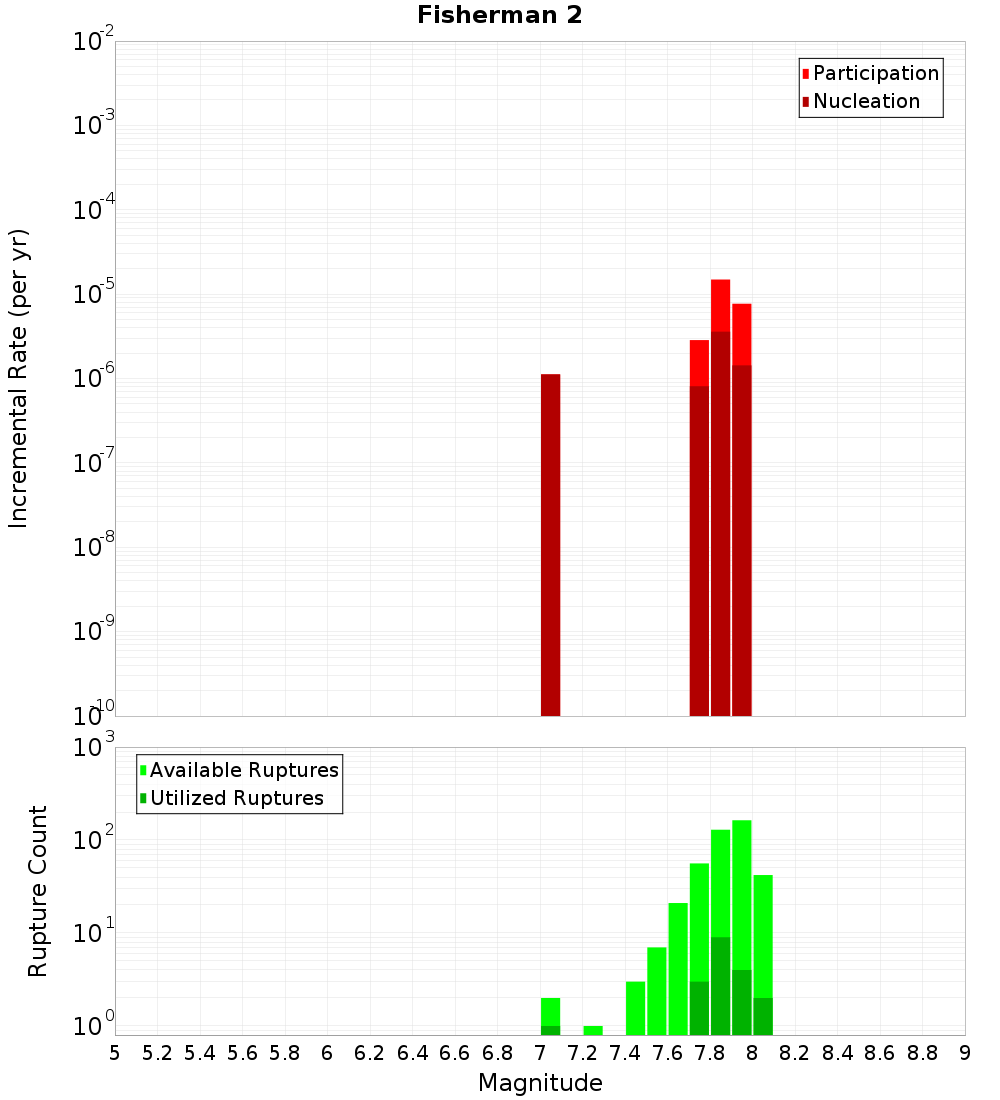

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

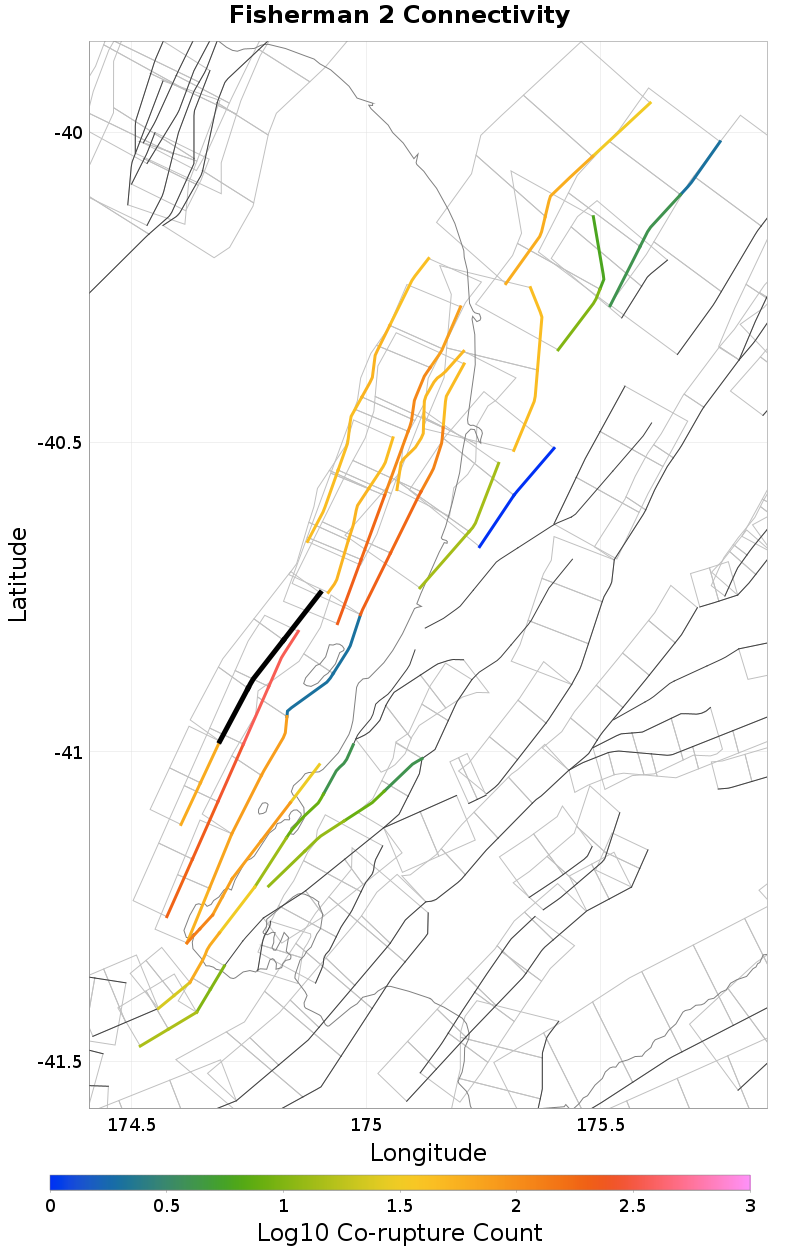

Connectivity
 |  |
|---|
Nearby Sections
Fisherman 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 61 |
| Co-rupture Rate | 4.3660766E-16 |
Okupe 1, 1.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 399 |
| Co-rupture Rate | 2.4645641E-15 |
Fisherman 3, 1.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 52 |
| Co-rupture Rate | 0.0 |
Onepoto, 2.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 239 |
| Co-rupture Rate | 1.6595524E-5 |
Otaheke North, 2.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 205 |
| Co-rupture Rate | 8.8543675E-6 |
Mascarin, 6.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 53 |
| Co-rupture Rate | 1.7279099E-5 |
Otaheke South, 7.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 77 |
| Co-rupture Rate | 0.0 |
Poroutawhao, 12.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 14 |
| Co-rupture Rate | 0.0 |
