North Mernoo E2-1 Details

Property	Value
Rupture Count	325
Ruptures Above Sect Min Mag	315
Ruptures w/ Nonzero Rates	19
Magnitude Range	[6.71, 7.82]
Length Range	[15, 193] km
Total Rate	9.5122566E-8 /yr
Multi-Fault Rate	9.268458E-8 /yr (97.44%)
Directly-Connected Faults	7
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

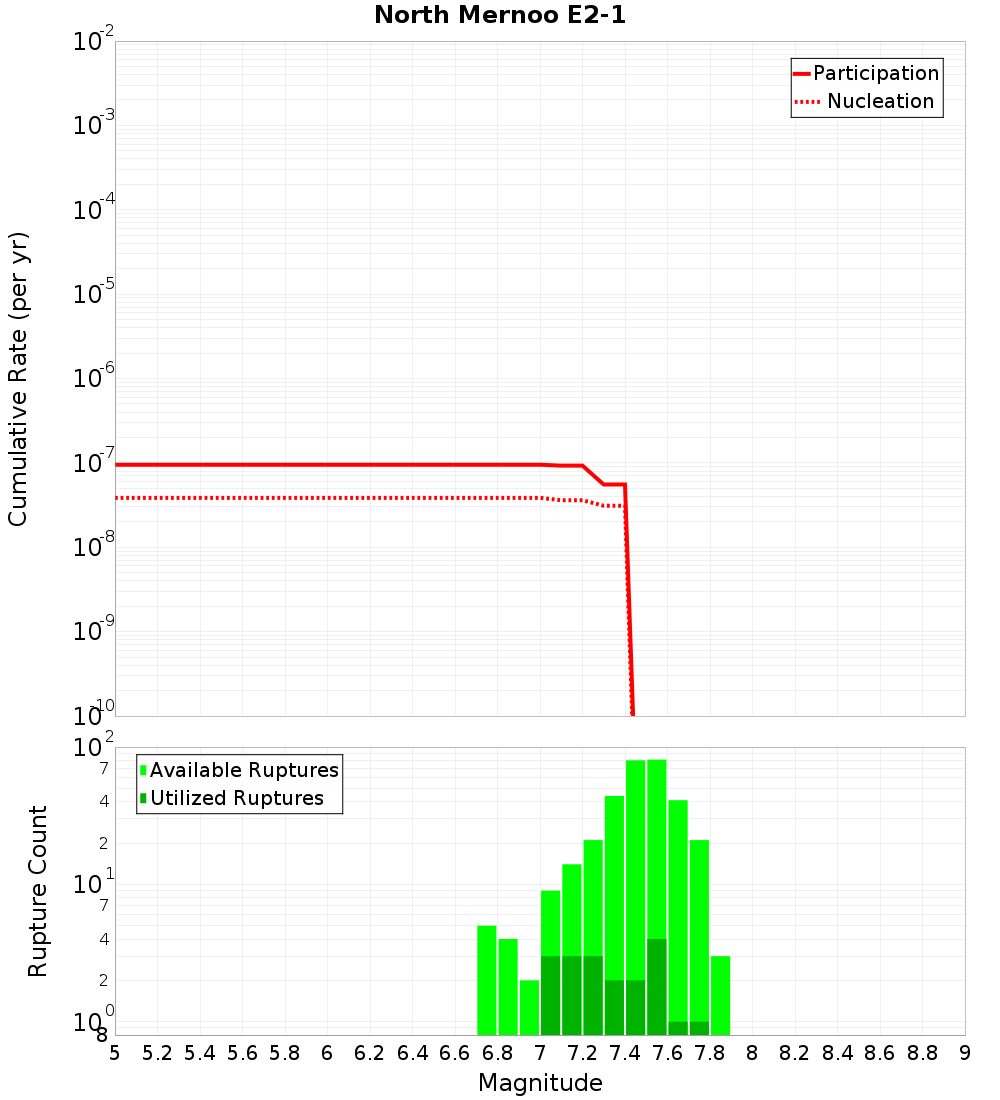

Magnitude-Frequency Distribution

Incremental	Cumulative

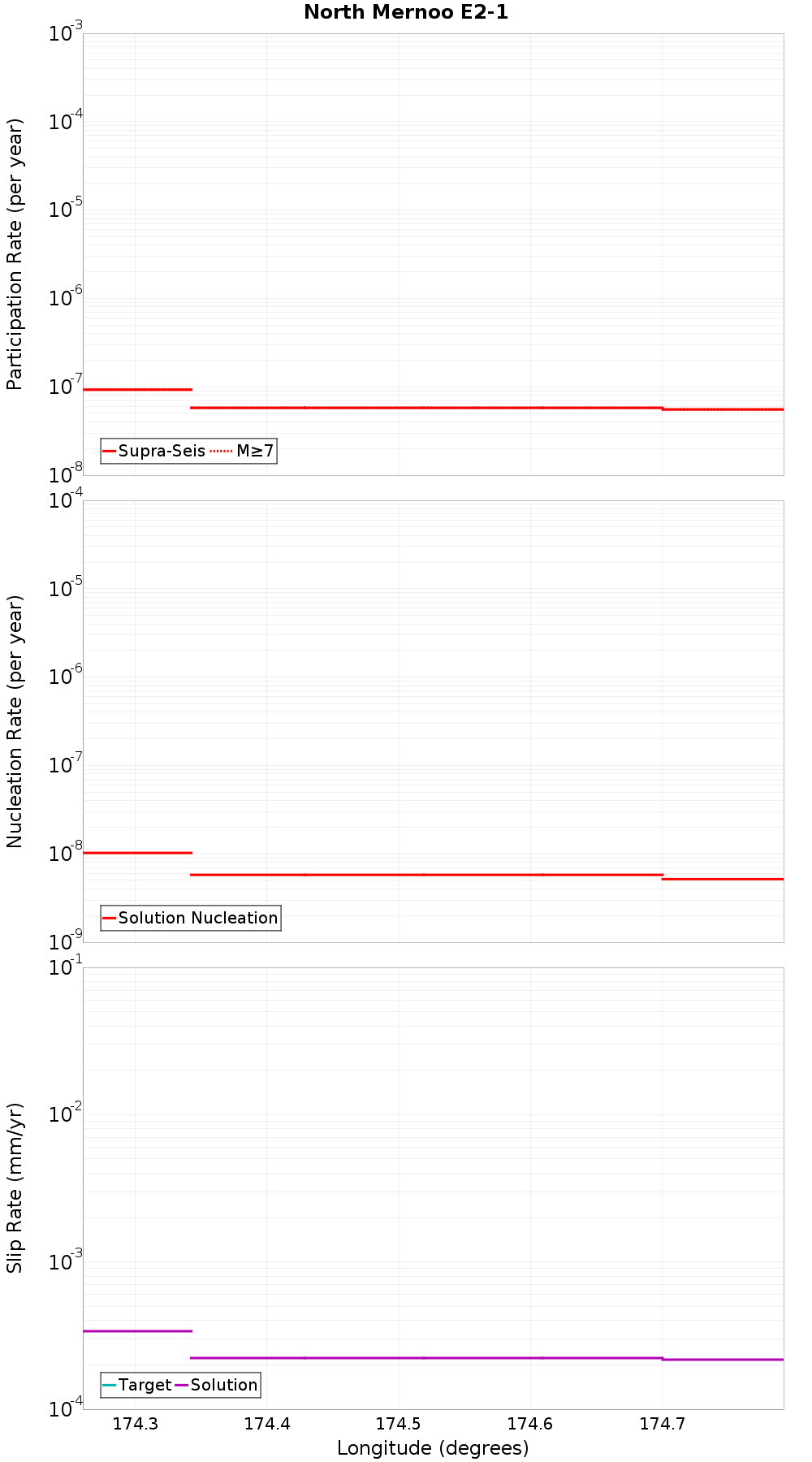

Along-Strike Values

Moment-Rates and b-Values

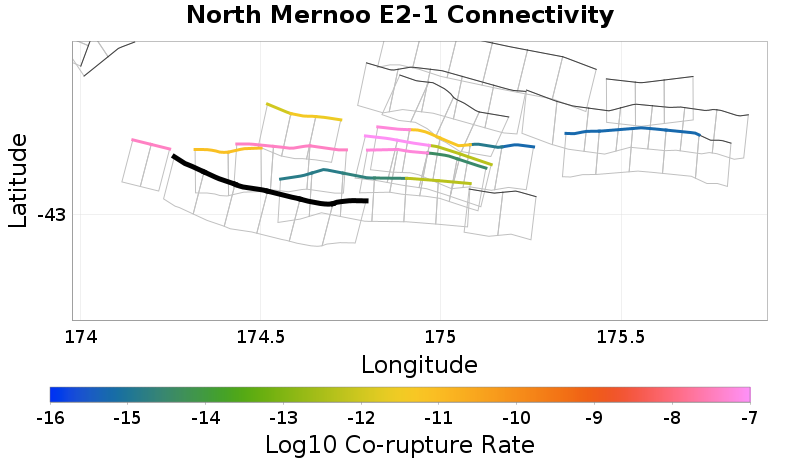

Connectivity

Nearby Sections

Fault Section
North Mernoo E2-2, 1.89 km away
North Mernoo F1, 2.78 km away
North Mernoo Fa-2, 3.22 km away
North Mernoo Fa-1, 7.2 km away
North Mernoo G, 9.36 km away
North Mernoo H, 11.95 km away
North Mernoo I, 13.83 km away
North Mernoo 15, 14.95 km away

North Mernoo E2-2, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	77
Co-rupture Rate	3.7323755E-8

North Mernoo F1, 2.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	124
Co-rupture Rate	5.005951E-13

North Mernoo Fa-2, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	40
Co-rupture Rate	7.400575E-12

North Mernoo Fa-1, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	3.7320028E-8

North Mernoo G, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	150
Co-rupture Rate	5.535293E-8

North Mernoo H, 11.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	168
Co-rupture Rate	9.266822E-8

North Mernoo I, 13.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	false
Co-rupture Count	148
Co-rupture Rate	5.5352928E-8

North Mernoo 15, 14.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	3.725781E-12
