Waipukurau - Poukawa Details

Property	Value
Rupture Count	577
Ruptures Above Sect Min Mag	572
Ruptures w/ Nonzero Rates	146
Magnitude Range	[6.88, 8.16]
Length Range	[19, 337] km
Total Rate	3.1646134E-4 /yr
Multi-Fault Rate	2.5982314E-4 /yr (82.10%)
Directly-Connected Faults	5
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

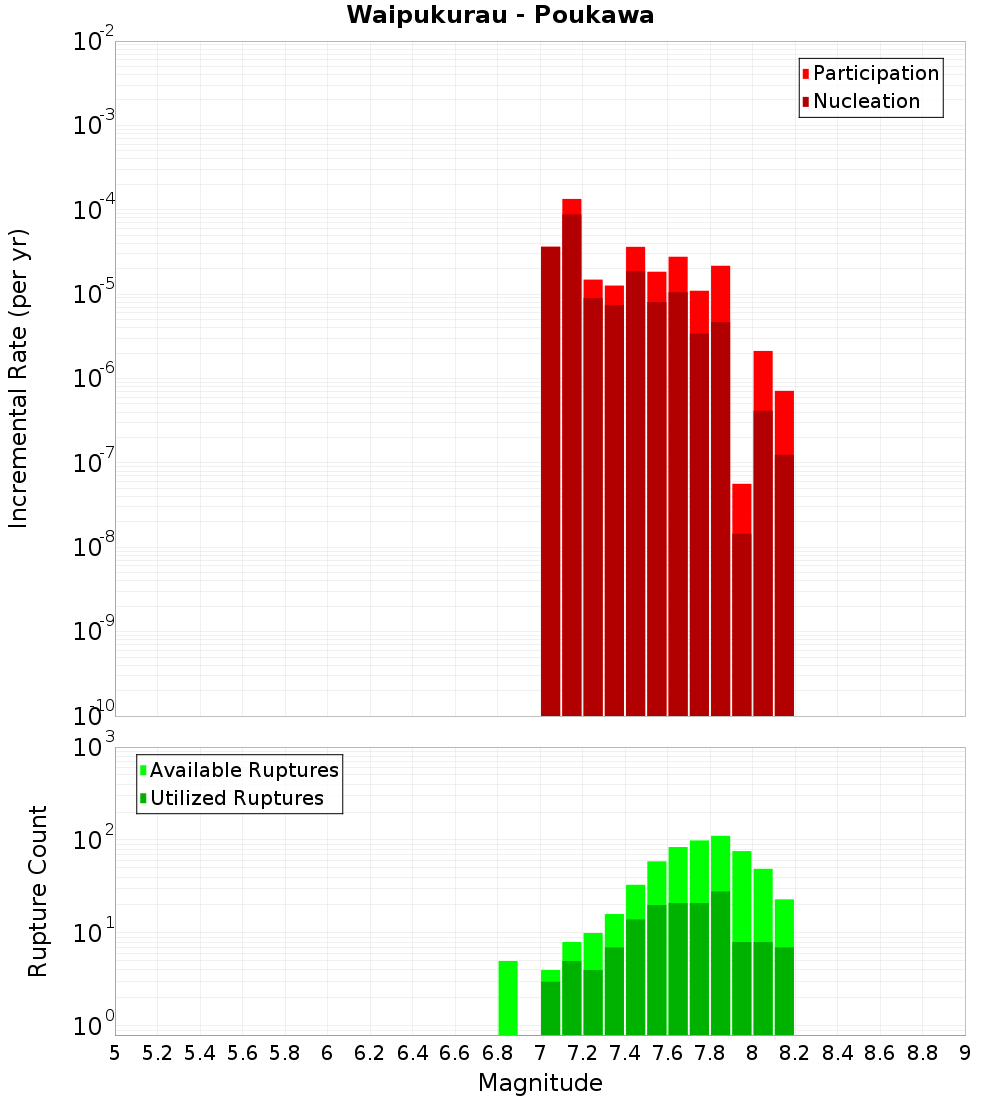

Magnitude-Frequency Distribution

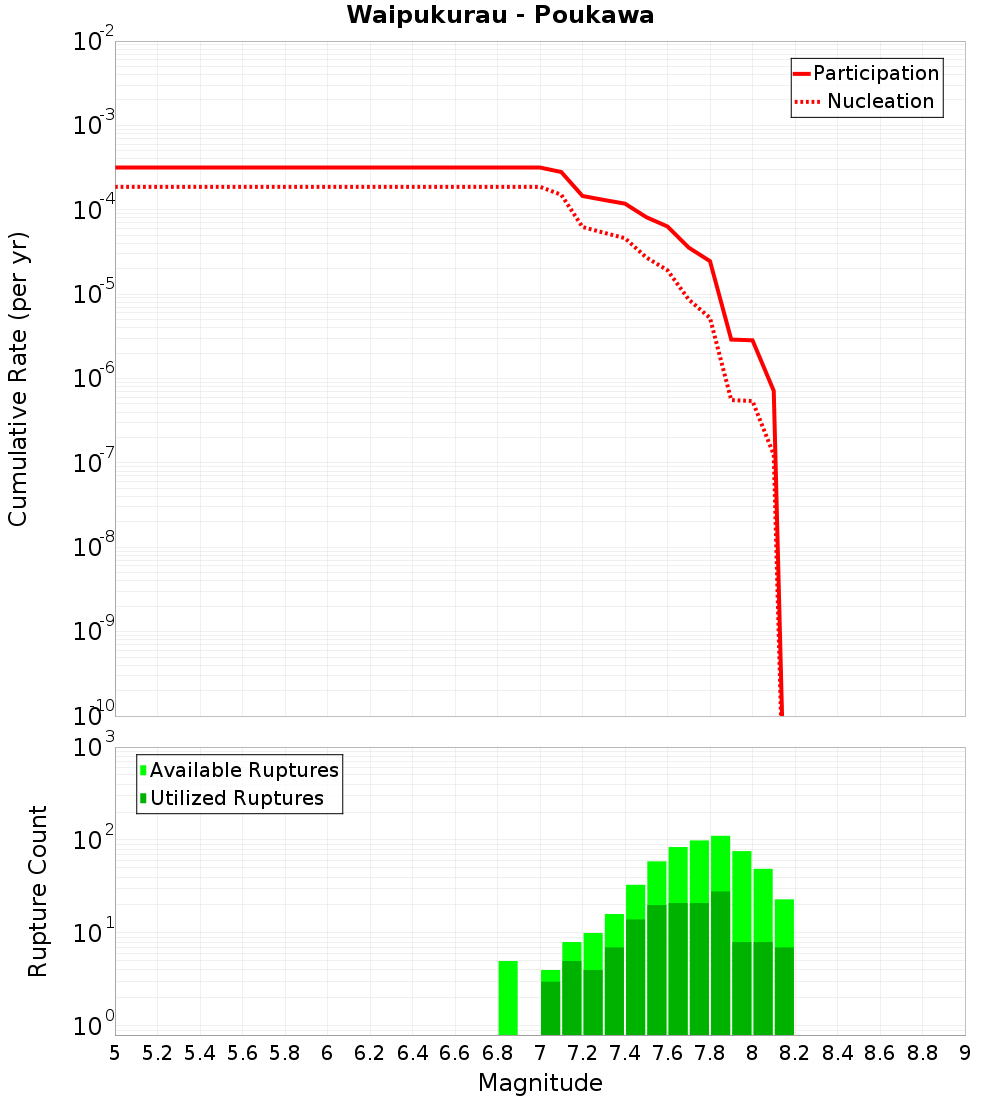

Incremental	Cumulative

Along-Strike Values

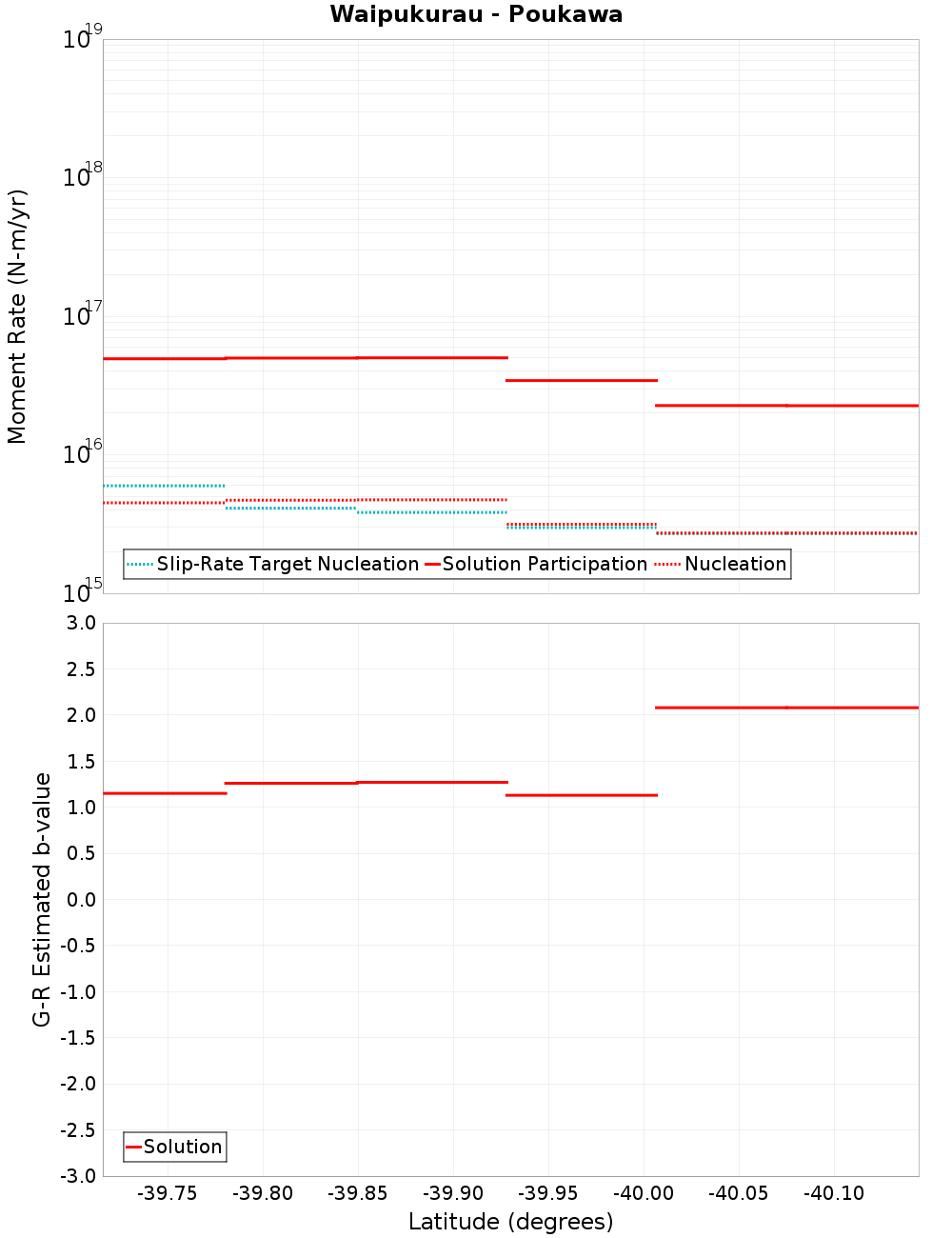

Moment-Rates and b-Values

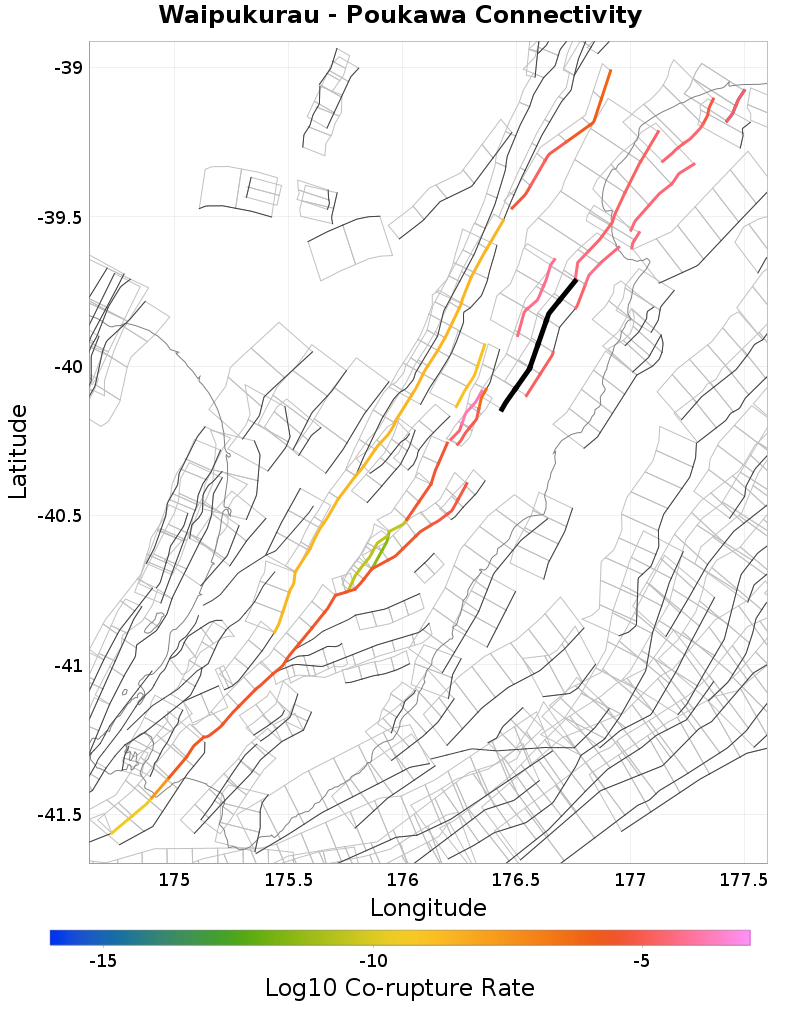

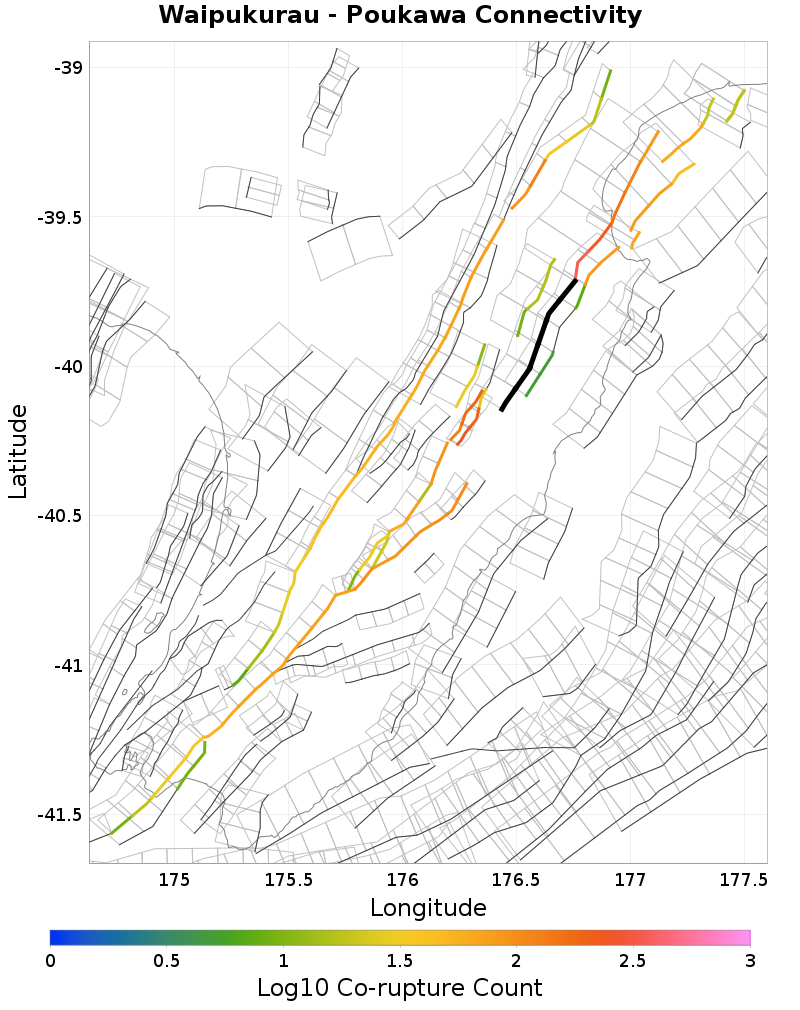

Connectivity

Nearby Sections

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.35 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away

Awanui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	347
Co-rupture Rate	3.5439094E-5

Clear Hills - Waikopiro, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	195
Co-rupture Rate	1.3643177E-4

Oruawharo - Mangatoro, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	265
Co-rupture Rate	1.16905985E-5

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	6.584076E-5

Te Heka, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	5.4777916E-5

Ruataniwha, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	1.0352701E-9
