Wairau Details

Property	Value
Rupture Count	31,665
Ruptures Above Sect Min Mag	31,654
Ruptures w/ Nonzero Rates	628
Magnitude Range	[6.90, 8.71]
Length Range	[20, 1,132] km
Total Rate	7.9866353E-4 /yr
Multi-Fault Rate	3.7059895E-4 /yr (46.40%)
Directly-Connected Faults	8
All Co-Rupturing Faults	148

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

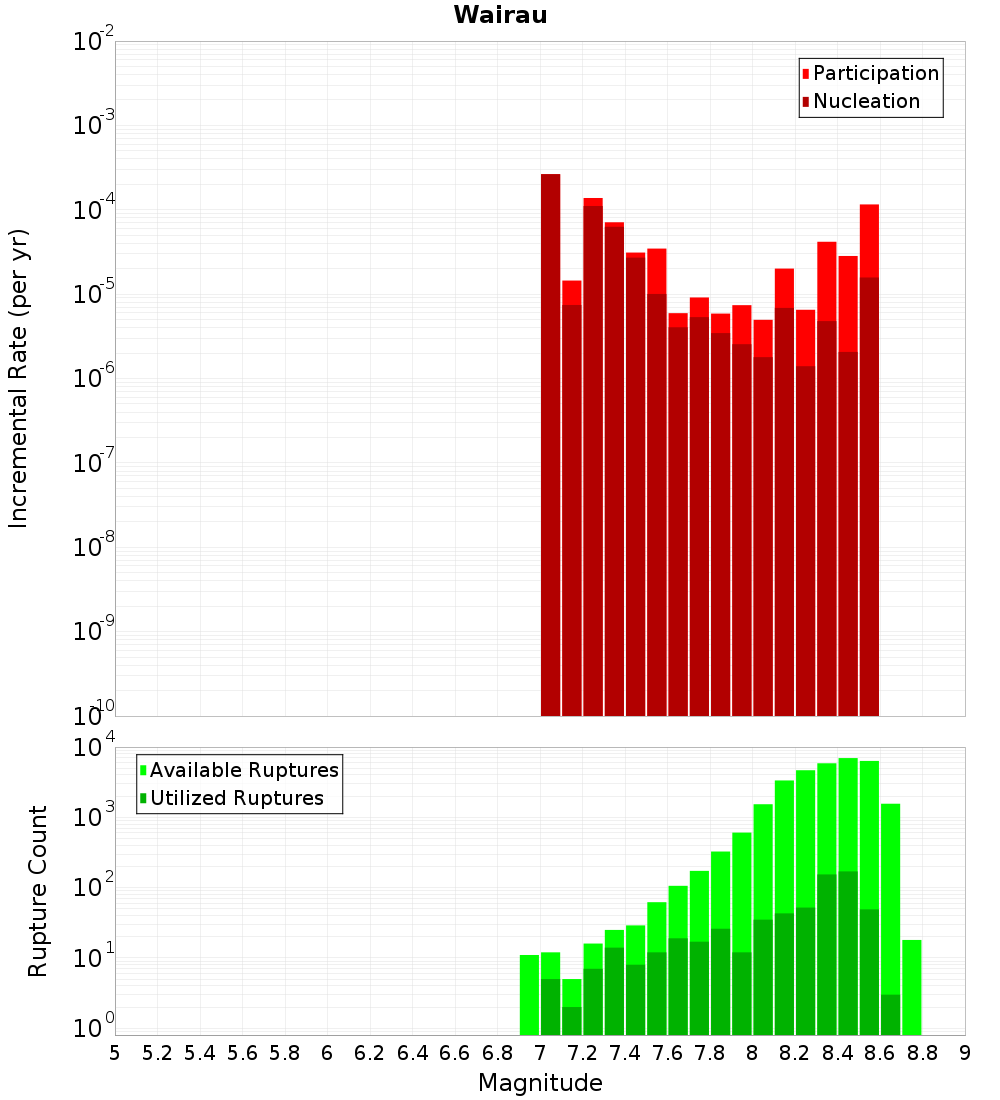

Magnitude-Frequency Distribution

Incremental	Cumulative

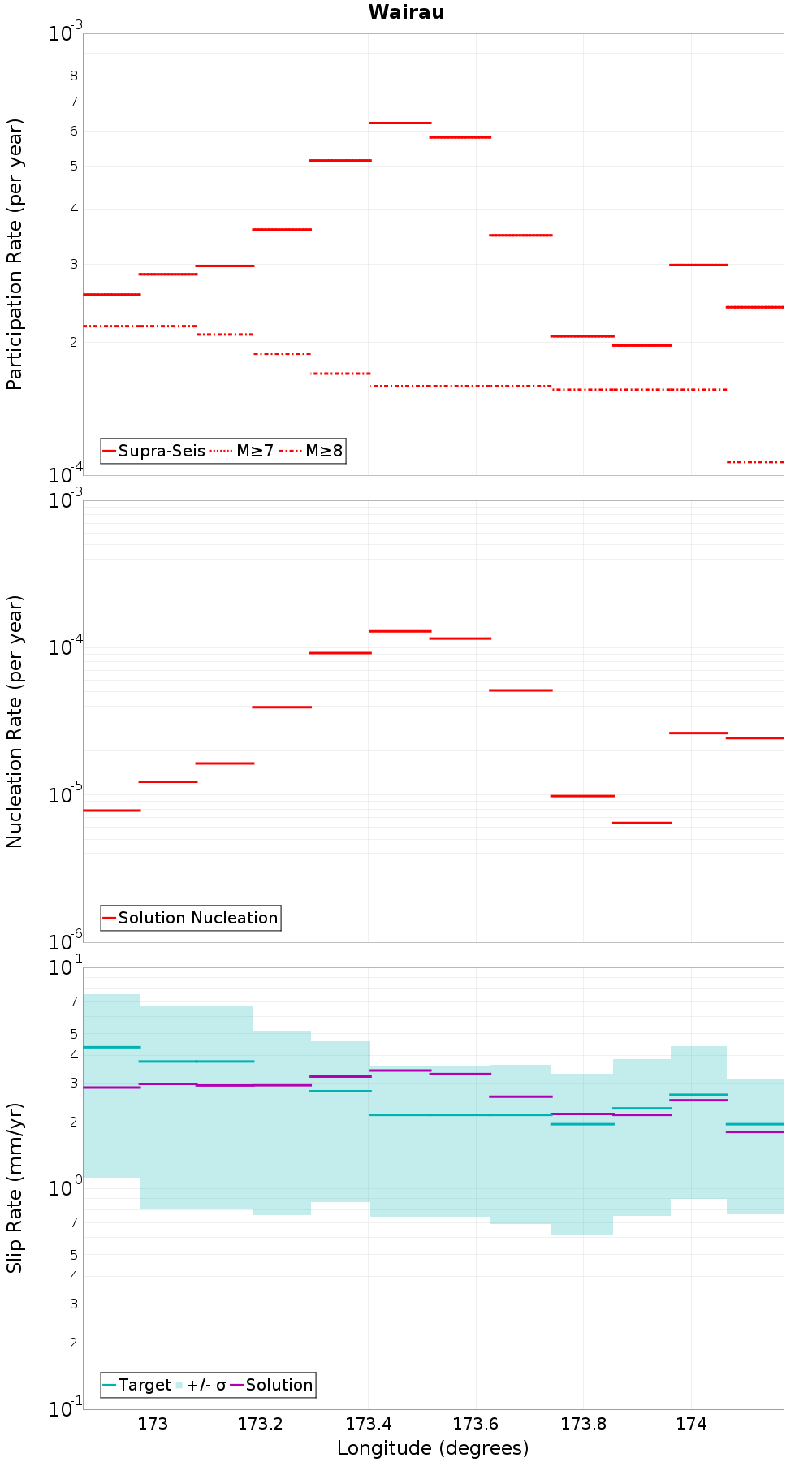

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wairau 2, 0 km away
Whangamoa, 0 km away
Alpine: Springs Junction to Tophouse, 0 km away
Flaxmore - Waimea - Tahunanui, 0.19 km away
Tutaki, 7.32 km away
Awatere: Northeast 1, 11.05 km away
Awatere: Northeast 2, 12.04 km away
Cloudy 2, 12.85 km away
Cloudy 1, 12.85 km away
Wairau 3, 13.7 km away
Vernon 1, 14 km away
Vernon 2, 14 km away
Ruby Bay - Moutere, 14.97 km away

Wairau 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	8,264
Co-rupture Rate	1.2254067E-4

Whangamoa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,287
Co-rupture Rate	4.3336277E-6

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	29,329
Co-rupture Rate	2.3048972E-4

Flaxmore - Waimea - Tahunanui, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	159
Co-rupture Rate	1.4852684E-8

Tutaki, 7.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	341
Co-rupture Rate	1.8179319E-13

Awatere: Northeast 1, 11.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,008
Co-rupture Rate	4.2113315E-6

Awatere: Northeast 2, 12.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	false
Co-rupture Count	326
Co-rupture Rate	2.548289E-5

Cloudy 2, 12.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	4.032077E-6

Cloudy 1, 12.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	false
Co-rupture Count	120
Co-rupture Rate	2.0931058E-16

Wairau 3, 13.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	510
Co-rupture Rate	1.1674589E-4

Vernon 1, 14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	true
Co-rupture Count	430
Co-rupture Rate	8.512262E-5

Vernon 2, 14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	true
Directly Connected?	false
Co-rupture Count	344
Co-rupture Rate	1.04162396E-7

Ruby Bay - Moutere, 14.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExODguMEJoMlM1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
