Kelly Details

PropertyValue
Rupture Count201,753
Ruptures Above Sect Min Mag201,742
Ruptures w/ Nonzero Rates144
Magnitude Range[6.71, 8.61]
Length Range[17, 1,083] km
Total Rate0.0014152236 /yr
Multi-Fault Rate0.0014152236 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults264

Table Of Contents

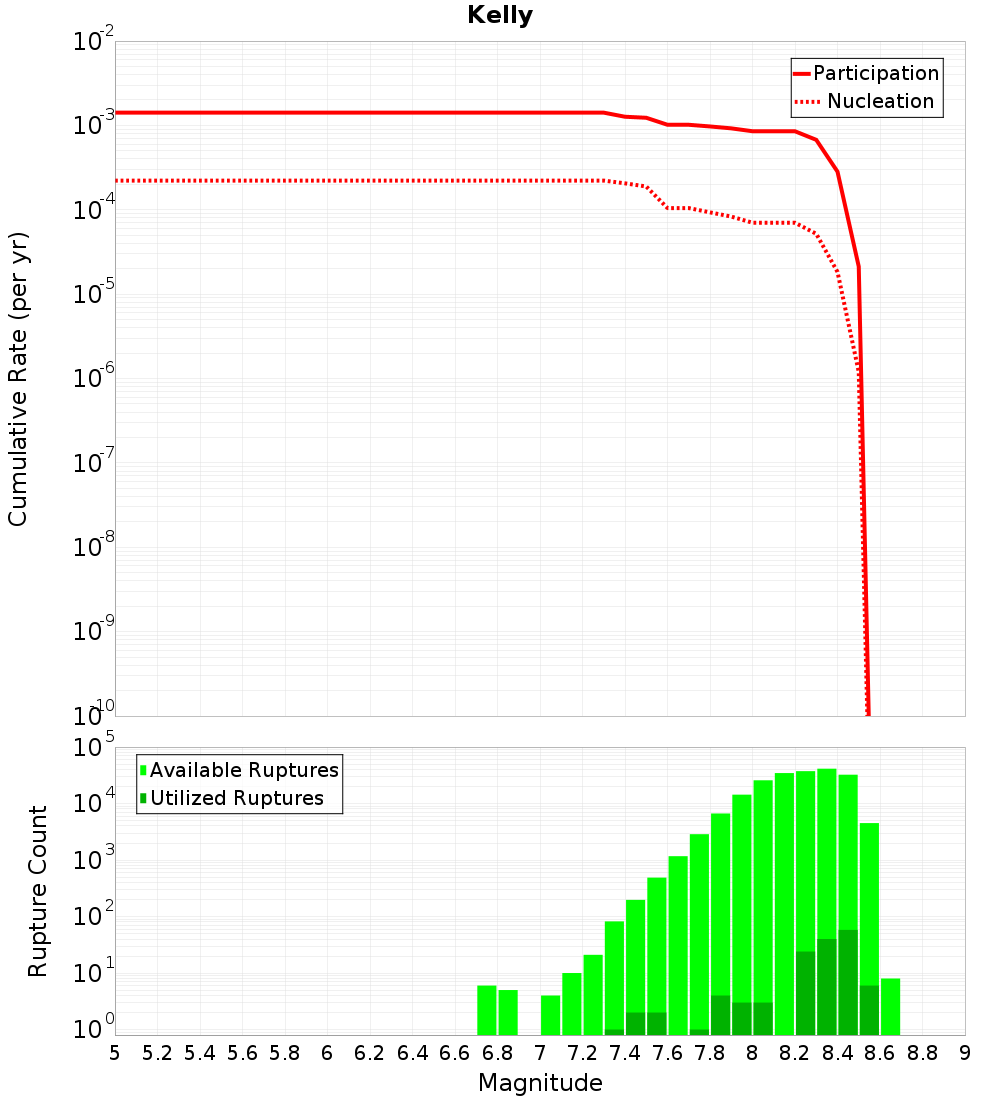

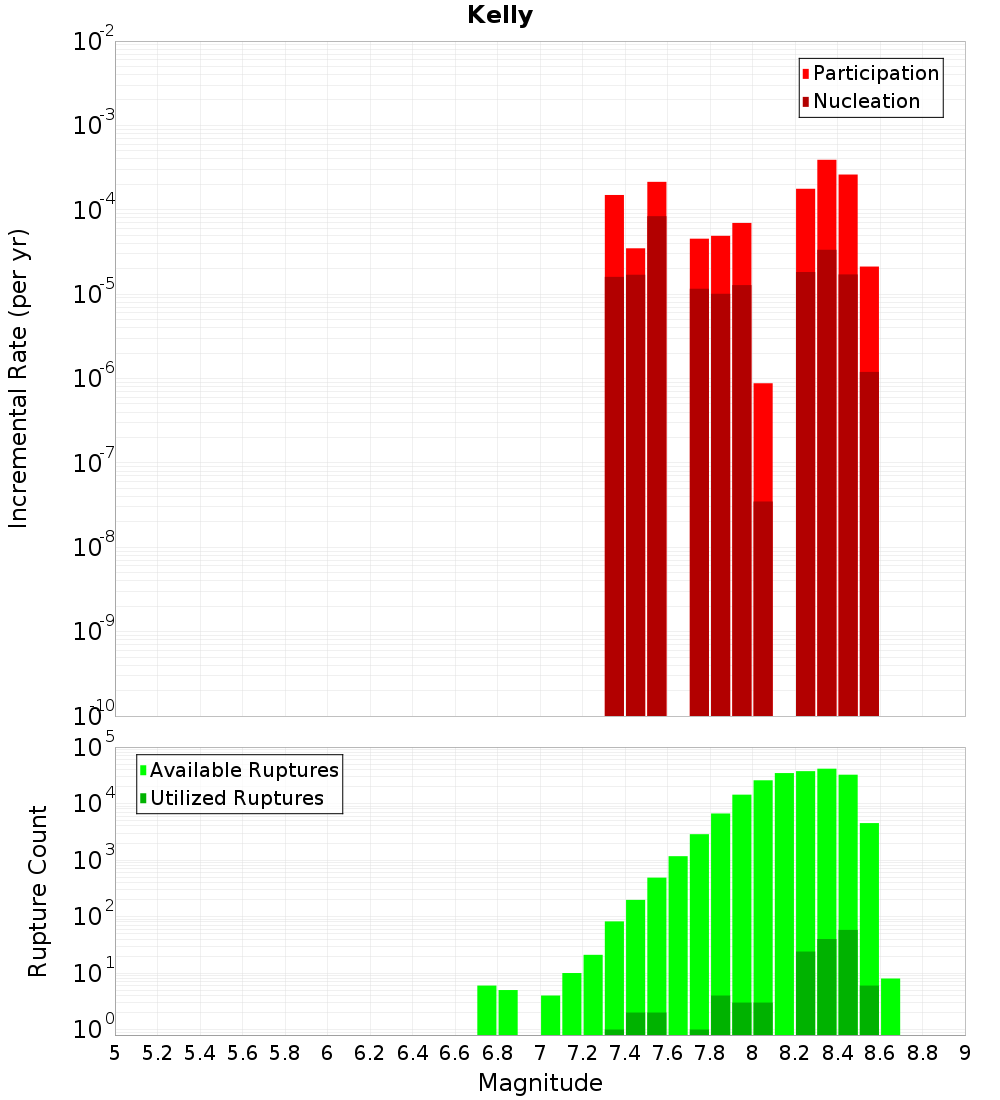

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

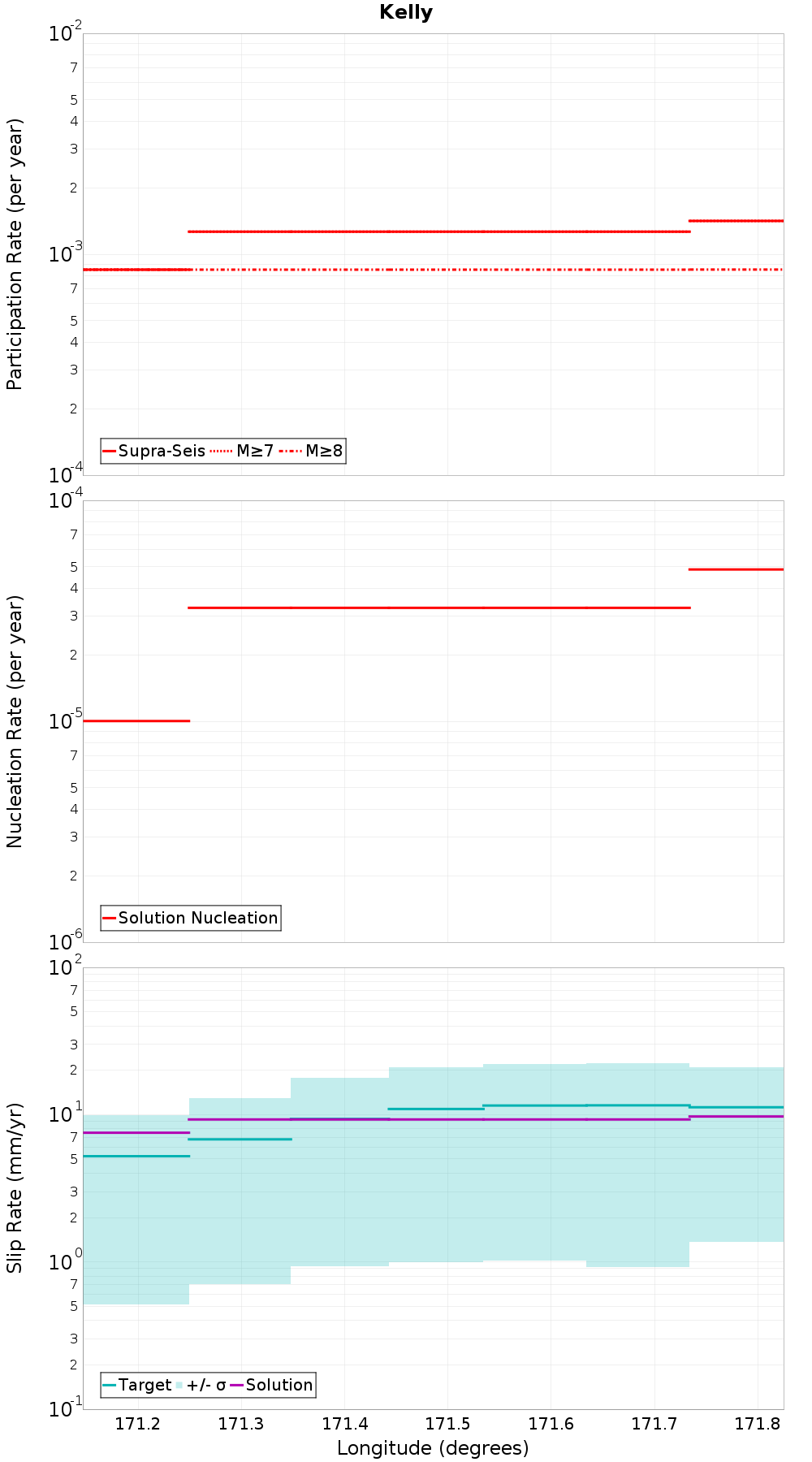

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Hohonu North, 0.14 km away
Hohonu South, 0.29 km away
Hohonu, 0.43 km away
Poulter, 9.5 km away
Mistake - Rolleston, 10.23 km away
Cape Foulwind 1, 11.54 km away
Clarence: Southwest, 13.14 km away
Mungo, 13.58 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count165,080
Co-rupture Rate8.511935E-4

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count144,501
Co-rupture Rate0.0012913899

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count18,061
Co-rupture Rate1.8641086E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count49,963
Co-rupture Rate5.132474E-4

Browning Pass, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count1,850
Co-rupture Rate2.553373E-5

Hohonu North, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count24,137
Co-rupture Rate7.013837E-7

Hohonu South, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count26,244
Co-rupture Rate0.0

Hohonu, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count7,058
Co-rupture Rate7.013837E-7

Poulter, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count354
Co-rupture Rate9.328672E-5

Mistake - Rolleston, 10.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count6,662
Co-rupture Rate3.87933E-4

Cape Foulwind 1, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count240
Co-rupture Rate0.0

Clarence: Southwest, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count12,093
Co-rupture Rate1.1676057E-4

Mungo, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count1,201
Co-rupture Rate0.0

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count55,530
Co-rupture Rate6.70736E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count93,838
Co-rupture Rate6.1449973E-4
