Madden Banks Details

PropertyValue
Rupture Count8,506
Ruptures Above Sect Min Mag8,491
Ruptures w/ Nonzero Rates10
Magnitude Range[6.75, 8.31]
Length Range[18, 626] km
Total Rate1.502385E-5 /yr
Multi-Fault Rate1.502385E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults55

Table Of Contents

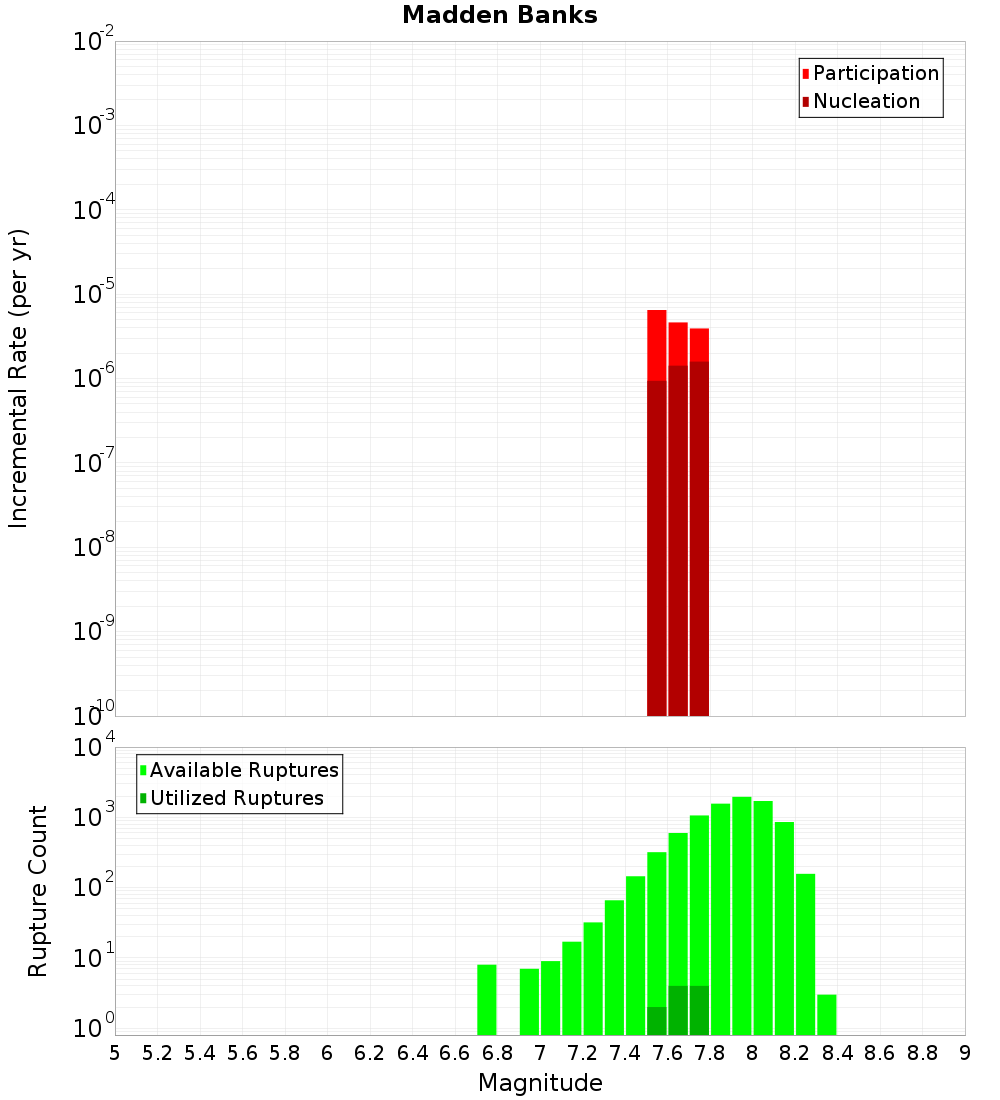

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

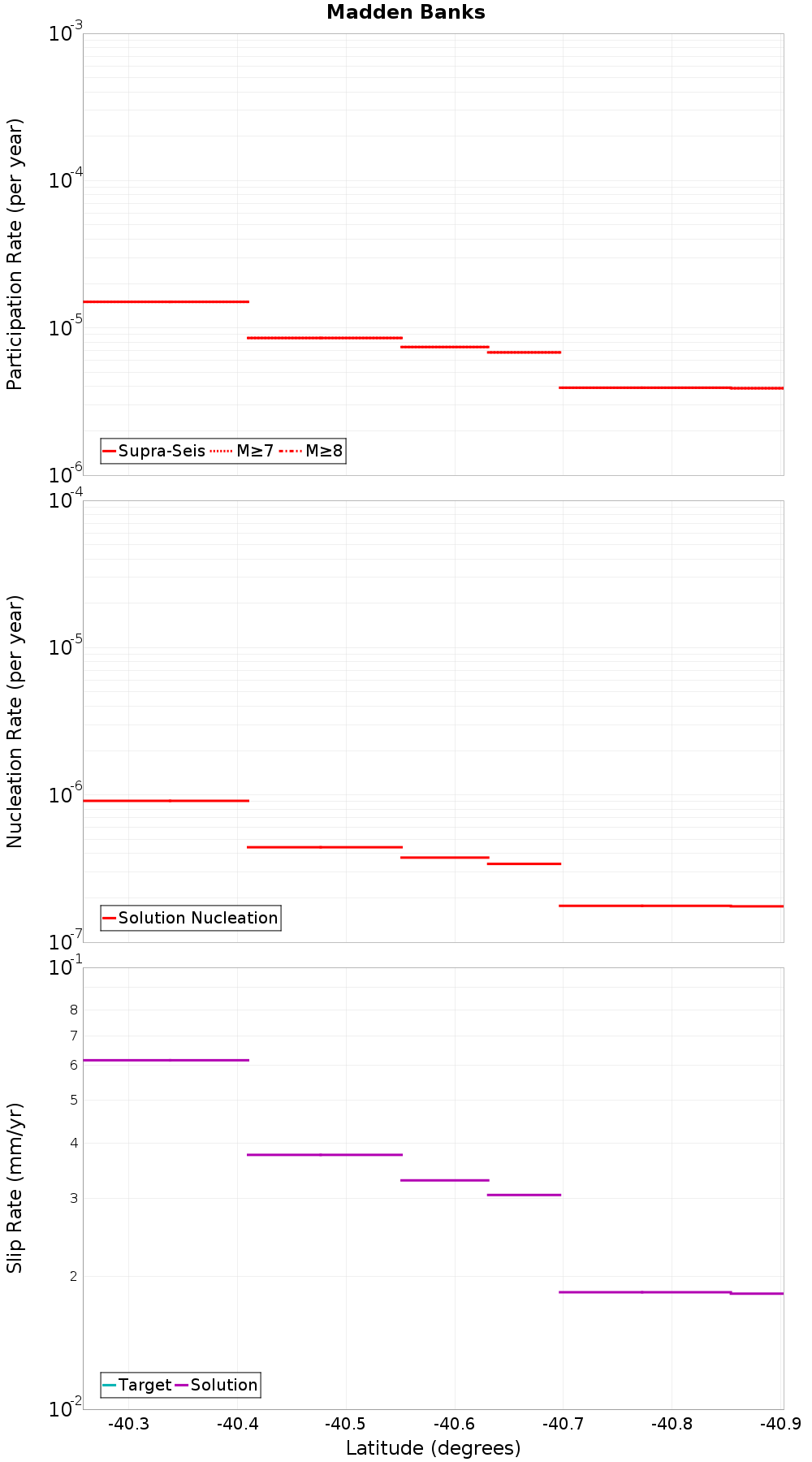

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Motu o Kura East, 0.5 km away
Uruti North, 3.77 km away
Uruti East - PorWest 1, 4.33 km away
Whareama Bank, 7.83 km away
Motu o Kura Ridge, 7.92 km away
PorWest2 - PaoanuiRSouth, 8.18 km away
Porangahau Basin, 9.02 km away
Omakere South, 13.38 km away
Porangahau Ridge, 14.87 km away

Motu o Kura East, 0.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count4,100
Co-rupture Rate8.497498E-6

Uruti North, 3.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count5,253
Co-rupture Rate0.0

Uruti East - PorWest 1, 4.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count2,586
Co-rupture Rate0.0

Whareama Bank, 7.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count207
Co-rupture Rate0.0

Motu o Kura Ridge, 7.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count1,124
Co-rupture Rate6.526352E-6

PorWest2 - PaoanuiRSouth, 8.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?true
Co-rupture Count503
Co-rupture Rate0.0

Porangahau Basin, 9.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate0.0

Omakere South, 13.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porangahau Ridge, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
