Mahia 2 Details
| Property | Value |
|---|---|
| Rupture Count | 95 |
| Ruptures Above Sect Min Mag | 92 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.54, 7.70] |
| Length Range | [13, 178] km |
| Total Rate | 1.8136481E-4 /yr |
| Multi-Fault Rate | 1.8136481E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

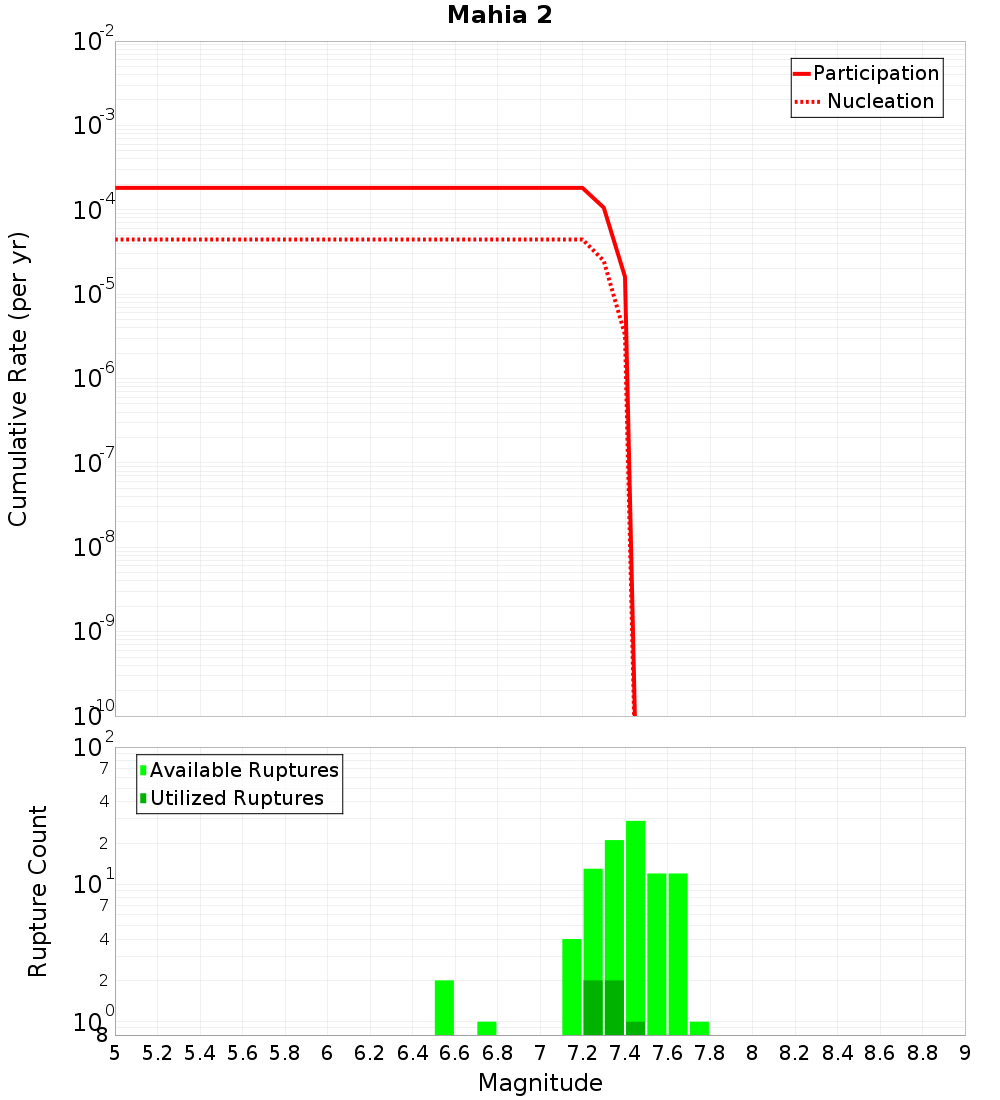

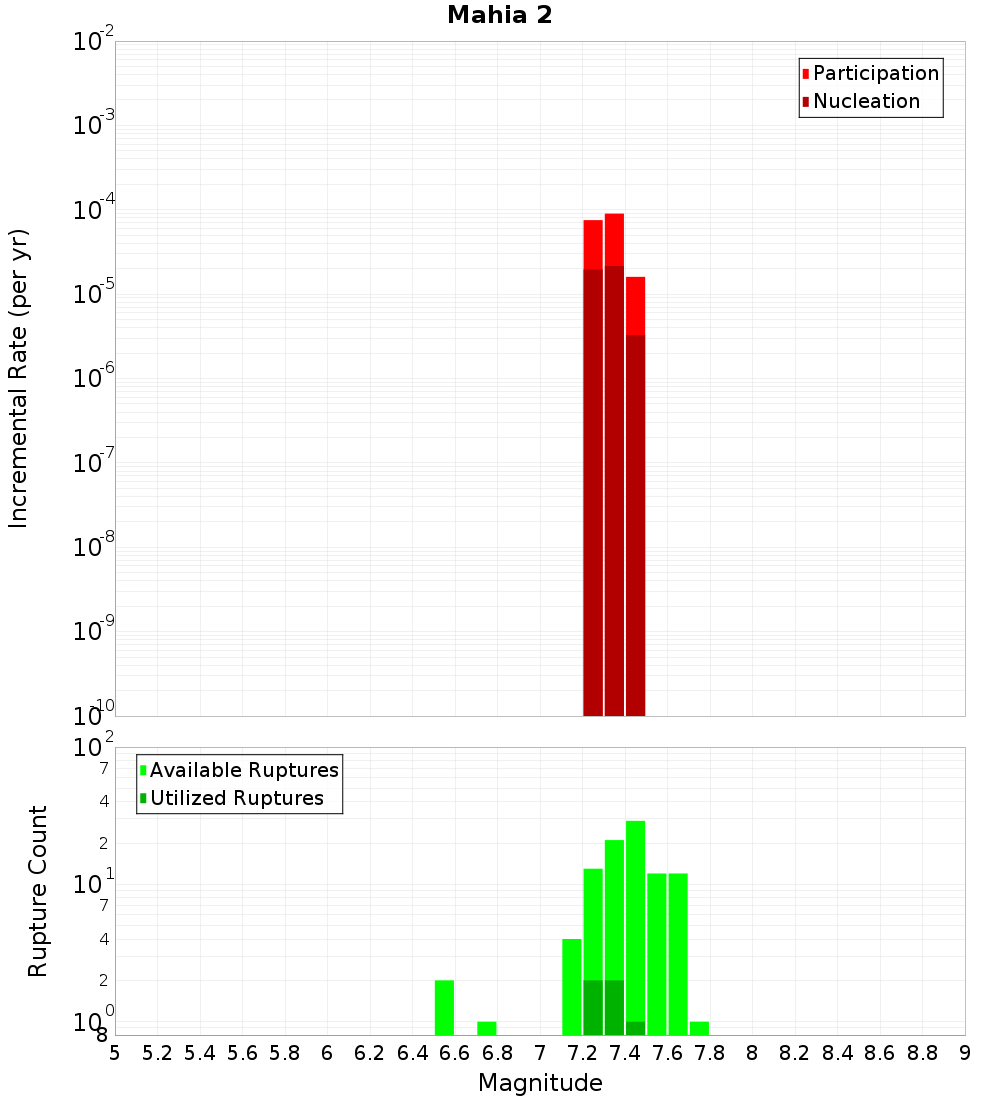

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

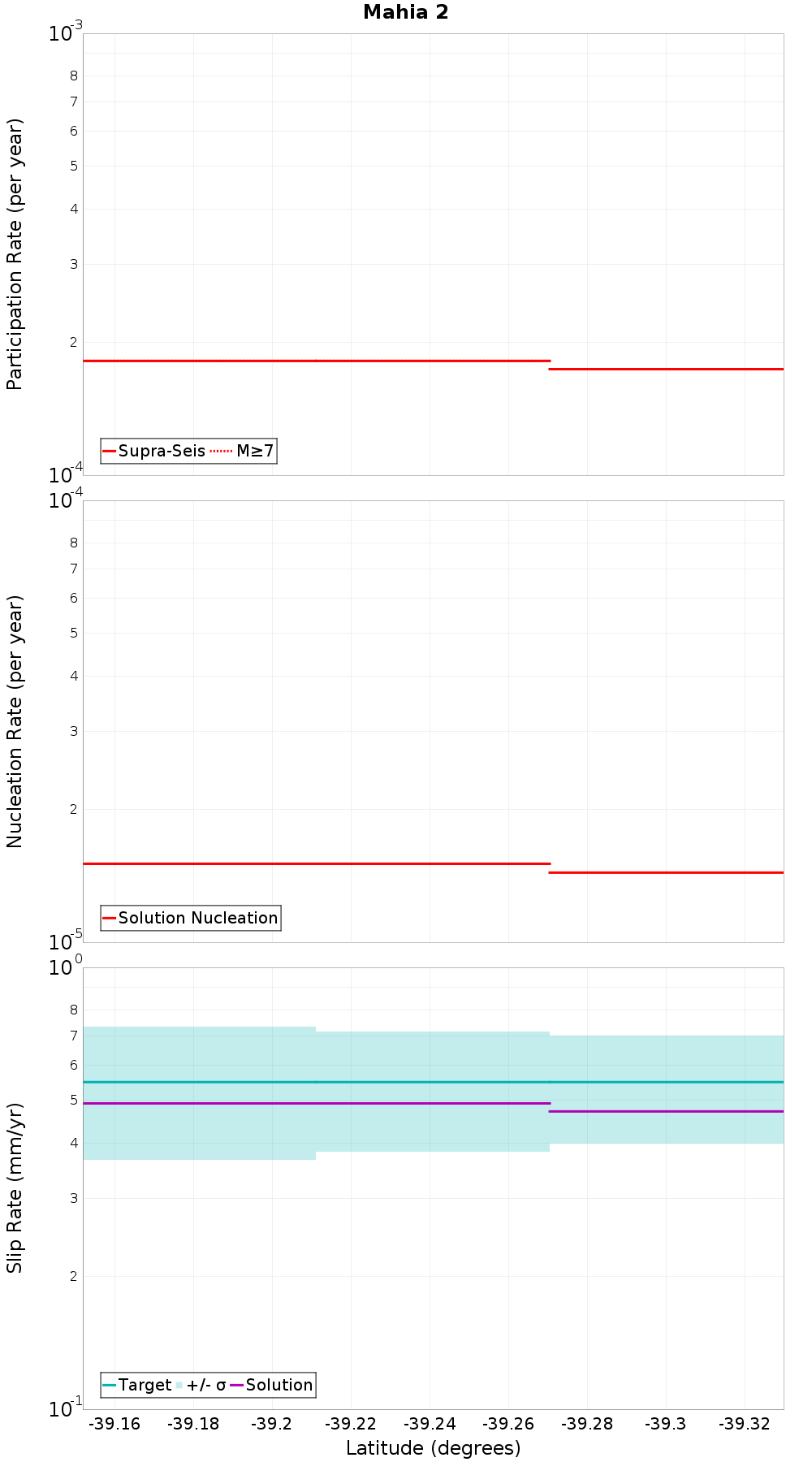

Along-Strike Values

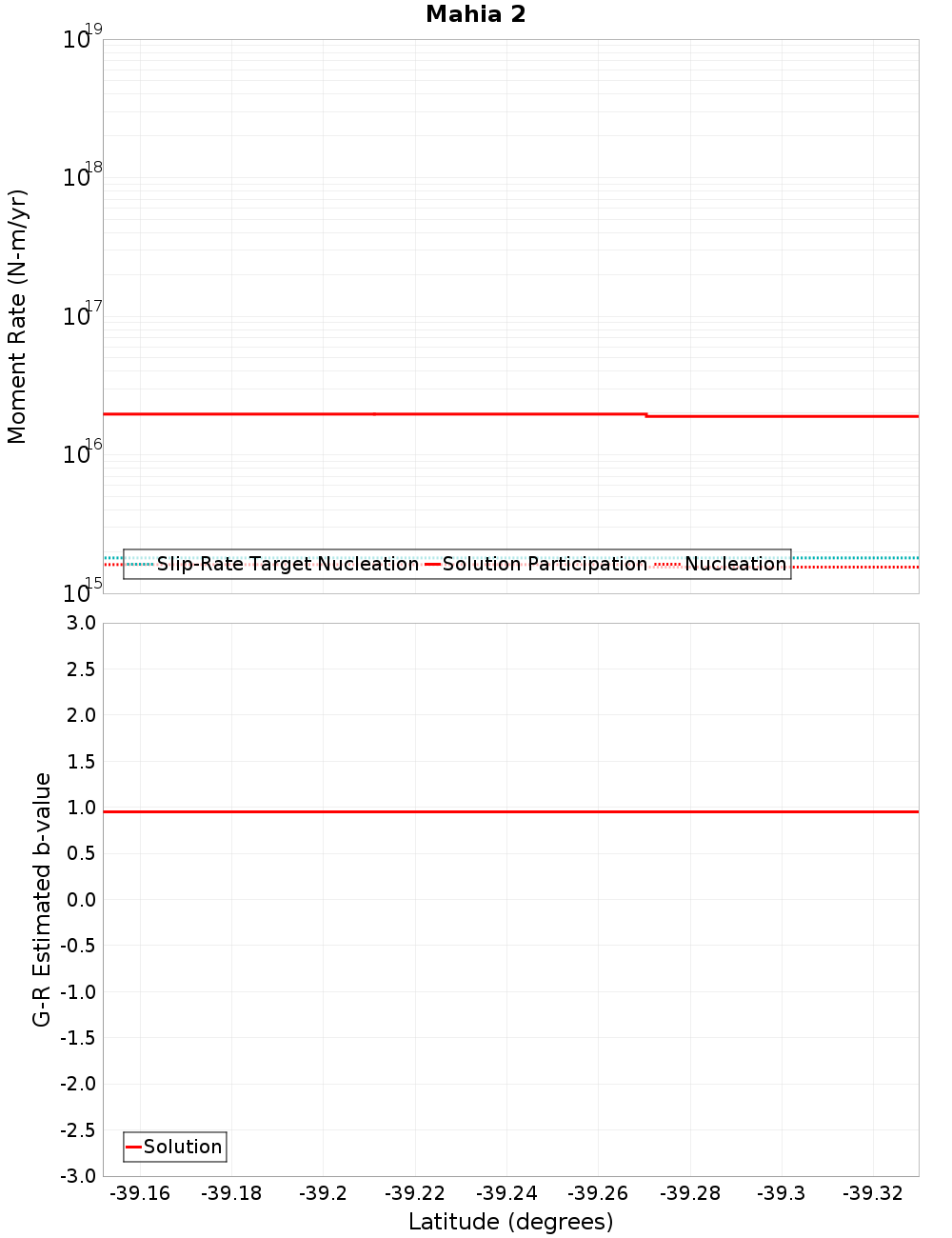

Moment-Rates and b-Values

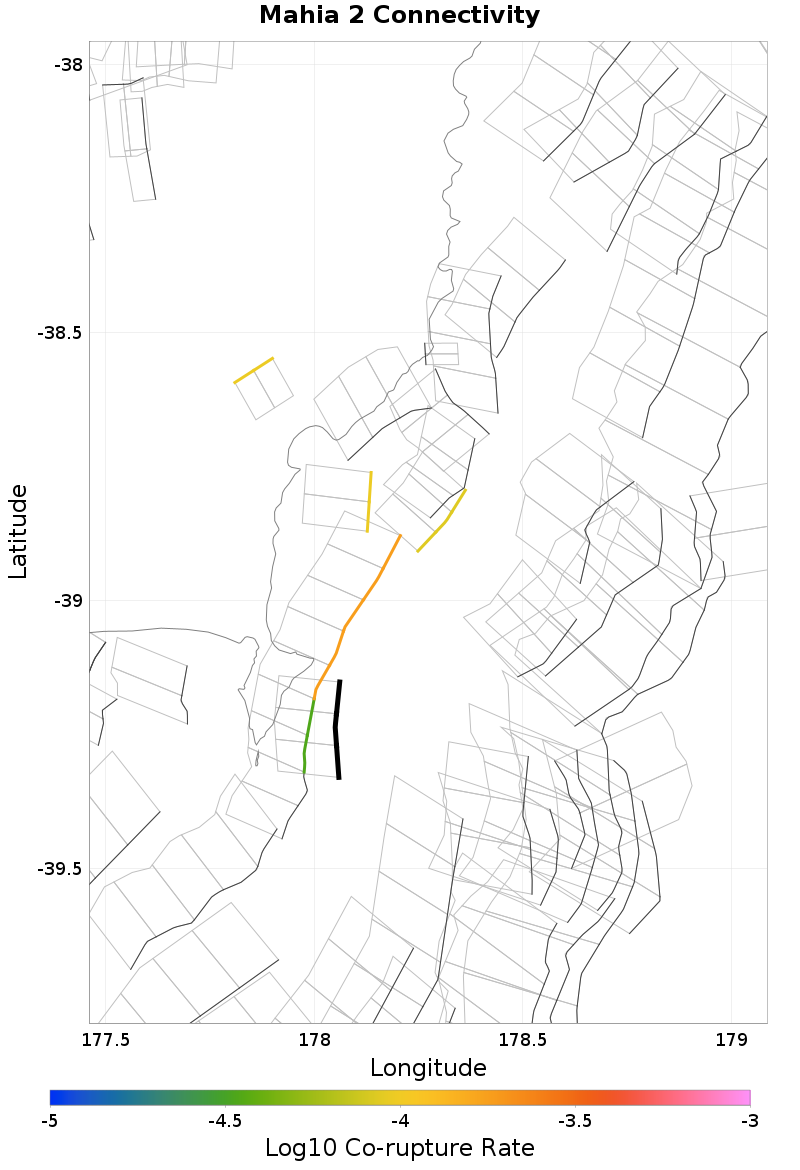

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lachlan 3, 2.4 km away |
| Lachlan 1 & 2, 7.71 km away |
Lachlan 3, 2.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 92 |
| Co-rupture Rate | 1.8136481E-4 |
Lachlan 1 & 2, 7.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
