Maimai Details

Property	Value
Rupture Count	9,072
Ruptures Above Sect Min Mag	9,072
Ruptures w/ Nonzero Rates	29
Magnitude Range	[6.99, 8.57]
Length Range	[25, 1,039] km
Total Rate	3.740059E-5 /yr
Multi-Fault Rate	3.740059E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	68

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

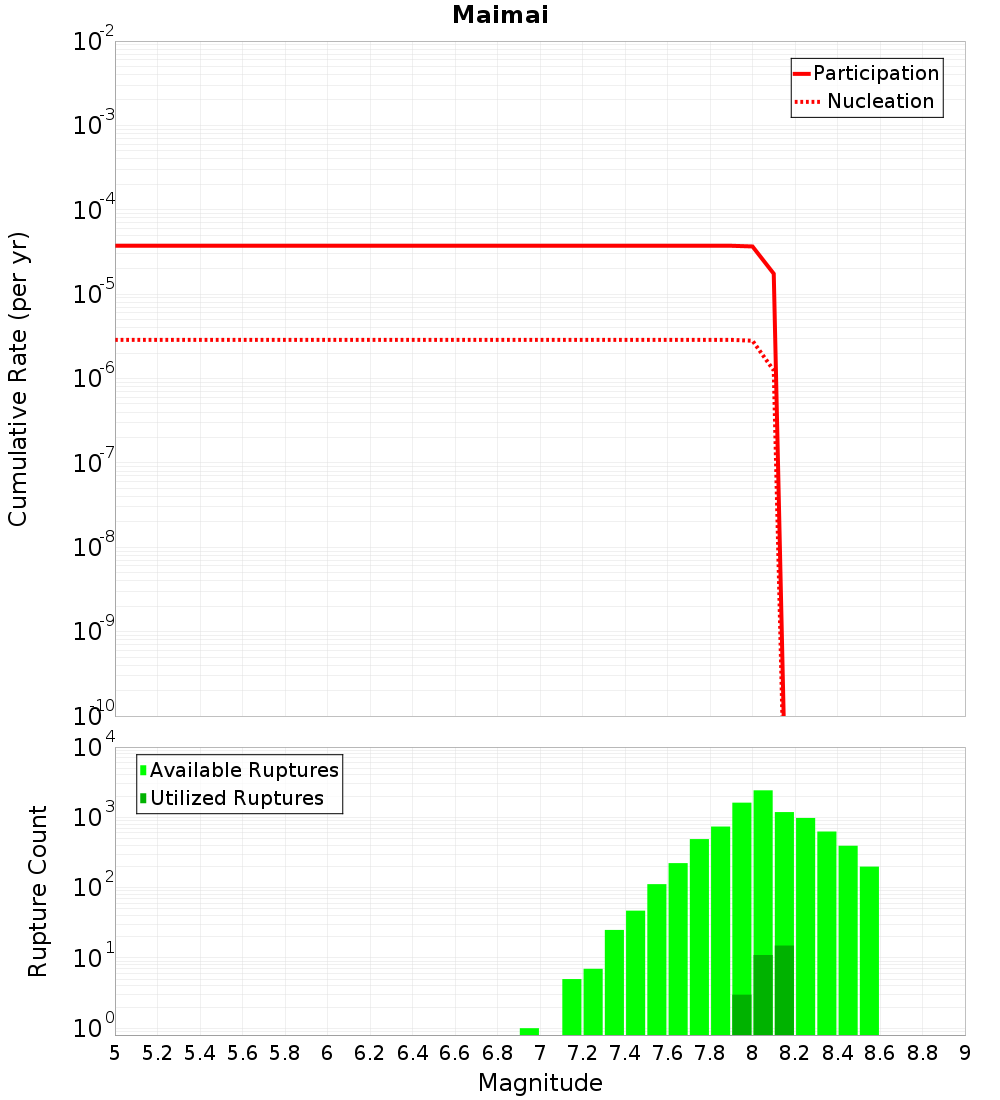

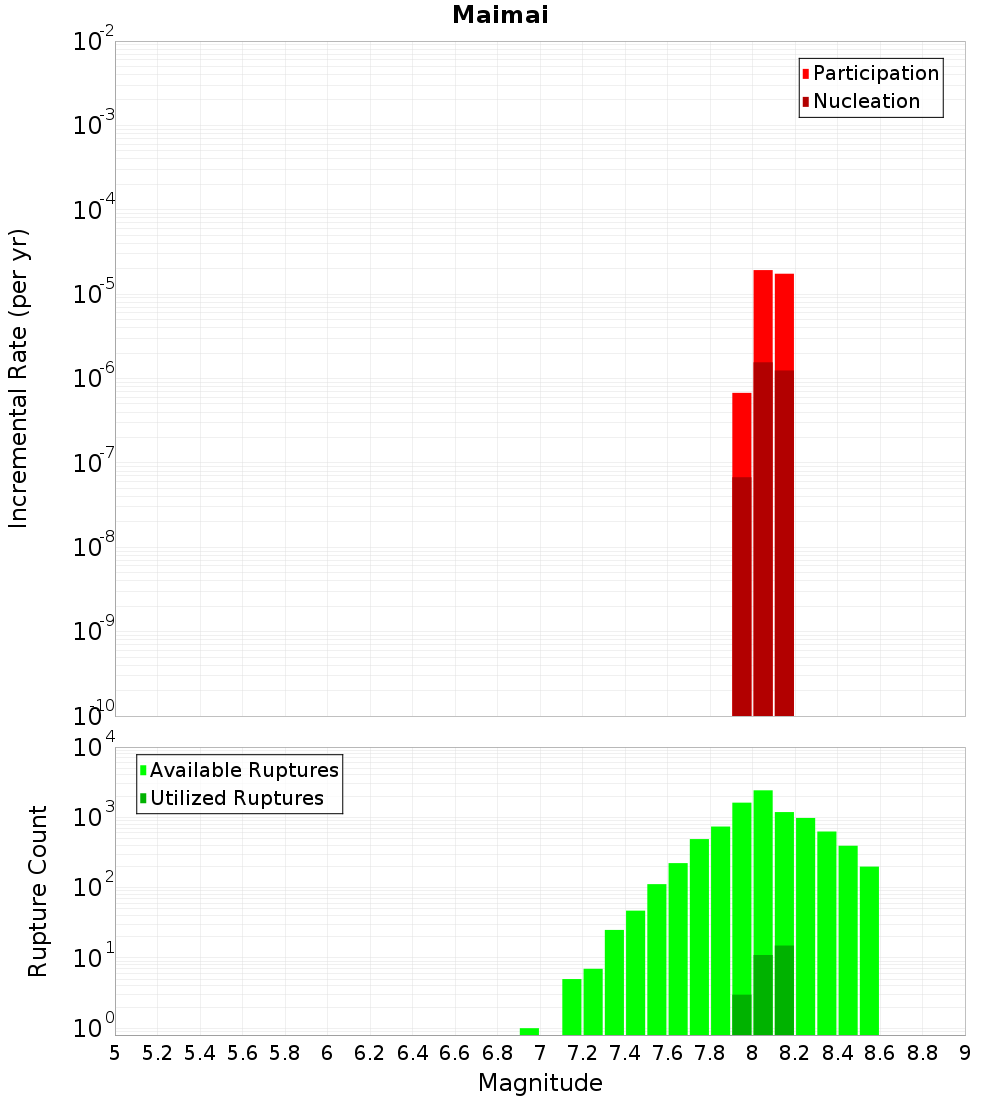

Magnitude-Frequency Distribution

Incremental	Cumulative

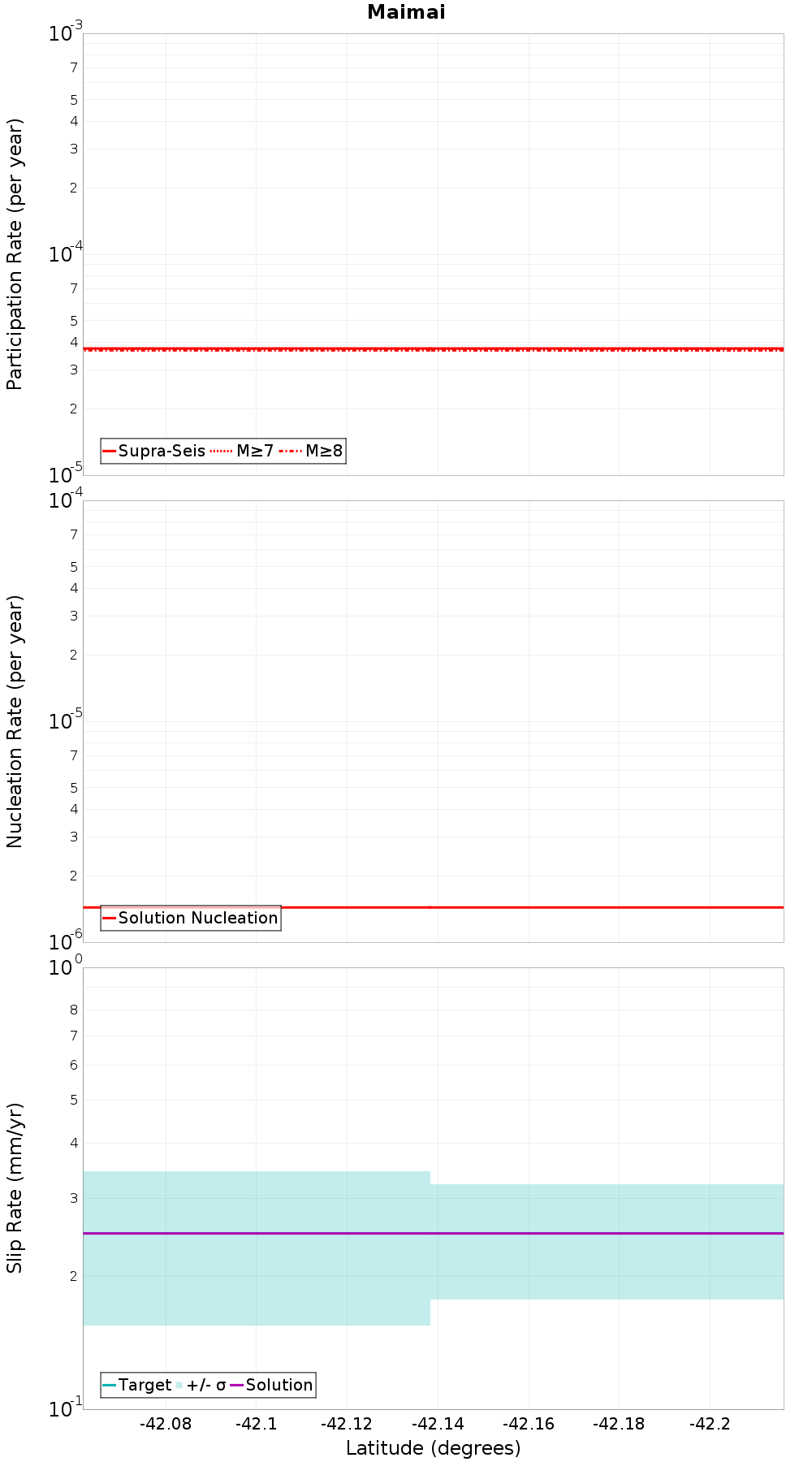

Along-Strike Values

Moment-Rates and b-Values

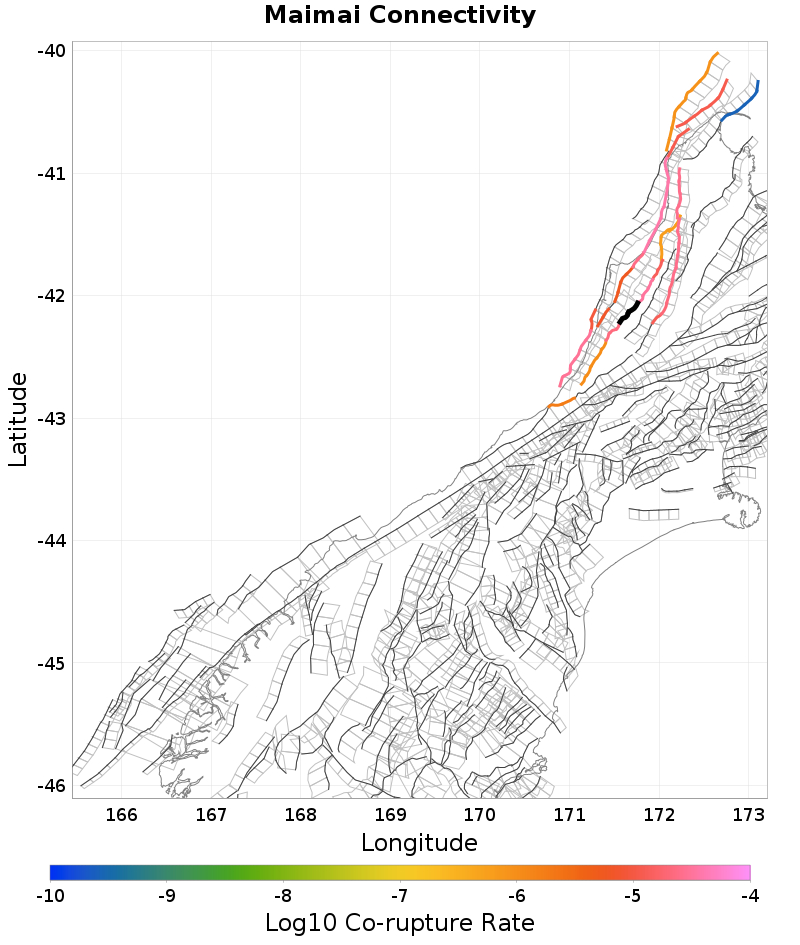

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Maimai: South, 0.09 km away
Paparoa West, 0.12 km away
Cape Foulwind 2, 0.22 km away
Cape Foulwind 1, 5.12 km away
Lyell South, 9.15 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?	true
Directly Connected?	true
Co-rupture Count	8,123
Co-rupture Rate	3.180328E-5

Maimai: South, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?	true
Directly Connected?	true
Co-rupture Count	6,357
Co-rupture Rate	2.1509202E-5

Paparoa West, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,305
Co-rupture Rate	1.2360233E-5

Cape Foulwind 2, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?	true
Directly Connected?	true
Co-rupture Count	634
Co-rupture Rate	0.0

Cape Foulwind 1, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?	true
Directly Connected?	true
Co-rupture Count	5,955
Co-rupture Rate	2.9610015E-5

Lyell South, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMDZaeHRl
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0
