BKSmt-North Details

Property	Value
Rupture Count	11,666
Ruptures Above Sect Min Mag	11,654
Ruptures w/ Nonzero Rates	124
Magnitude Range	[6.57, 8.47]
Length Range	[13, 639] km
Total Rate	1.4360486E-4 /yr
Multi-Fault Rate	1.4360486E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

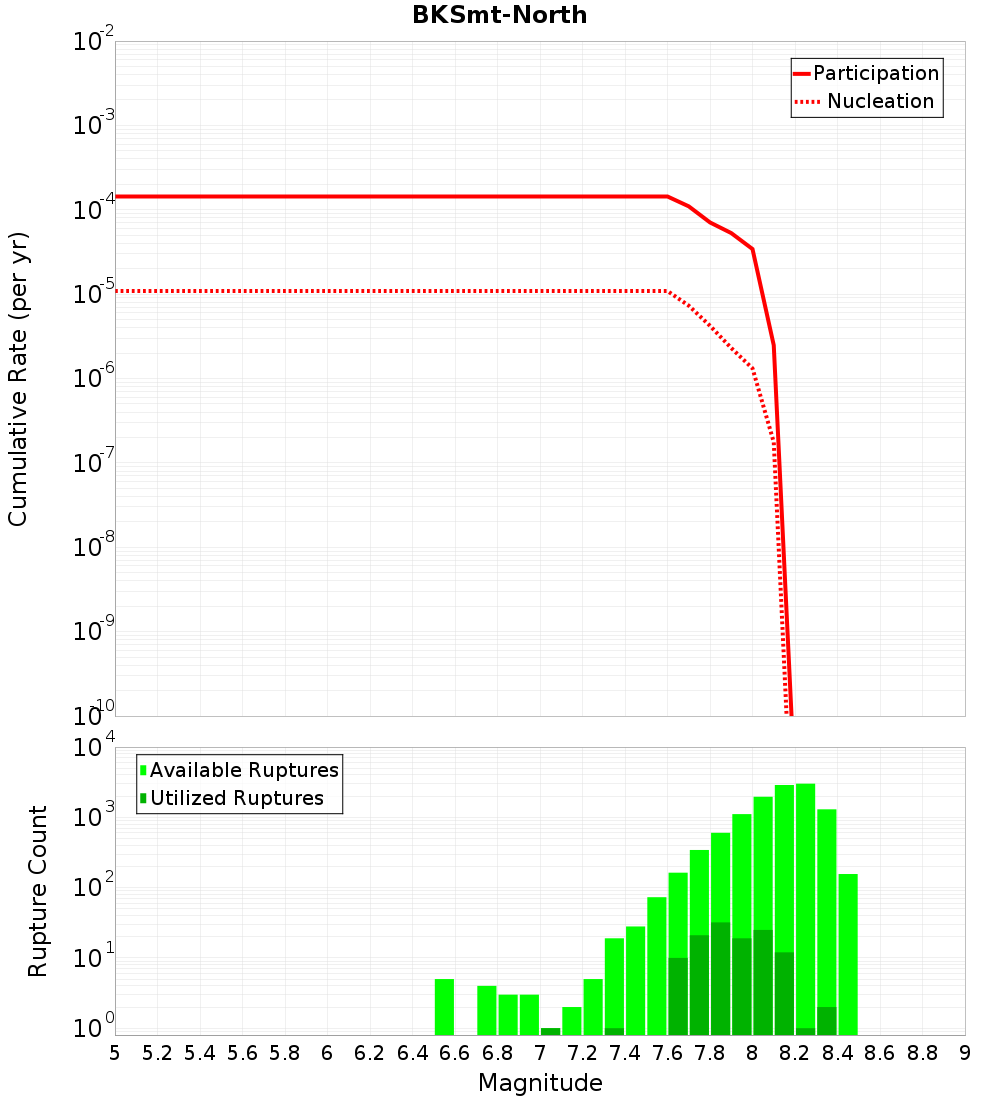

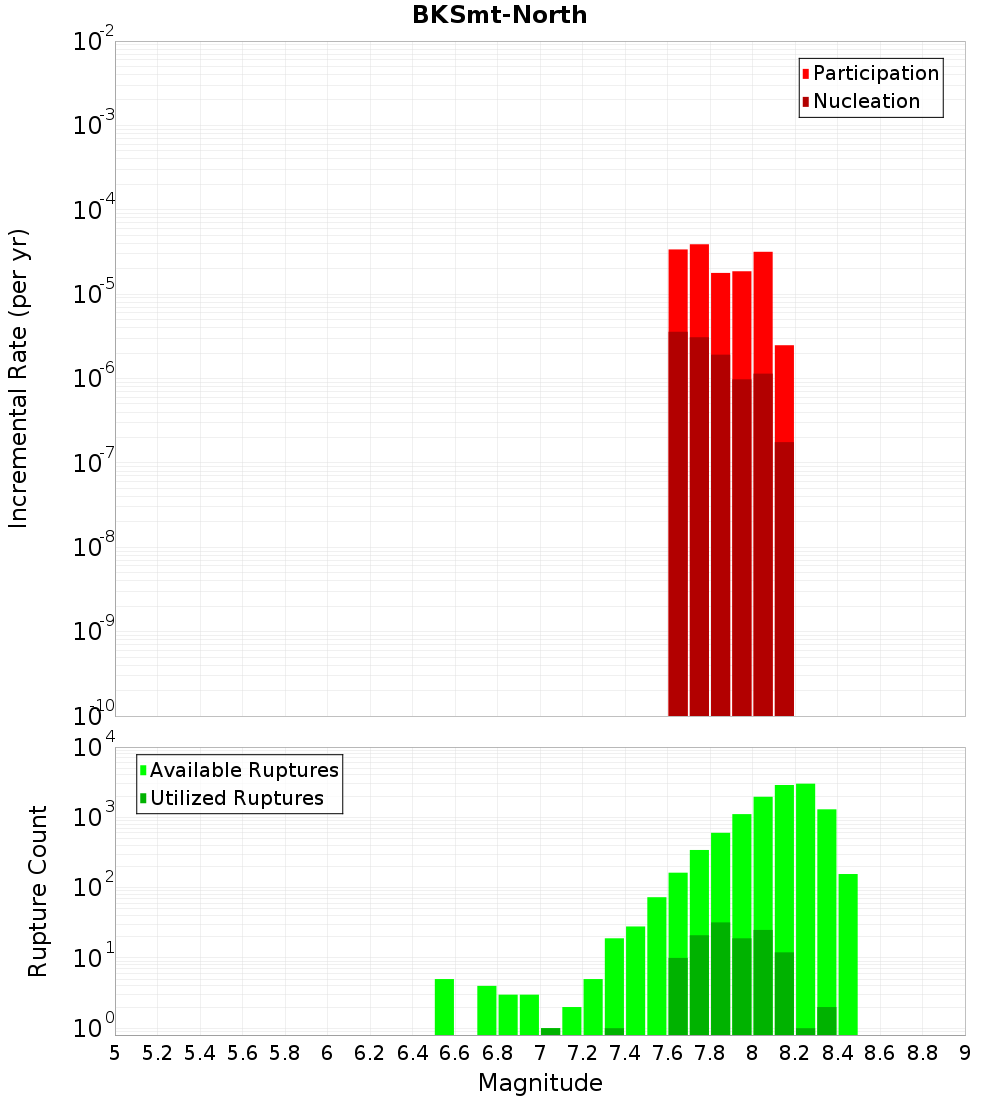

Magnitude-Frequency Distribution

Incremental	Cumulative

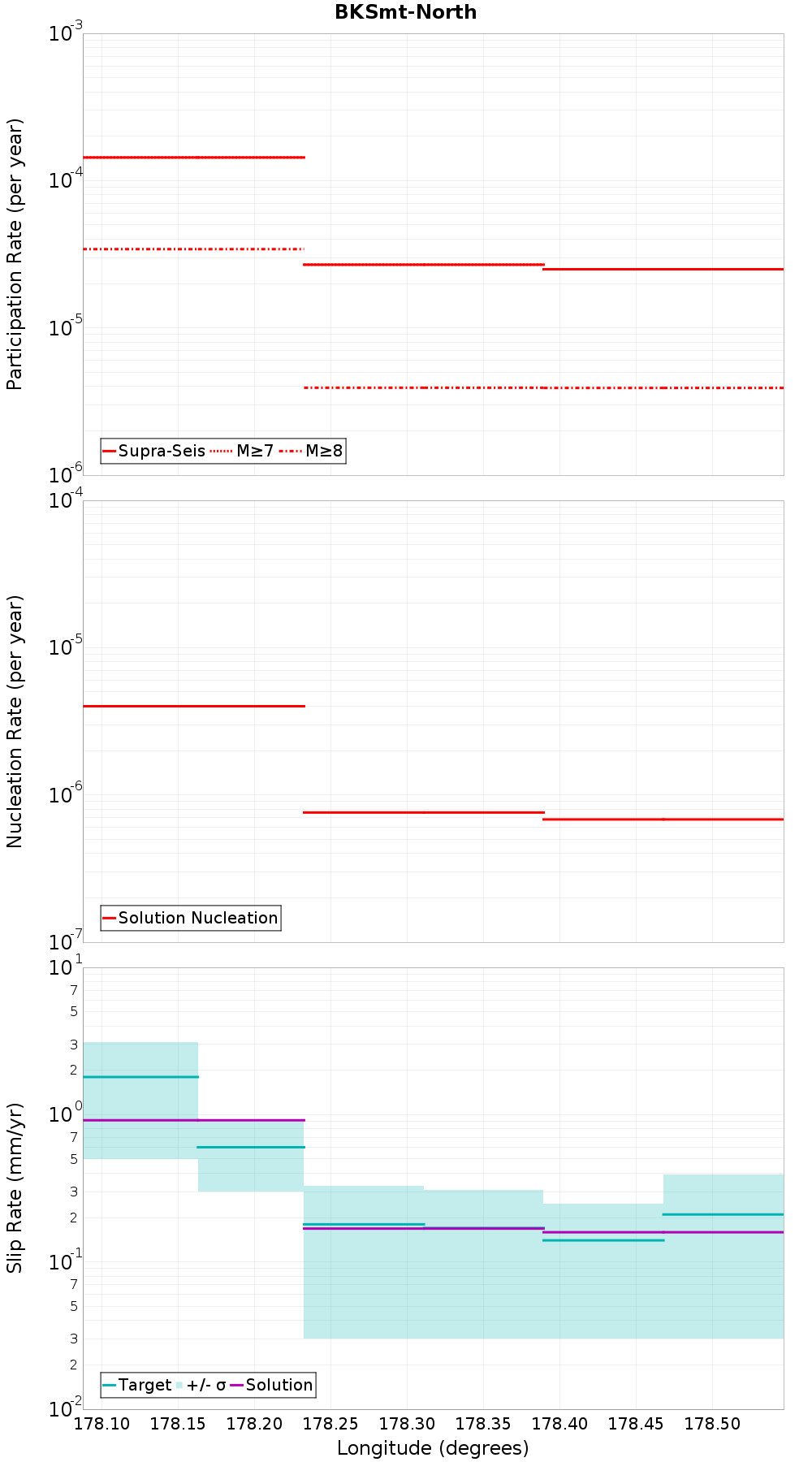

Along-Strike Values

Moment-Rates and b-Values

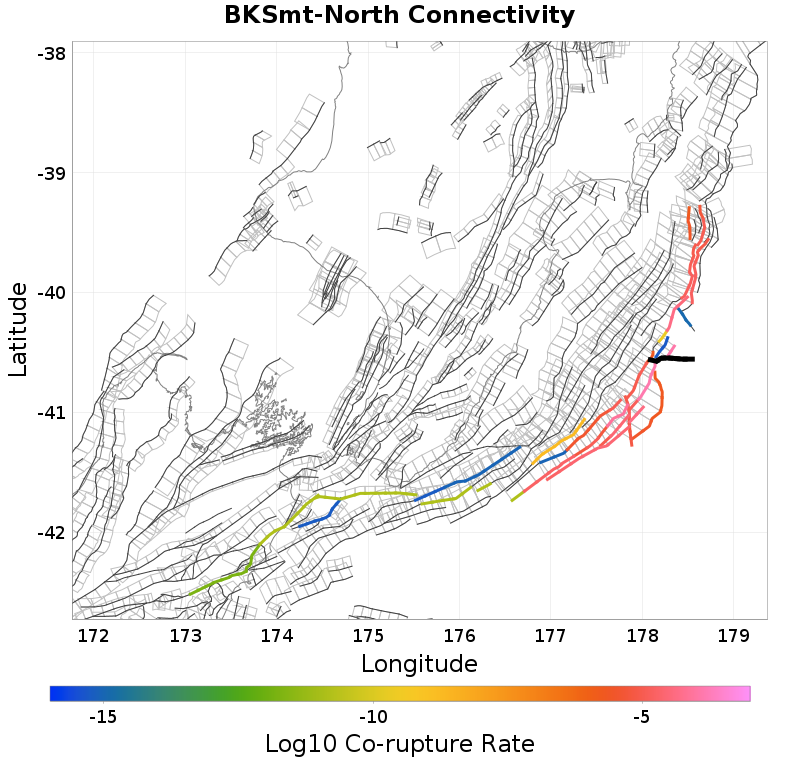

Connectivity

Nearby Sections

Fault Section
F16 - Central, 0.11 km away
Akitio Ridge, 0.41 km away
F16 - North, 0.66 km away
F14 - North, 3.57 km away
Bennett Knoll, 7.43 km away
Akitio Trough West, 11.87 km away

F16 - Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	7,843
Co-rupture Rate	1.3234049E-4

Akitio Ridge, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	9,993
Co-rupture Rate	5.4878037E-5

F16 - North, 0.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	2,152
Co-rupture Rate	1.1674269E-4

F14 - North, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	5,153
Co-rupture Rate	5.024895E-16

Bennett Knoll, 7.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	false
Co-rupture Count	101
Co-rupture Rate	2.9089672E-6

Akitio Trough West, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
