Hyde South - The Twins Details

PropertyValue
Rupture Count1,281
Ruptures Above Sect Min Mag1,281
Ruptures w/ Nonzero Rates123
Magnitude Range[7.12, 8.39]
Length Range[21, 460] km
Total Rate9.135879E-5 /yr
Multi-Fault Rate9.135879E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults55

Table Of Contents

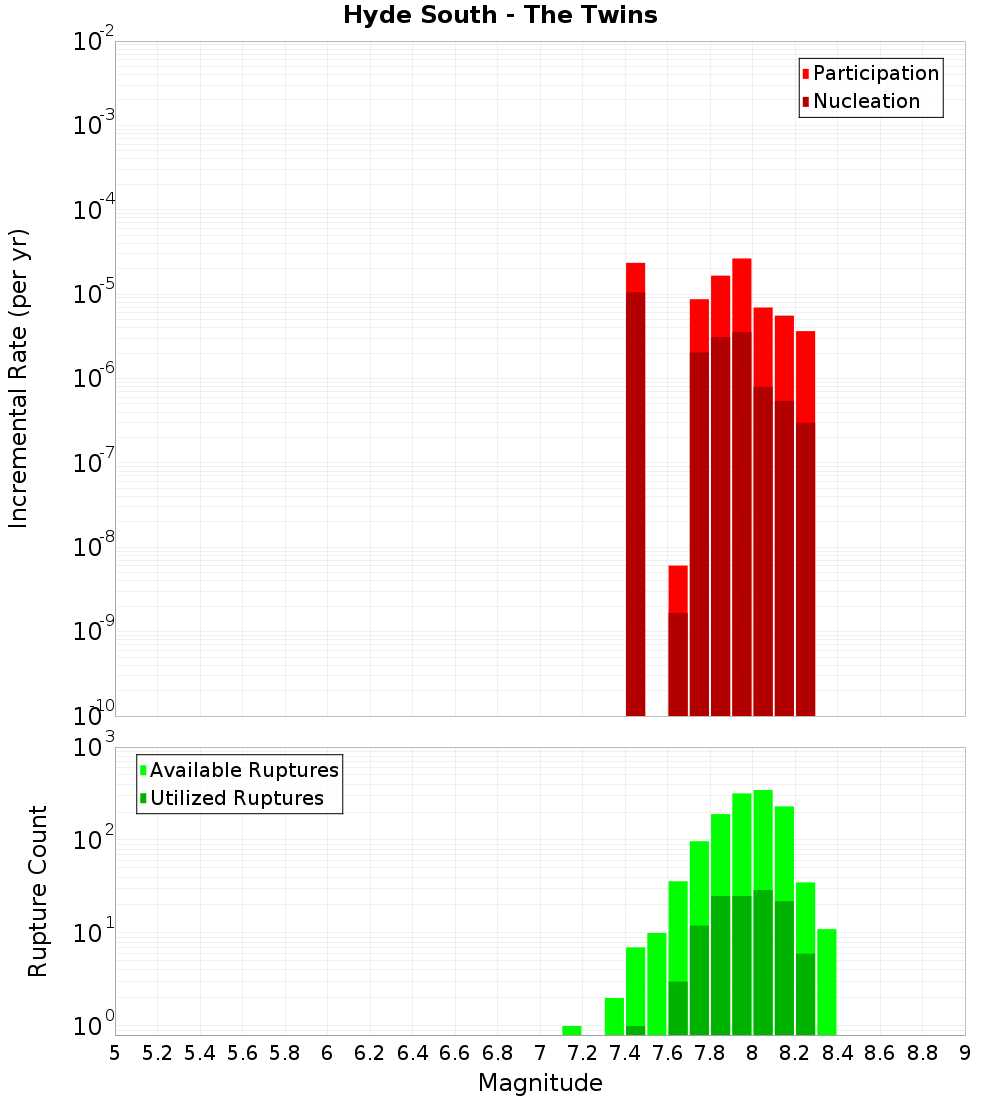

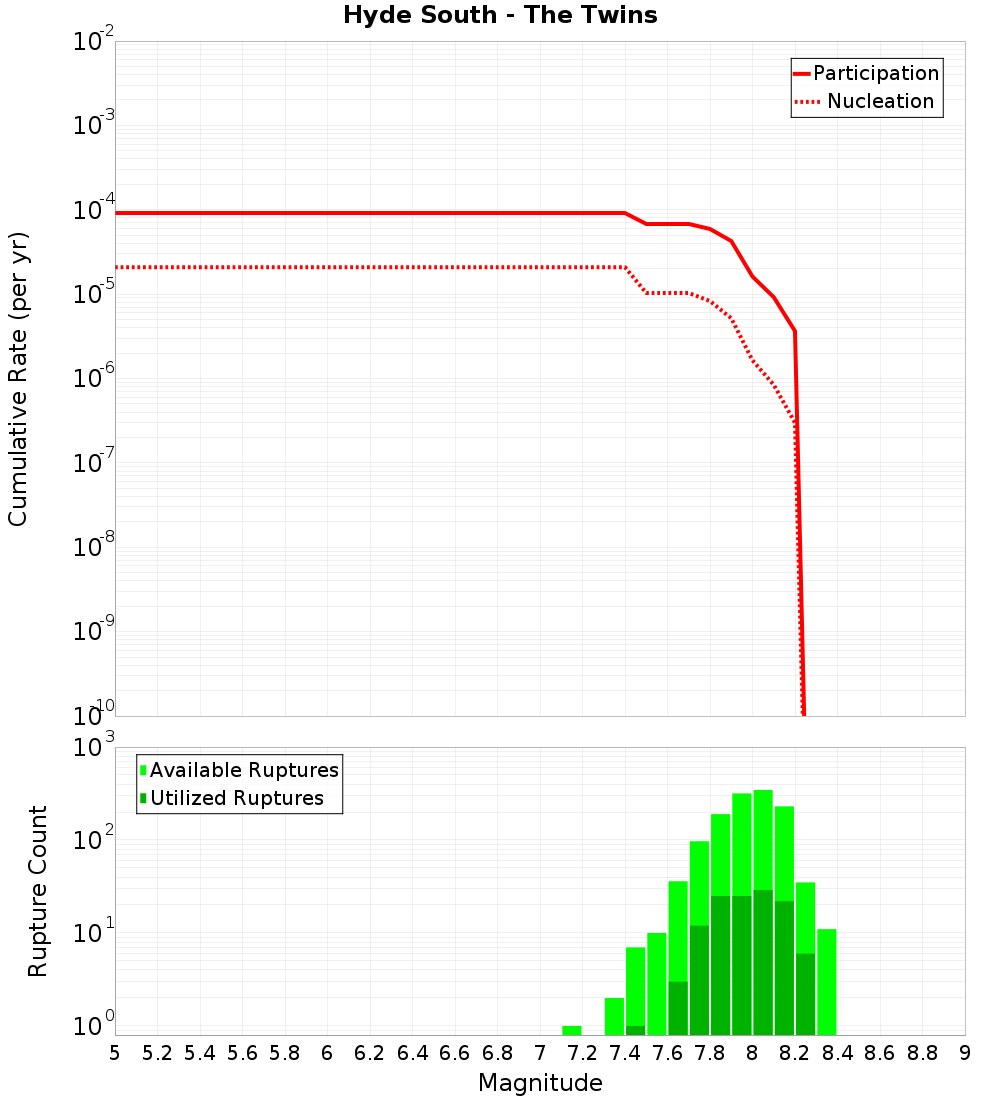

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

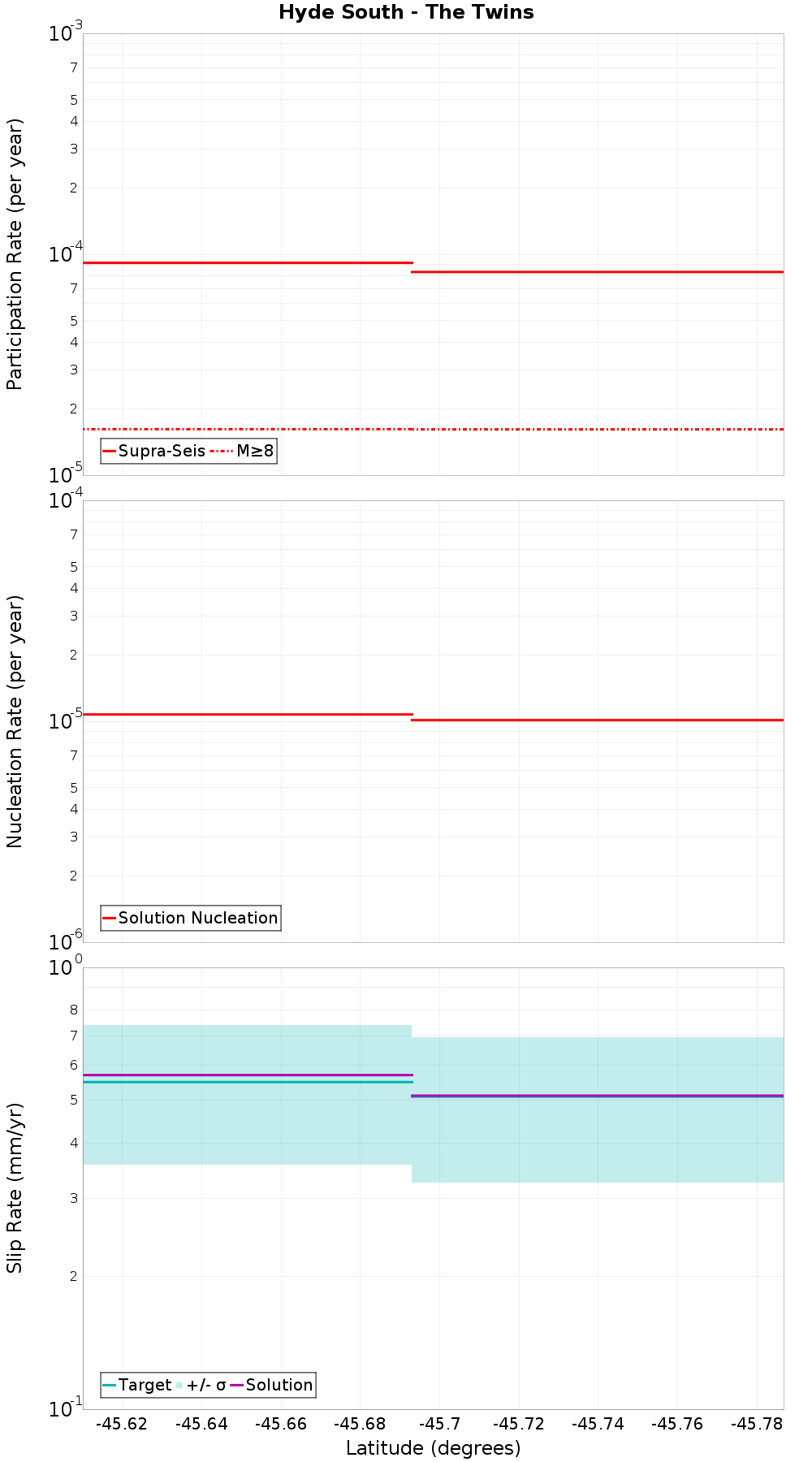

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

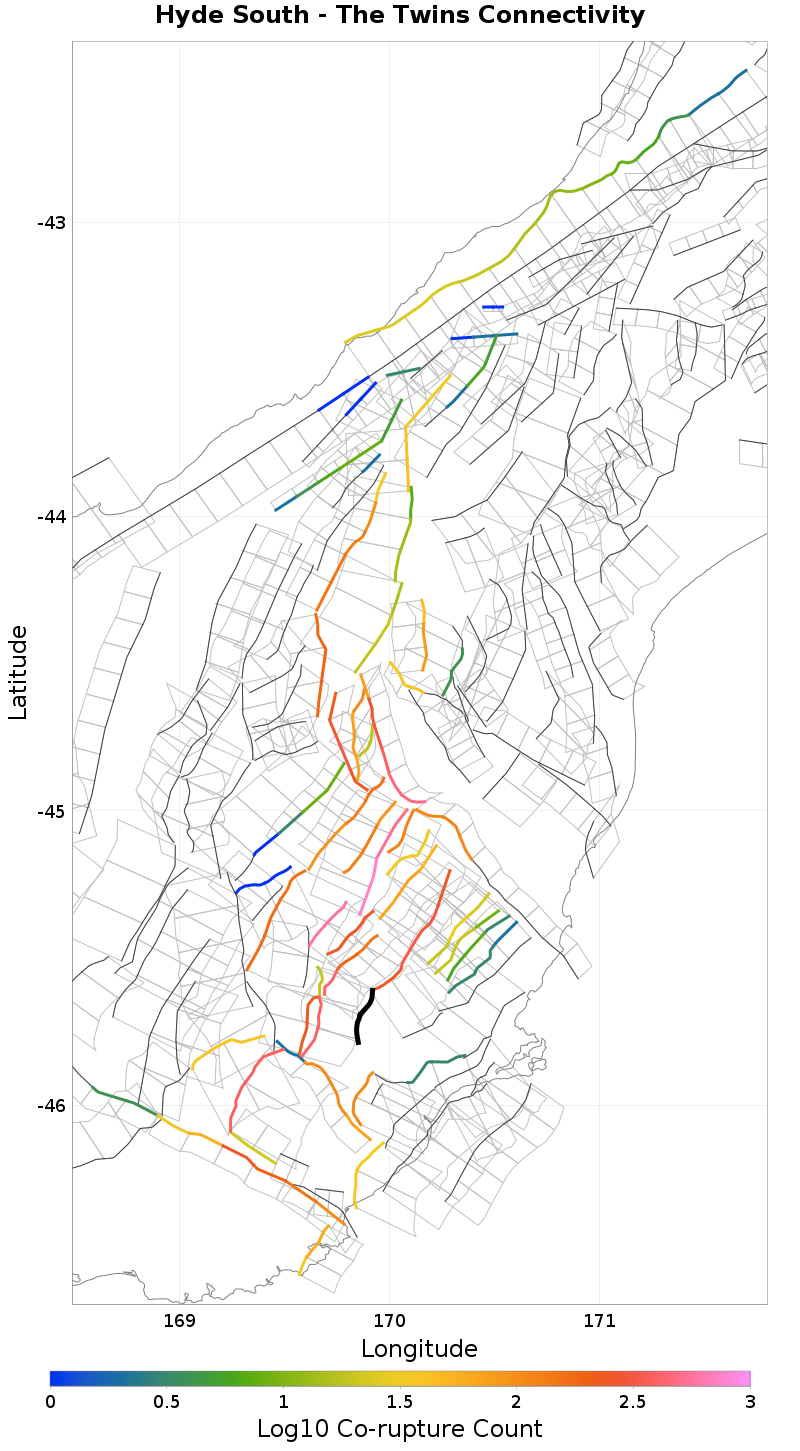

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Logan Burn, 0.15 km away
Beaumont River, 0.29 km away
Hyde North, 0.33 km away
Little Valley, 0.64 km away
Pylap, 3.96 km away
Long Valley, 4.04 km away
Backbone, 6.64 km away
Lake Onslow, 11.99 km away
Waitahuna 1, 12.65 km away
Nichols Rock, 12.84 km away
Maungatua - North Taieri, 13.56 km away
Galloway, 14.35 km away
Blue Mountain, 14.6 km away

Logan Burn, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count419
Co-rupture Rate1.2042229E-5

Beaumont River, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count398
Co-rupture Rate1.8654557E-5

Hyde North, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count333
Co-rupture Rate5.011495E-5

Little Valley, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate8.260017E-6

Pylap, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count273
Co-rupture Rate9.932907E-6

Long Valley, 4.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count569
Co-rupture Rate3.2350747E-6

Backbone, 6.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count234
Co-rupture Rate3.0704463E-8

Lake Onslow, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 12.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate6.254297E-5

Nichols Rock, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate4.3991477E-6

Galloway, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Blue Mountain, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count388
Co-rupture Rate1.7658542E-5
