Maimai: Brunner Anticline Details
| Property | Value |
|---|---|
| Rupture Count | 2,715 |
| Ruptures Above Sect Min Mag | 2,711 |
| Ruptures w/ Nonzero Rates | 98 |
| Magnitude Range | [6.89, 8.67] |
| Length Range | [19, 1,039] km |
| Total Rate | 8.670545E-5 /yr |
| Multi-Fault Rate | 7.1747854E-5 /yr (82.75%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 54 |
Table Of Contents

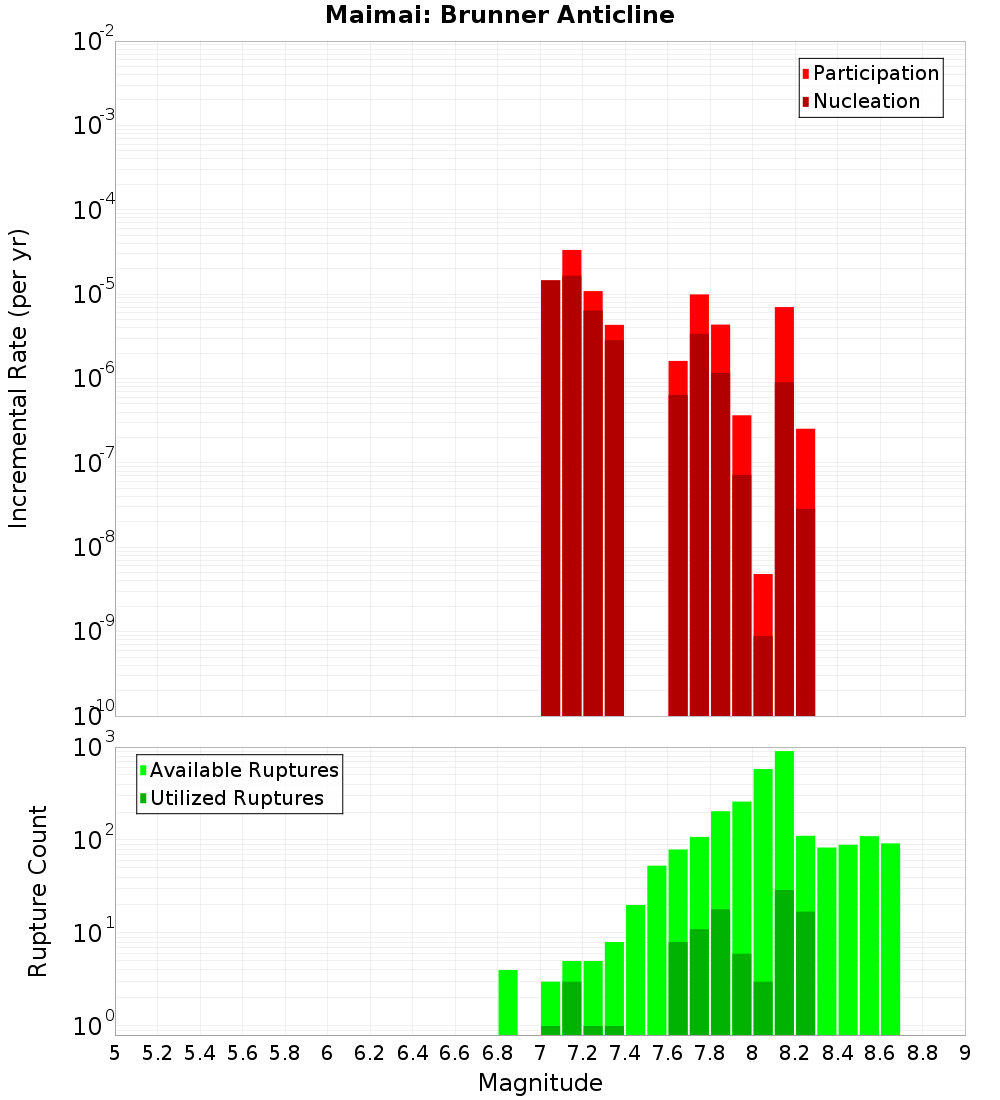

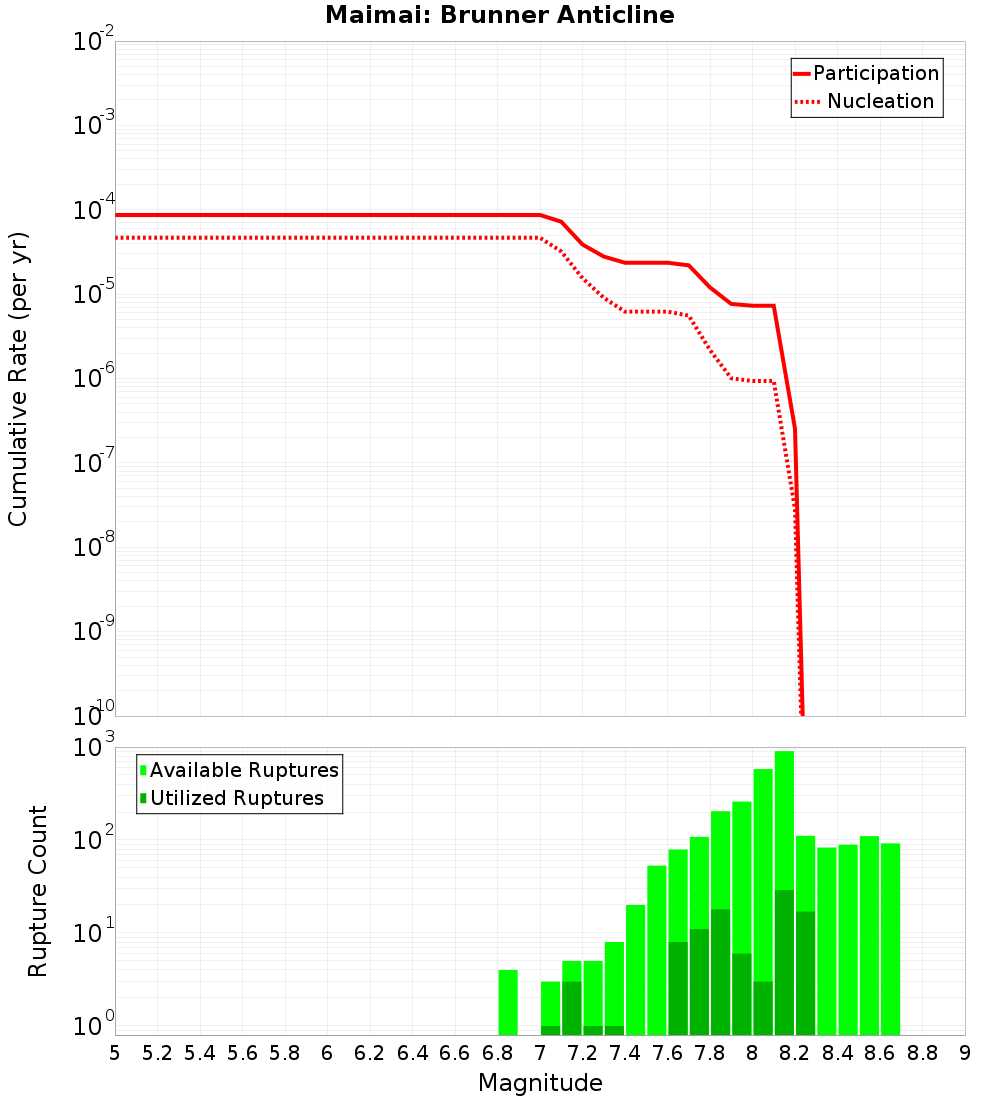

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

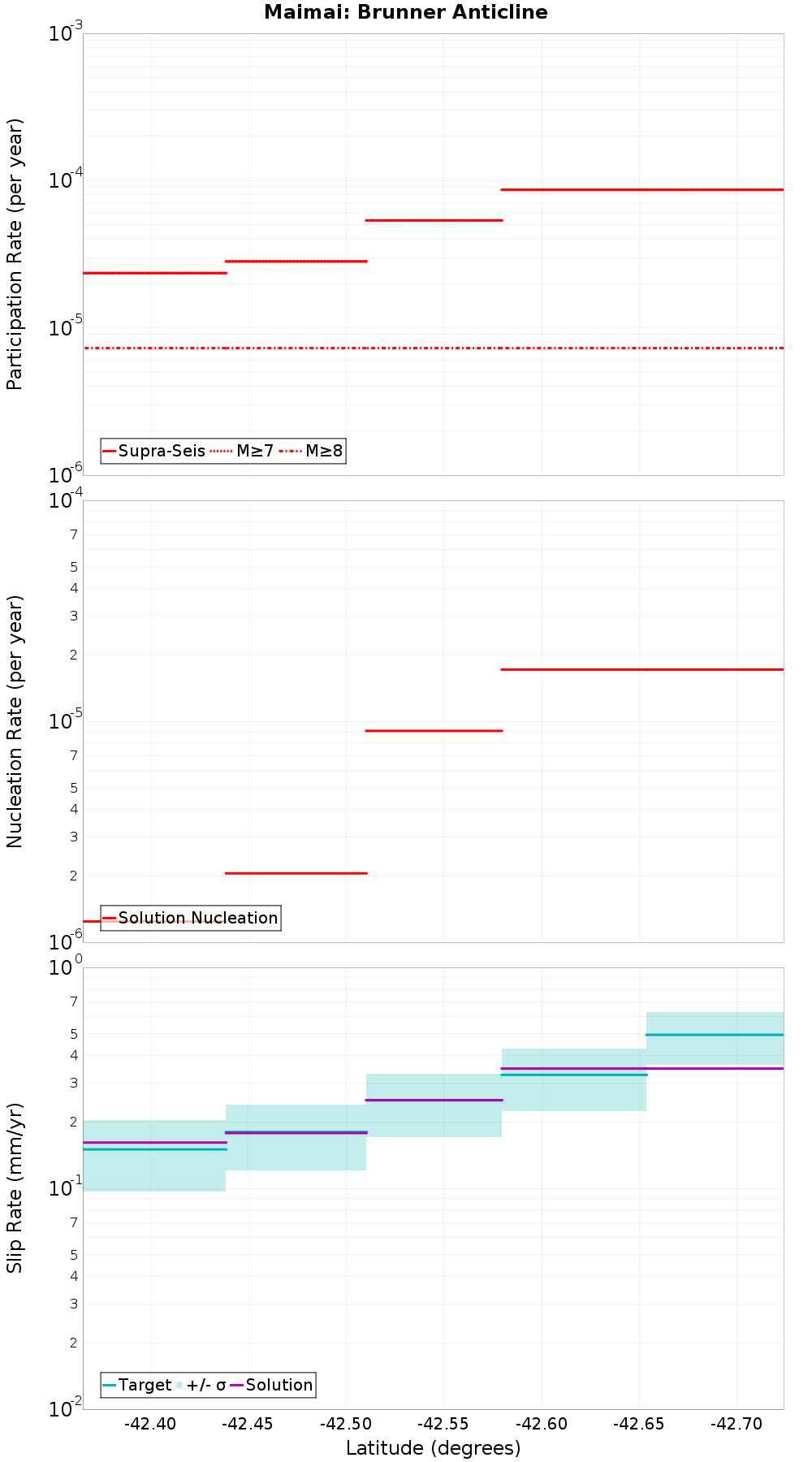

Along-Strike Values

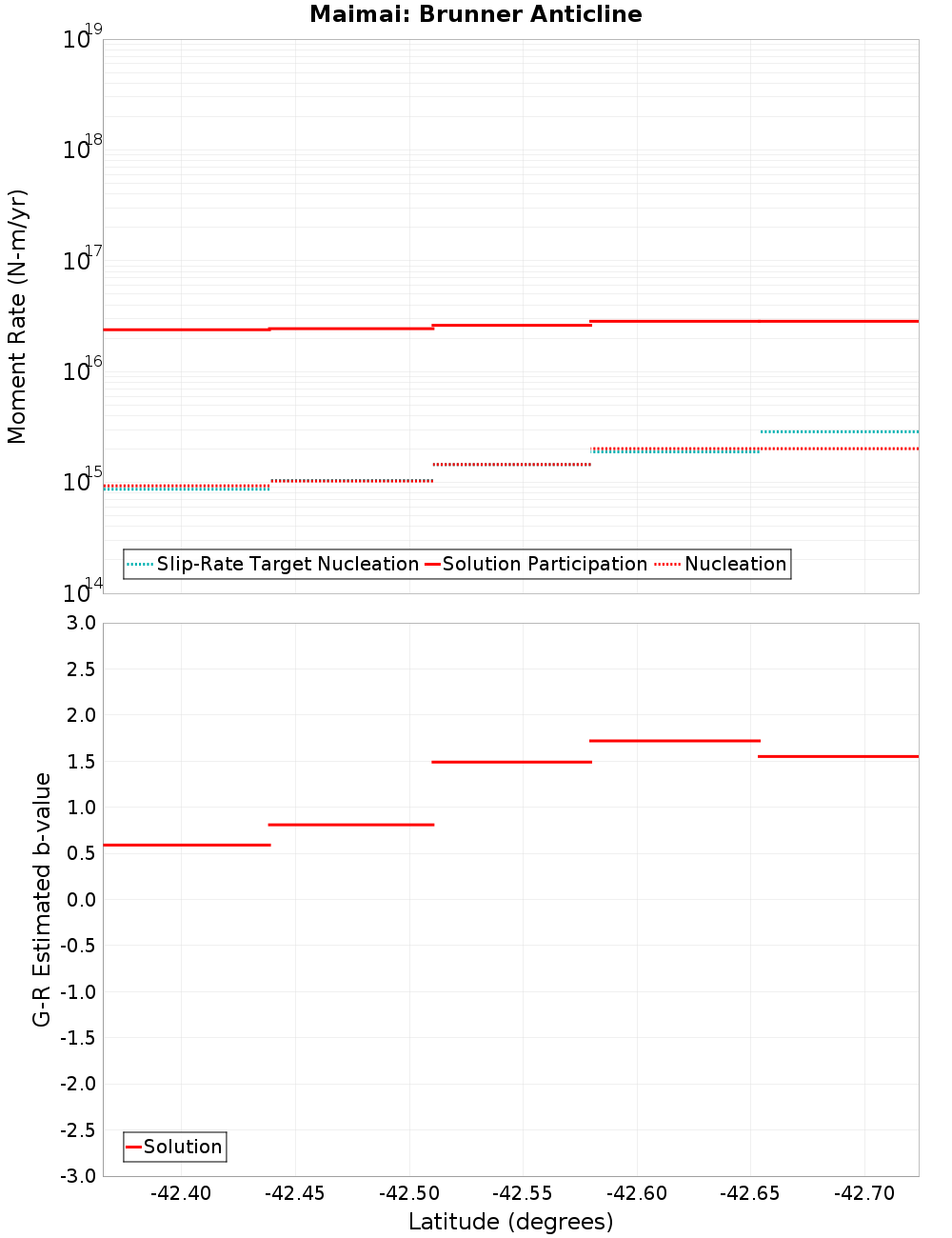

Moment-Rates and b-Values

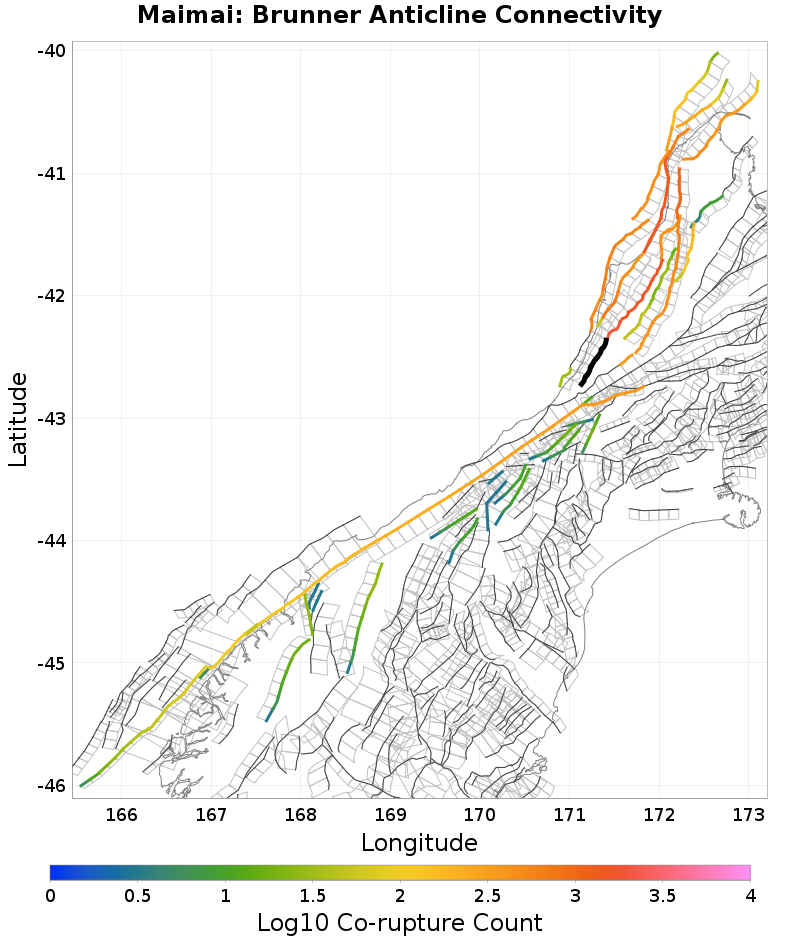

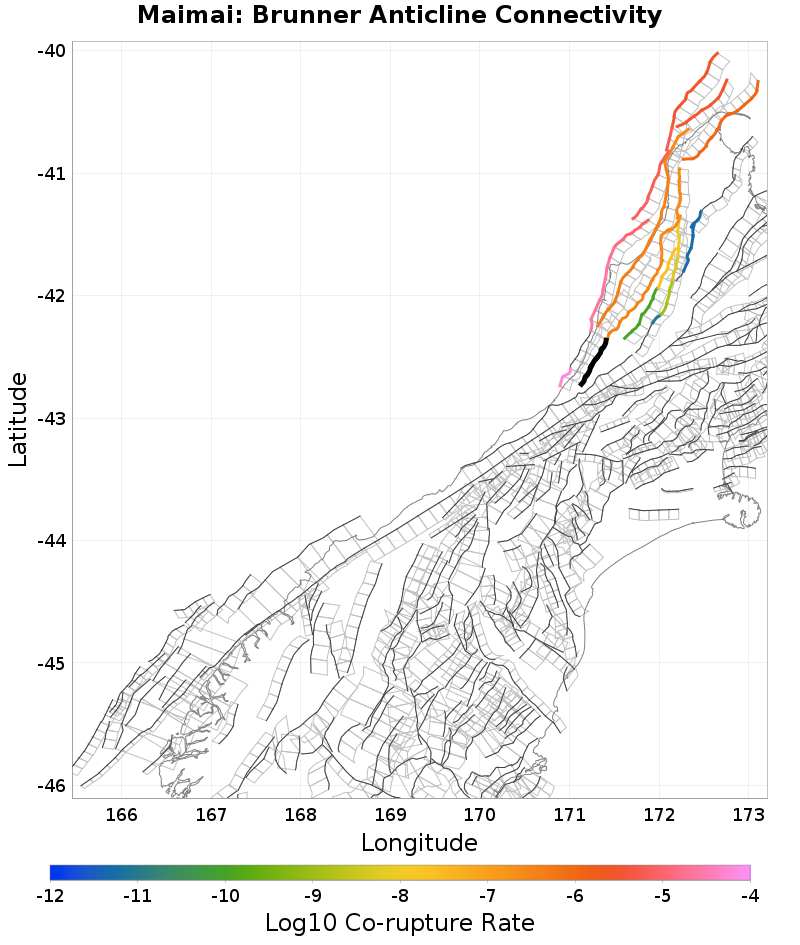

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: South, 0 km away |
| Cape Foulwind 1, 0.41 km away |
| Hohonu South, 7.36 km away |
| Paparoa West, 7.72 km away |
| Hohonu, 8.83 km away |
Maimai: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,127 |
| Co-rupture Rate | 3.7290312E-7 |
Cape Foulwind 1, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 608 |
| Co-rupture Rate | 8.85844E-5 |
Hohonu South, 7.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paparoa West, 7.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 676 |
| Co-rupture Rate | 4.5687443E-7 |
Hohonu, 8.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
