Pakupaku Ridge Details

Property	Value
Rupture Count	32,449
Ruptures Above Sect Min Mag	32,446
Ruptures w/ Nonzero Rates	93
Magnitude Range	[7.19, 8.66]
Length Range	[28, 855] km
Total Rate	4.8725188E-4 /yr
Multi-Fault Rate	4.8722635E-4 /yr (99.99%)
Directly-Connected Faults	9
All Co-Rupturing Faults	95

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

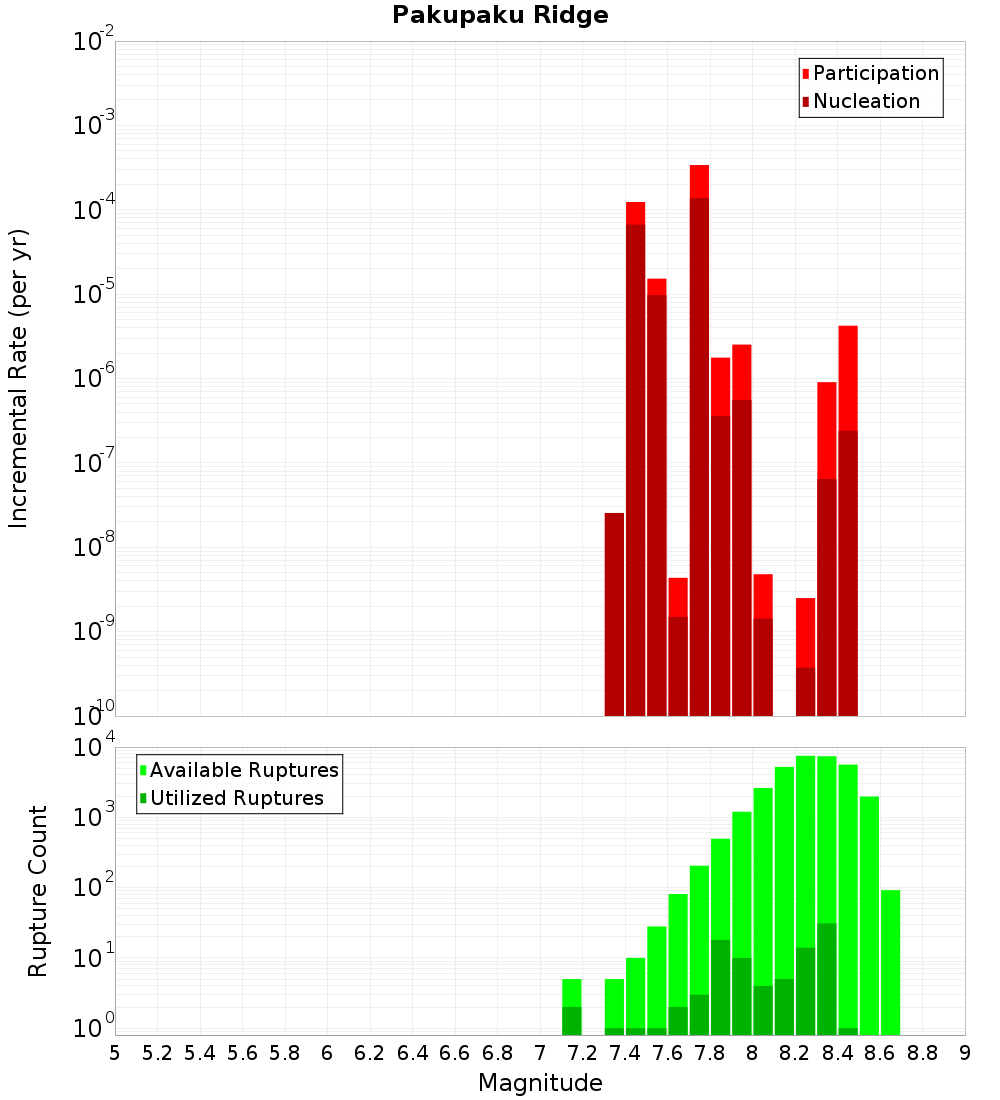

Magnitude-Frequency Distribution

Incremental	Cumulative

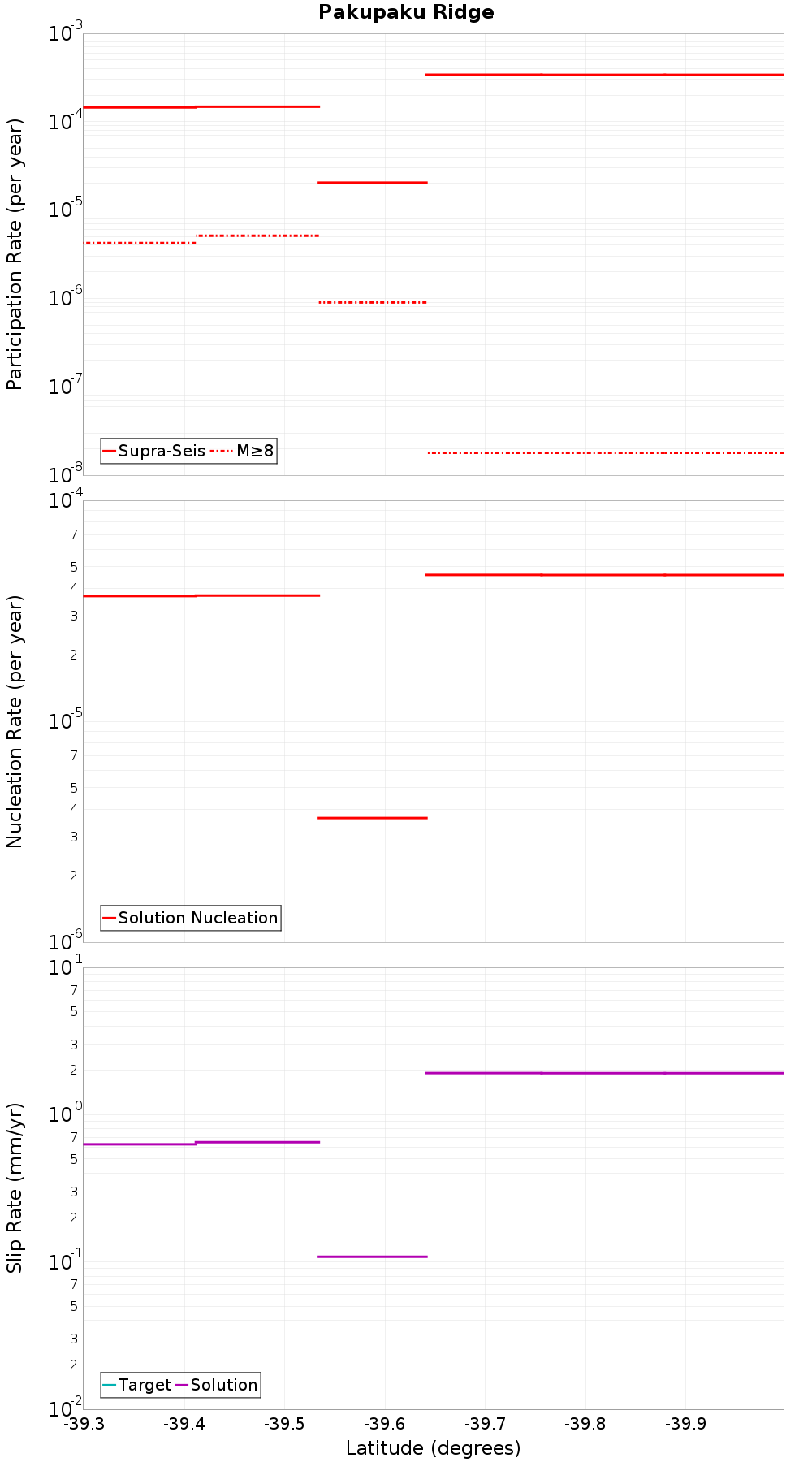

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Whaiti Ridge, 0.02 km away
Te Kapu Bank, 0.07 km away
Pakupaku Ridge East, 1.22 km away
Rock Garden - Ritchie East 1, 1.28 km away
Rock Garden - Ritchie East, 1.96 km away
Te Kapu Bank East, 3.44 km away
Akitio Ridge, 3.69 km away
Puke Knoll, 5.08 km away
Ritchie Ridge, 6.34 km away
Riwha, 6.69 km away
Ritchie Ridge 1, 7.49 km away
Paoanui Ridge North, 10.71 km away
Ritchie West 1, 13.64 km away

Whaiti Ridge, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	4,257
Co-rupture Rate	5.1370104E-9

Te Kapu Bank, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	6,437
Co-rupture Rate	1.5832594E-6

Pakupaku Ridge East, 1.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	1,078
Co-rupture Rate	3.3893983E-4

Rock Garden - Ritchie East 1, 1.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	17,808
Co-rupture Rate	5.0752174E-6

Rock Garden - Ritchie East, 1.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	8,310
Co-rupture Rate	3.4407023E-4

Te Kapu Bank East, 3.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	4,169
Co-rupture Rate	6.0888765E-6

Akitio Ridge, 3.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	23,752
Co-rupture Rate	4.253105E-6

Puke Knoll, 5.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	12,032
Co-rupture Rate	1.3892235E-4

Ritchie Ridge, 6.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0

Riwha, 6.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	false
Co-rupture Count	6,354
Co-rupture Rate	8.942797E-7

Ritchie Ridge 1, 7.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	false
Co-rupture Count	52
Co-rupture Rate	0.0

Paoanui Ridge North, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	false
Co-rupture Count	1,380
Co-rupture Rate	3.688629E-12

Ritchie West 1, 13.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?	true
Directly Connected?	true
Co-rupture Count	179
Co-rupture Rate	0.0
