Poroutawhao Details

PropertyValue
Rupture Count289
Ruptures Above Sect Min Mag289
Ruptures w/ Nonzero Rates28
Magnitude Range[7.25, 8.08]
Length Range[27, 222] km
Total Rate2.5638998E-5 /yr
Multi-Fault Rate2.5638998E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

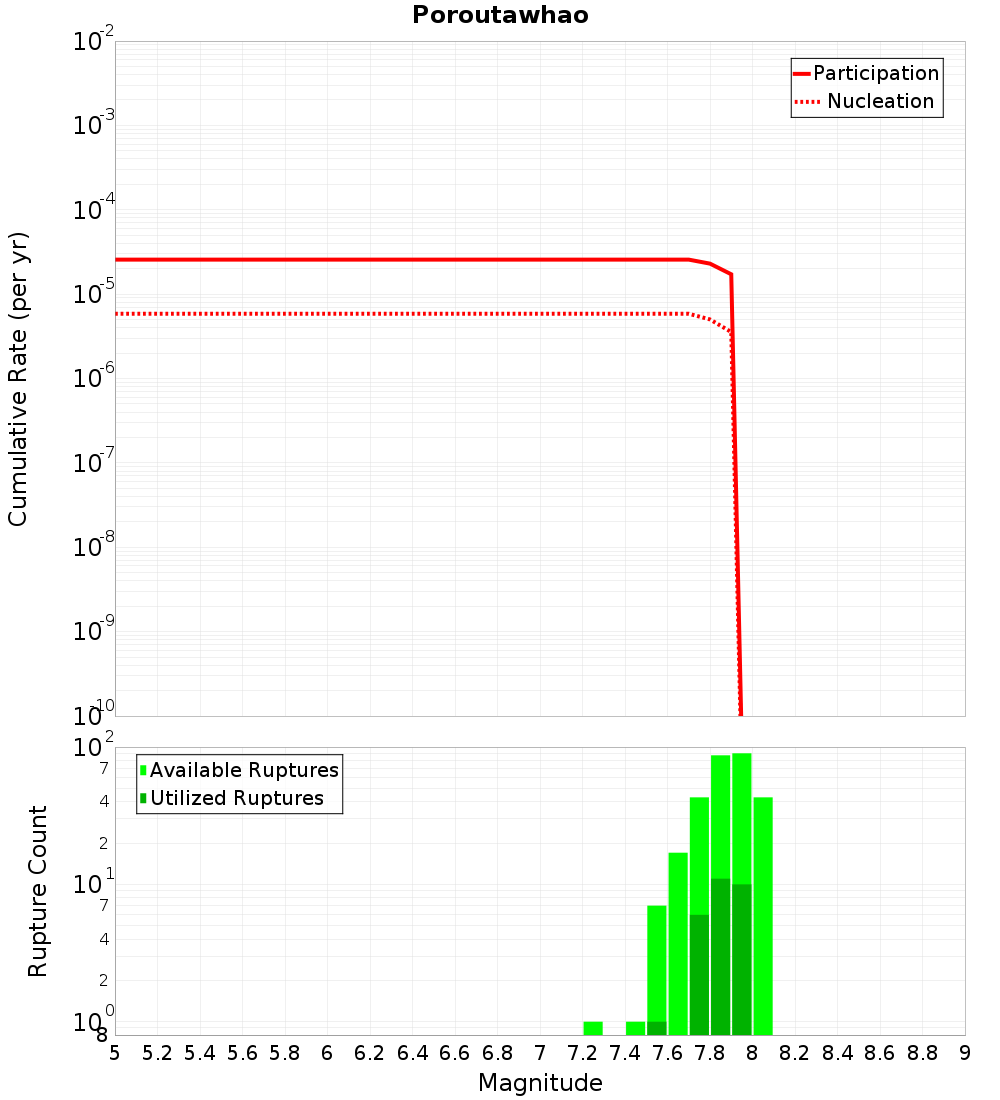

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

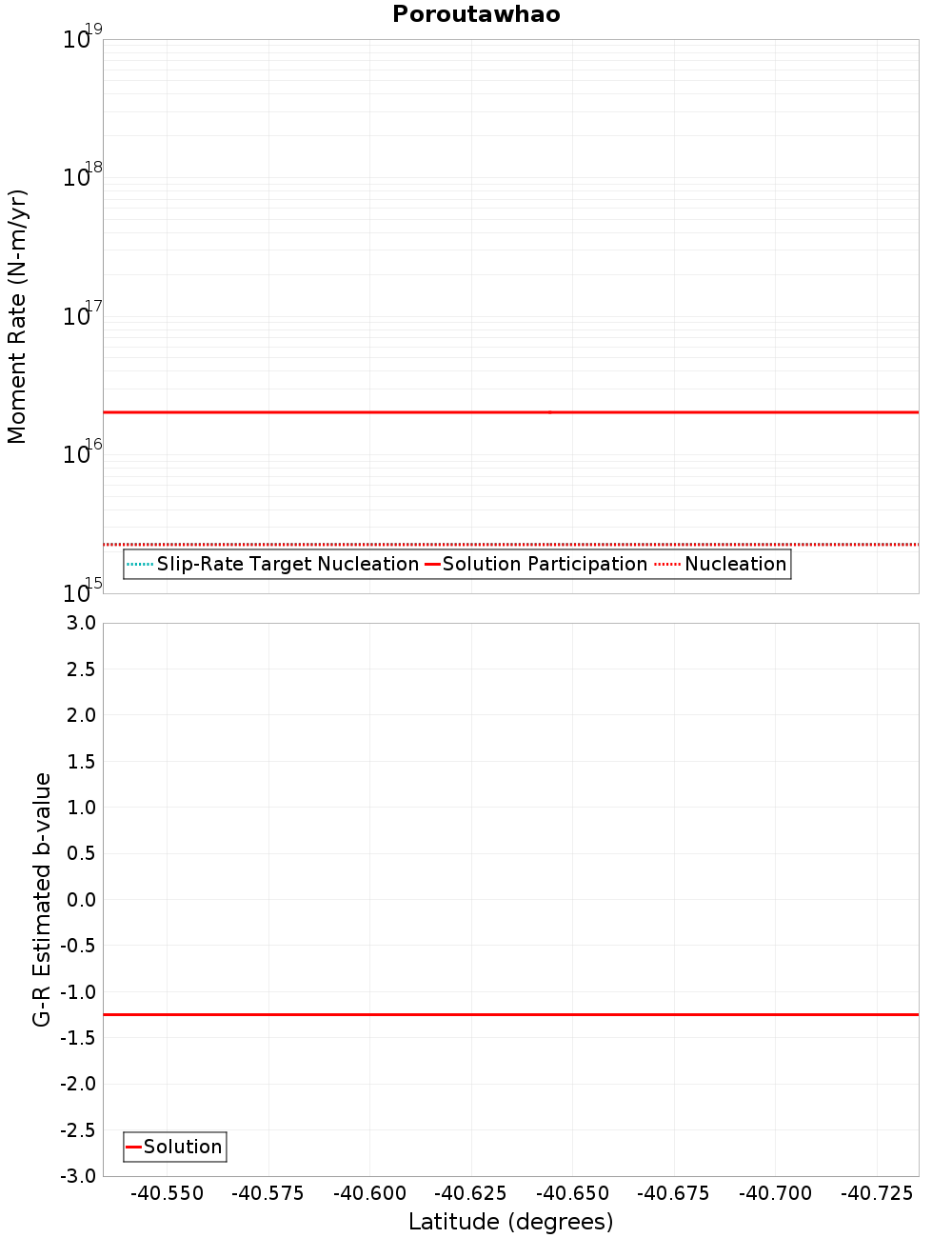

Moment-Rates and b-Values

(top)

Along-strike plot

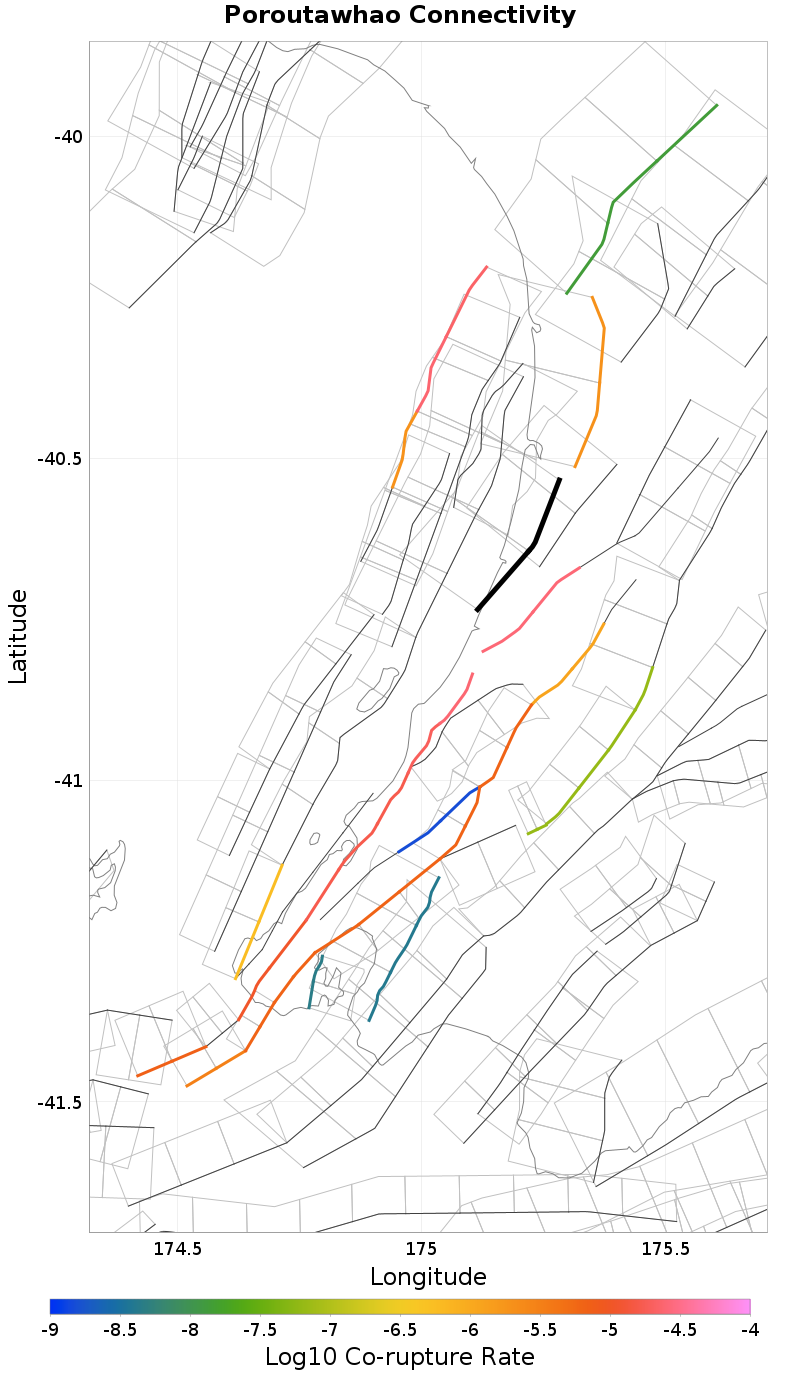

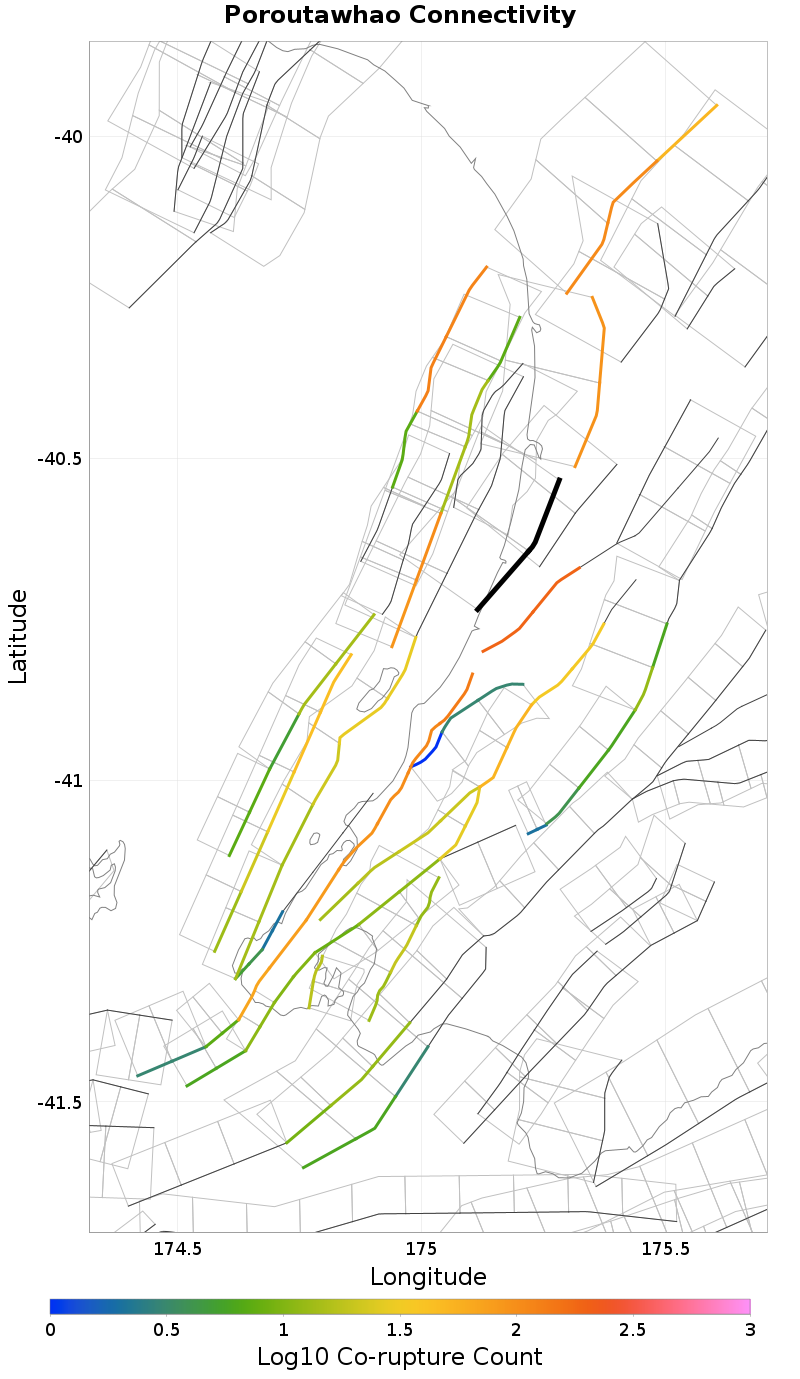

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mascarin, 0.14 km away
Rangitikei Offshore 1, 0.41 km away
Himatangi, 1.22 km away
Levin Anticline, 2.59 km away
Otaheke North, 4.14 km away
Onepoto, 5.78 km away
Fisherman 3, 6.52 km away
Northern Ohariu, 6.82 km away
Otaheke South, 10.17 km away
Ohariu, 11.17 km away
Fisherman 2, 12.34 km away
Tokomaru, 13.21 km away
Gibbs, 13.97 km away

Mascarin, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count125
Co-rupture Rate2.3686576E-5

Rangitikei Offshore 1, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count94
Co-rupture Rate1.9646743E-6

Levin Anticline, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke North, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 5.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate0.0

Fisherman 3, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 6.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count191
Co-rupture Rate2.5626427E-5

Otaheke South, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Ohariu, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count139
Co-rupture Rate2.4396539E-5

Fisherman 2, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Tokomaru, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibbs, 13.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0
