Wairarapa: 1 Details

PropertyValue
Rupture Count46,169
Ruptures Above Sect Min Mag46,165
Ruptures w/ Nonzero Rates890
Magnitude Range[6.91, 8.67]
Length Range[20, 1,083] km
Total Rate8.346251E-4 /yr
Multi-Fault Rate8.346251E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults215

Table Of Contents

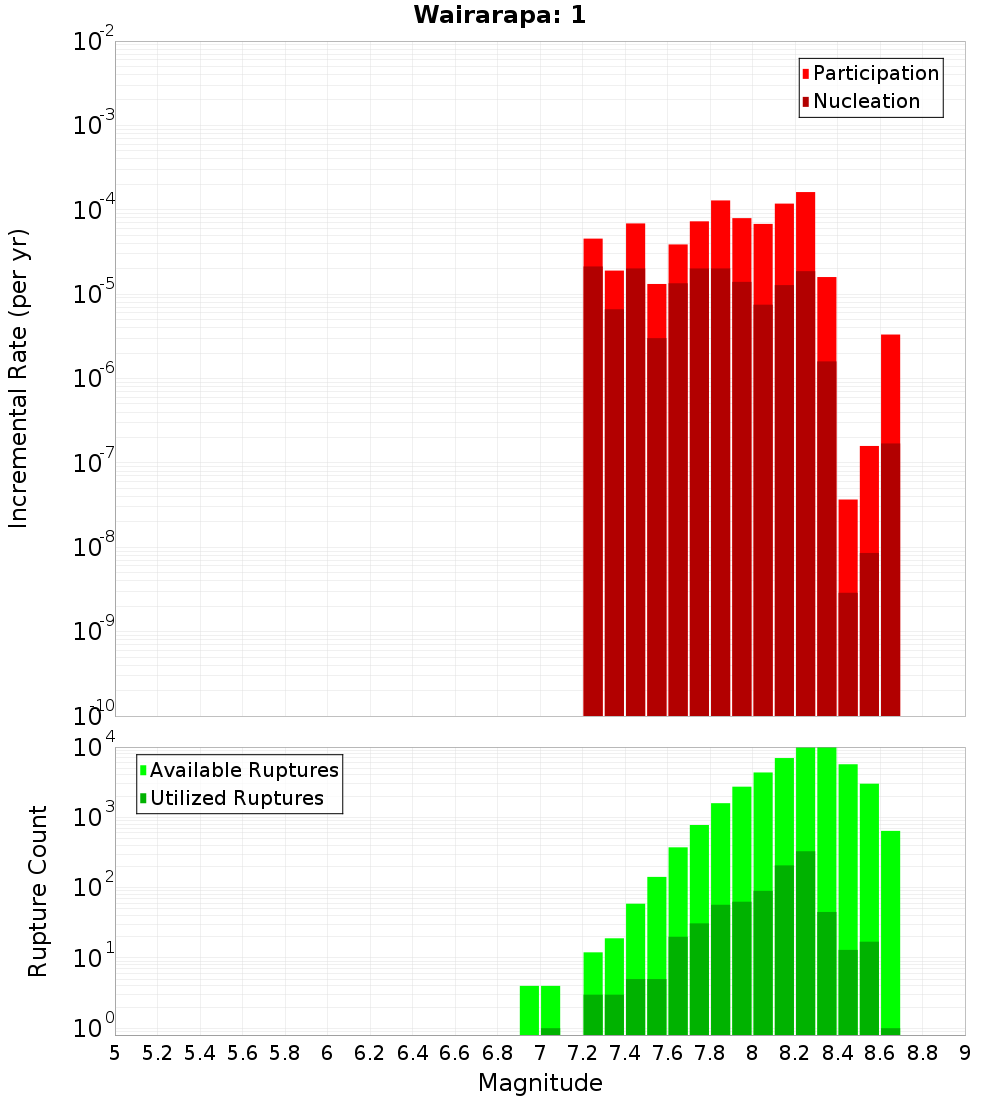

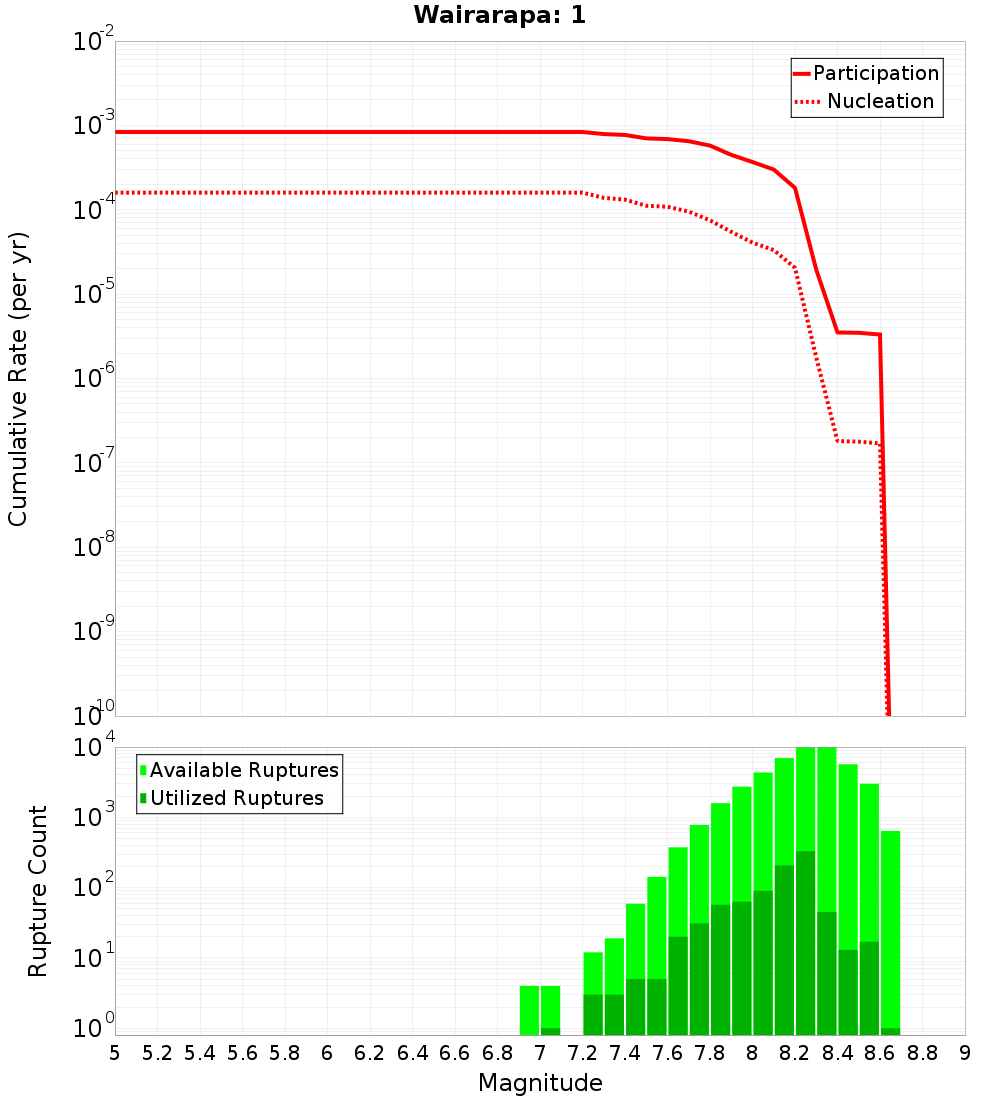

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

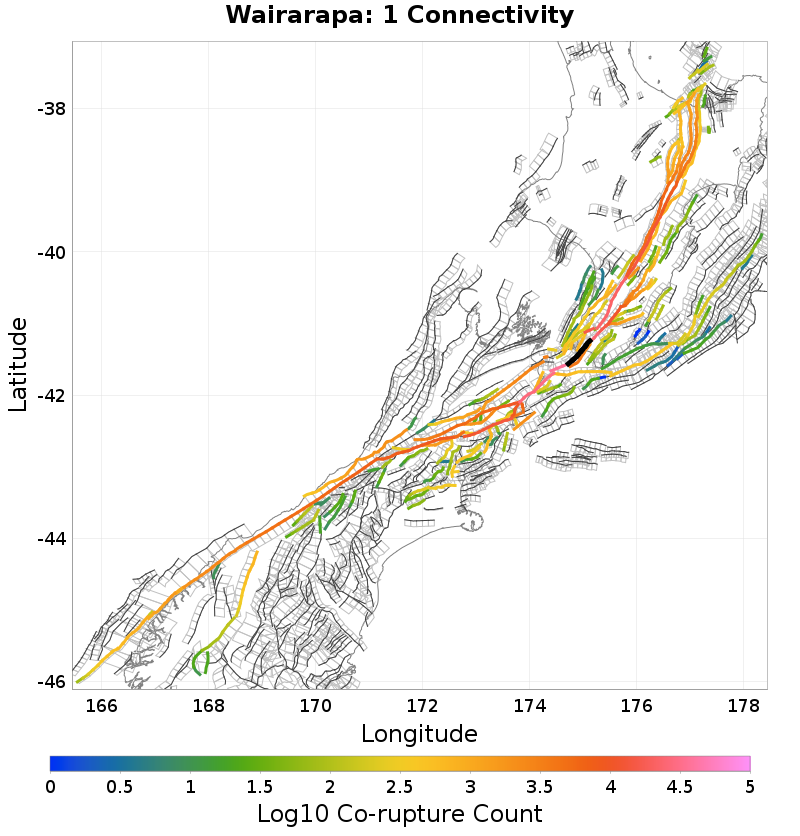

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wairarapa: 2, 0 km away
Wairarapa: Needles, 0 km away
Wharekauhau, 0.2 km away
Wellington Hutt Valley: 5, 0.92 km away
Aotea - Evans Bay, 1.2 km away
Wellington Hutt Valley: 4, 2.73 km away
Whitemans Valley, 5.26 km away
Akatarawa, 12.67 km away
Wellington Hutt Valley: 2, 12.7 km away
Wellington Hutt Valley: 3, 12.73 km away
Moonshine, 13.22 km away
Ohariu, 14.45 km away
BooBoo, 14.77 km away

Wairarapa: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count26,038
Co-rupture Rate5.009302E-4

Wairarapa: Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count36,768
Co-rupture Rate5.4113445E-4

Wharekauhau, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count4,396
Co-rupture Rate1.2498834E-4

Wellington Hutt Valley: 5, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count15,398
Co-rupture Rate1.7685332E-8

Aotea - Evans Bay, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count597
Co-rupture Rate1.7274141E-6

Wellington Hutt Valley: 4, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count283
Co-rupture Rate2.6438529E-5

Whitemans Valley, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count810
Co-rupture Rate1.199711E-9

Akatarawa, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count141
Co-rupture Rate2.6438487E-5

Wellington Hutt Valley: 2, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?true
Co-rupture Count724
Co-rupture Rate1.6939128E-4

Wellington Hutt Valley: 3, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count184
Co-rupture Rate1.6937958E-4

Moonshine, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count243
Co-rupture Rate1.05586705E-5

Ohariu, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate9.021483E-6

BooBoo, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMG9ZclRX
Connected?true
Directly Connected?false
Co-rupture Count696
Co-rupture Rate1.501405E-7
