Caswell High 1 Details
| Property | Value |
|---|---|
| Rupture Count | 814 |
| Ruptures Above Sect Min Mag | 790 |
| Ruptures w/ Nonzero Rates | 42 |
| Magnitude Range | [6.61, 8.40] |
| Length Range | [15, 711] km |
| Total Rate | 8.239109E-4 /yr |
| Multi-Fault Rate | 7.9725904E-4 /yr (96.77%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

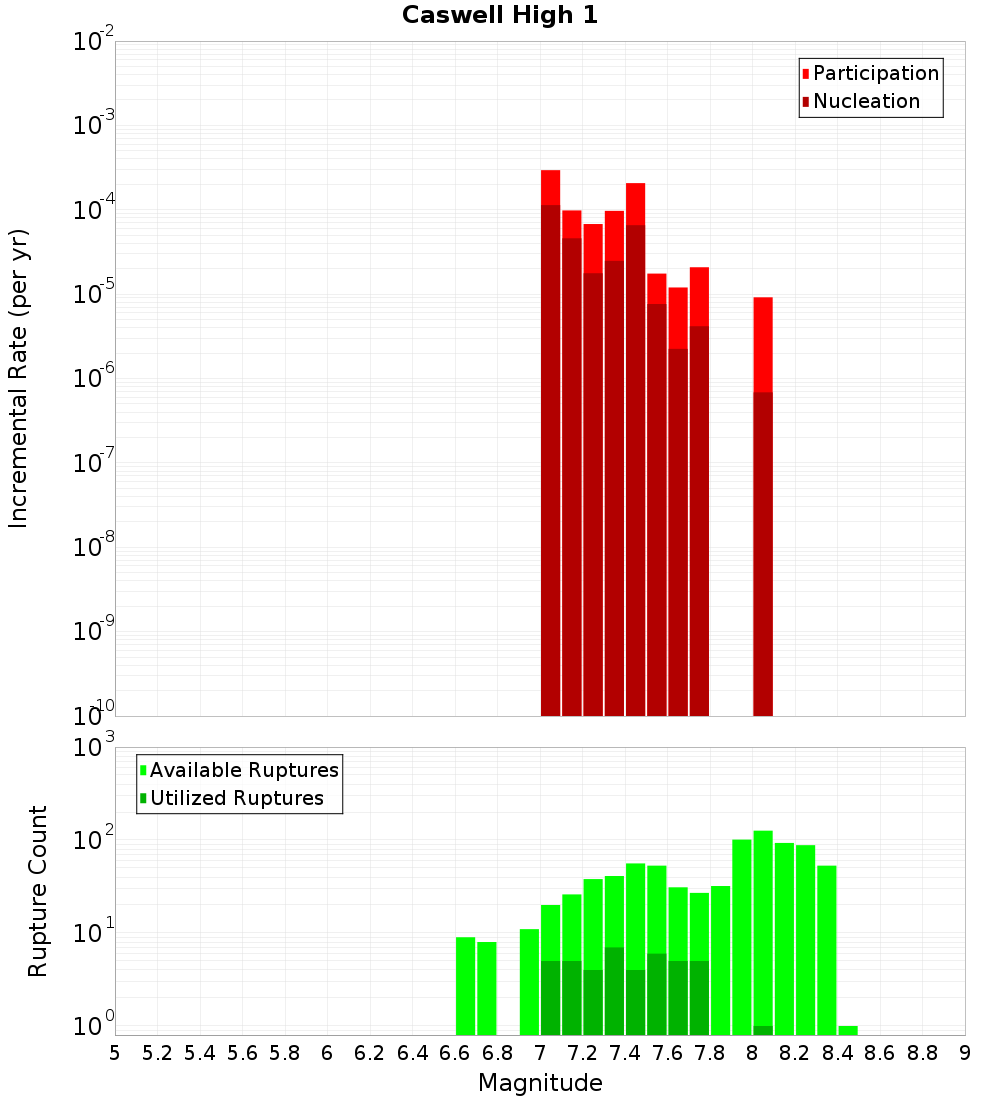

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

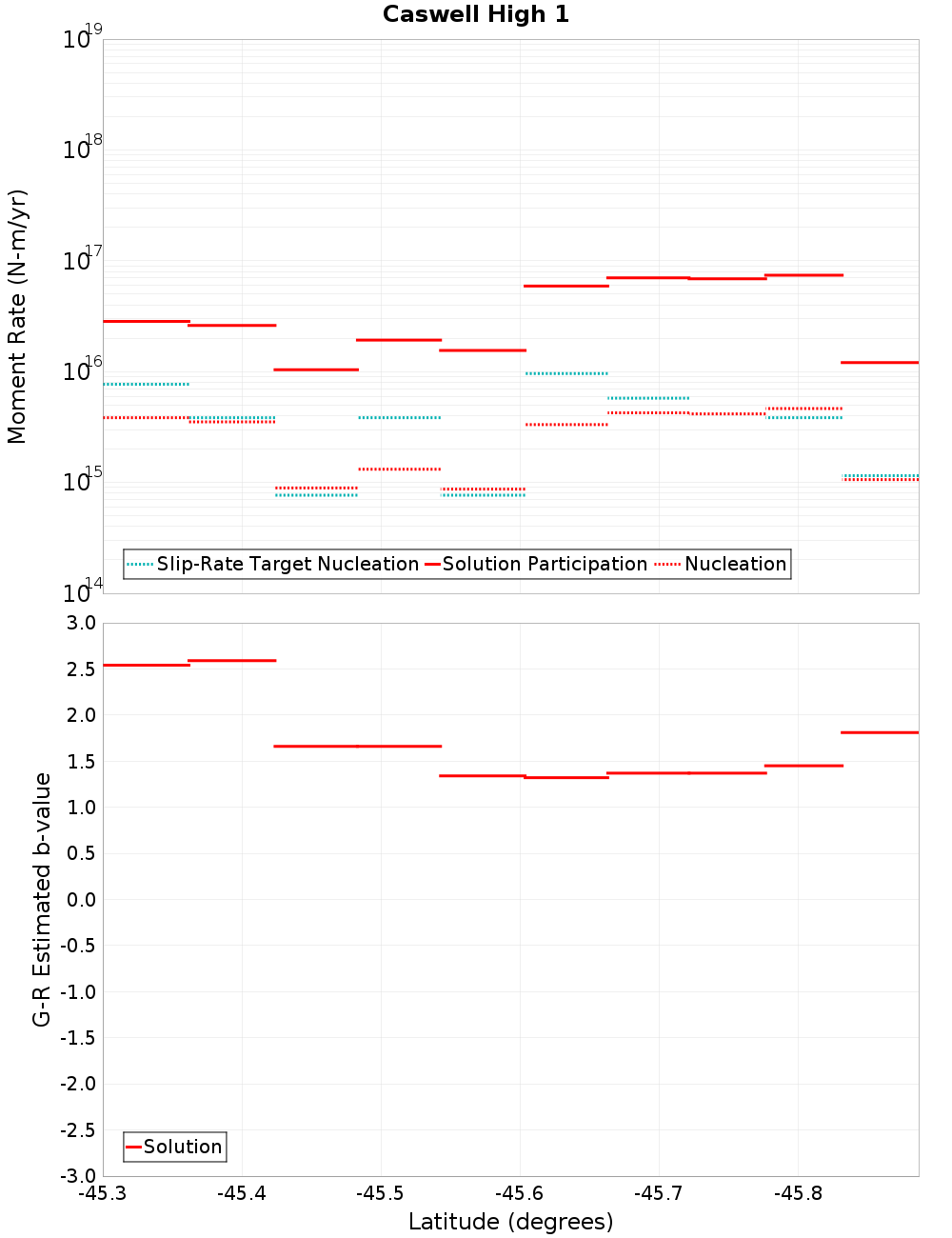

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Caswell High 4, 2.01 km away |
| Caswell High 3, 4.37 km away |
| Caswell 211, 4.72 km away |
| Alpine: Resolution - Five Fingers, 11.71 km away |
| South Wedge 5, 13.13 km away |
Caswell High 4, 2.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 1.552454E-4 |
Caswell High 3, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 85 |
| Co-rupture Rate | 3.4763955E-4 |
Caswell 211, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 30 |
| Co-rupture Rate | 5.751858E-5 |
Alpine: Resolution - Five Fingers, 11.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 573 |
| Co-rupture Rate | 3.414542E-4 |
South Wedge 5, 13.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
