Edgecumbe Coastal Details

Property	Value
Rupture Count	9,845
Ruptures Above Sect Min Mag	9,838
Ruptures w/ Nonzero Rates	272
Magnitude Range	[6.44, 8.37]
Length Range	[7, 675] km
Total Rate	5.112517E-4 /yr
Multi-Fault Rate	5.112517E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	85

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

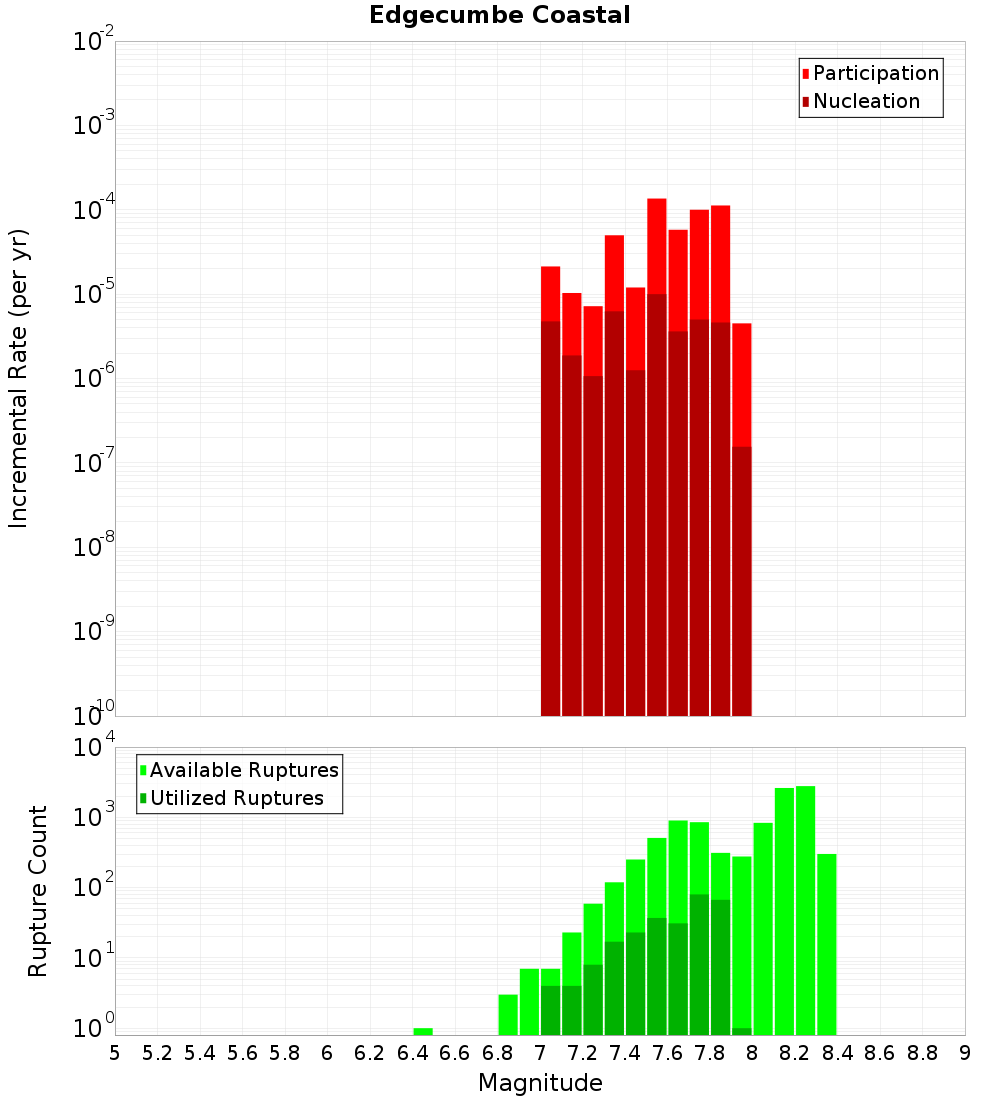

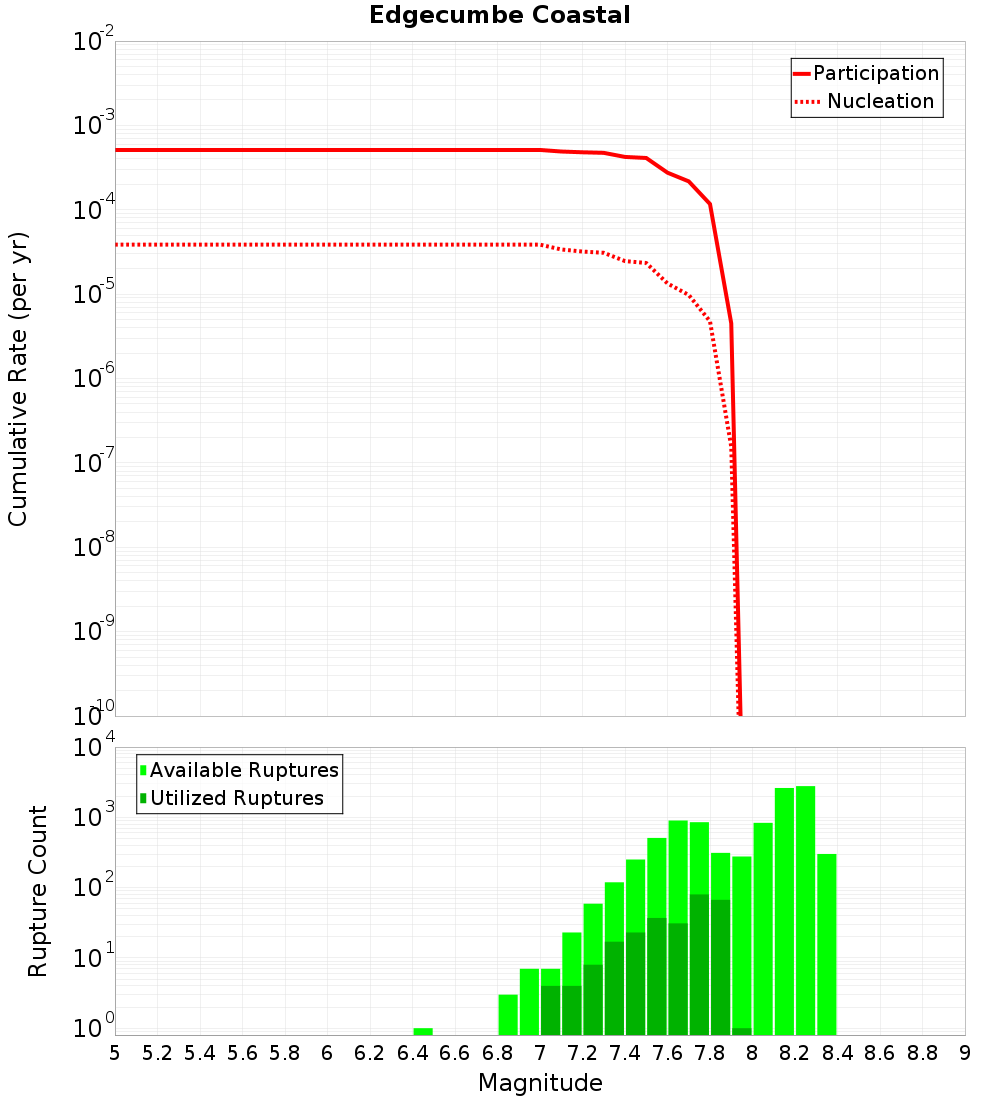

Magnitude-Frequency Distribution

Incremental	Cumulative

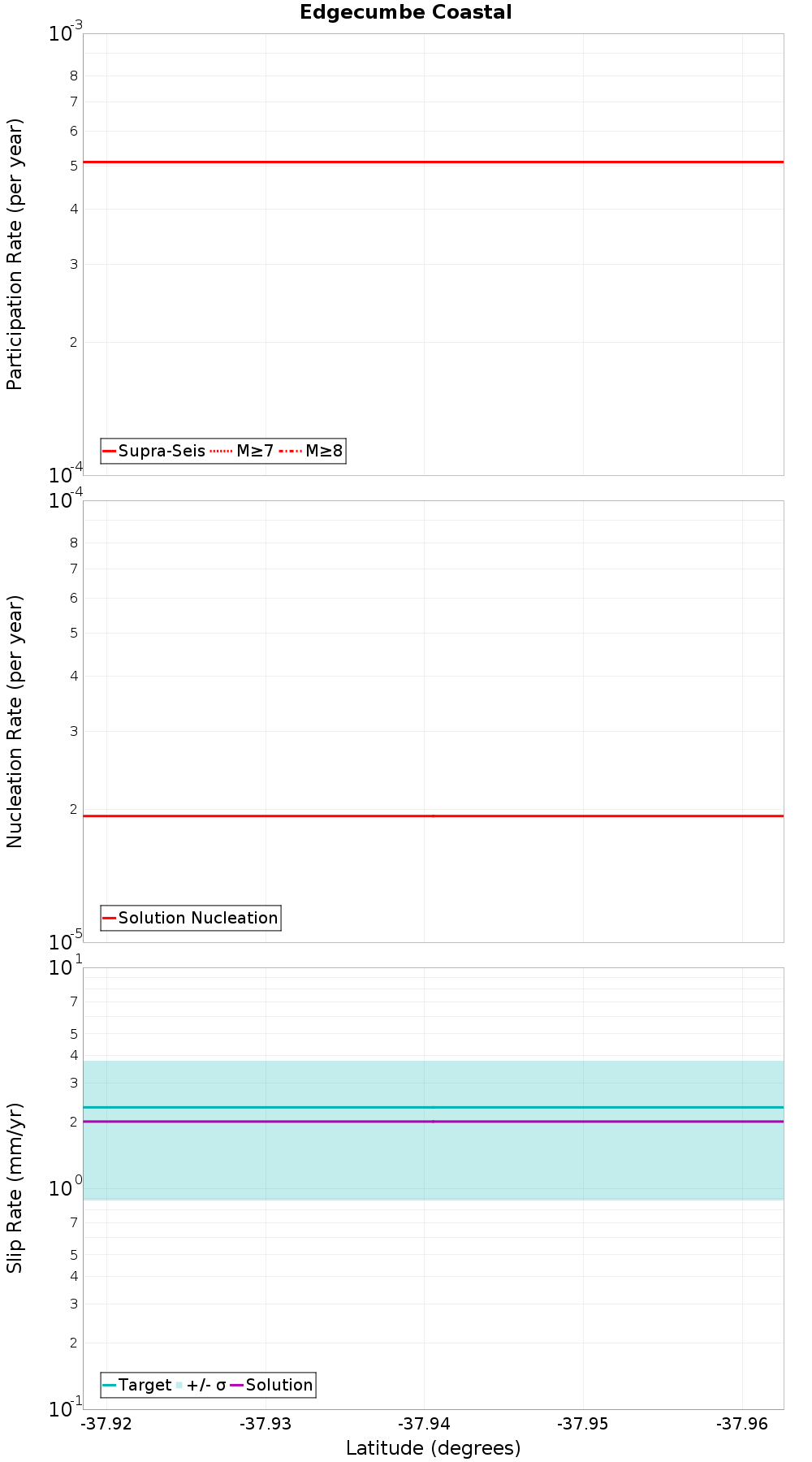

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Keepa, 3.06 km away
Whakatane: North, 3.25 km away
Braemar, 4.71 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	true
Co-rupture Count	8,346
Co-rupture Rate	4.9834274E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	true
Co-rupture Count	8,274
Co-rupture Rate	3.5749117E-4

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,454
Co-rupture Rate	1.13794355E-4

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	true
Co-rupture Count	972
Co-rupture Rate	4.4278484E-5

Keepa, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	false
Co-rupture Count	507
Co-rupture Rate	1.9213745E-8

Whakatane: North, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,538
Co-rupture Rate	4.435264E-5

Braemar, 4.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	true
Co-rupture Count	578
Co-rupture Rate	6.076023E-5

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	false
Co-rupture Count	2,594
Co-rupture Rate	3.2942096E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	false
Co-rupture Count	7,462
Co-rupture Rate	2.752954E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExOTUuMGVBN0Y0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,719
Co-rupture Rate	2.73755E-4
