Black Blob - Haast Ridge Details

PropertyValue
Rupture Count23,808
Ruptures Above Sect Min Mag23,808
Ruptures w/ Nonzero Rates104
Magnitude Range[7.12, 8.57]
Length Range[26, 783] km
Total Rate4.6170746E-5 /yr
Multi-Fault Rate4.6170746E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults208

Table Of Contents

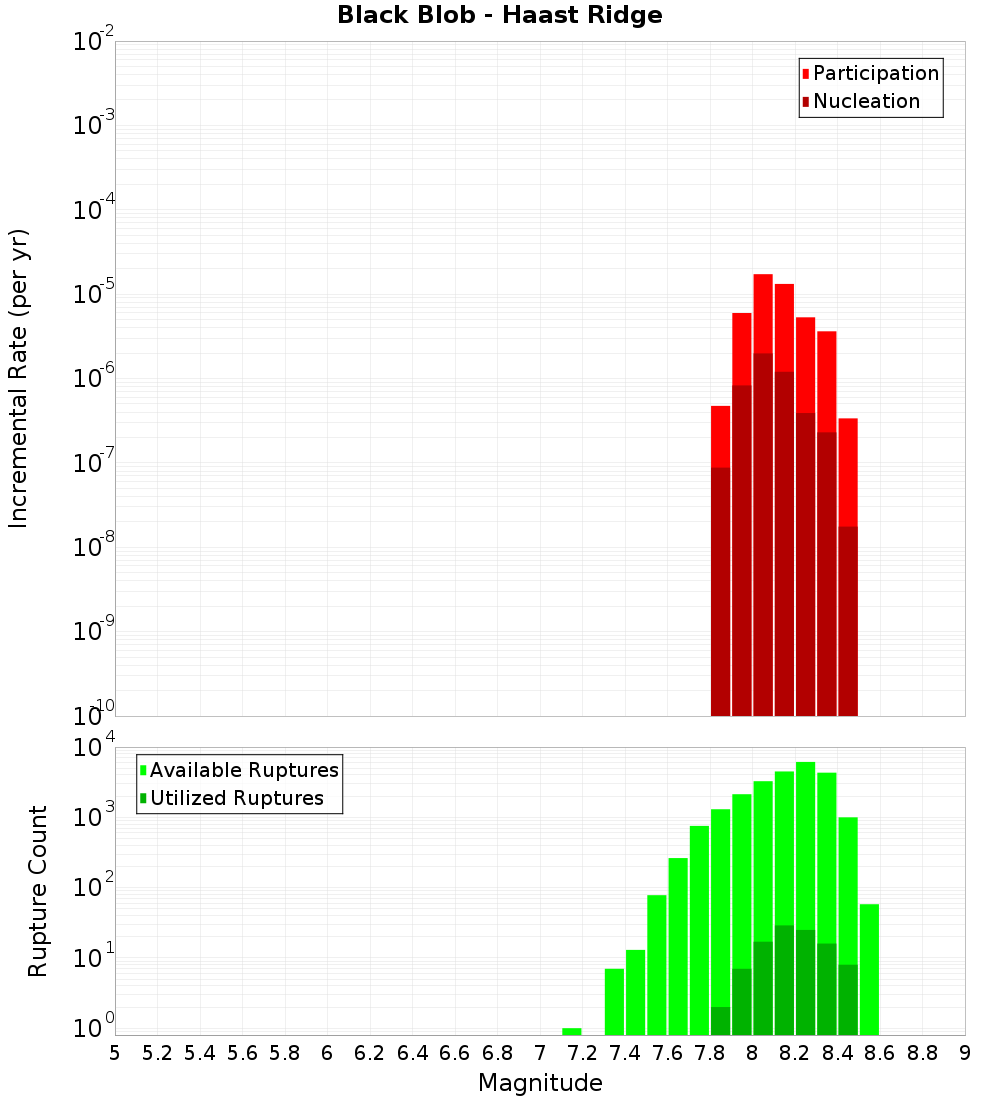

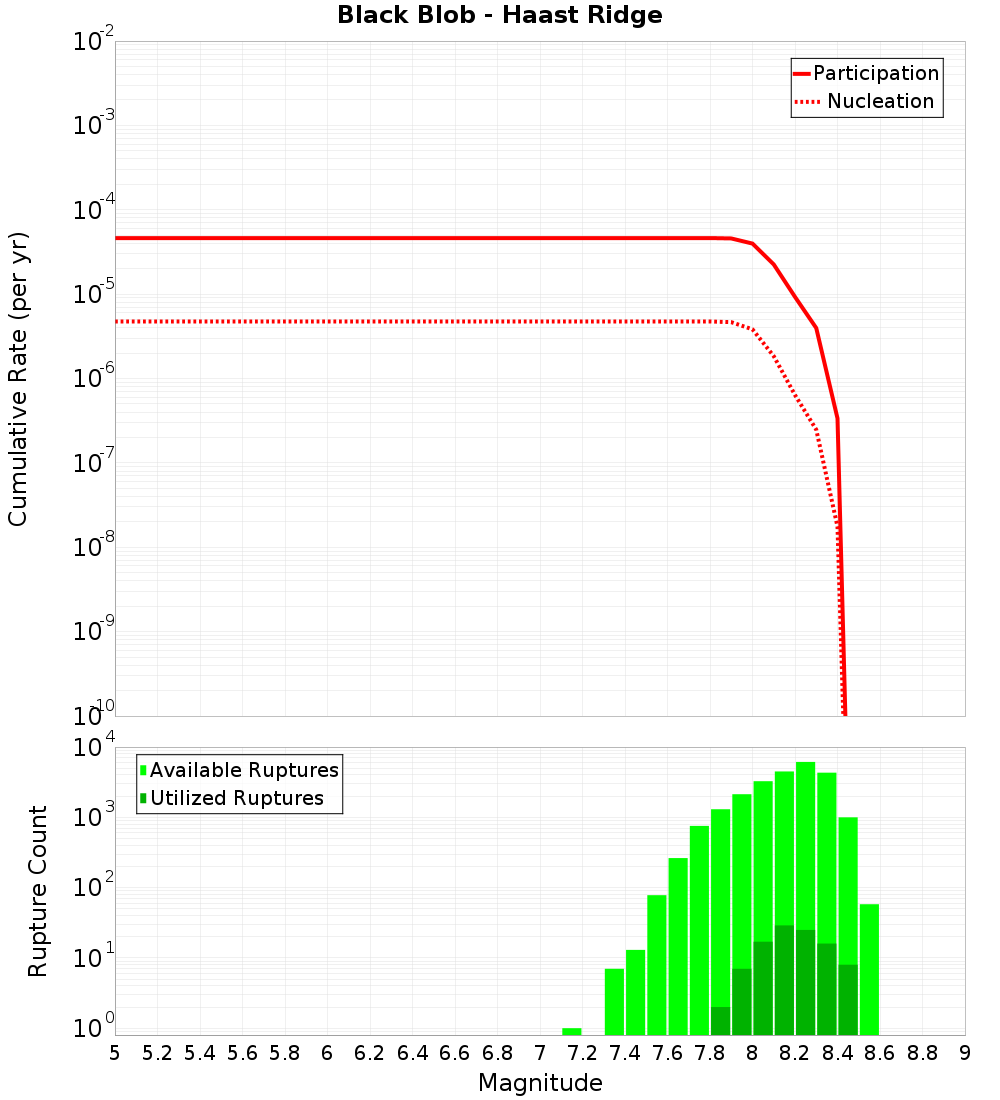

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

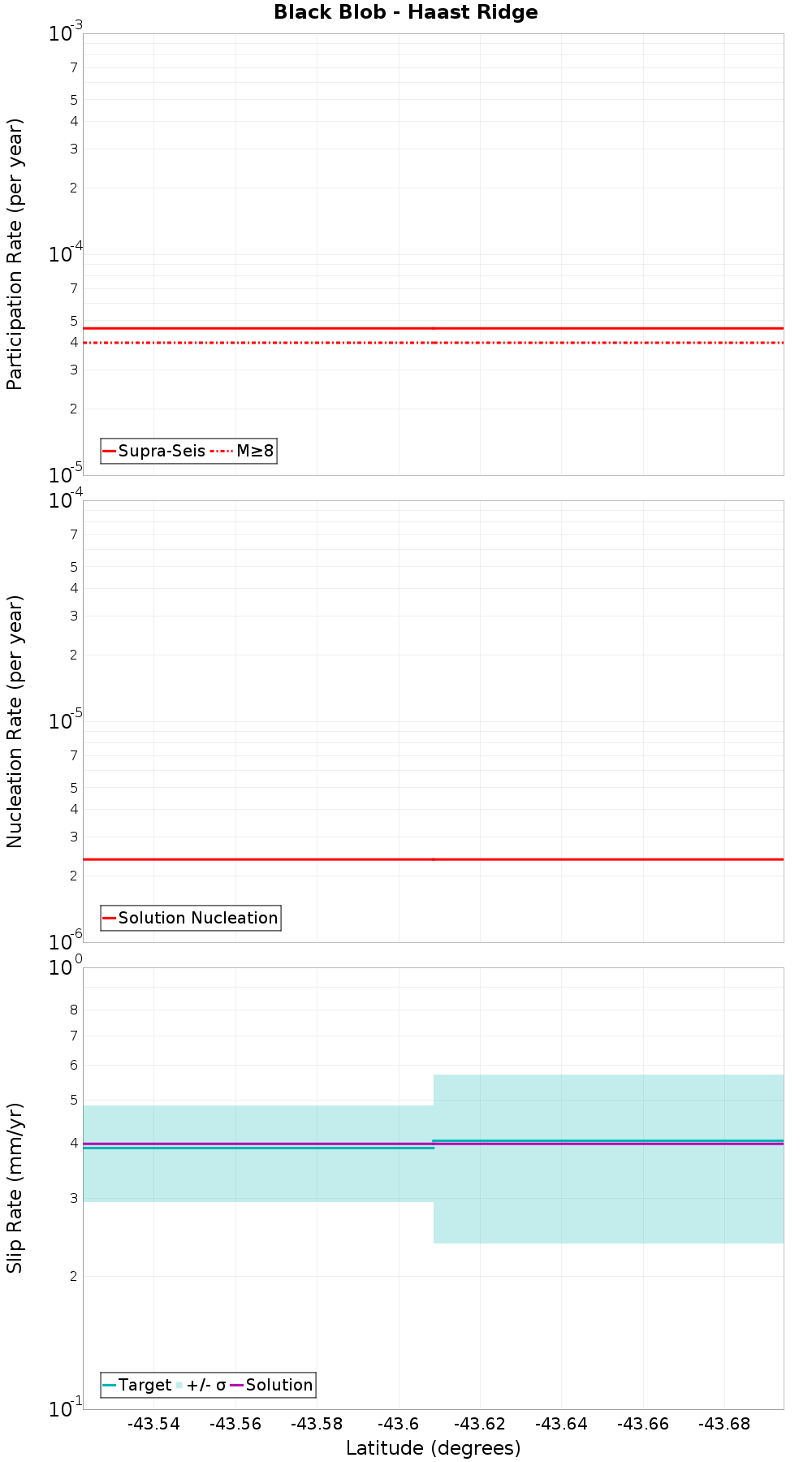

Along-Strike Values

(top)

Along-strike plot

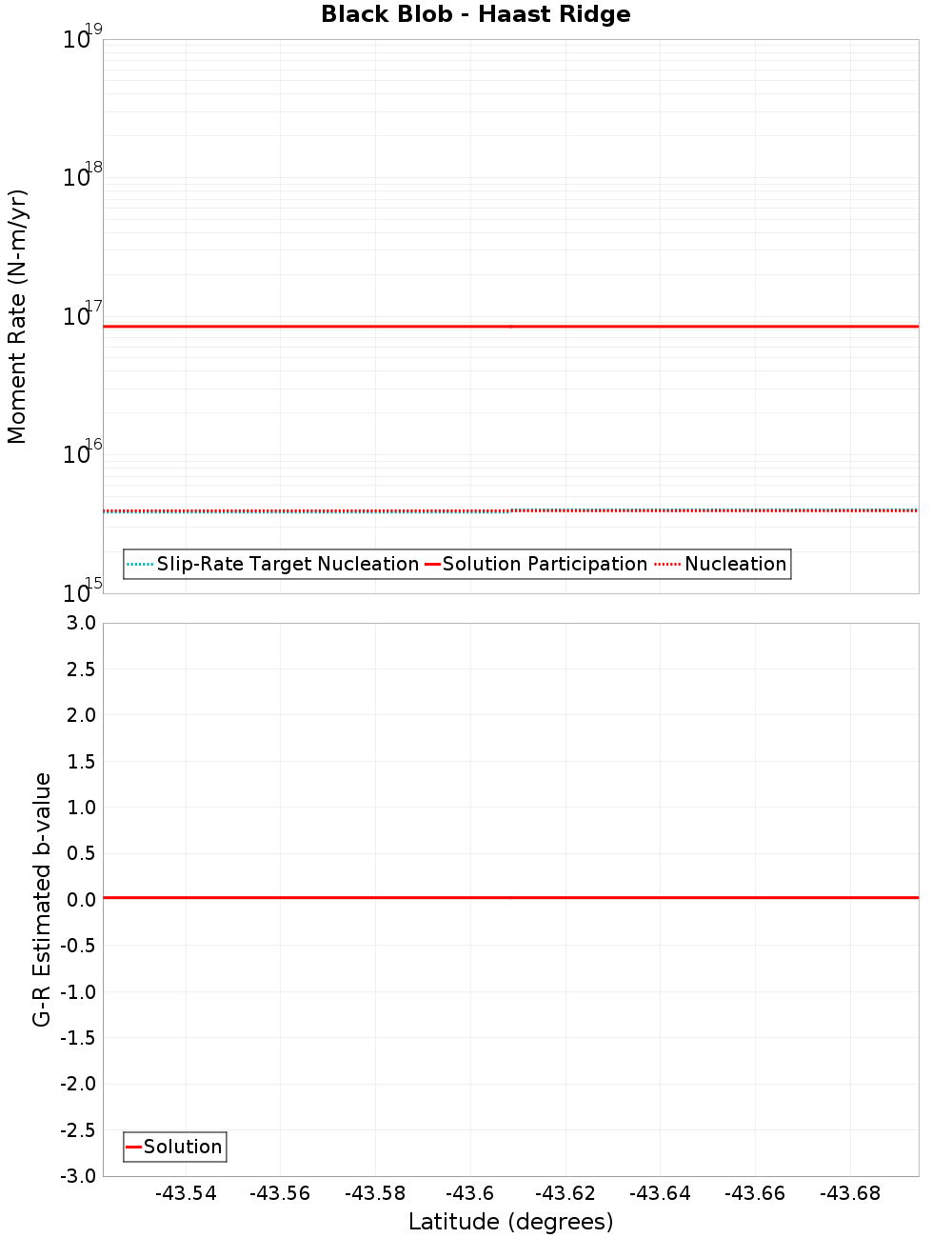

Moment-Rates and b-Values

(top)

Along-strike plot

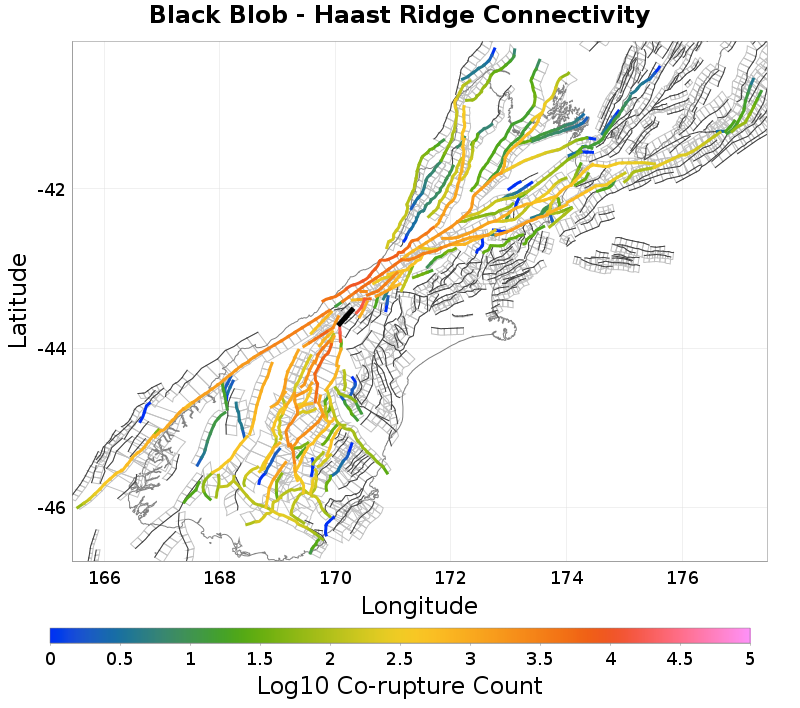

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Straight Creek, 0.22 km away
Hohonu South, 0.28 km away
Alpine: Jacksons to Kaniere, 0.33 km away
Mt Roon, 0.4 km away
Great Groove, 0.9 km away
Murchison 1 - Ice Lake, 2.29 km away
Karangarua, 2.51 km away
McKerrow - Douglas Duplex, 4.95 km away
Gunn Glacier, 9.76 km away
Landsborough 2, 9.83 km away
Liebig North, 11.49 km away
Huxley, 14.73 km away

Straight Creek, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hohonu South, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?true
Co-rupture Count12,929
Co-rupture Rate1.5496209E-5

Alpine: Jacksons to Kaniere, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?true
Co-rupture Count8,682
Co-rupture Rate3.0718027E-5

Mt Roon, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Great Groove, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?true
Co-rupture Count16,098
Co-rupture Rate3.095111E-5

Murchison 1 - Ice Lake, 2.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?true
Co-rupture Count14,217
Co-rupture Rate5.1638585E-6

Karangarua, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?true
Co-rupture Count672
Co-rupture Rate5.1279987E-13

McKerrow - Douglas Duplex, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?true
Co-rupture Count1,869
Co-rupture Rate2.0717996E-17

Gunn Glacier, 9.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?false
Co-rupture Count5,248
Co-rupture Rate5.1636084E-6

Landsborough 2, 9.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?false
Co-rupture Count6,803
Co-rupture Rate1.4670812E-5

Liebig North, 11.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?true
Co-rupture Count941
Co-rupture Rate1.2648609E-5

Huxley, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDQuMGFzejhl
Connected?true
Directly Connected?false
Co-rupture Count798
Co-rupture Rate4.5363356E-17
