Tin Hut Details
| Property | Value |
|---|---|
| Rupture Count | 2,359 |
| Ruptures Above Sect Min Mag | 2,359 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [7.29, 8.64] |
| Length Range | [31, 937] km |
| Total Rate | 1.4479765E-4 /yr |
| Multi-Fault Rate | 1.4479765E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 131 |
Table Of Contents

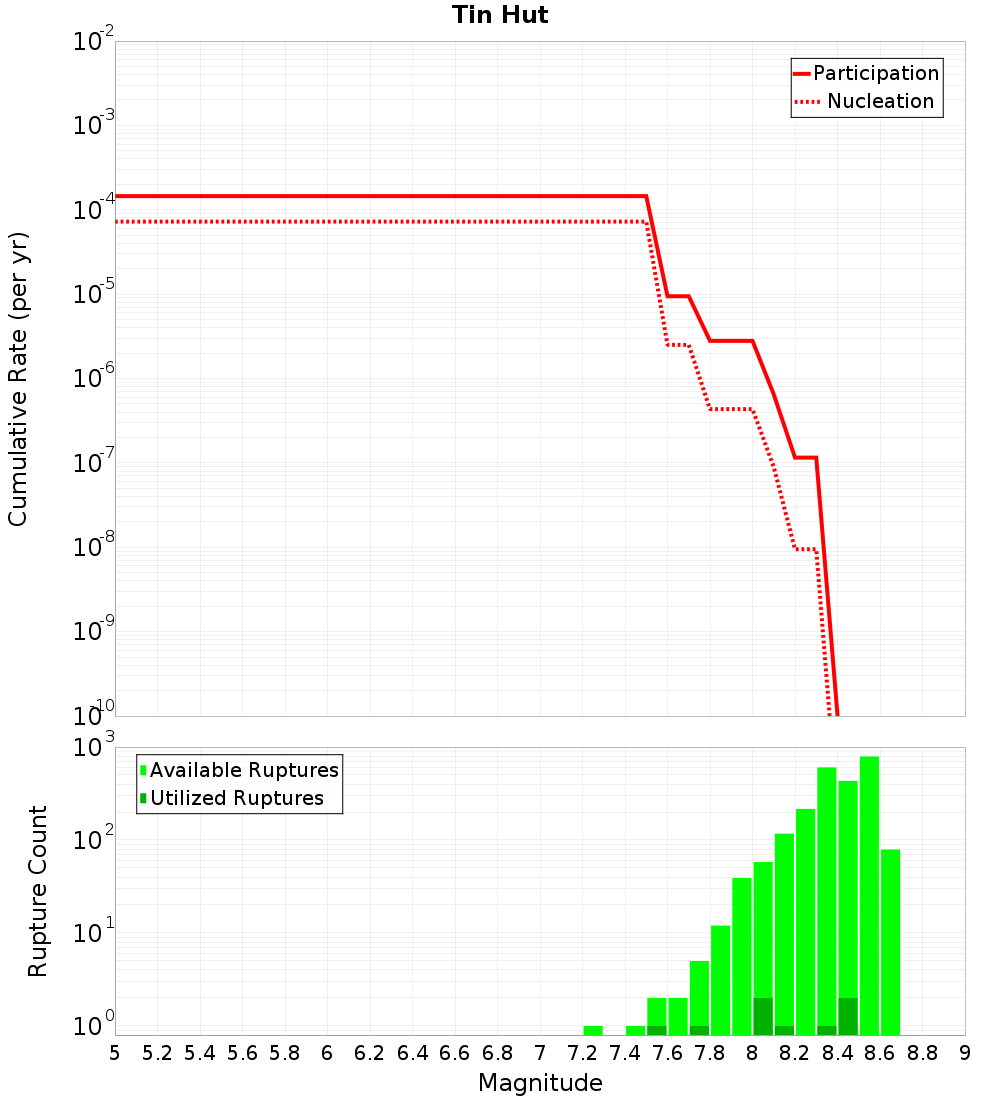

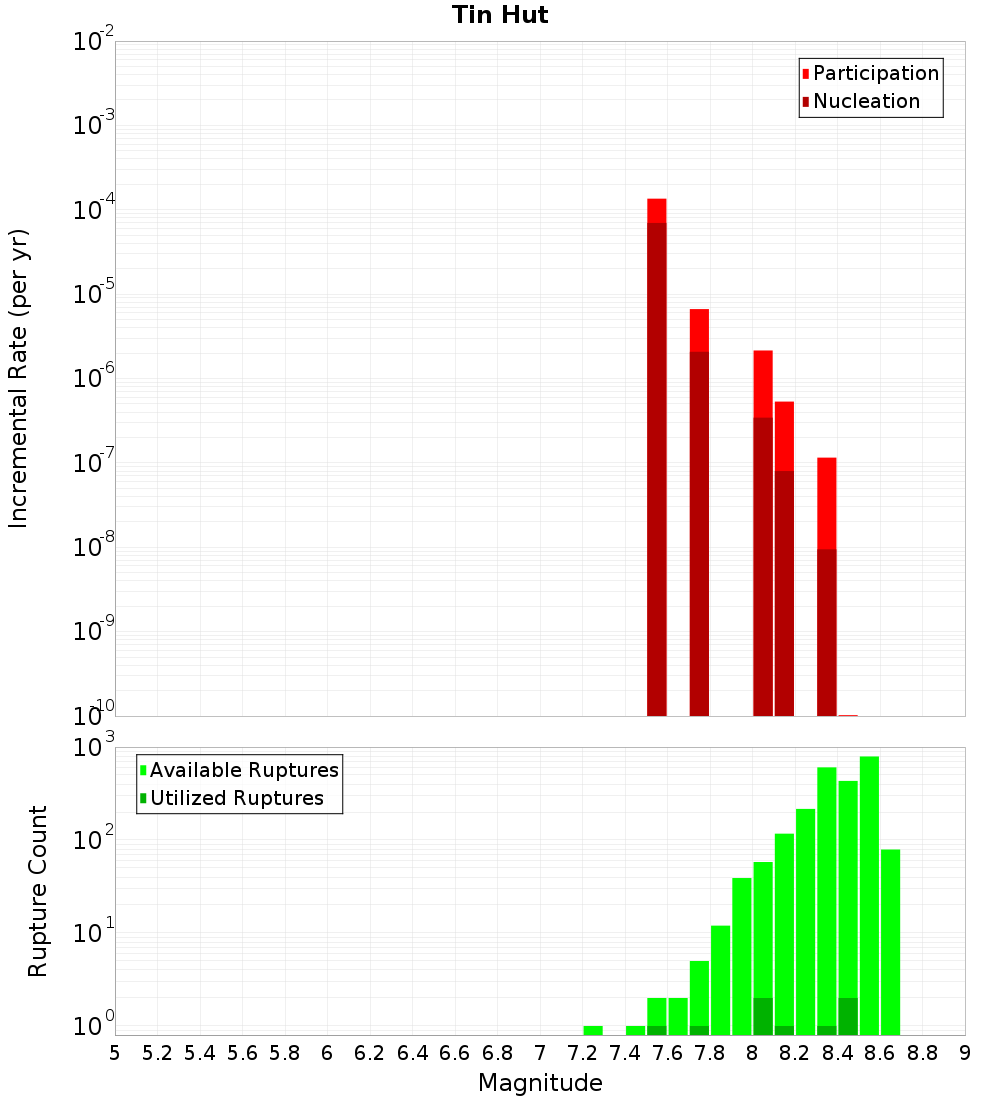

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

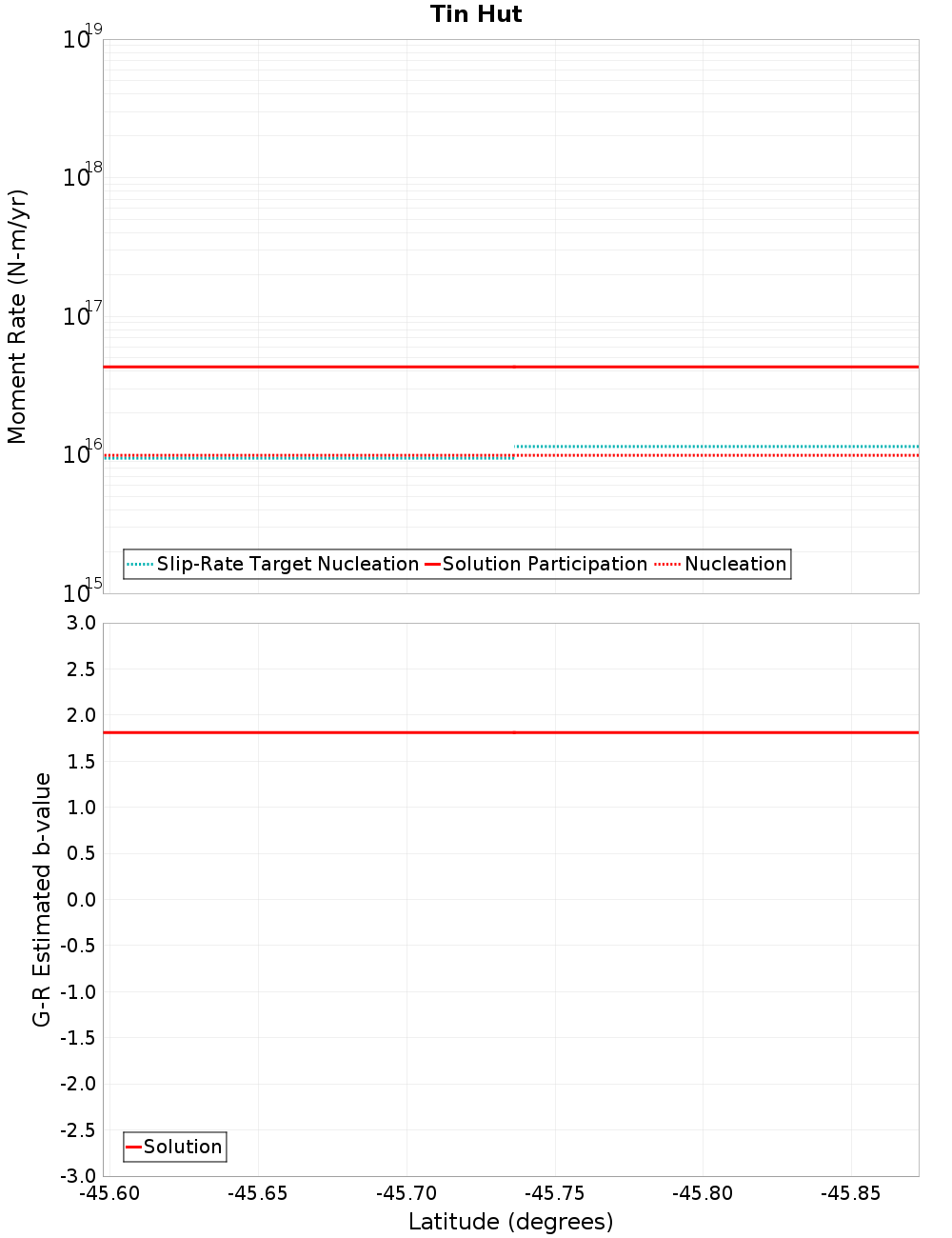

Moment-Rates and b-Values

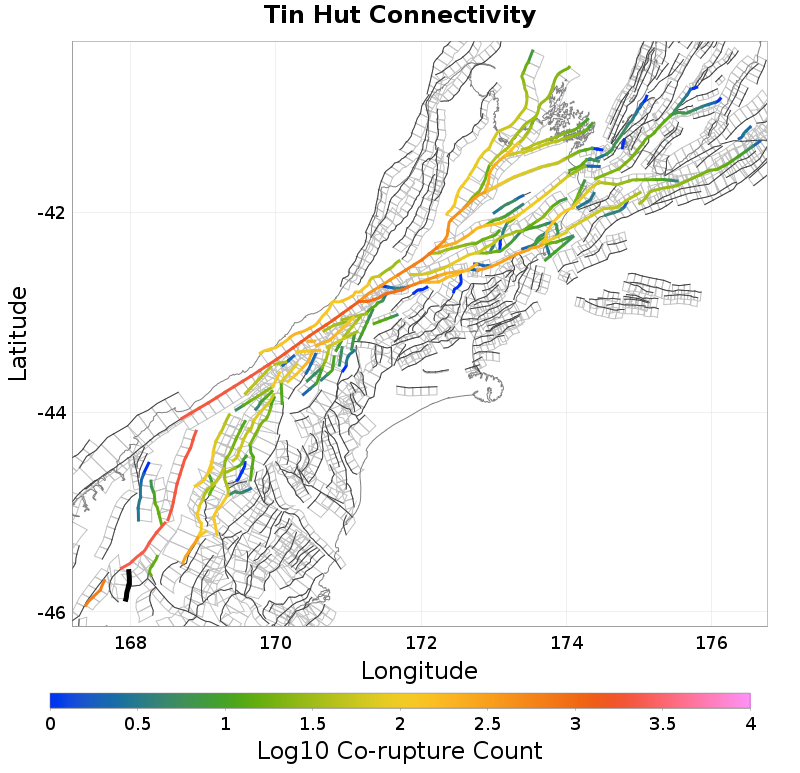

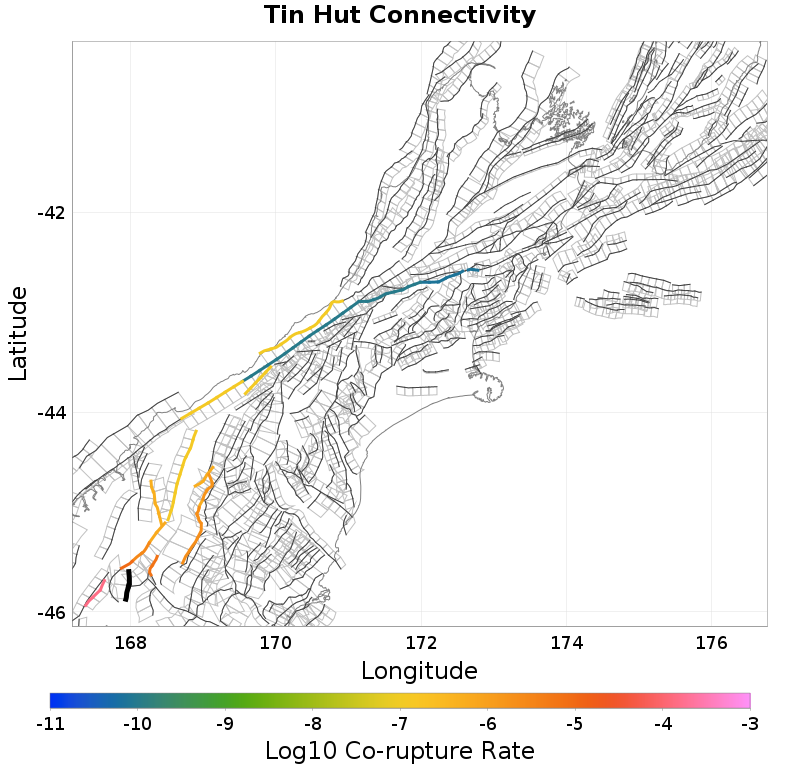

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| McKerchar, 0.24 km away |
| Moonlight South, 0.65 km away |
| Mossburn, 2.3 km away |
| Monowai, 3.44 km away |
| Hauroko: North, 14.01 km away |
McKerchar, 0.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight South, 0.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,469 |
| Co-rupture Rate | 9.444641E-6 |
Mossburn, 2.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Monowai, 3.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 675 |
| Co-rupture Rate | 1.4479765E-4 |
Hauroko: North, 14.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
