Waihemo Details

PropertyValue
Rupture Count1,303
Ruptures Above Sect Min Mag1,295
Ruptures w/ Nonzero Rates38
Magnitude Range[6.91, 8.37]
Length Range[20, 467] km
Total Rate1.2831436E-4 /yr
Multi-Fault Rate1.21424426E-4 /yr (94.63%)
Directly-Connected Faults3
All Co-Rupturing Faults57

Table Of Contents

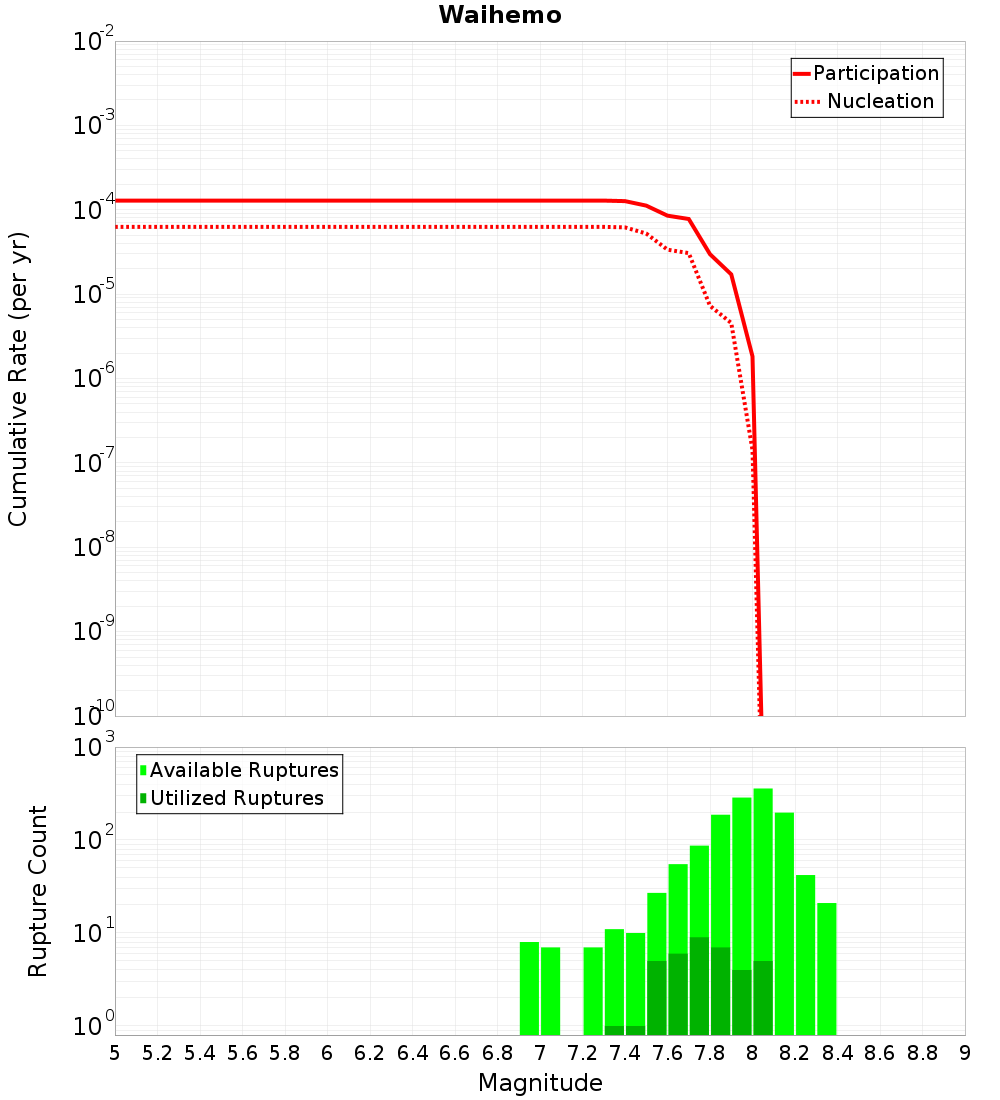

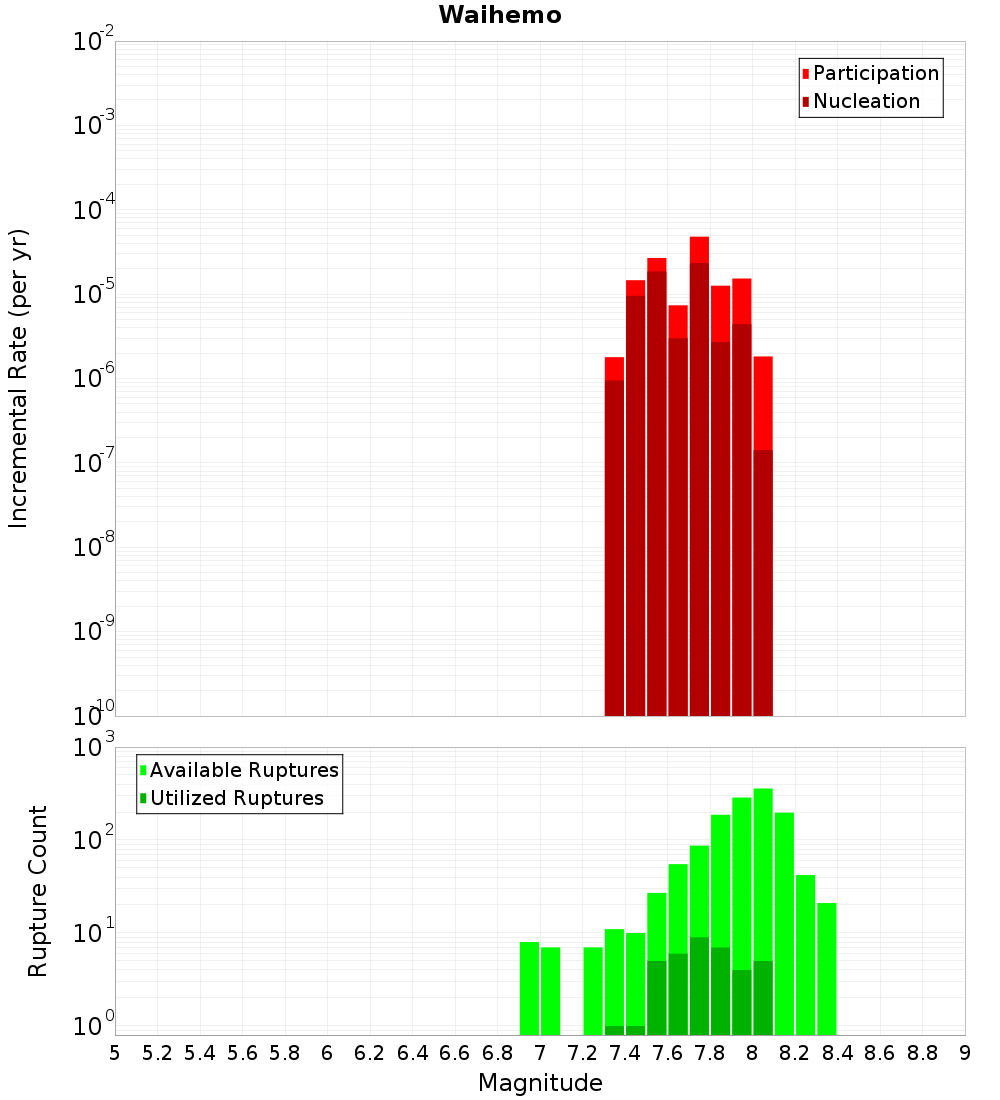

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

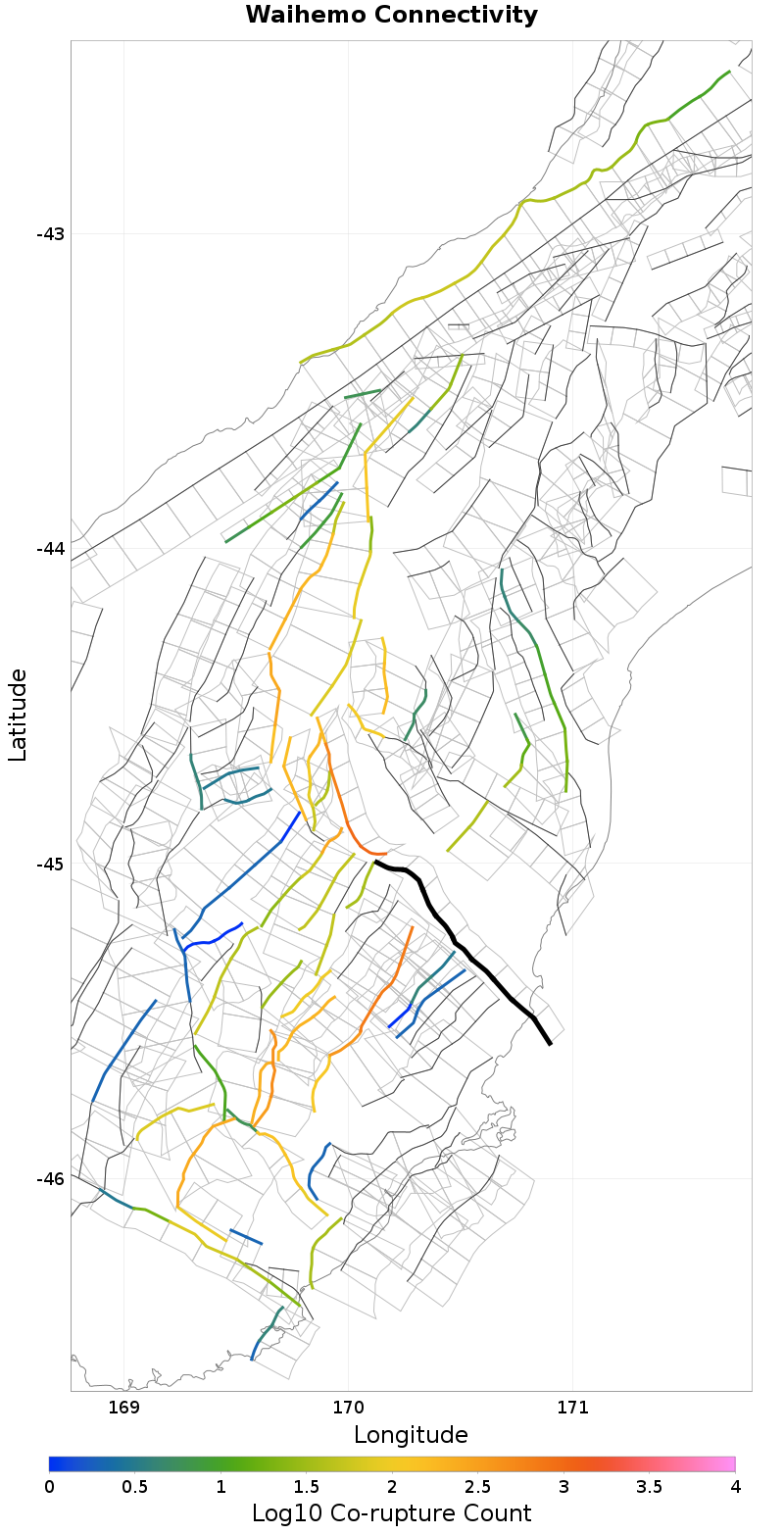

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cross Eden, 1.14 km away
Hawkdun, 1.51 km away
Horse Flat, 2.81 km away
Flat Stream - Glenpark, 3.2 km away
Dunback Hill, 3.36 km away
Gimmerburn, 3.59 km away
Murphys Creek, 3.71 km away
Billys Ridge, 4.71 km away
Ranfurly, 5.63 km away
Waipiata, 7.71 km away
Garibaldi, 8.5 km away
Hyde North, 9.13 km away
Awahokomo, 12.79 km away
Black Hill, 13.29 km away

Cross Eden, 1.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate8.936719E-6

Hawkdun, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?true
Co-rupture Count1,071
Co-rupture Rate5.1209467E-5

Horse Flat, 2.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate4.002656E-8

Flat Stream - Glenpark, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 3.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gimmerburn, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate3.5245847E-7

Murphys Creek, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Billys Ridge, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Ranfurly, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipiata, 7.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate3.5245847E-7

Hyde North, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?true
Co-rupture Count714
Co-rupture Rate2.8958204E-5

Awahokomo, 12.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Black Hill, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate5.9372607E-5
