Waimana: South Details

Property	Value
Rupture Count	22,825
Ruptures Above Sect Min Mag	22,823
Ruptures w/ Nonzero Rates	17
Magnitude Range	[7.12, 8.71]
Length Range	[25, 1,132] km
Total Rate	4.38016E-4 /yr
Multi-Fault Rate	1.436115E-4 /yr (32.79%)
Directly-Connected Faults	5
All Co-Rupturing Faults	119

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

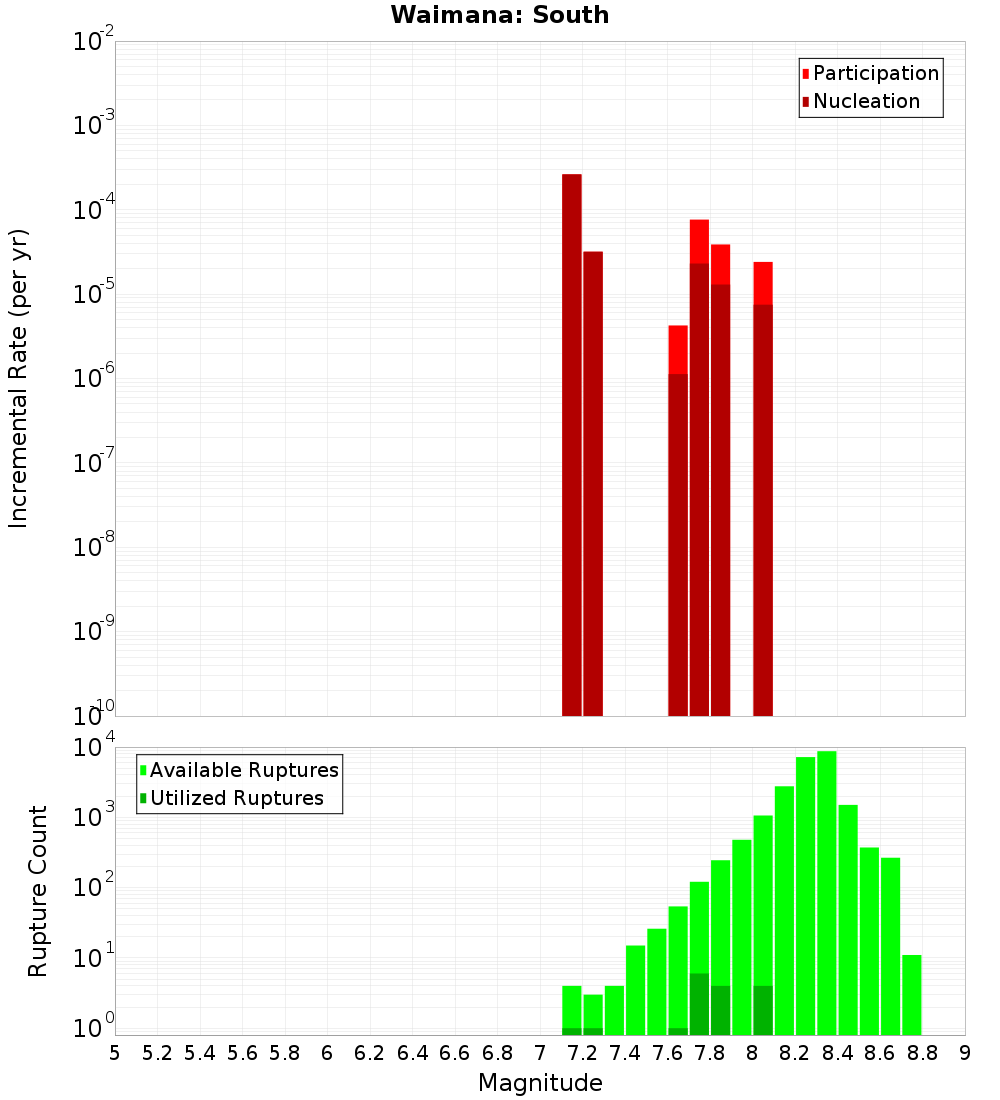

Magnitude-Frequency Distribution

Incremental	Cumulative

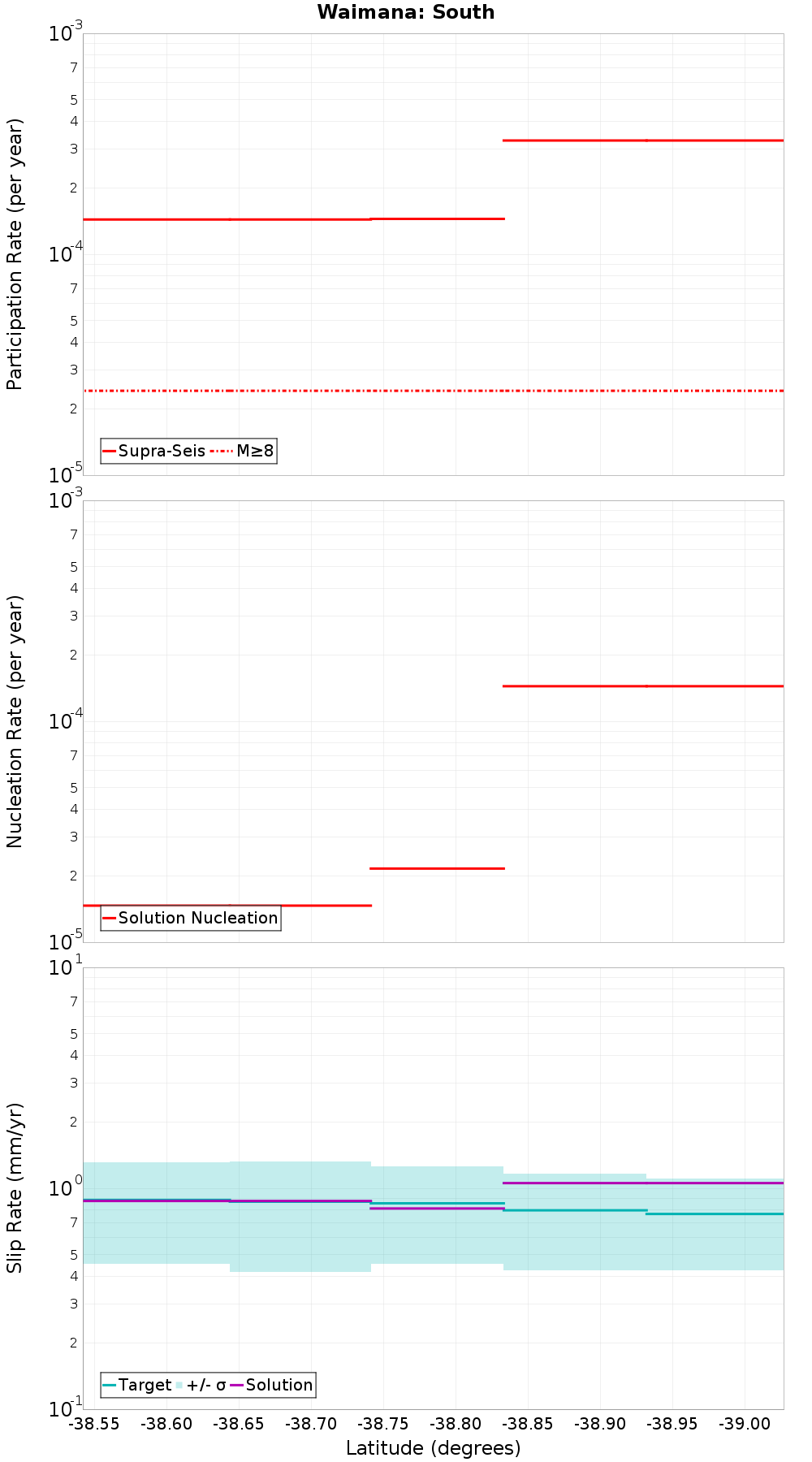

Along-Strike Values

Moment-Rates and b-Values

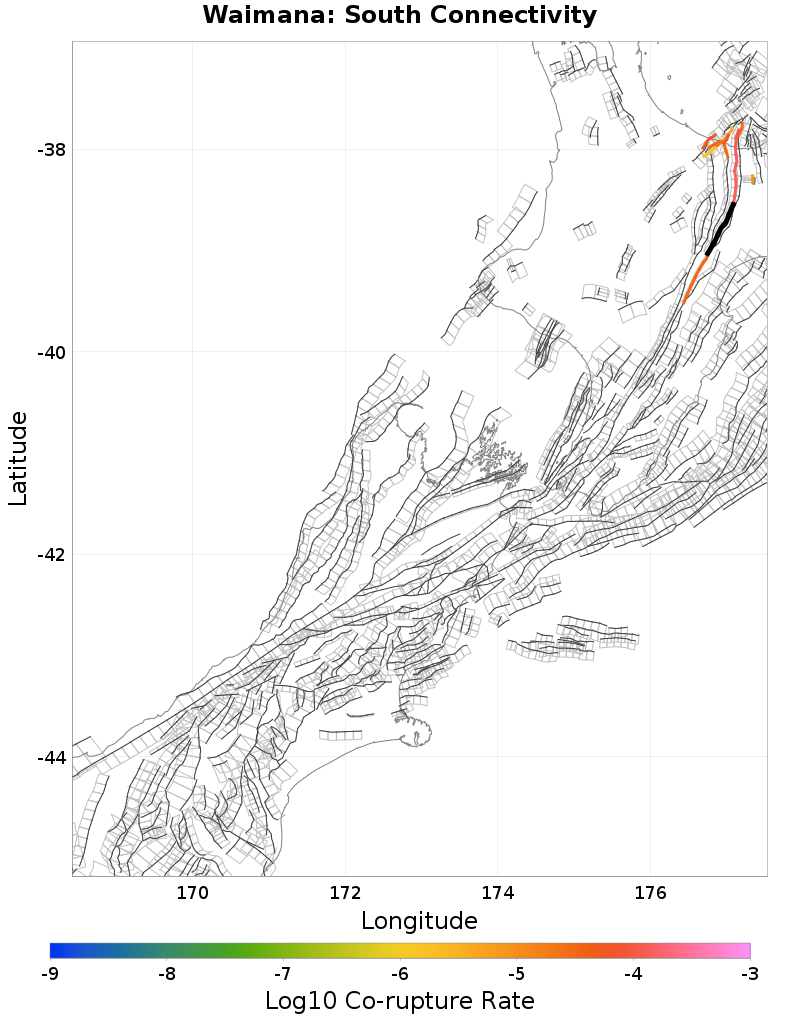

Connectivity

Nearby Sections

Fault Section
Waimana: North, 0 km away
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waiotahi: South, 2.14 km away
Waiotahi: North, 2.37 km away
Whakatane: North, 6.86 km away
Waiohau: South, 8.02 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.59 km away

Waimana: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	true
Co-rupture Count	17,373
Co-rupture Rate	1.436115E-4

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	true
Co-rupture Count	574
Co-rupture Rate	0.0

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	true
Co-rupture Count	22,342
Co-rupture Rate	3.258374E-5

Waiotahi: South, 2.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,633
Co-rupture Rate	0.0

Waiotahi: North, 2.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,562
Co-rupture Rate	0.0

Whakatane: North, 6.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	false
Co-rupture Count	527
Co-rupture Rate	3.2854008E-5

Waiohau: South, 8.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Patoka - Rangiora, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	false
Co-rupture Count	946
Co-rupture Rate	0.0

Ruahine: North, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	false
Co-rupture Count	296
Co-rupture Rate	0.0

Wheao: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	false
Co-rupture Count	1,156
Co-rupture Rate	0.0

Te Whaiti South, 14.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?	true
Directly Connected?	false
Co-rupture Count	74
Co-rupture Rate	0.0
