Whakatane: North Details

PropertyValue
Rupture Count13,558
Ruptures Above Sect Min Mag13,545
Ruptures w/ Nonzero Rates63
Magnitude Range[6.73, 8.70]
Length Range[16, 1,115] km
Total Rate2.9493723E-4 /yr
Multi-Fault Rate2.9493723E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults108

Table Of Contents

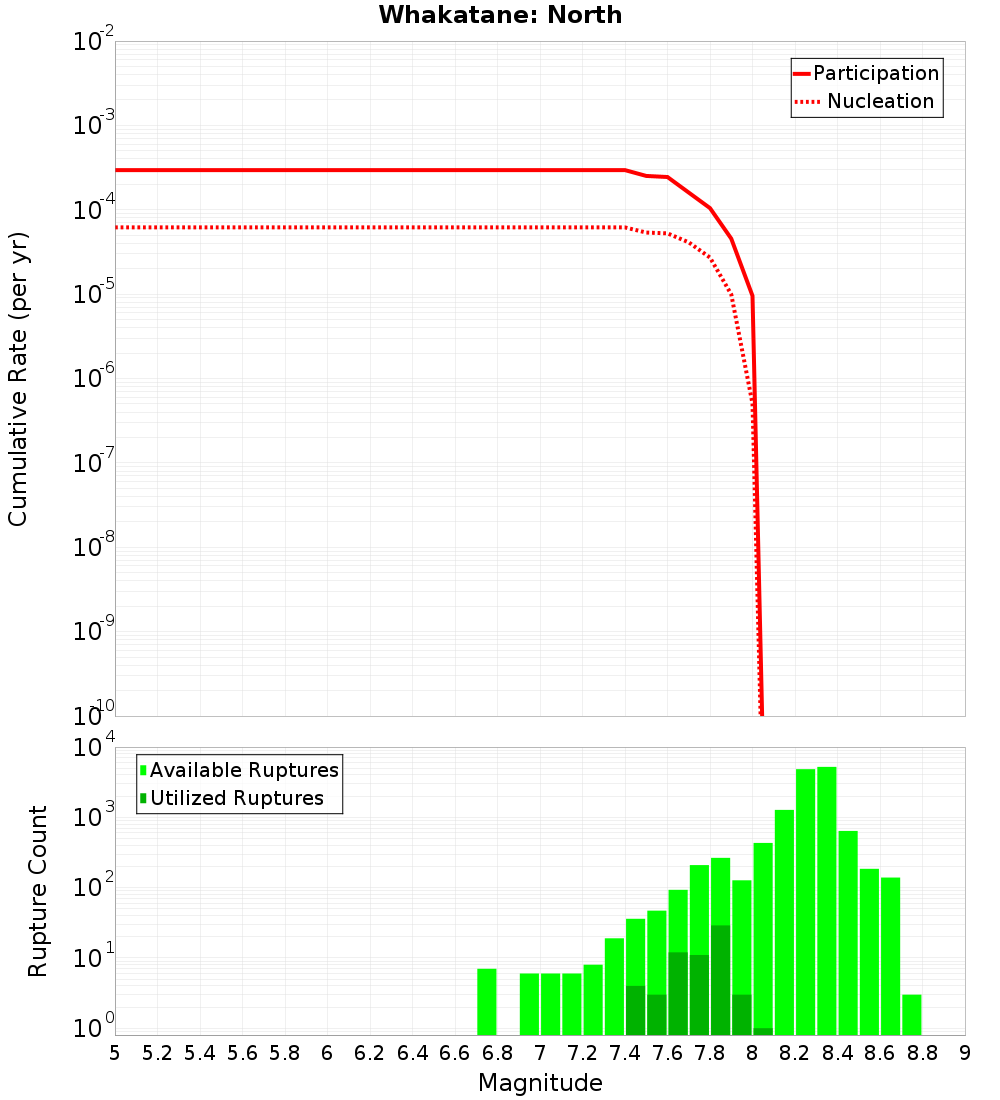

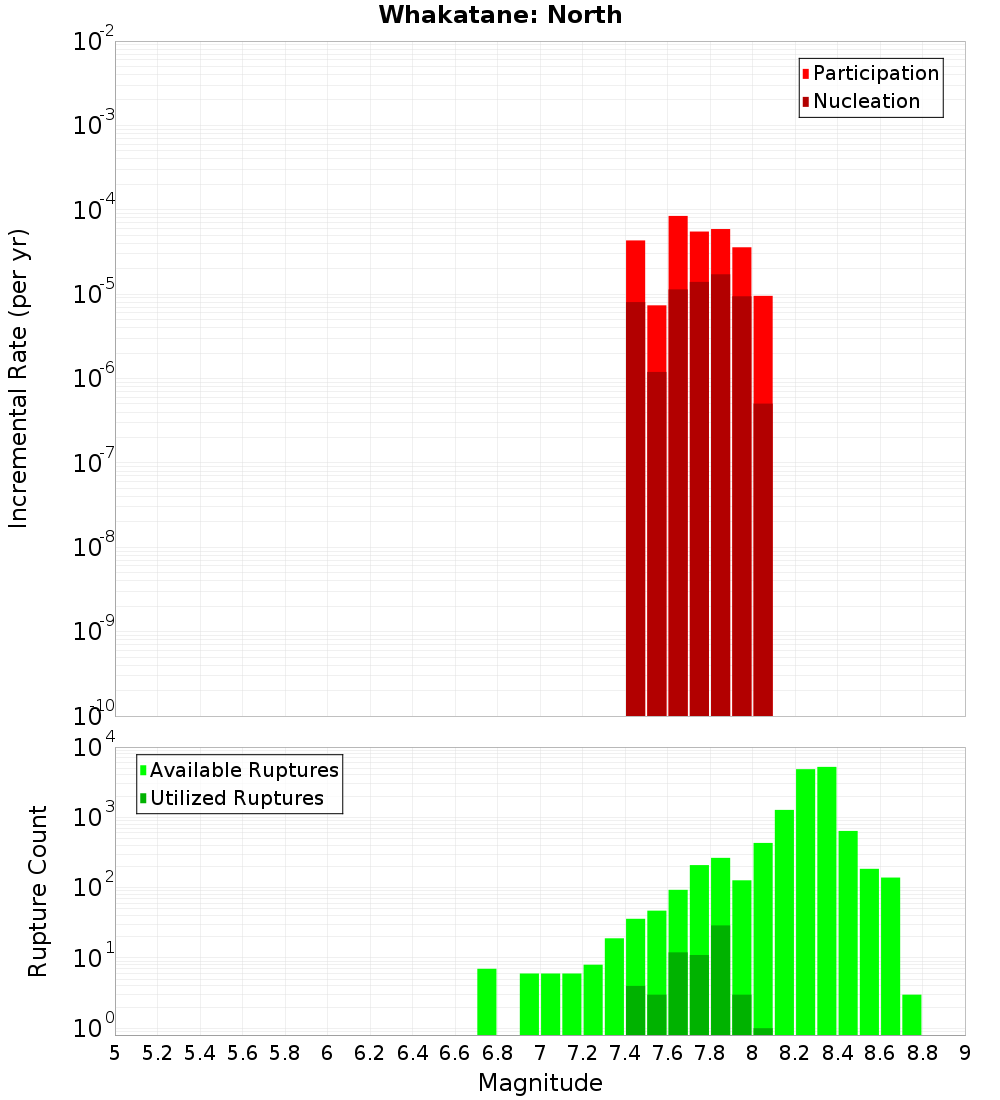

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Keepa, 0 km away
Whakatane: South, 0 km away
Otakiri, 0.29 km away
White Island 1, 3.25 km away
Edgecumbe Coastal, 3.25 km away
Braemar, 6.06 km away
Waimana: North, 6.36 km away
Waimana: South, 6.86 km away
Matata, 7.27 km away
Edgecumbe 1987, 7.79 km away
Waiotahi: South, 9.03 km away
Waiotahi: North, 9.89 km away
Rangitaiki 1, 11.12 km away
Waiohau: South, 12.76 km away
Waiohau: North, 12.82 km away

Keepa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?true
Co-rupture Count12,514
Co-rupture Rate1.684329E-5

Otakiri, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?true
Co-rupture Count611
Co-rupture Rate1.1008347E-4

White Island 1, 3.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?true
Co-rupture Count5,802
Co-rupture Rate1.4123344E-4

Edgecumbe Coastal, 3.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?true
Co-rupture Count1,538
Co-rupture Rate5.3782147E-5

Braemar, 6.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate3.868947E-5

Waimana: North, 6.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count984
Co-rupture Rate8.549095E-5

Waimana: South, 6.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count527
Co-rupture Rate3.2854008E-5

Matata, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Edgecumbe 1987, 7.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count1,405
Co-rupture Rate3.8539994E-5

Waiotahi: South, 9.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Waiotahi: North, 9.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate7.3796626E-5

Rangitaiki 1, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count547
Co-rupture Rate3.5419707E-5

Waiohau: South, 12.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count1,711
Co-rupture Rate0.0

Waiohau: North, 12.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDYuMEVOY2p1
Connected?true
Directly Connected?false
Co-rupture Count931
Co-rupture Rate0.0
