Maimai: North Details

Property	Value
Rupture Count	11,221
Ruptures Above Sect Min Mag	11,218
Ruptures w/ Nonzero Rates	176
Magnitude Range	[6.72, 8.57]
Length Range	[18, 1,039] km
Total Rate	1.4115777E-4 /yr
Multi-Fault Rate	1.4115777E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

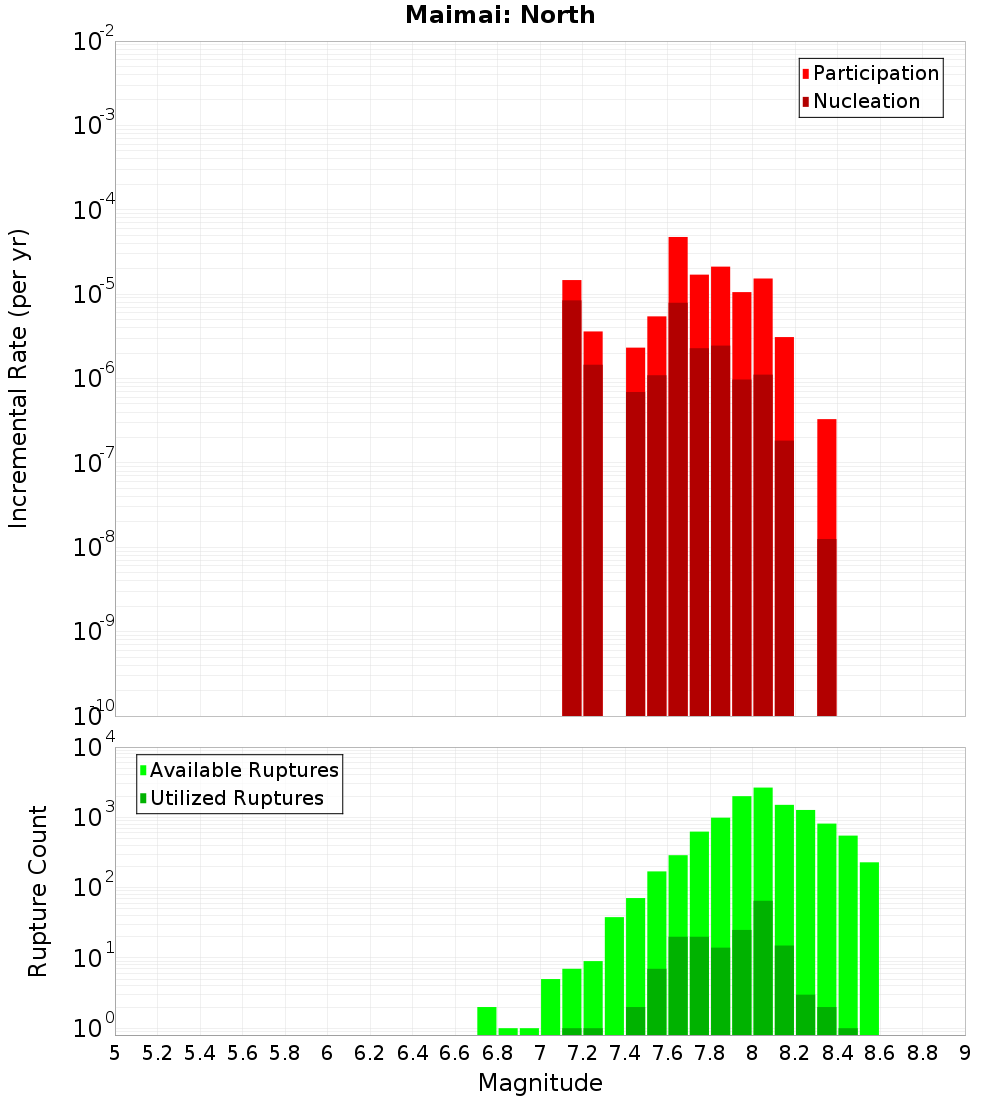

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

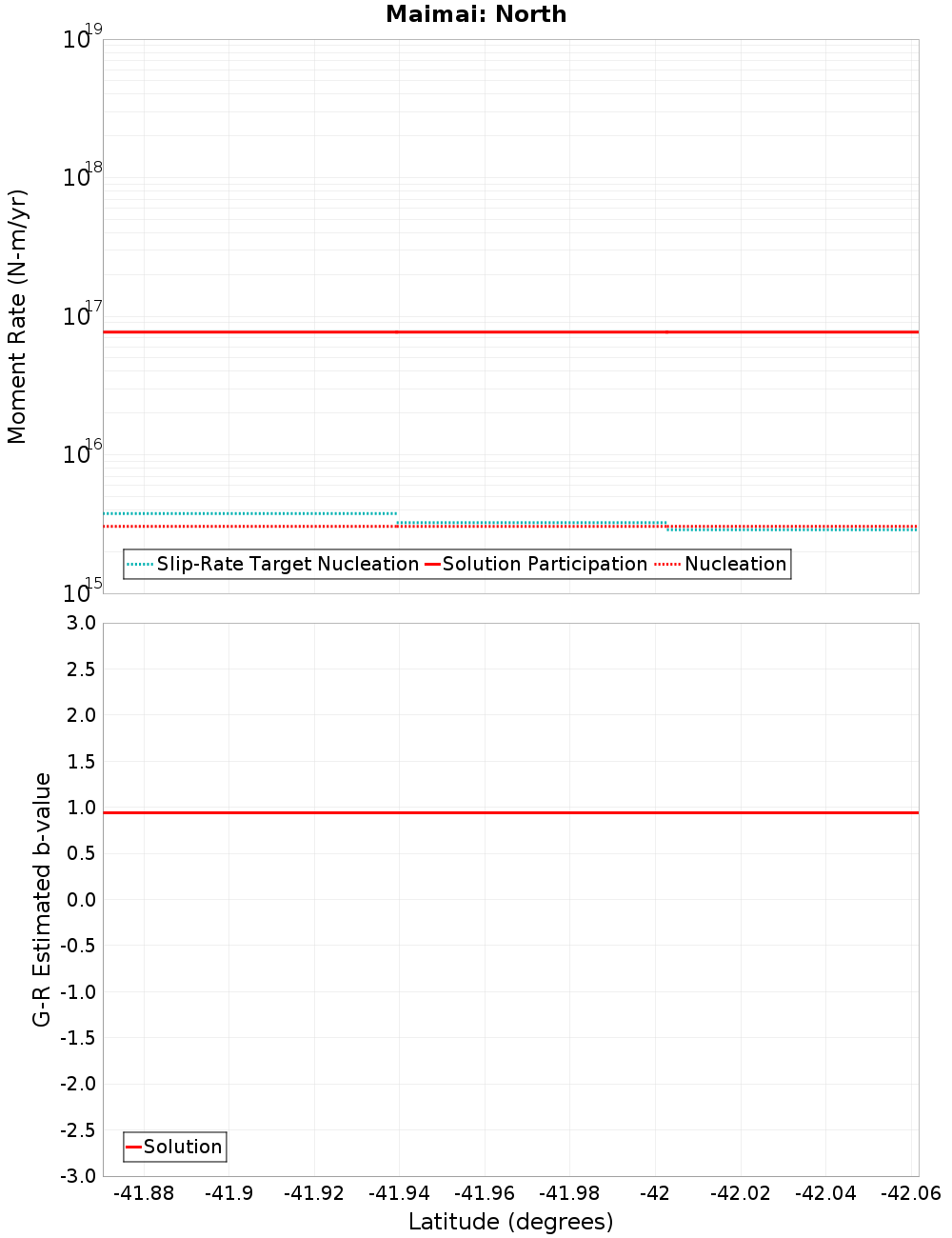

Moment-Rates and b-Values

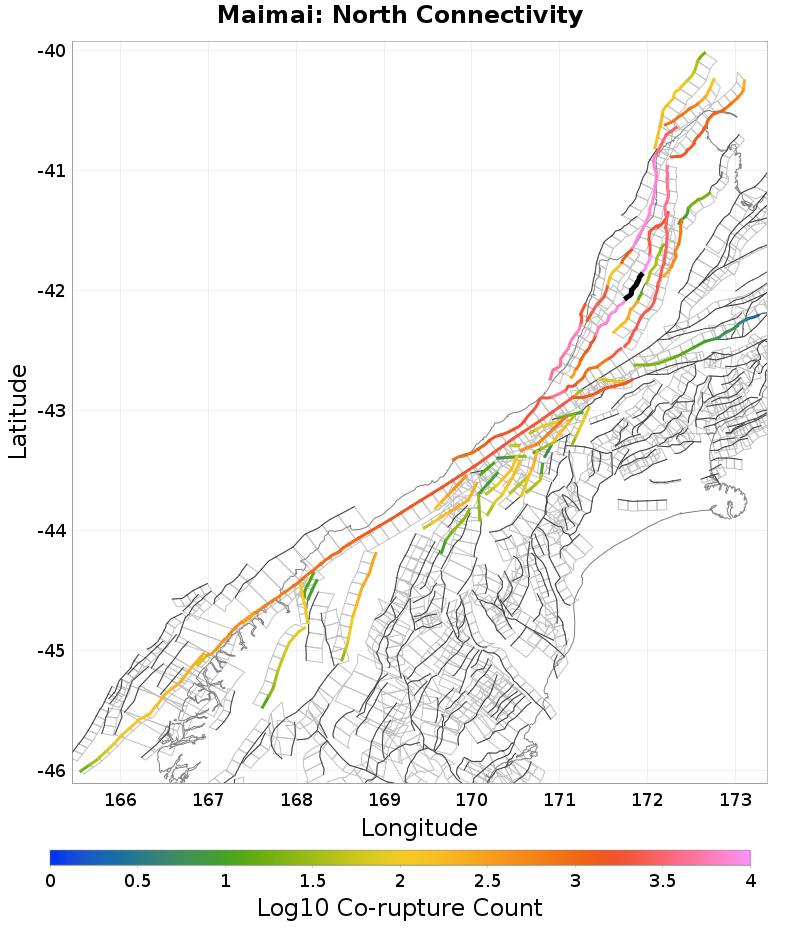

Connectivity

Nearby Sections

Fault Section
Inangahua, 0 km away
Maimai, 0 km away
Paparoa West, 1.84 km away
Paparoa West: North, 2.89 km away
Lyell South, 7.01 km away
Lyell, 7.56 km away

Inangahua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	9,621
Co-rupture Rate	1.0376401E-4

Maimai, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	8,123
Co-rupture Rate	5.516198E-5

Paparoa West, 1.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,025
Co-rupture Rate	1.2787494E-4

Paparoa West: North, 2.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,296
Co-rupture Rate	3.4184704E-5

Lyell South, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	2.7949109E-6

Lyell, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	5.978655E-8
