Needles Details

Property	Value
Rupture Count	129,569
Ruptures Above Sect Min Mag	129,560
Ruptures w/ Nonzero Rates	351
Magnitude Range	[6.68, 8.57]
Length Range	[17, 1,083] km
Total Rate	0.0010435698 /yr
Multi-Fault Rate	0.0010435698 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	296

Table Of Contents

Magnitude-Frequency Distribution

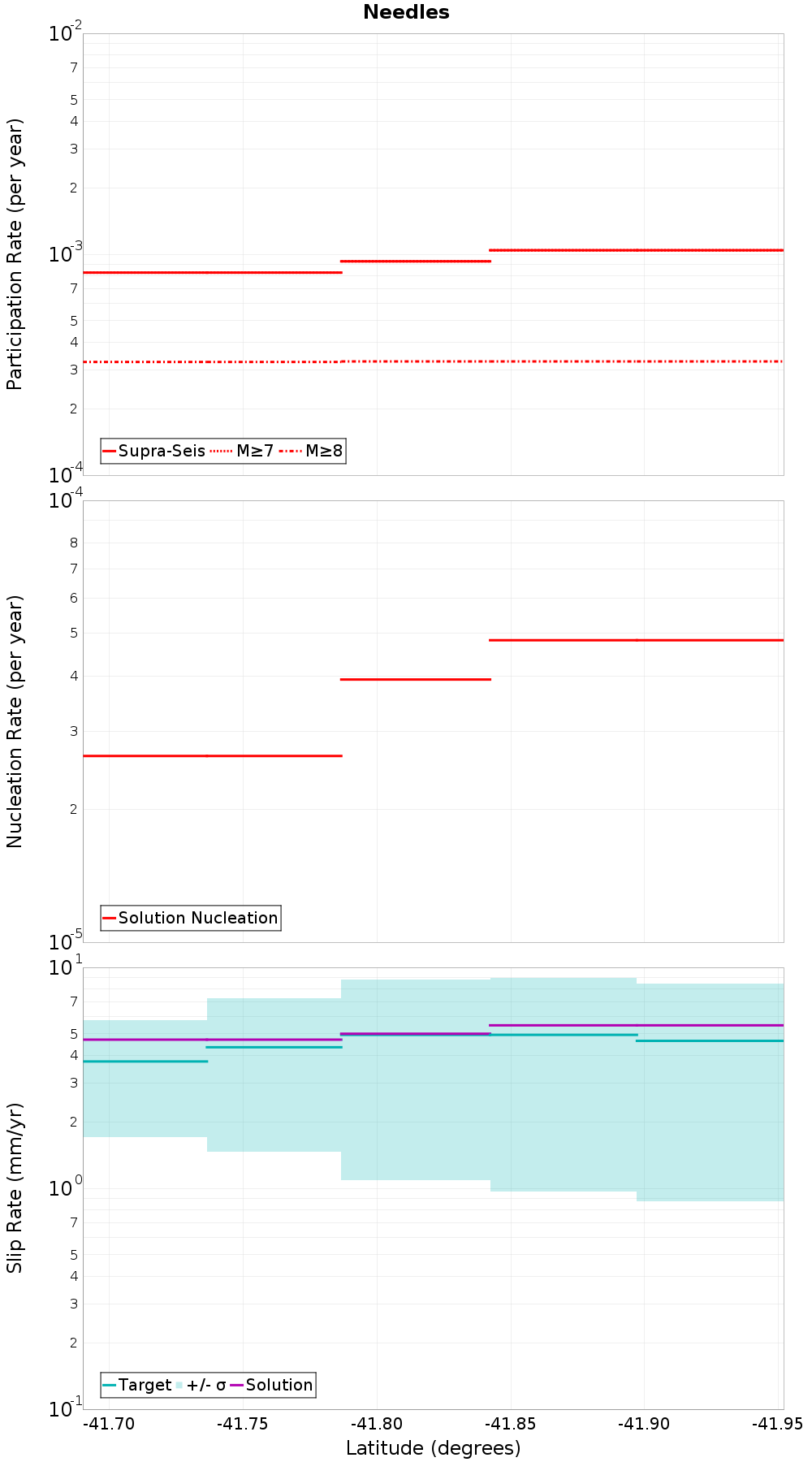

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

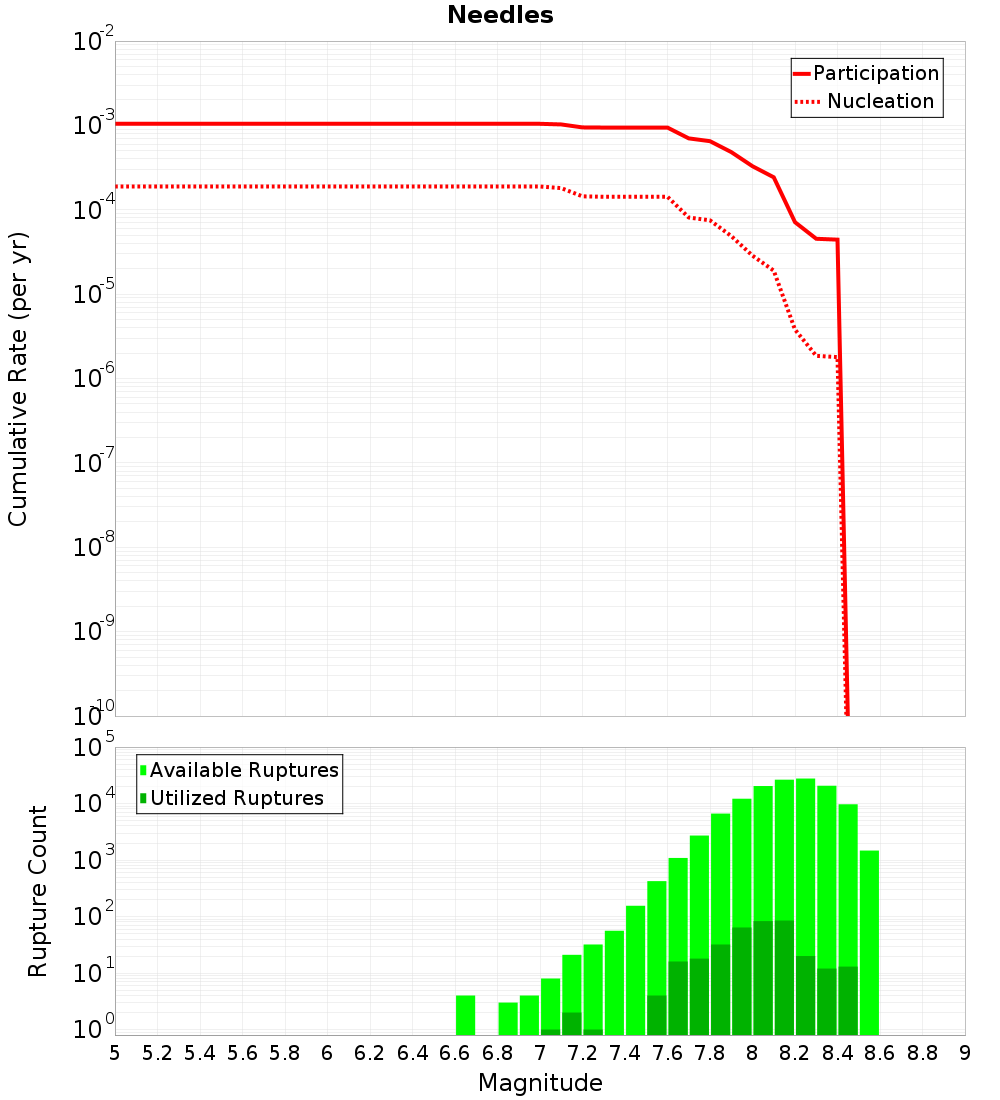

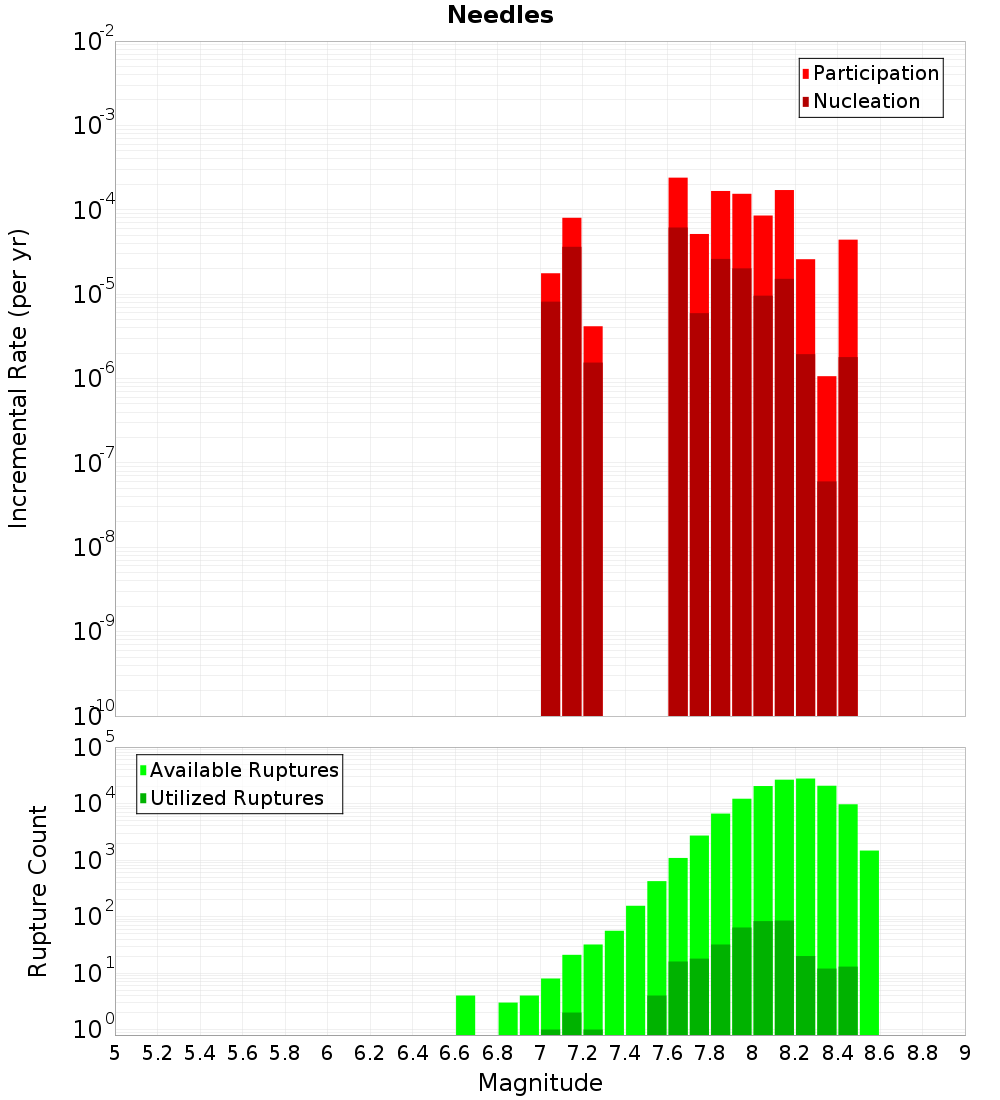

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

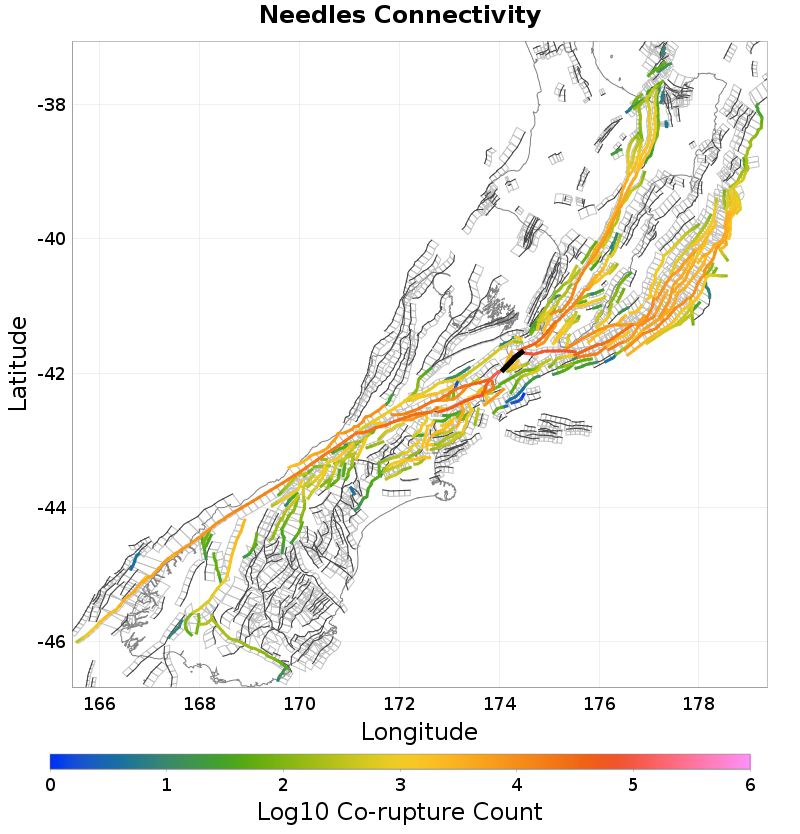

Connectivity

Nearby Sections

Fault Section
Kekerengu 1, 0 km away
London Hill, 0 km away
BooBoo, 0.17 km away
Needles East 2, 0.22 km away
Vernon 4, 3.69 km away
Wairarapa: Needles, 4.57 km away
Chancet, 6.52 km away
Cloudy 3, 9.38 km away
Wharanui, 10.35 km away
Clarence: Northeast, 11.97 km away
Upper Slope, 14.3 km away
Vernon 3, 14.87 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	110,881
Co-rupture Rate	0.0010425929

London Hill, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	4,349
Co-rupture Rate	9.768602E-7

BooBoo, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	83,122
Co-rupture Rate	2.2396744E-4

Needles East 2, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,520
Co-rupture Rate	1.2509981E-17

Vernon 4, 3.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	false
Co-rupture Count	216
Co-rupture Rate	2.0233705E-5

Wairarapa: Needles, 4.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	38,614
Co-rupture Rate	6.017941E-4

Chancet, 6.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	true
Co-rupture Count	831
Co-rupture Rate	4.4598173E-6

Cloudy 3, 9.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	false
Co-rupture Count	776
Co-rupture Rate	3.557066E-17

Wharanui, 10.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 11.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	false
Co-rupture Count	284
Co-rupture Rate	0.0

Upper Slope, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	true
Directly Connected?	false
Co-rupture Count	605
Co-rupture Rate	0.0

Vernon 3, 14.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMDcuME1ZZVp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
