Brothers Details

Property	Value
Rupture Count	3,030
Ruptures Above Sect Min Mag	3,027
Ruptures w/ Nonzero Rates	108
Magnitude Range	[6.98, 8.35]
Length Range	[21, 534] km
Total Rate	8.3244624E-5 /yr
Multi-Fault Rate	8.3244624E-5 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	92

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

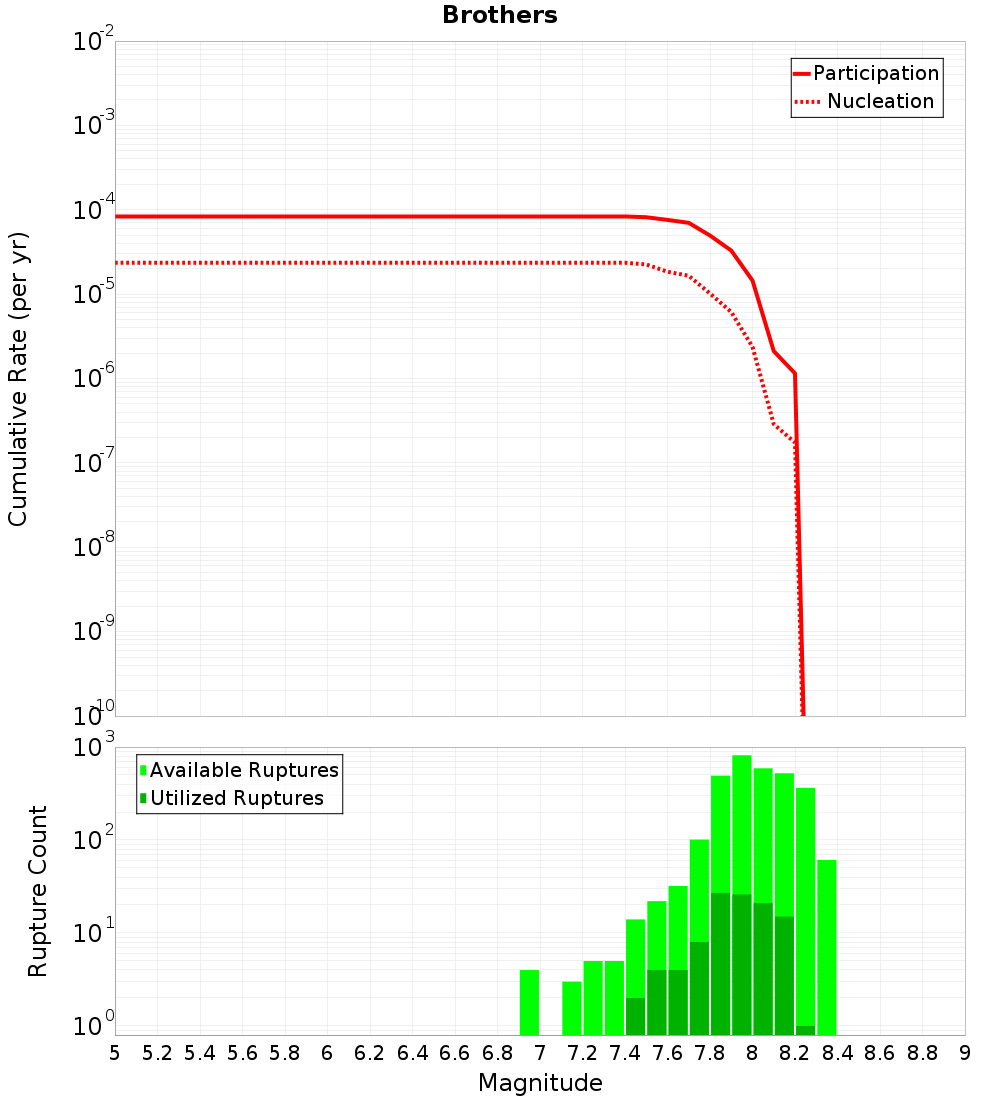

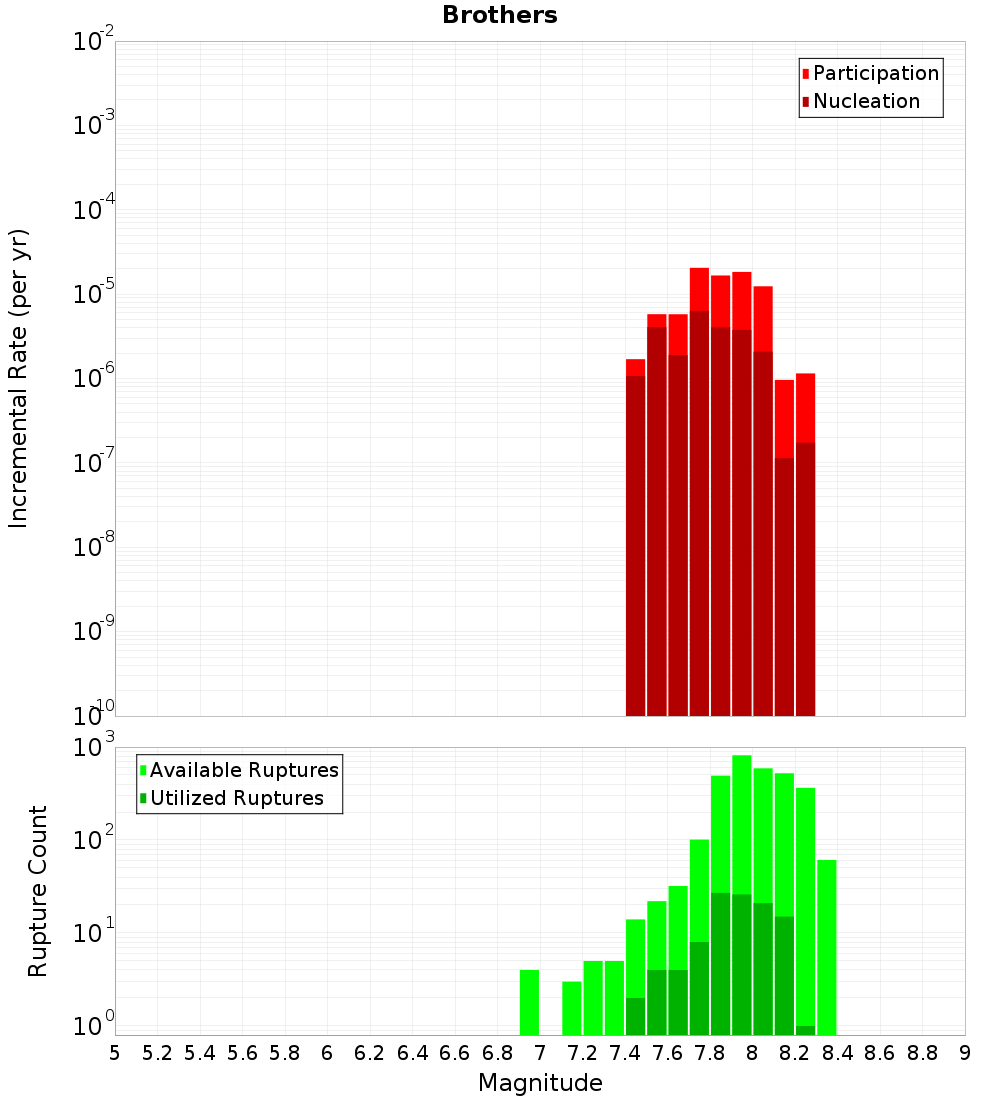

Magnitude-Frequency Distribution

Incremental	Cumulative

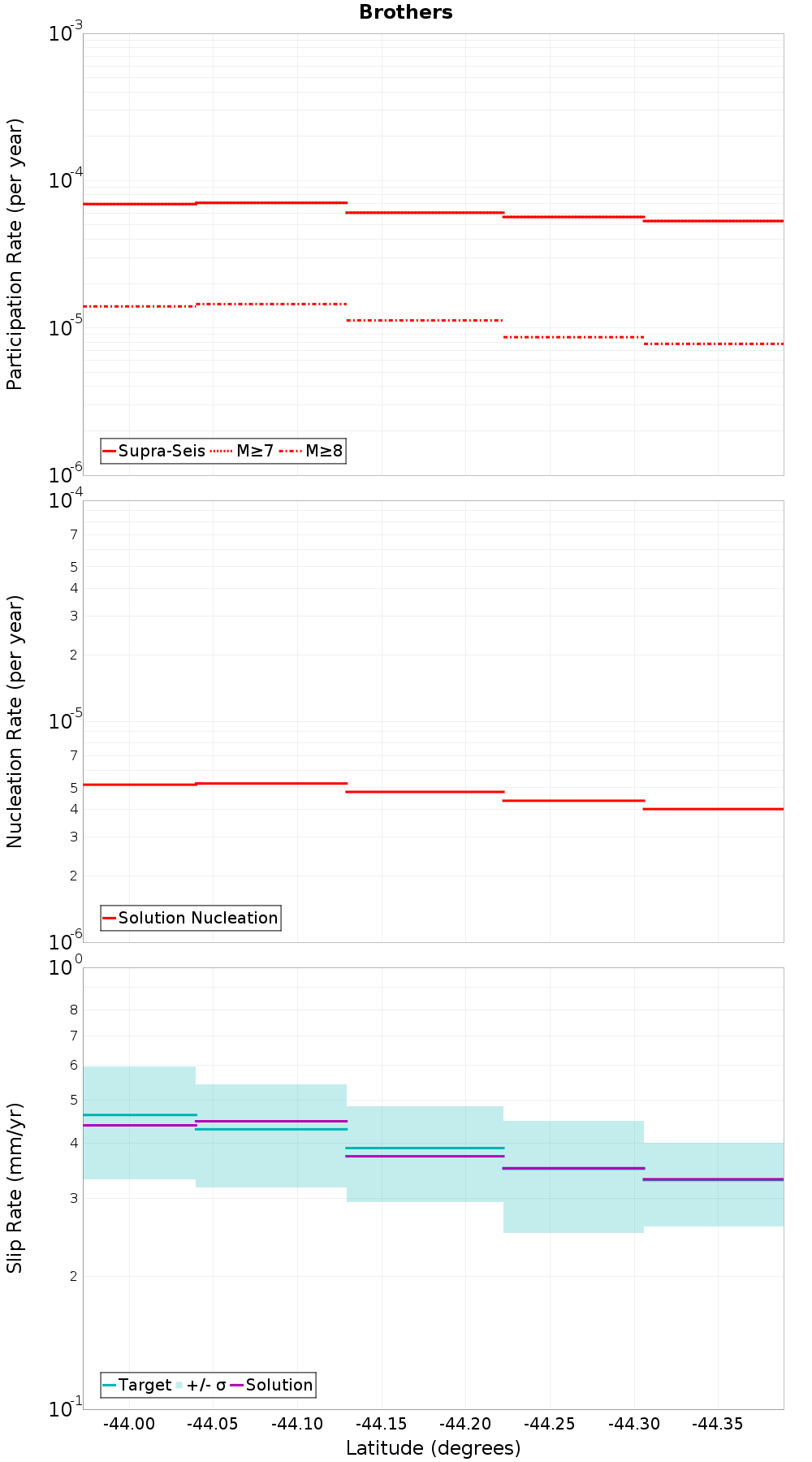

Along-Strike Values

Moment-Rates and b-Values

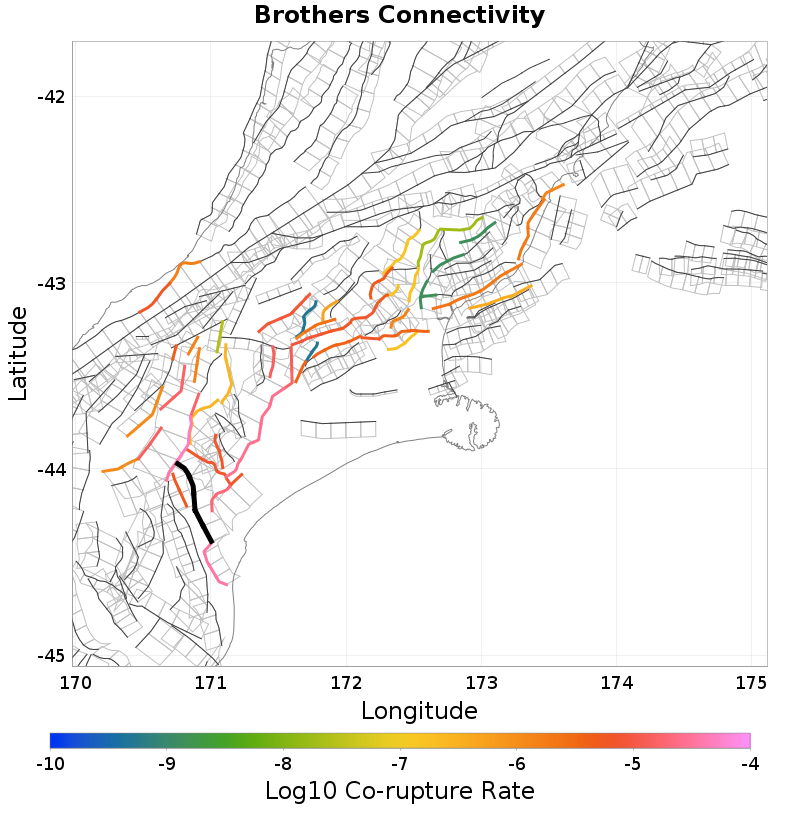

Connectivity

Nearby Sections

Fault Section
Catherine, 0.12 km away
Maungati, 0.21 km away
Sugarloaf, 0.22 km away
Hutt Peel, 0.36 km away
Fox Peak, 1.31 km away
Edith, 2.5 km away
Rapuwai, 3.77 km away
Albury, 4.78 km away
Ben McLeod, 5.41 km away
Coal Creek, 6.03 km away
Irishman Creek, 7.17 km away
Hunters, 7.39 km away
Opawa, 8.81 km away
Chamberlain, 12.7 km away

Catherine, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	7.202638E-6

Maungati, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	520
Co-rupture Rate	3.4602475E-5

Sugarloaf, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	18
Co-rupture Rate	7.155255E-6

Hutt Peel, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	1,541
Co-rupture Rate	2.6584448E-5

Fox Peak, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	1,509
Co-rupture Rate	4.826804E-5

Edith, 2.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rapuwai, 3.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	172
Co-rupture Rate	1.8969735E-5

Albury, 4.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	270
Co-rupture Rate	5.5283626E-6

Ben McLeod, 5.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	2.6165523E-7

Coal Creek, 6.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Irishman Creek, 7.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	134
Co-rupture Rate	1.4304717E-5

Hunters, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	0.0

Opawa, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Chamberlain, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
