Chamberlain Details

Property	Value
Rupture Count	1,656
Ruptures Above Sect Min Mag	1,655
Ruptures w/ Nonzero Rates	71
Magnitude Range	[7.00, 8.27]
Length Range	[22, 356] km
Total Rate	4.795672E-5 /yr
Multi-Fault Rate	4.7942565E-5 /yr (99.97%)
Directly-Connected Faults	5
All Co-Rupturing Faults	31

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

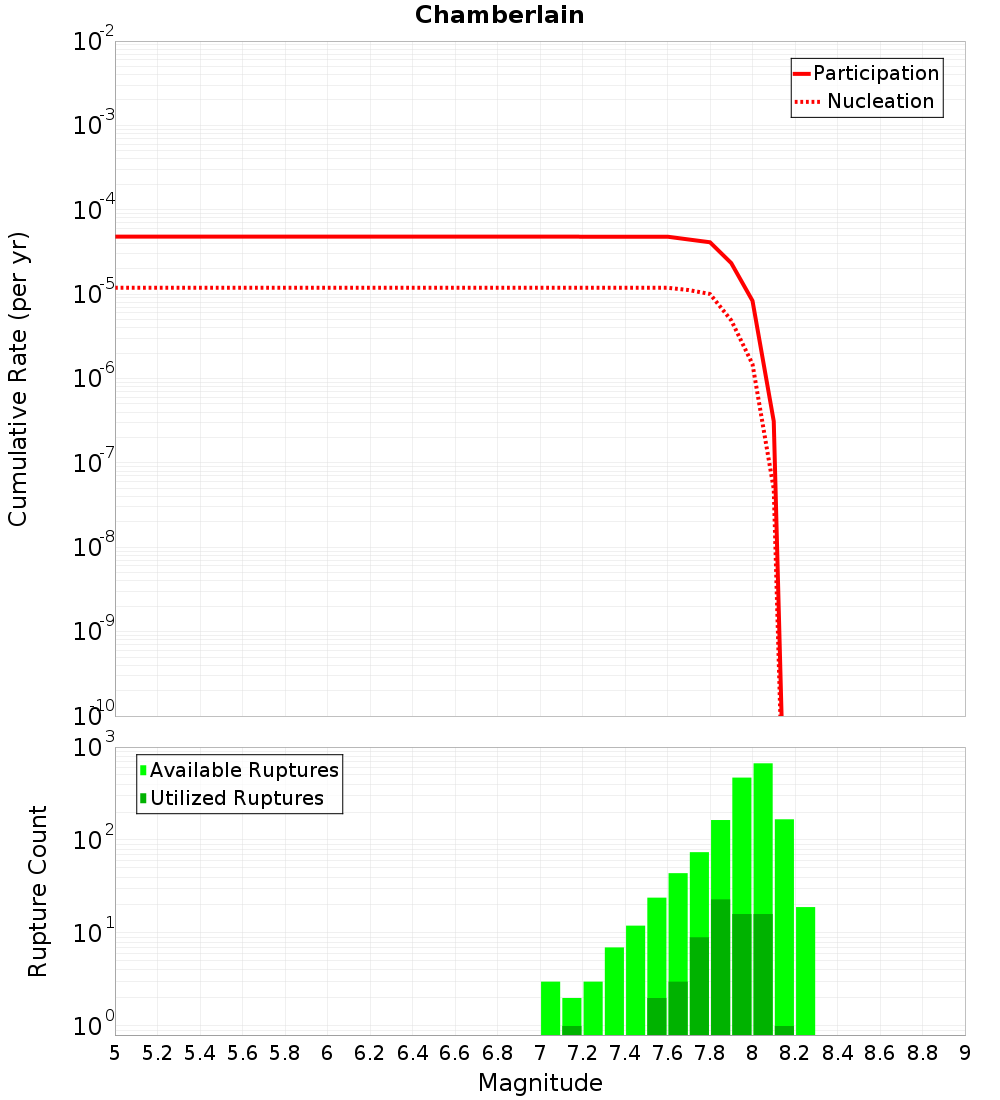

Magnitude-Frequency Distribution

Incremental	Cumulative

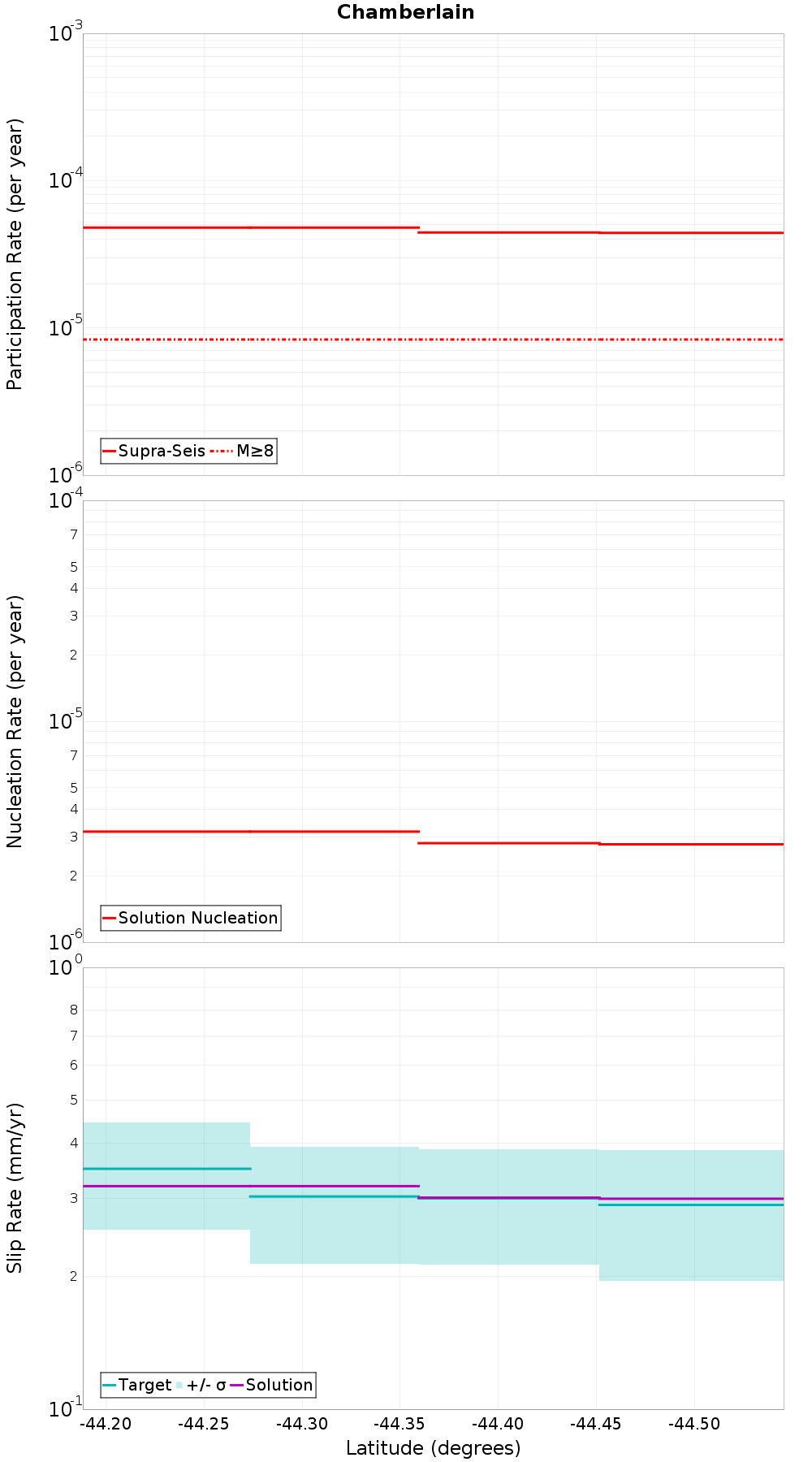

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Opawa, 1.37 km away
Campbell Hills, 1.74 km away
The Wolds, 2.09 km away
Hunters, 2.51 km away
Dalgety, 2.65 km away
Albury, 7.07 km away
Maungati, 8.42 km away
Kirkliston, 9.41 km away
Irishman Creek, 10.73 km away
Grampian, 11.51 km away
Brothers, 12.7 km away
Fox Peak, 14.1 km away

Opawa, 1.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	1,066
Co-rupture Rate	1.3035894E-5

Campbell Hills, 1.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	1,027
Co-rupture Rate	3.8287995E-5

The Wolds, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	76
Co-rupture Rate	3.4906672E-5

Hunters, 2.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	669
Co-rupture Rate	9.344034E-6

Dalgety, 2.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	true
Co-rupture Count	454
Co-rupture Rate	0.0

Albury, 7.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maungati, 8.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kirkliston, 9.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Irishman Creek, 10.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	false
Co-rupture Count	274
Co-rupture Rate	2.9534509E-5

Grampian, 11.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Brothers, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fox Peak, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?	true
Directly Connected?	false
Co-rupture Count	1,665
Co-rupture Rate	2.52478E-5
