Lowry Details

PropertyValue
Rupture Count11,623
Ruptures Above Sect Min Mag11,621
Ruptures w/ Nonzero Rates147
Magnitude Range[6.98, 8.54]
Length Range[21, 738] km
Total Rate1.9559053E-4 /yr
Multi-Fault Rate1.9555501E-4 /yr (99.98%)
Directly-Connected Faults5
All Co-Rupturing Faults88

Table Of Contents

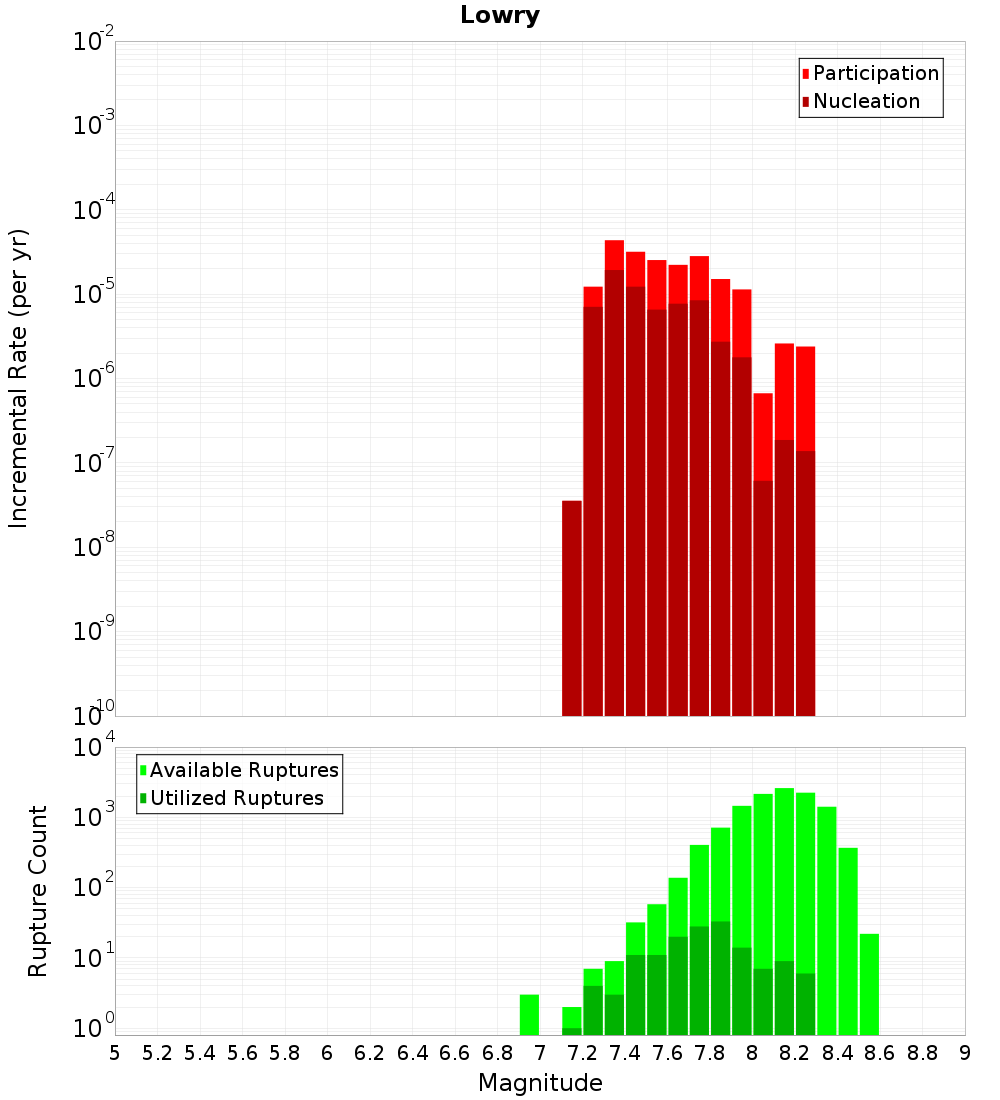

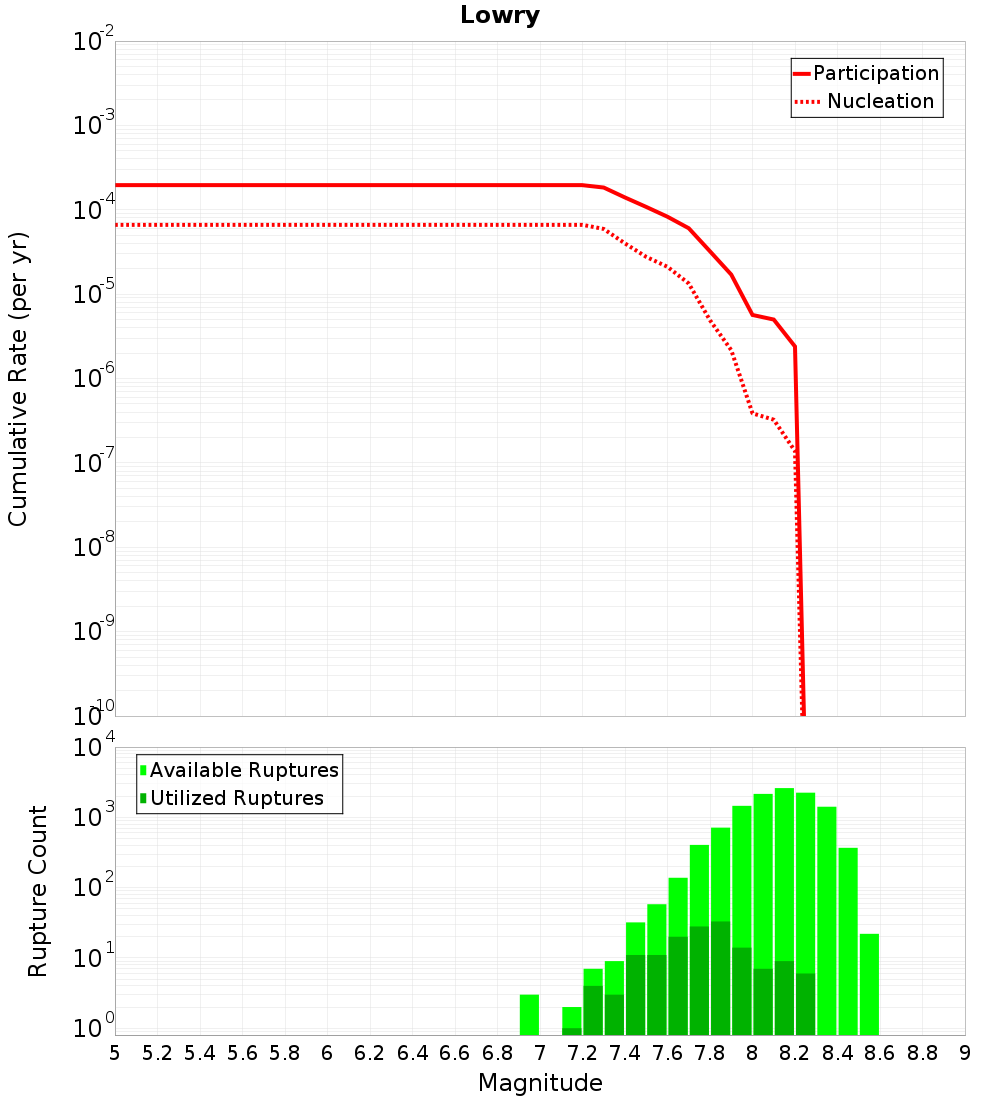

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

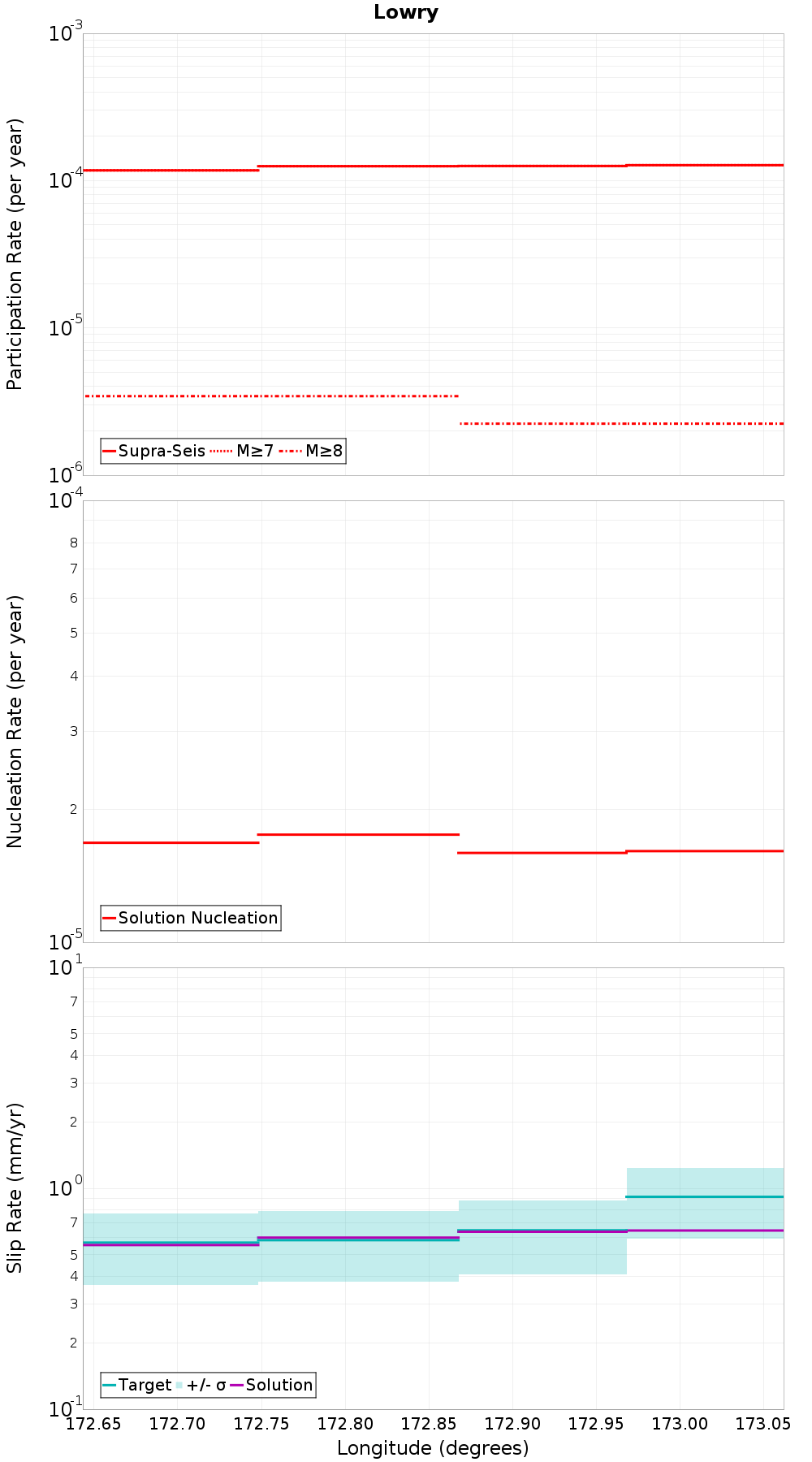

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kaiwara North, 0.16 km away
Doctors, 0.53 km away
Balmoral, 0.6 km away
Leonard Mound, 1.98 km away
Alexander, 2.38 km away
Kaiwara South, 3.01 km away
Mt Culverden, 7.58 km away
The Humps, 8.15 km away
Mt Arden, 9.01 km away
Hurunui Peak, 9.05 km away
Virginia, 9.23 km away
Boby Stream, 10.33 km away
OmihiLwrHuru, 11.55 km away
Leader: South, 12.1 km away

Kaiwara North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count10,835
Co-rupture Rate1.2873637E-5

Doctors, 0.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count9,238
Co-rupture Rate6.619443E-5

Balmoral, 0.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leonard Mound, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count2,525
Co-rupture Rate6.841409E-5

Alexander, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count286
Co-rupture Rate2.9177449E-5

Kaiwara South, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 8.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?false
Co-rupture Count119
Co-rupture Rate5.1757293E-6

Mt Arden, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 9.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 10.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?false
Co-rupture Count8,731
Co-rupture Rate6.962256E-5

OmihiLwrHuru, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count474
Co-rupture Rate9.038291E-5

Leader: South, 12.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
