Teviot Details

PropertyValue
Rupture Count5,025
Ruptures Above Sect Min Mag5,025
Ruptures w/ Nonzero Rates16
Magnitude Range[7.32, 8.57]
Length Range[29, 737] km
Total Rate1.8996498E-5 /yr
Multi-Fault Rate1.8996498E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults96

Table Of Contents

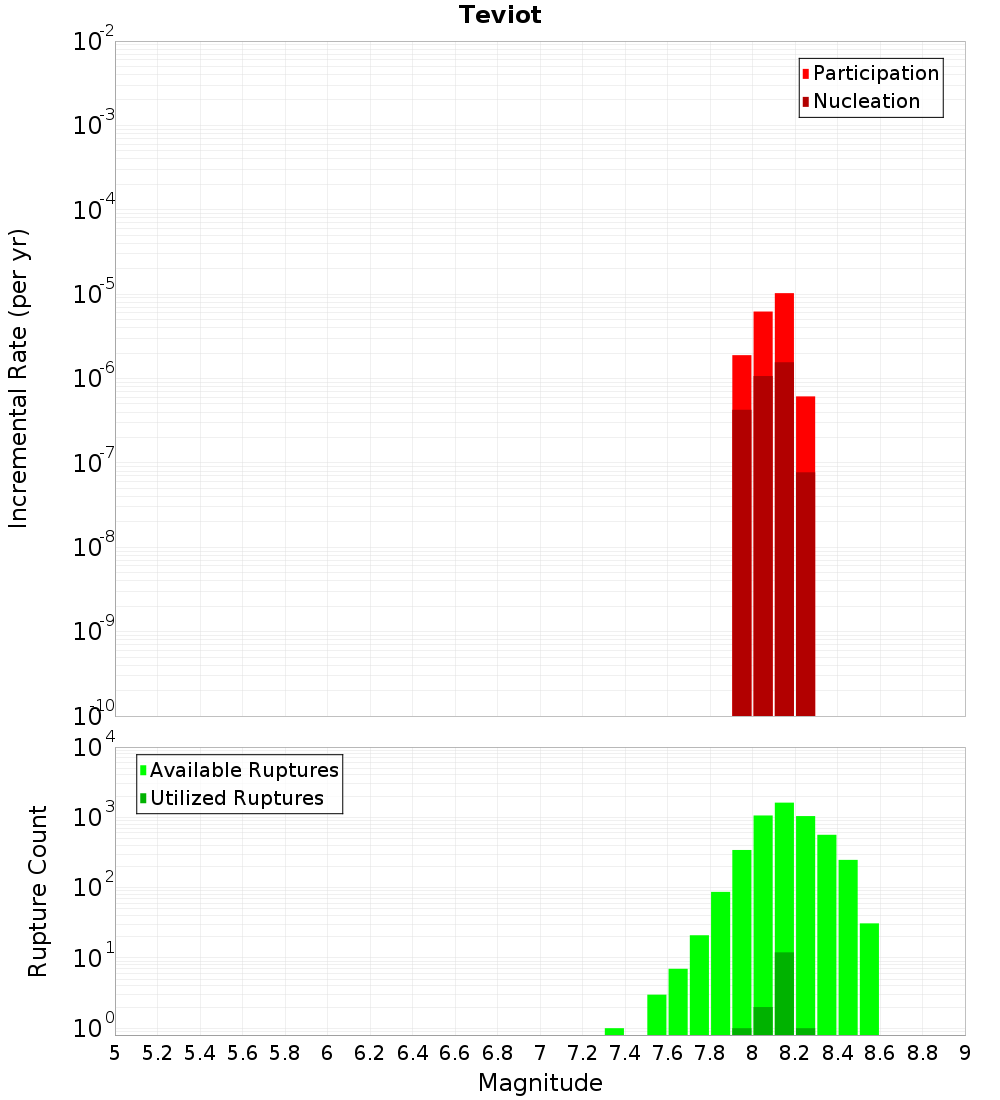

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

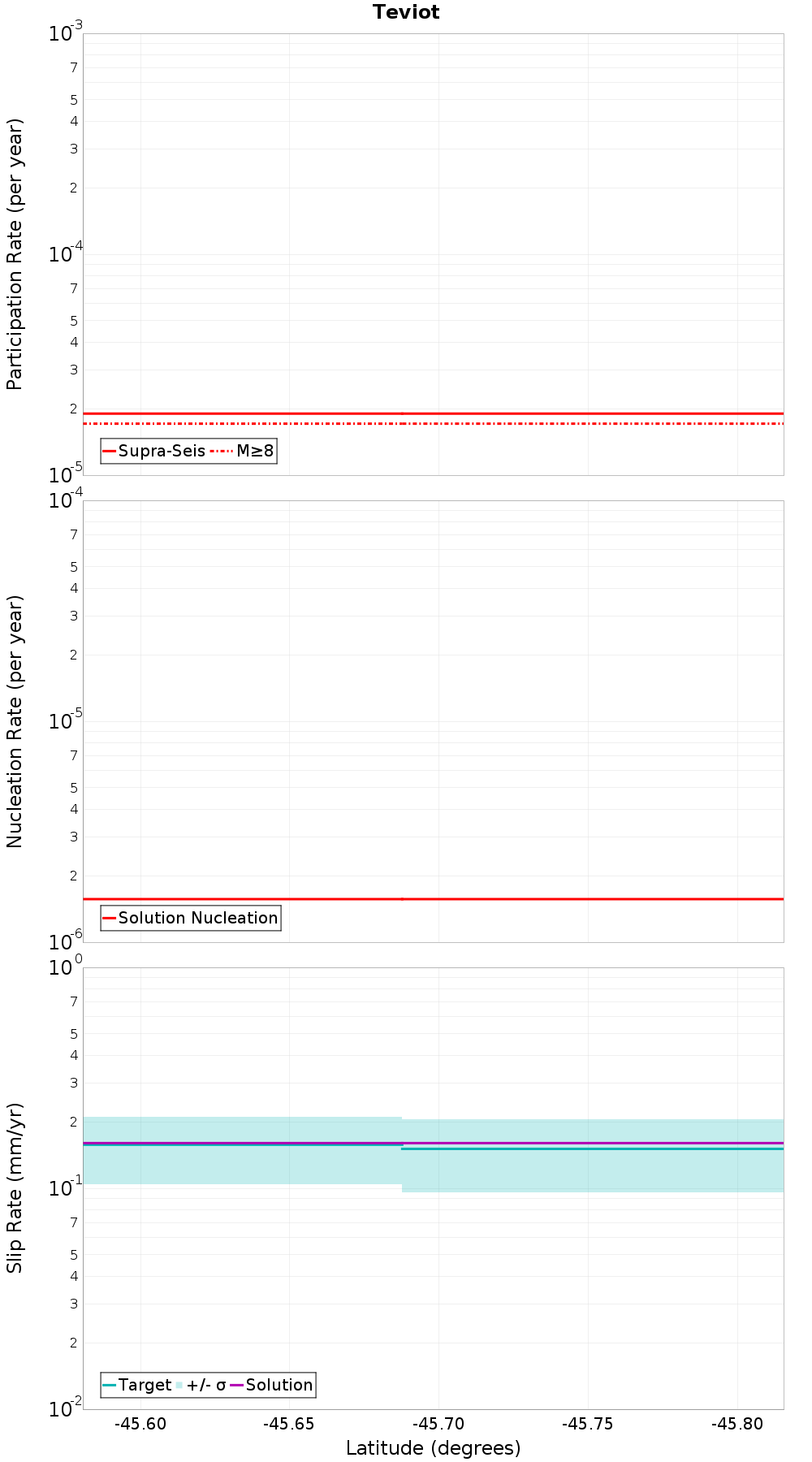

Along-Strike Values

(top)

Along-strike plot

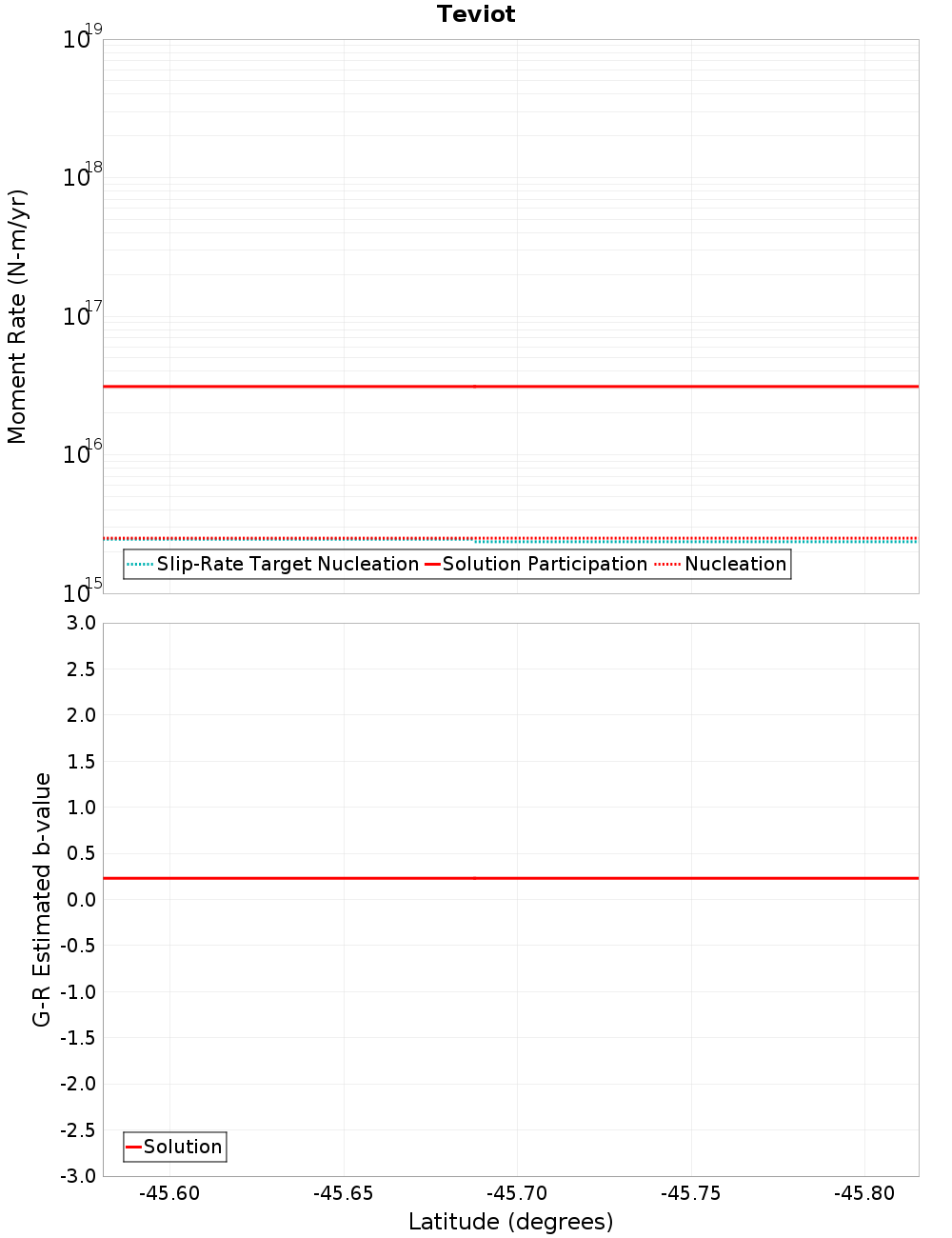

Moment-Rates and b-Values

(top)

Along-strike plot

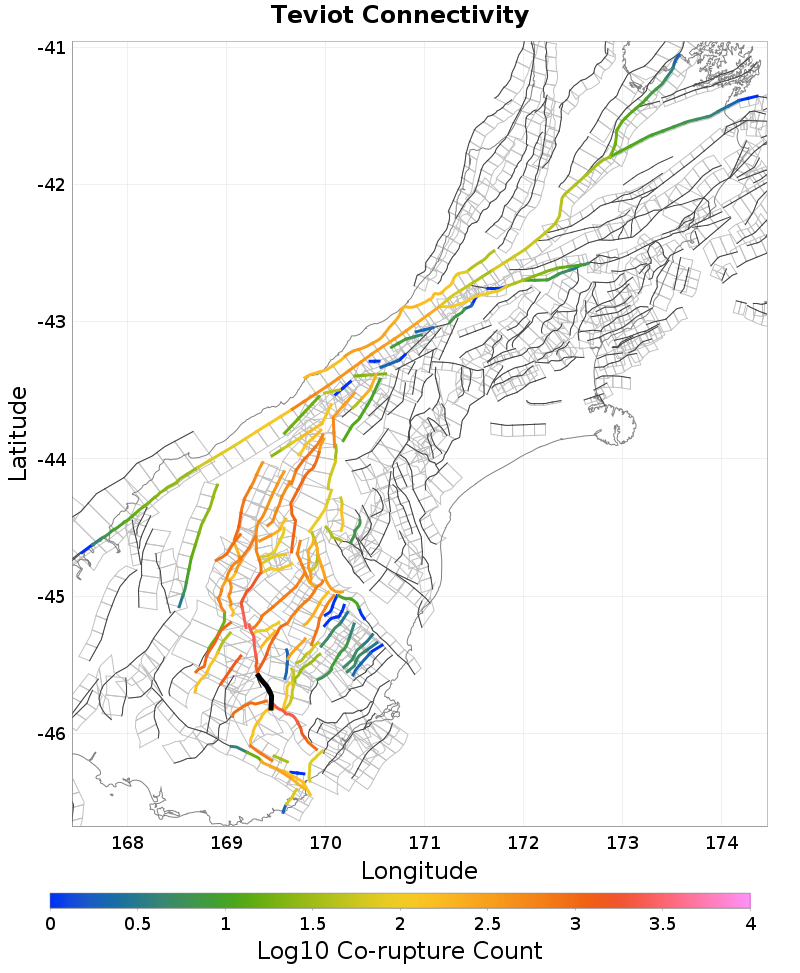

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Spylaw, 0.2 km away
Waikaia, 0.26 km away
Wendon Valley, 0.27 km away
Garvie, 0.32 km away
Old Man, 0.71 km away
Blue Mountain, 0.86 km away
Tuapeka, 1.07 km away
Little Valley, 4.3 km away
Roaring Lion, 4.71 km away
Backbone, 8.32 km away
Beaumont River, 10.54 km away
Lake Onslow, 14.23 km away
Beacon Hill, 14.74 km away

Spylaw, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count909
Co-rupture Rate0.0

Waikaia, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count1,338
Co-rupture Rate0.0

Wendon Valley, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate0.0

Old Man, 0.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count2,460
Co-rupture Rate0.0

Blue Mountain, 0.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count139
Co-rupture Rate0.0

Tuapeka, 1.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count2,283
Co-rupture Rate1.8996498E-5

Little Valley, 4.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count1,305
Co-rupture Rate1.8996498E-5

Roaring Lion, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?true
Co-rupture Count1,103
Co-rupture Rate0.0

Backbone, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?false
Co-rupture Count120
Co-rupture Rate0.0

Beaumont River, 10.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?false
Co-rupture Count54
Co-rupture Rate0.0

Lake Onslow, 14.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Beacon Hill, 14.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMTAuMEZMYjZW
Connected?true
Directly Connected?false
Co-rupture Count707
Co-rupture Rate0.0
