Ohariu Details

PropertyValue
Rupture Count14,622
Ruptures Above Sect Min Mag14,605
Ruptures w/ Nonzero Rates184
Magnitude Range[6.76, 8.51]
Length Range[21, 1,132] km
Total Rate8.3278E-4 /yr
Multi-Fault Rate8.3276123E-4 /yr (100.00%)
Directly-Connected Faults17
All Co-Rupturing Faults166

Table Of Contents

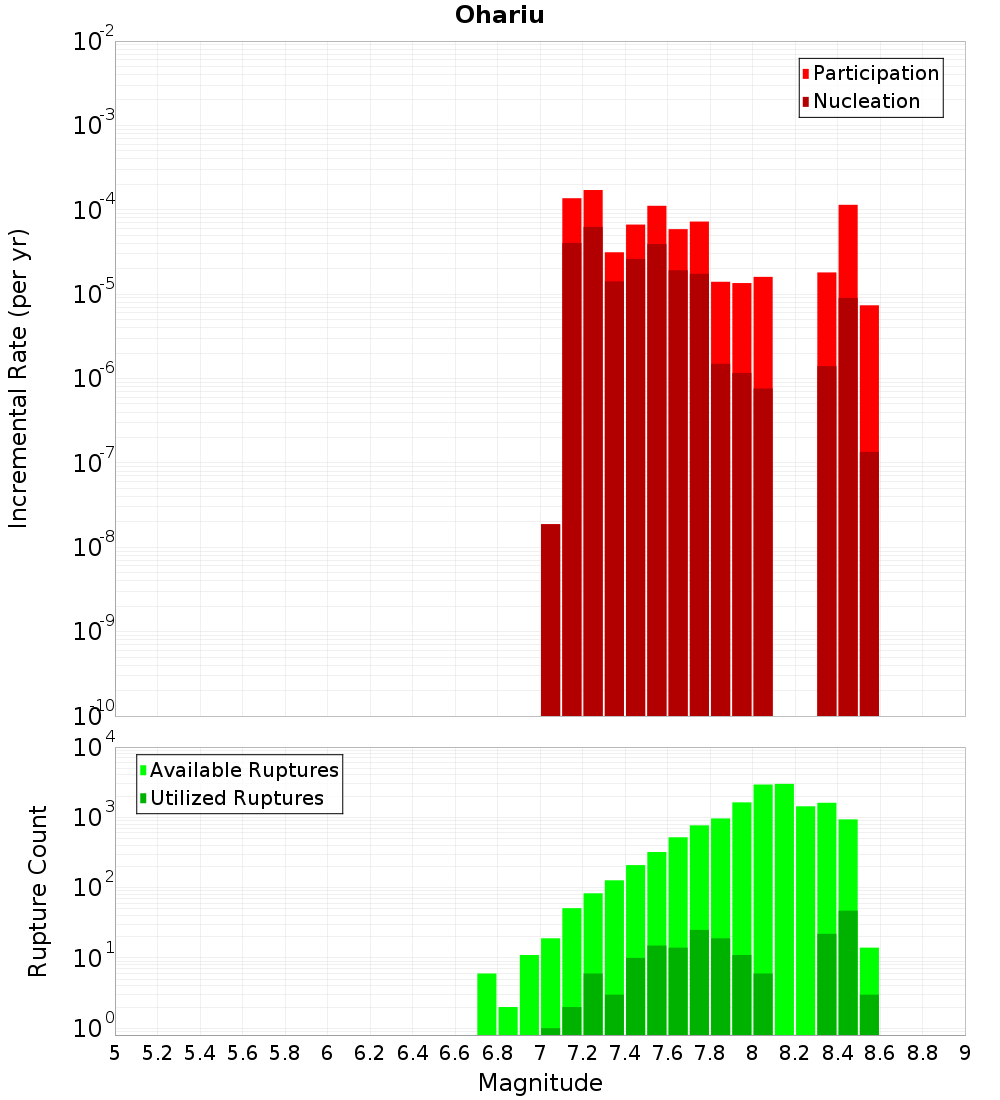

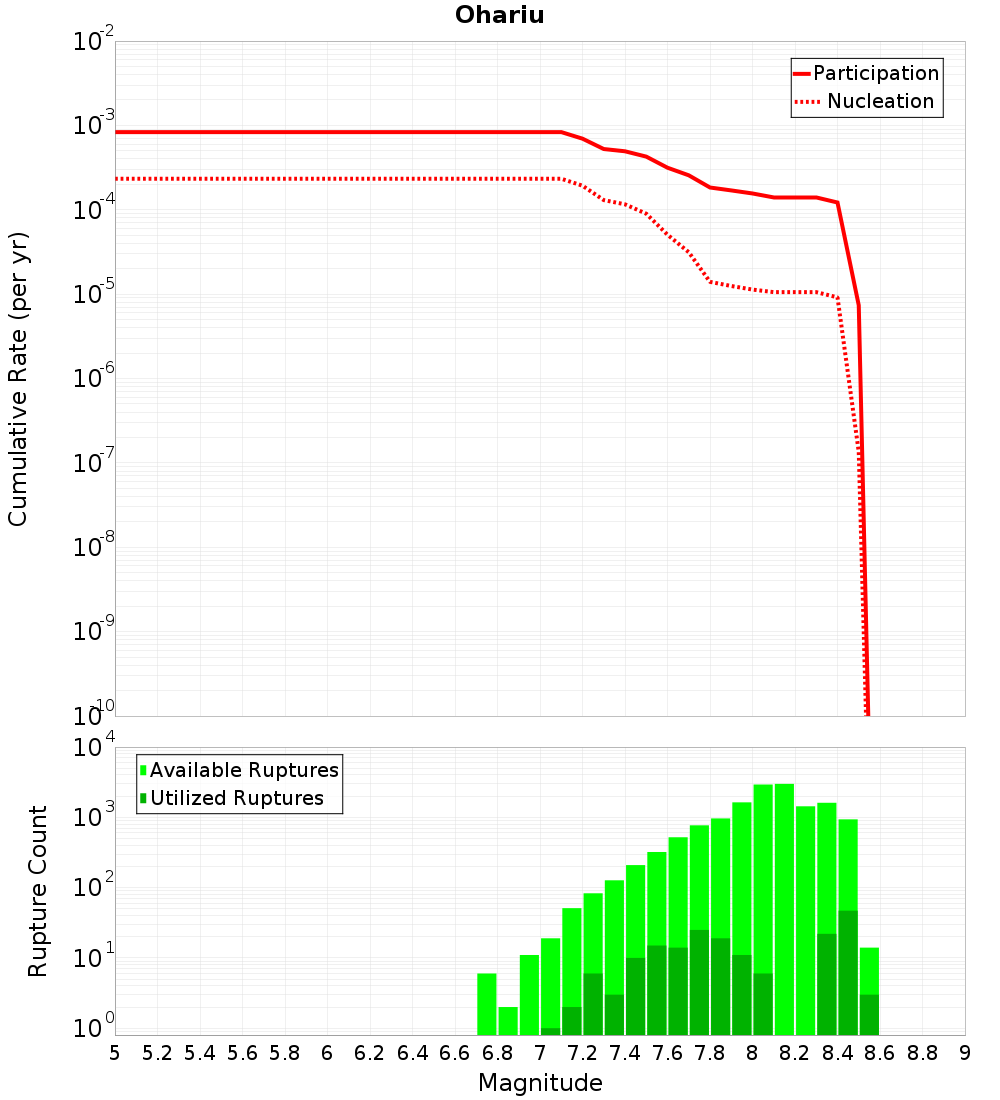

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

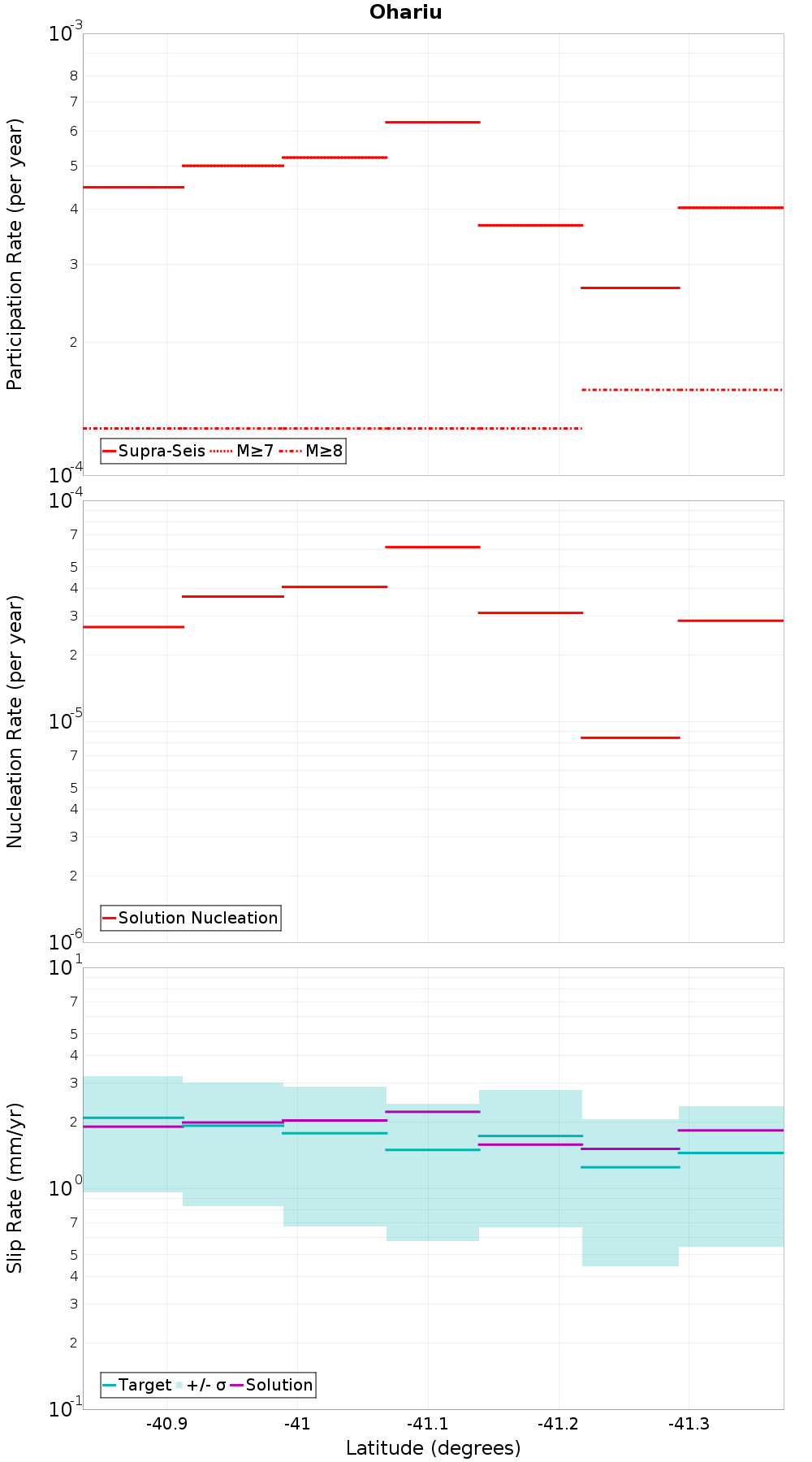

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohariu South 2, 0 km awayAotea - Evans Bay, 6 km away
Gibbs, 0.17 km awayAkatarawa, 6.23 km away
Wellington Hutt Valley: 2, 0.3 km awayOhariu South 1, 6.96 km away
Wellington Hutt Valley: 1, 1.65 km awayOtaheke South, 8.6 km away
Moonshine, 2.04 km awayOkupe 1, 9.22 km away
Whitemans Valley, 2.44 km awayWharekauhau, 10 km away
Pukerua - Shepherds Gully: 1, 2.91 km awayPoroutawhao, 11.17 km away
Pukerua - Shepherds Gully: 2, 2.91 km awayWairau 3, 11.37 km away
Pukerua - Shepherds Gully: 3, 3.18 km awayOtaki Forks: 2, 11.39 km away
Shepherds Gully - Mana, 3.79 km awayOtaheke North, 11.65 km away
Wellington Hutt Valley: 3, 3.96 km awayWellington Hutt Valley: 5, 12.34 km away
Northern Ohariu, 4.32 km awayWairarapa: 1, 14.45 km away
Wellington Hutt Valley: 4, 4.6 km awayOnepoto, 14.67 km away
Otaki Forks: 1, 5.13 km awayWairarapa: Needles, 14.92 km away

Ohariu South 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count6,608
Co-rupture Rate1.3992624E-4

Gibbs, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate3.9430706E-6

Wellington Hutt Valley: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count1,337
Co-rupture Rate3.0404446E-4

Wellington Hutt Valley: 1, 1.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count822
Co-rupture Rate1.9551159E-4

Moonshine, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count6,438
Co-rupture Rate4.0720763E-5

Whitemans Valley, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count219
Co-rupture Rate1.29089074E-11

Pukerua - Shepherds Gully: 1, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate1.0870474E-4

Pukerua - Shepherds Gully: 2, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count58
Co-rupture Rate3.2621261E-15

Pukerua - Shepherds Gully: 3, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count147
Co-rupture Rate4.0949835E-10

Shepherds Gully - Mana, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count474
Co-rupture Rate4.0216768E-5

Wellington Hutt Valley: 3, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count171
Co-rupture Rate3.4524914E-4

Northern Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count5,796
Co-rupture Rate4.0689274E-4

Wellington Hutt Valley: 4, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count654
Co-rupture Rate3.734919E-4

Otaki Forks: 1, 5.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count6,239
Co-rupture Rate6.0388724E-5

Aotea - Evans Bay, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate4.7631312E-11

Akatarawa, 6.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count1,368
Co-rupture Rate4.660666E-5

Ohariu South 1, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count1,038
Co-rupture Rate3.5053858E-5

Otaheke South, 8.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?true
Co-rupture Count323
Co-rupture Rate4.6011355E-5

Okupe 1, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count114
Co-rupture Rate1.1510245E-4

Wharekauhau, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count840
Co-rupture Rate1.7705606E-5

Poroutawhao, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count139
Co-rupture Rate4.35436E-5

Wairau 3, 11.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 2, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count5,432
Co-rupture Rate4.0428367E-5

Otaheke North, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count174
Co-rupture Rate2.9269688E-5

Wellington Hutt Valley: 5, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Wairarapa: 1, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate2.5827212E-5

Onepoto, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count213
Co-rupture Rate4.1164E-6

Wairarapa: Needles, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?true
Directly Connected?false
Co-rupture Count328
Co-rupture Rate1.6440254E-5
