Roaring Meg Details

Property	Value
Rupture Count	5,721
Ruptures Above Sect Min Mag	5,719
Ruptures w/ Nonzero Rates	90
Magnitude Range	[6.83, 8.35]
Length Range	[20, 711] km
Total Rate	8.18854E-5 /yr
Multi-Fault Rate	8.18854E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	78

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

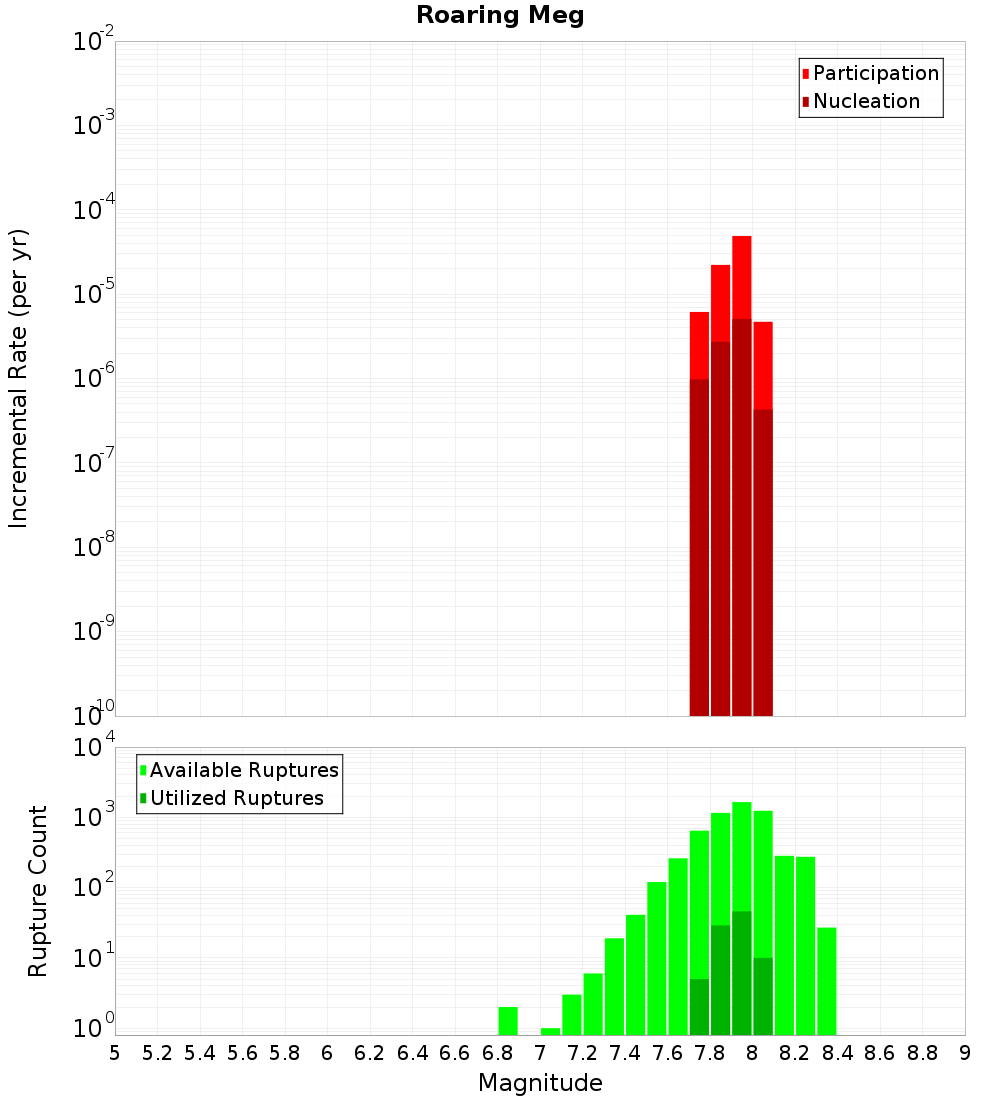

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Pisa, 0.11 km away
Paddys Ridge, 0.24 km away
Dunstan, 0.3 km away
NW Cardrona South, 3.03 km away
NW Cardrona North, 3.33 km away
Galloway Shanty, 5.23 km away
Roaring Lion, 6.16 km away
Nevis, 6.29 km away
Old Man, 10.4 km away
Motatapu, 11.22 km away
Garvie, 14.32 km away
Raggedy - Blackstone, 14.37 km away

Pisa, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,922
Co-rupture Rate	8.846919E-6

Paddys Ridge, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,116
Co-rupture Rate	5.274028E-5

Dunstan, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	true
Co-rupture Count	689
Co-rupture Rate	3.3516694E-6

NW Cardrona South, 3.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	false
Co-rupture Count	162
Co-rupture Rate	0.0

NW Cardrona North, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,656
Co-rupture Rate	4.1540967E-5

Galloway Shanty, 5.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,679
Co-rupture Rate	7.24421E-5

Roaring Lion, 6.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	false
Co-rupture Count	582
Co-rupture Rate	8.844764E-6

Nevis, 6.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	false
Co-rupture Count	108
Co-rupture Rate	4.324957E-6

Old Man, 10.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	false
Co-rupture Count	1,237
Co-rupture Rate	2.1543731E-9

Motatapu, 11.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	false
Co-rupture Count	138
Co-rupture Rate	3.5062818E-5

Garvie, 14.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	true
Directly Connected?	false
Co-rupture Count	1,499
Co-rupture Rate	7.293487E-5

Raggedy - Blackstone, 14.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMjcuMEdvOUZu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
