Darran Details

Property	Value
Rupture Count	9,117
Ruptures Above Sect Min Mag	9,114
Ruptures w/ Nonzero Rates	19
Magnitude Range	[6.94, 8.62]
Length Range	[18, 925] km
Total Rate	5.7642603E-5 /yr
Multi-Fault Rate	5.7642603E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	141

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

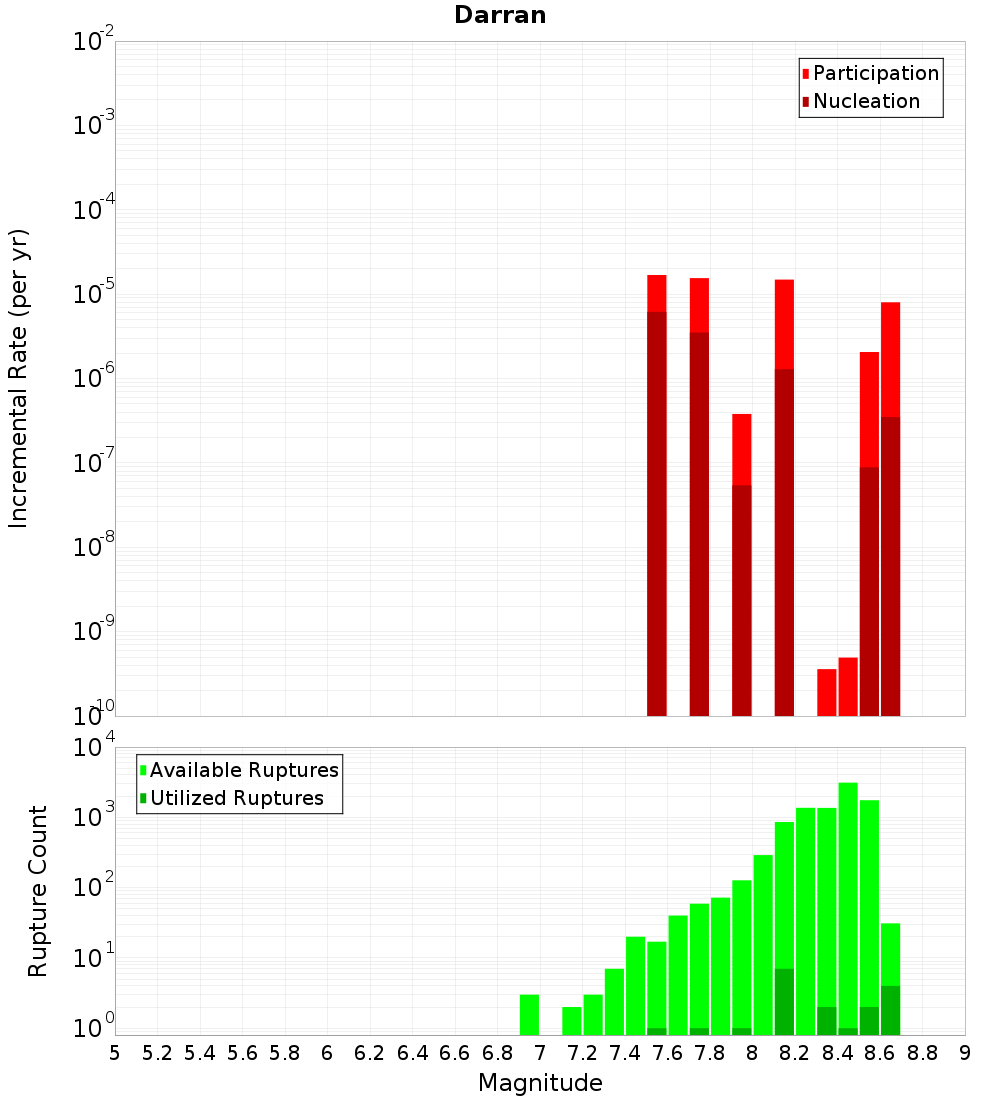

Magnitude-Frequency Distribution

Incremental	Cumulative

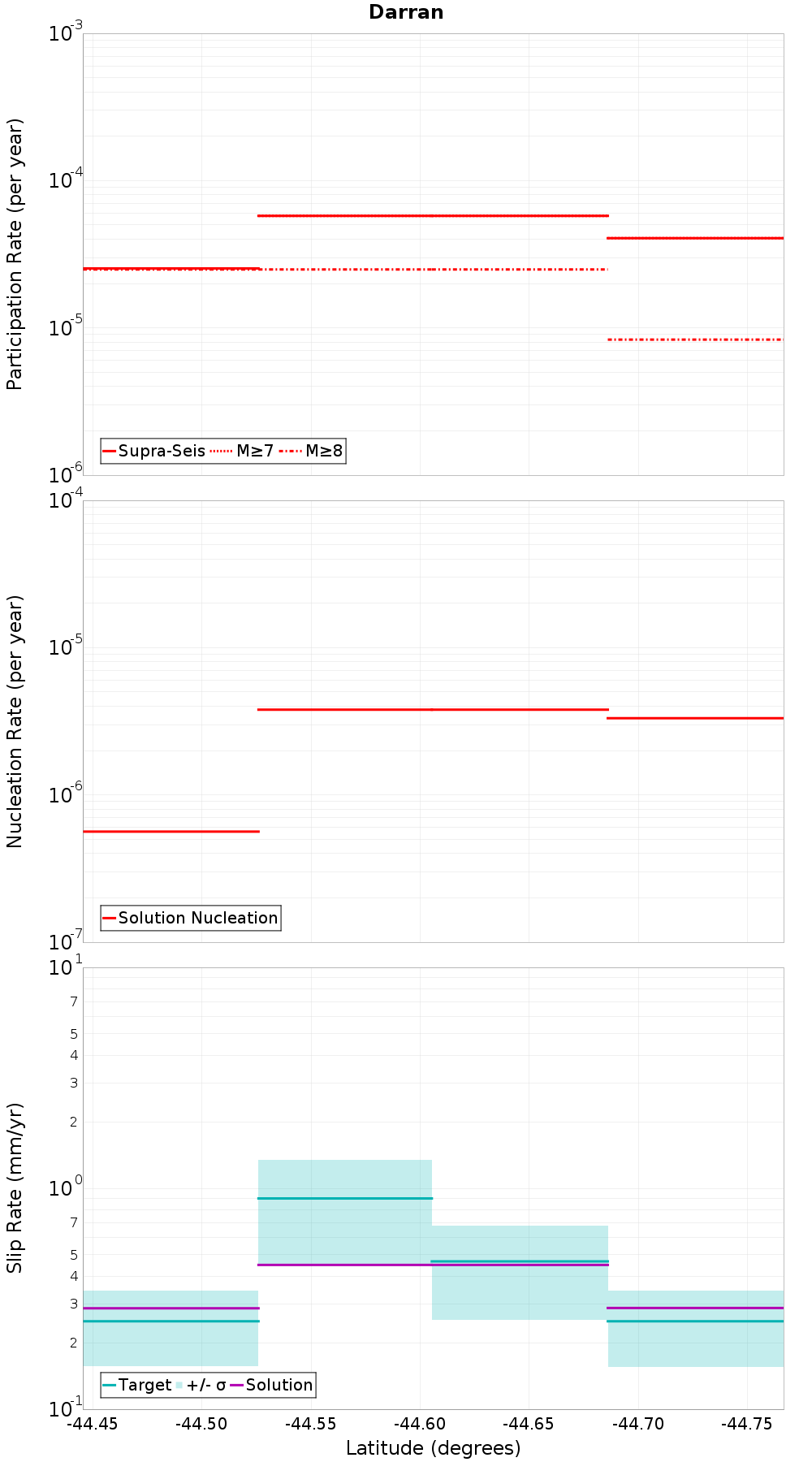

Along-Strike Values

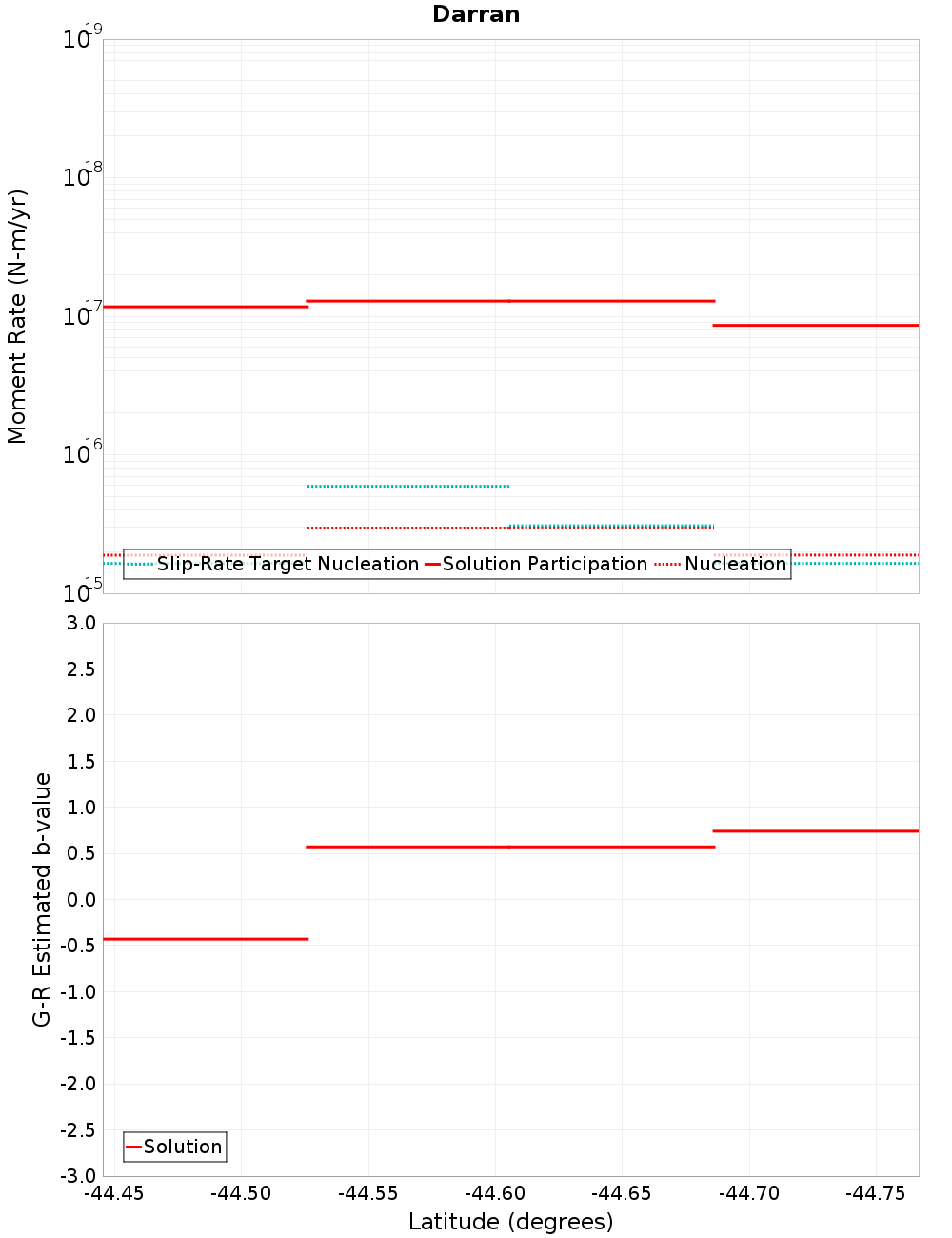

Moment-Rates and b-Values

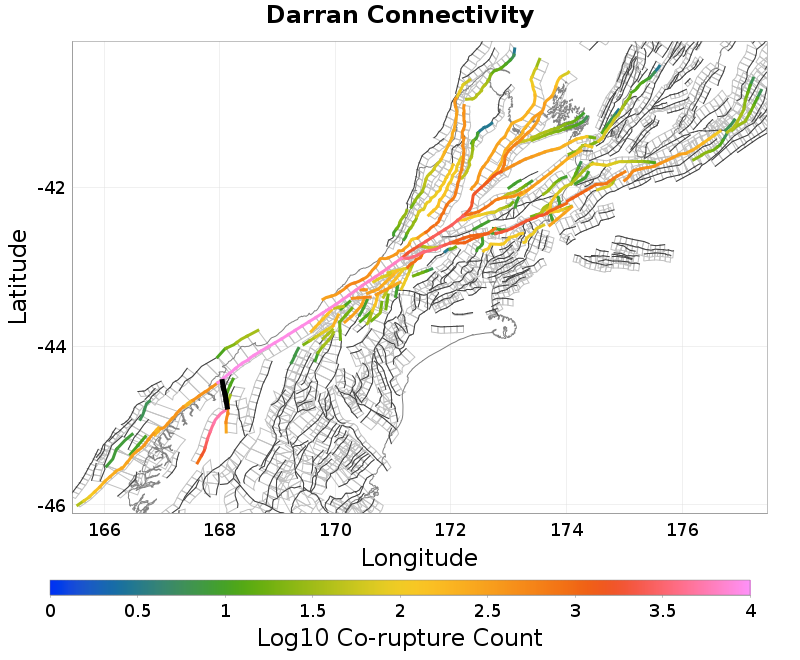

Connectivity

Nearby Sections

Fault Section
Madagascar, 0.13 km away
Hollyford, 0.22 km away
Alpine: George to Jacksons, 0.27 km away
Livingstone, 0.78 km away
Skippers, 0.87 km away
Te Anau, 4.44 km away
West Wakatipu, 12.9 km away

Madagascar, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMGZXTHRo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hollyford, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMGZXTHRo
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	0.0

Alpine: George to Jacksons, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMGZXTHRo
Connected?	true
Directly Connected?	true
Co-rupture Count	9,073
Co-rupture Rate	2.5312205E-5

Livingstone, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMGZXTHRo
Connected?	true
Directly Connected?	true
Co-rupture Count	536
Co-rupture Rate	1.6854015E-5

Skippers, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMGZXTHRo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Anau, 4.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMGZXTHRo
Connected?	true
Directly Connected?	true
Co-rupture Count	5,294
Co-rupture Rate	2.3795914E-5

West Wakatipu, 12.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMGZXTHRo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
