Awanui 3 Details
| Property | Value |
|---|---|
| Rupture Count | 1,279 |
| Ruptures Above Sect Min Mag | 1,246 |
| Ruptures w/ Nonzero Rates | 29 |
| Magnitude Range | [6.61, 8.19] |
| Length Range | [16, 420] km |
| Total Rate | 3.011174E-4 /yr |
| Multi-Fault Rate | 2.1403965E-5 /yr (7.11%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 12 |
Table Of Contents

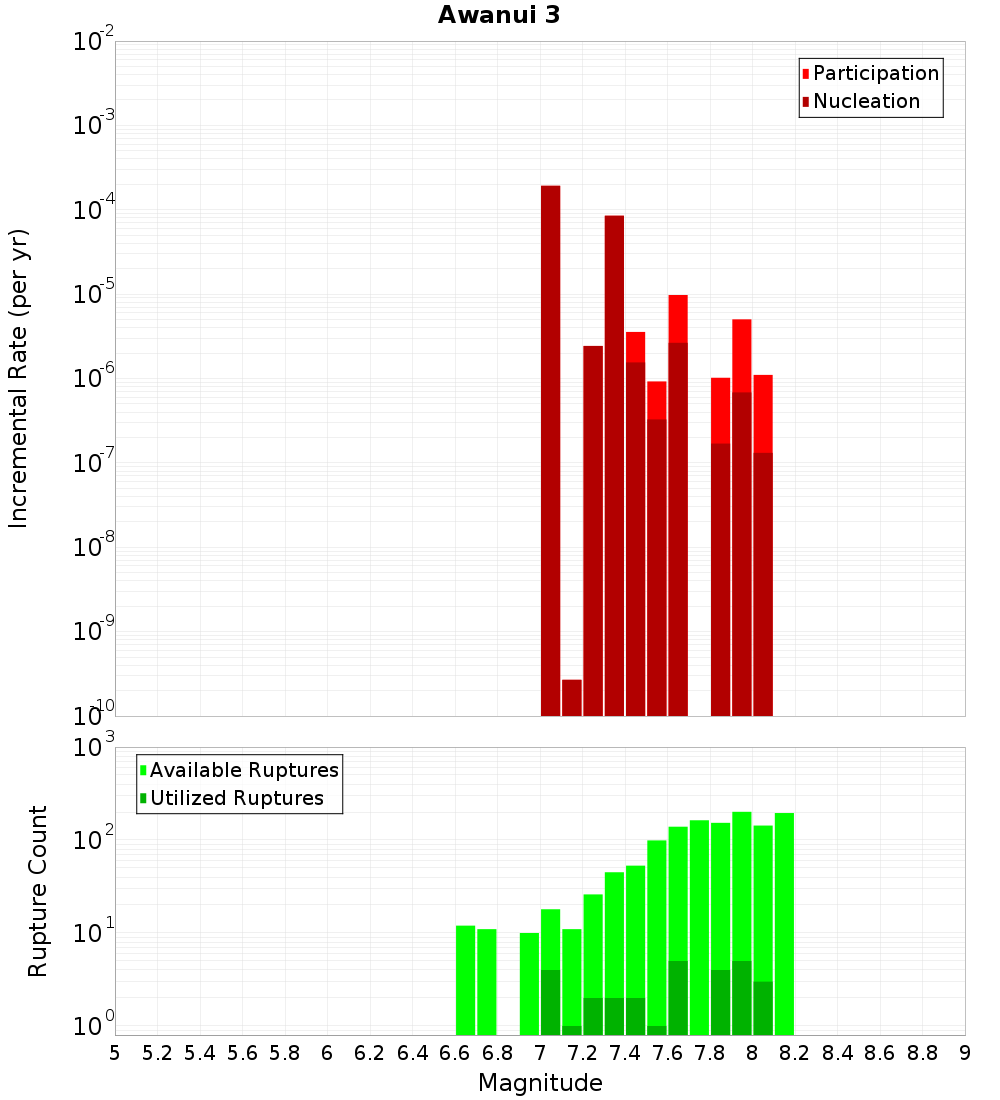

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

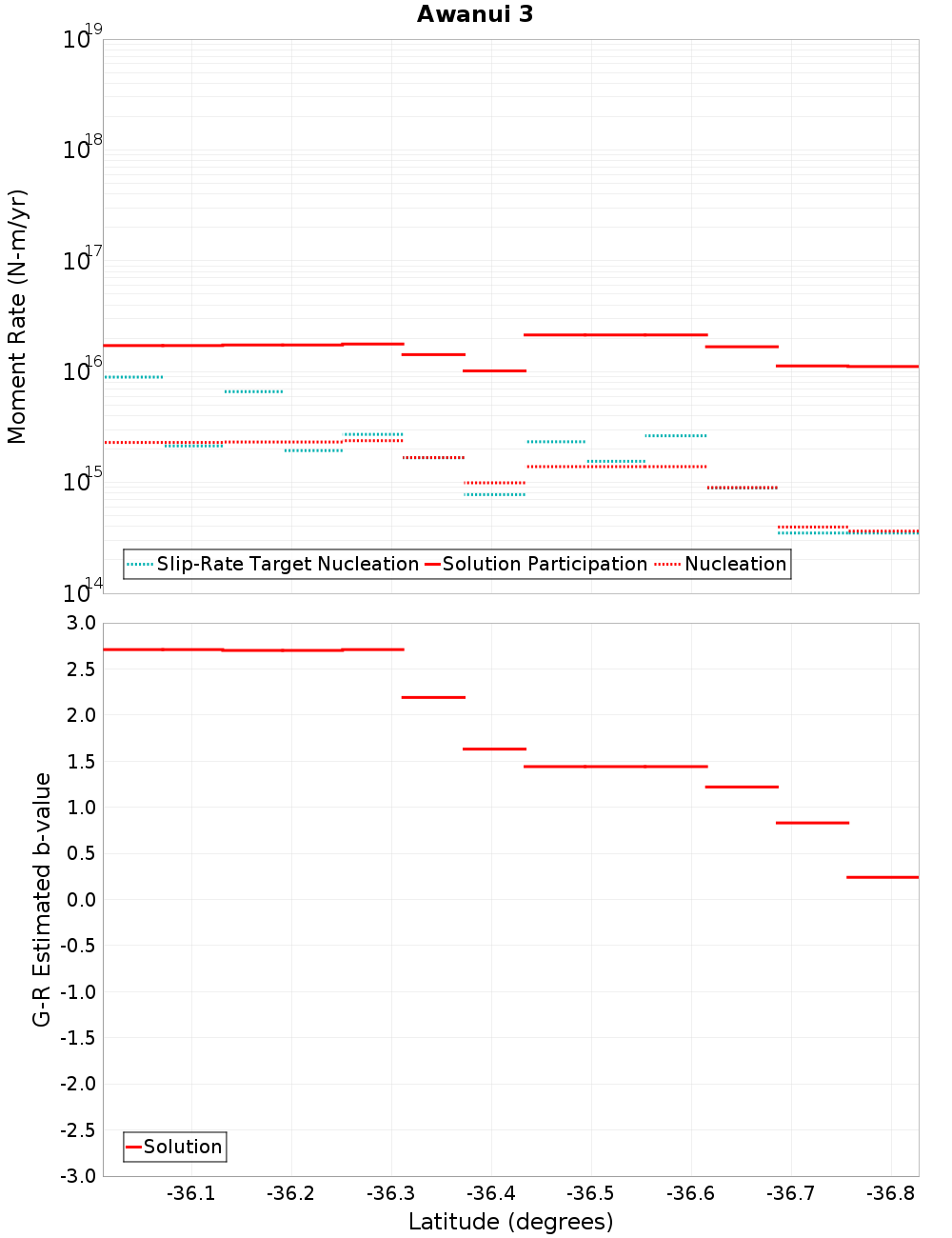

Moment-Rates and b-Values

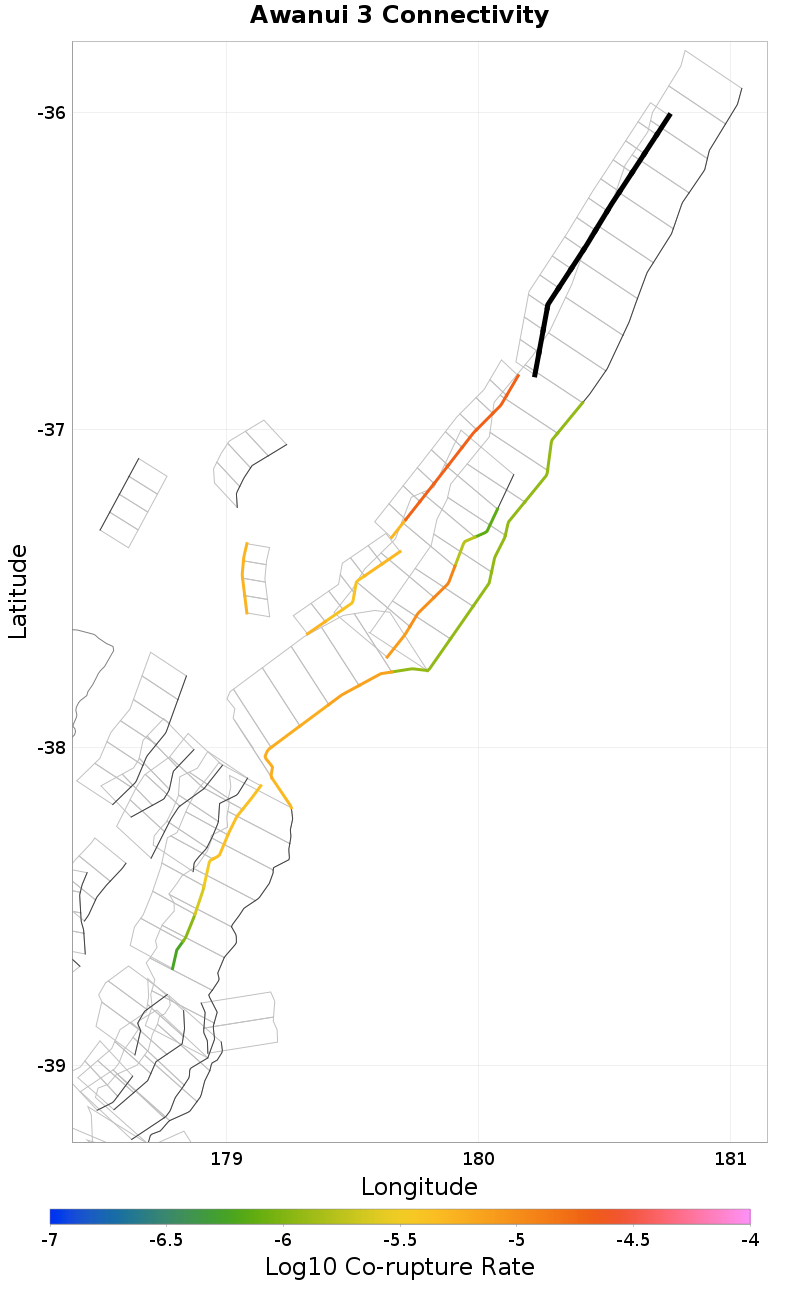

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kermadec Trench, 2.16 km away |
| Awanui 2, 4.72 km away |
Kermadec Trench, 2.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 797 |
| Co-rupture Rate | 1.1684248E-6 |
Awanui 2, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 548 |
| Co-rupture Rate | 2.023554E-5 |
