Wairarapa: 1 Details

PropertyValue
Rupture Count46,169
Ruptures Above Sect Min Mag46,165
Ruptures w/ Nonzero Rates237
Magnitude Range[6.81, 8.57]
Length Range[20, 1,083] km
Total Rate0.0012070972 /yr
Multi-Fault Rate0.0012070972 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults215

Table Of Contents

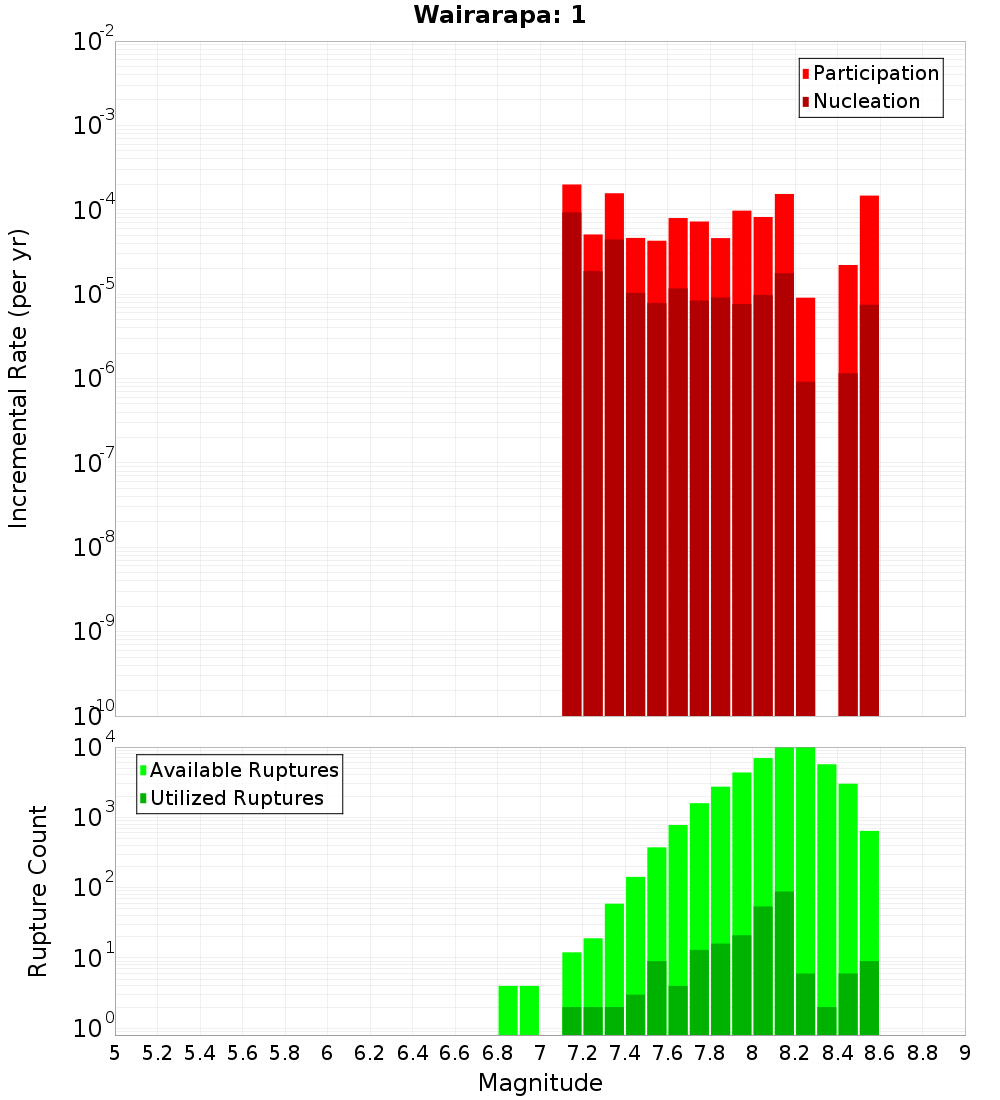

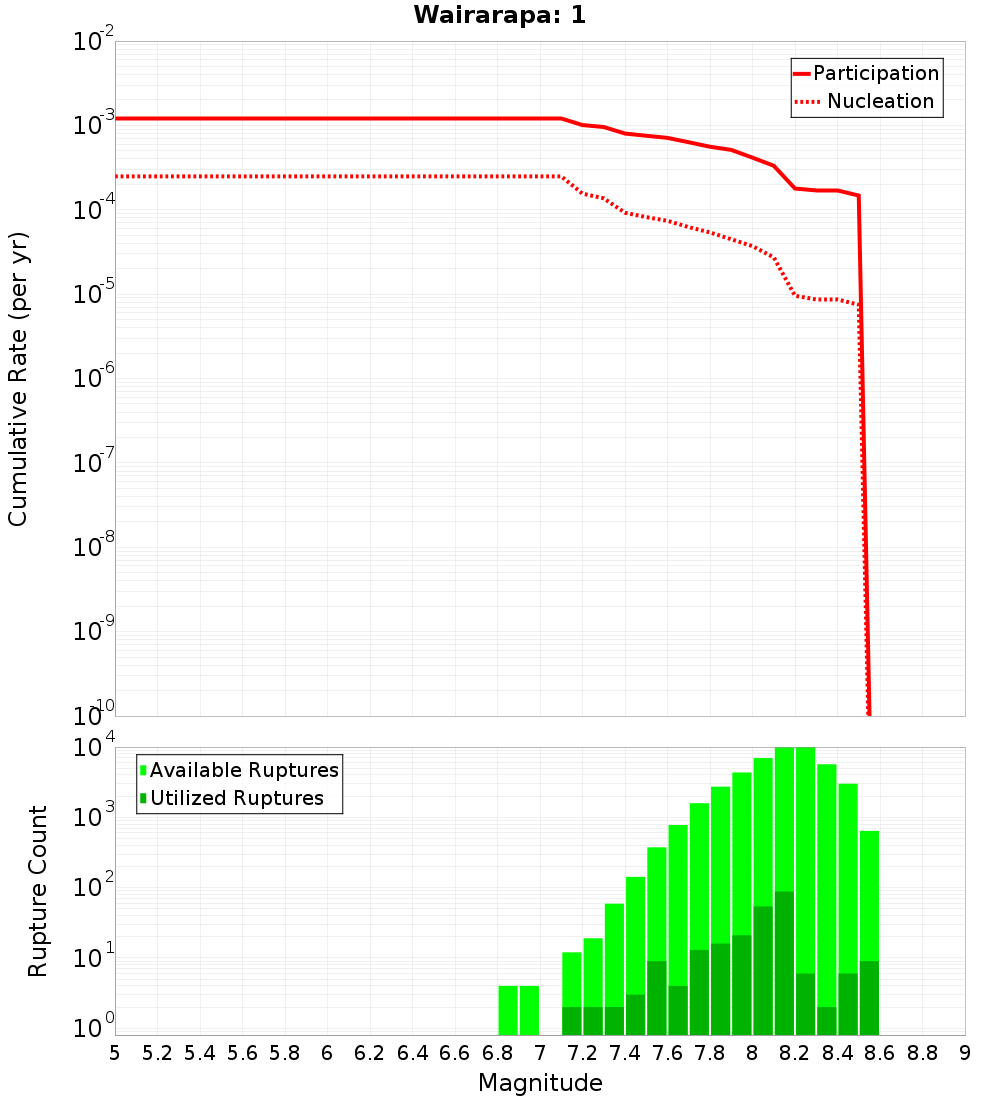

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

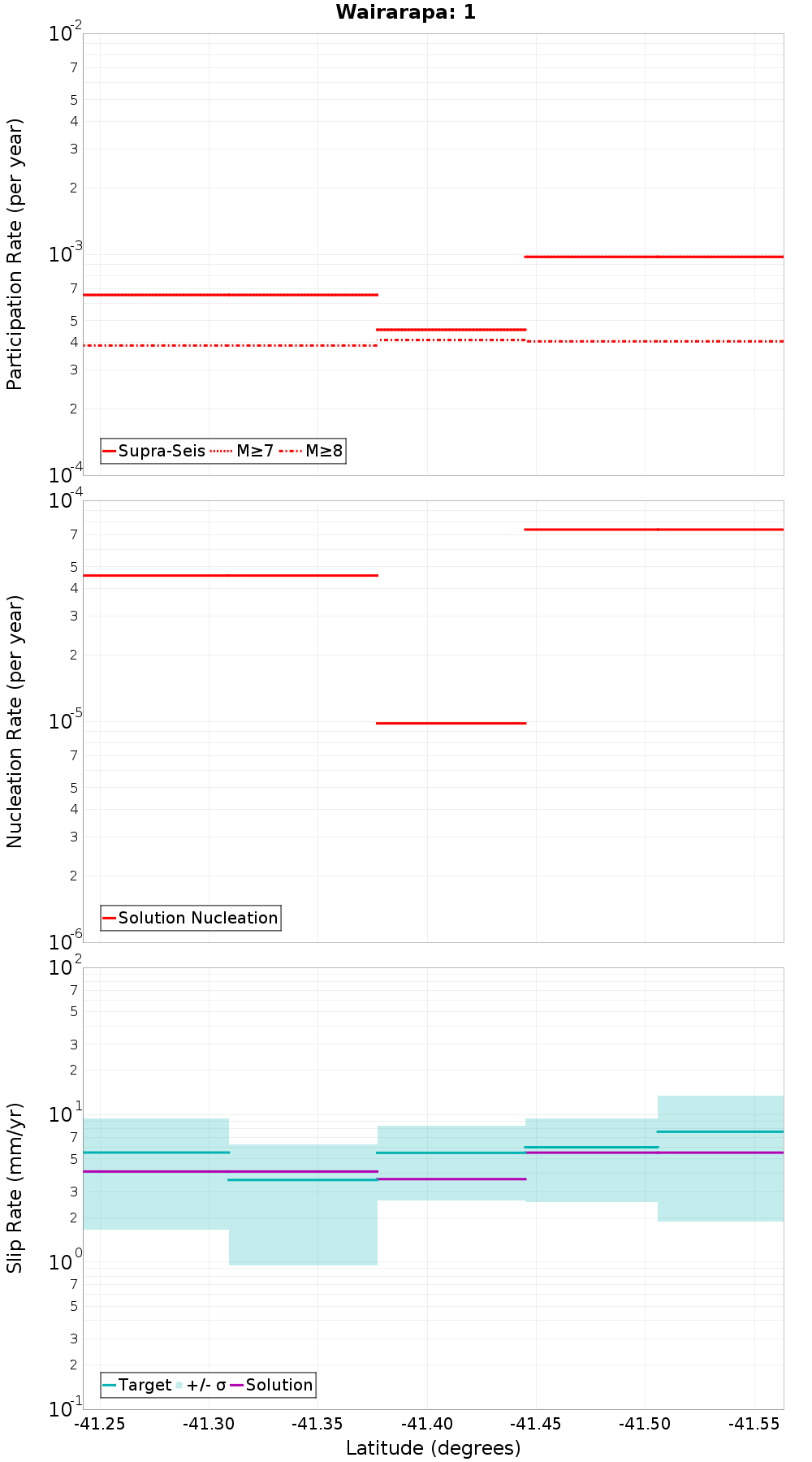

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

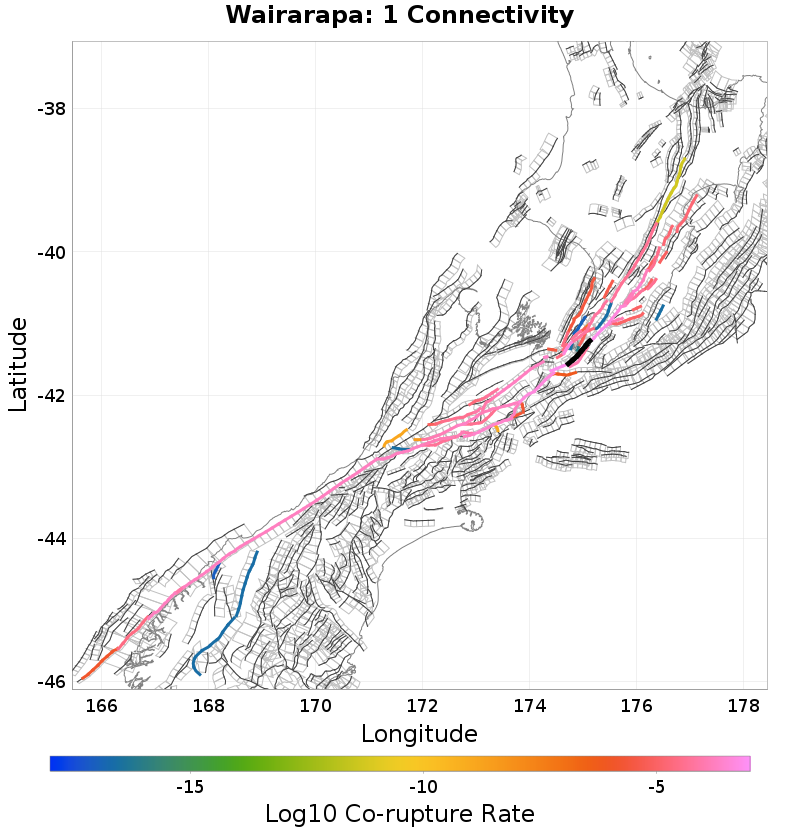

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wairarapa: 2, 0 km away
Wairarapa: Needles, 0 km away
Wharekauhau, 0.2 km away
Wellington Hutt Valley: 5, 0.92 km away
Aotea - Evans Bay, 1.2 km away
Wellington Hutt Valley: 4, 2.73 km away
Whitemans Valley, 5.26 km away
Akatarawa, 12.67 km away
Wellington Hutt Valley: 2, 12.7 km away
Wellington Hutt Valley: 3, 12.73 km away
Moonshine, 13.22 km away
Ohariu, 14.45 km away
BooBoo, 14.77 km away

Wairarapa: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?true
Co-rupture Count26,038
Co-rupture Rate6.5433985E-4

Wairarapa: Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?true
Co-rupture Count36,768
Co-rupture Rate6.594638E-4

Wharekauhau, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?true
Co-rupture Count4,396
Co-rupture Rate1.13706854E-4

Wellington Hutt Valley: 5, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?true
Co-rupture Count15,398
Co-rupture Rate2.0493877E-5

Aotea - Evans Bay, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?true
Co-rupture Count597
Co-rupture Rate2.6443015E-17

Wellington Hutt Valley: 4, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?false
Co-rupture Count283
Co-rupture Rate6.1127364E-5

Whitemans Valley, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?true
Co-rupture Count810
Co-rupture Rate6.327688E-6

Akatarawa, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?false
Co-rupture Count141
Co-rupture Rate6.1127364E-5

Wellington Hutt Valley: 2, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?true
Co-rupture Count724
Co-rupture Rate3.925842E-4

Wellington Hutt Valley: 3, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?false
Co-rupture Count184
Co-rupture Rate3.925842E-4

Moonshine, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?false
Co-rupture Count243
Co-rupture Rate5.103162E-5

Ohariu, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate2.3293613E-5

BooBoo, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzQuMHZuSFJz
Connected?true
Directly Connected?false
Co-rupture Count696
Co-rupture Rate6.2487857E-7
