Pahaua SE2 Details
| Property | Value |
|---|---|
| Rupture Count | 7,685 |
| Ruptures Above Sect Min Mag | 7,680 |
| Ruptures w/ Nonzero Rates | 234 |
| Magnitude Range | [6.71, 8.42] |
| Length Range | [17, 641] km |
| Total Rate | 5.8554404E-5 /yr |
| Multi-Fault Rate | 5.8554404E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 63 |
Table Of Contents

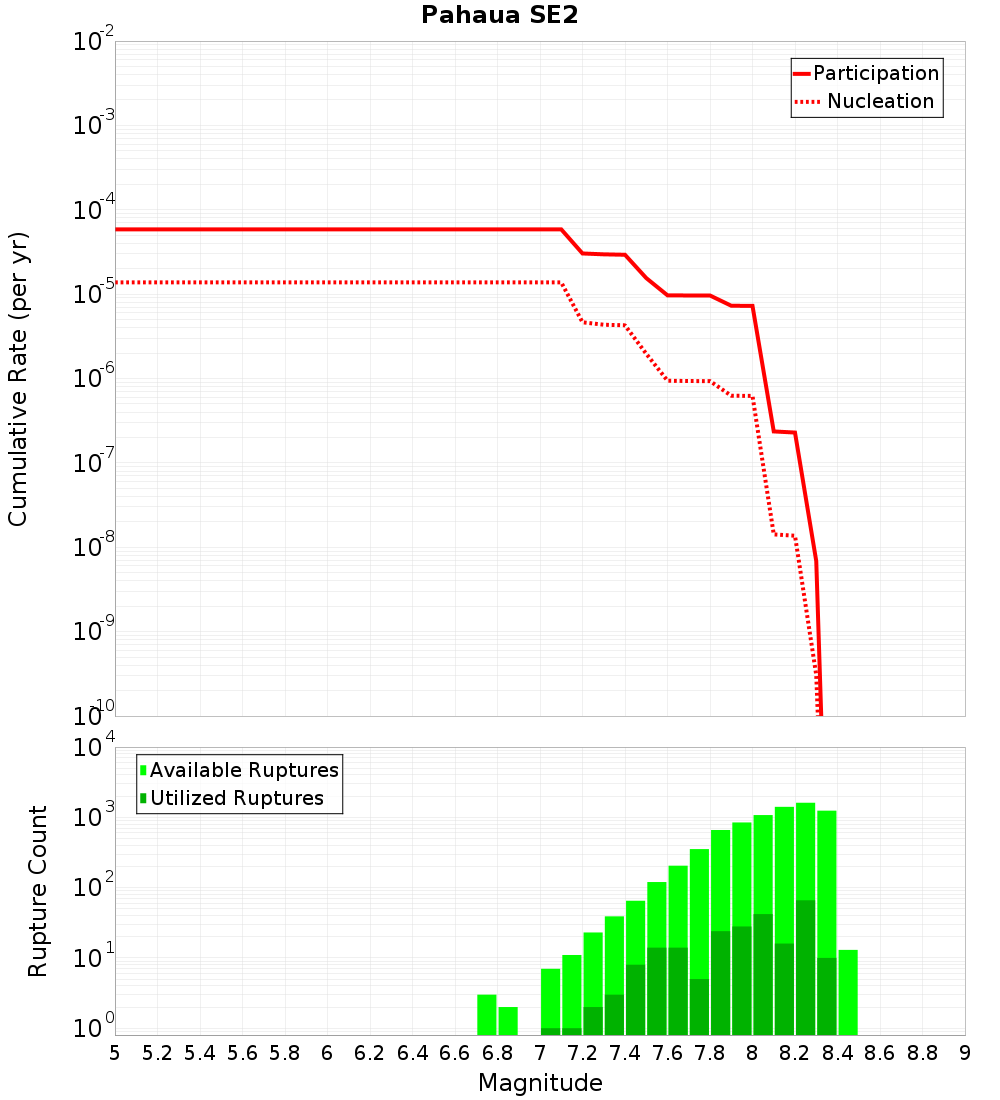

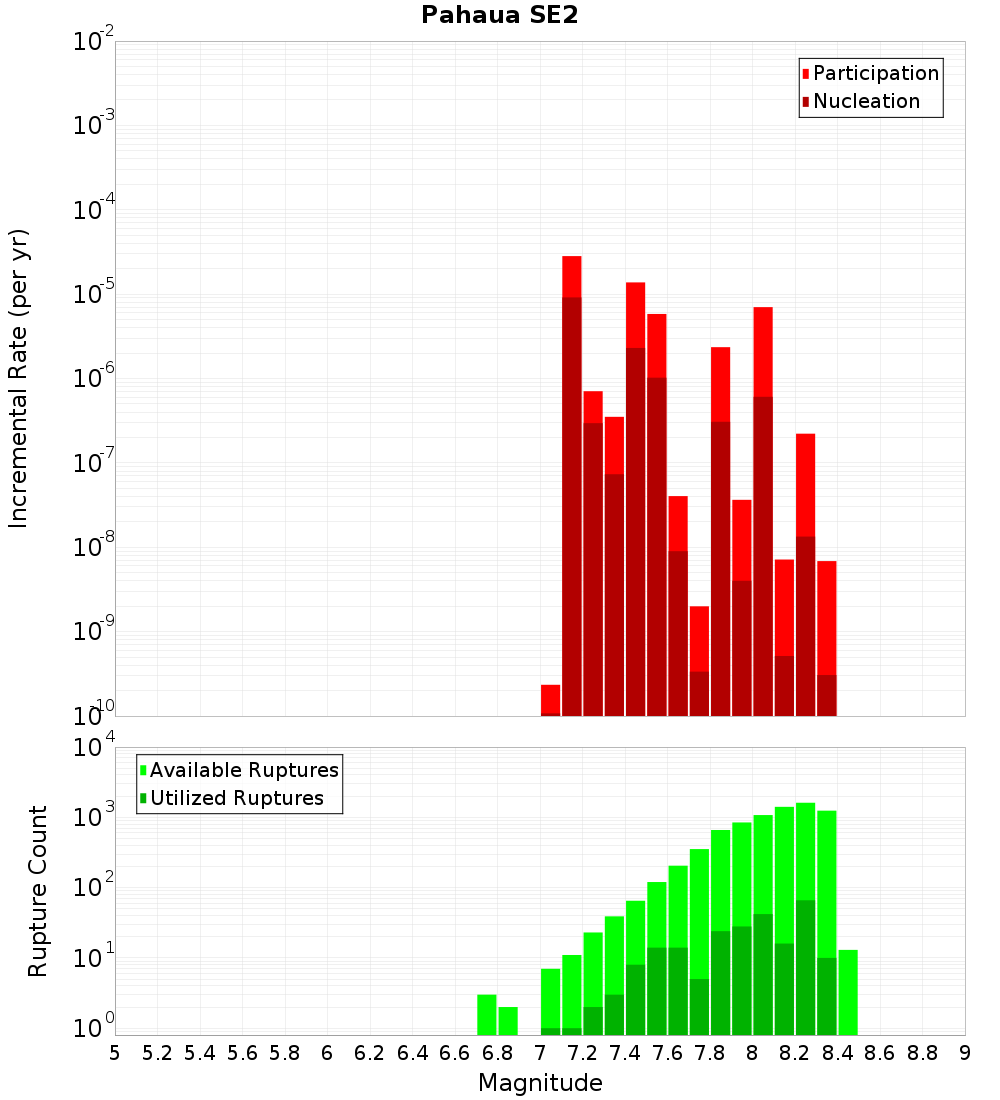

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

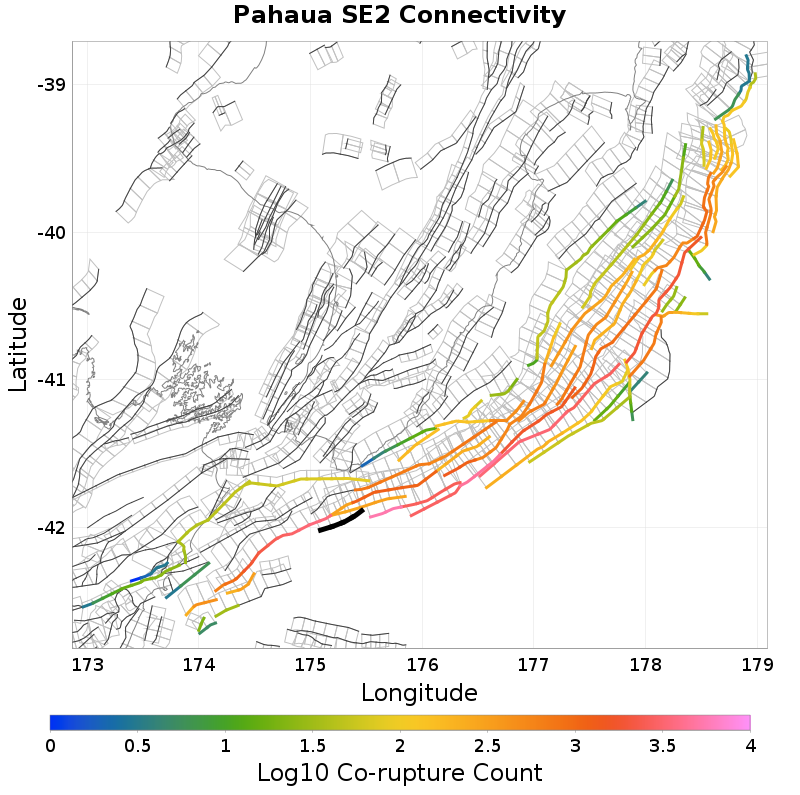

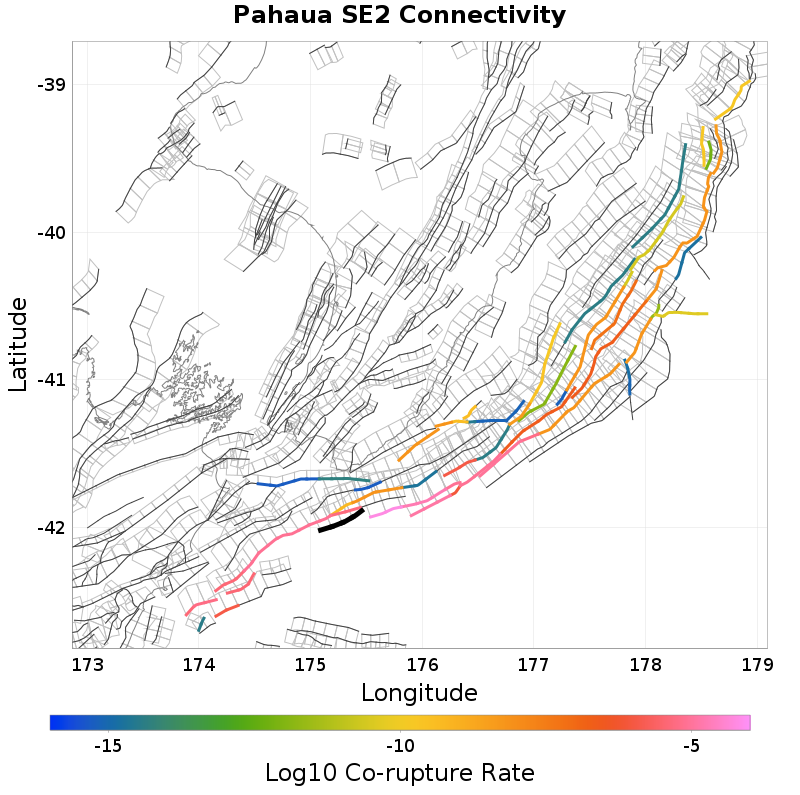

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kekerengu Bank, 0.17 km away |
| Pahaua SE1, 1.37 km away |
| Pahaua, 2.07 km away |
| Glendhu Ridge, 5.69 km away |
| Opouawe - Uruti, 5.88 km away |
| Te Rapa 2, 10.91 km away |
| BooBoo, 11.65 km away |
Kekerengu Bank, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,506 |
| Co-rupture Rate | 7.842684E-6 |
Pahaua SE1, 1.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 532 |
| Co-rupture Rate | 4.500451E-6 |
Pahaua, 2.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,377 |
| Co-rupture Rate | 6.9919595E-9 |
Glendhu Ridge, 5.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,485 |
| Co-rupture Rate | 5.854741E-5 |
Opouawe - Uruti, 5.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,072 |
| Co-rupture Rate | 4.988631E-16 |
Te Rapa 2, 10.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
BooBoo, 11.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 81 |
| Co-rupture Rate | 5.0039526E-15 |
