Rangefront Details

Property	Value
Rupture Count	6,988
Ruptures Above Sect Min Mag	6,985
Ruptures w/ Nonzero Rates	166
Magnitude Range	[6.94, 8.42]
Length Range	[21, 697] km
Total Rate	1.0450562E-4 /yr
Multi-Fault Rate	1.045053E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	96

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

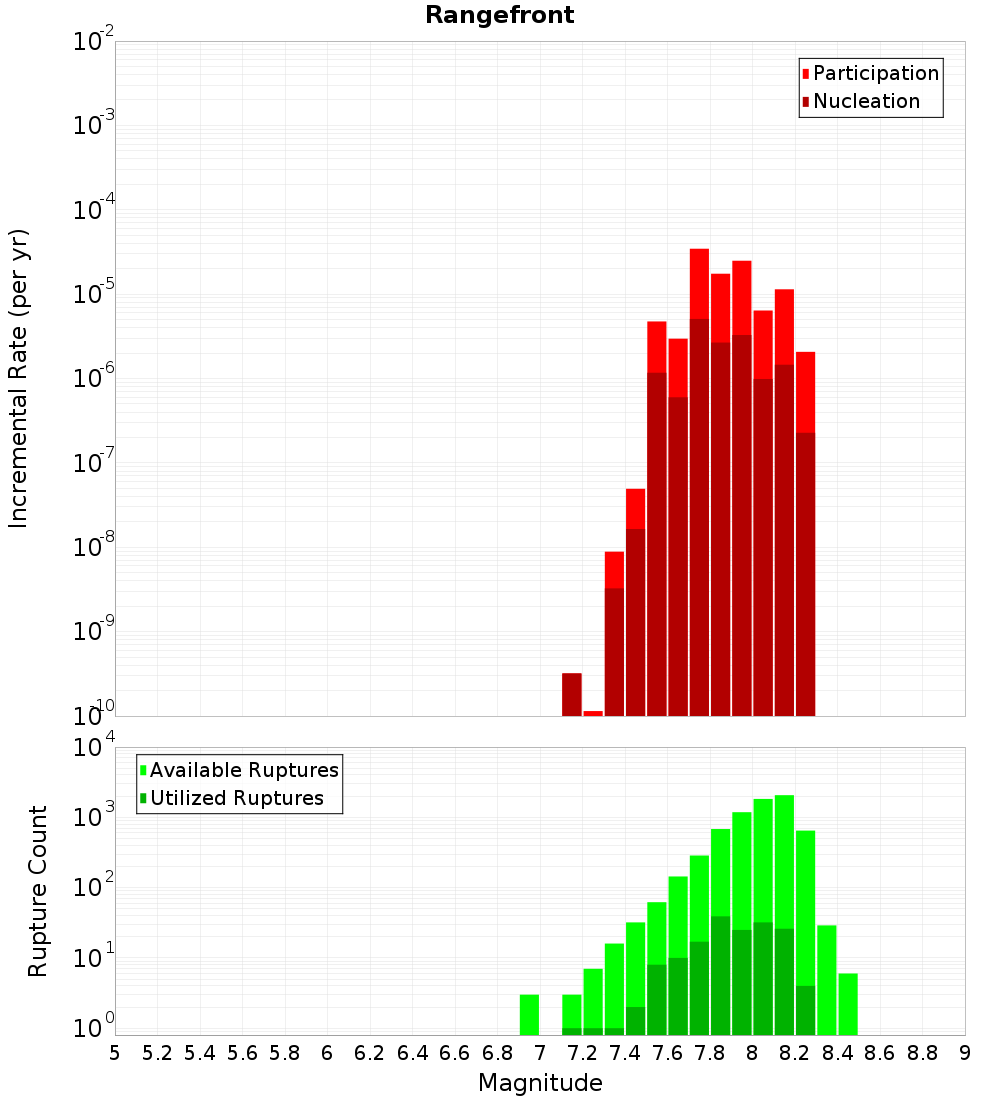

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

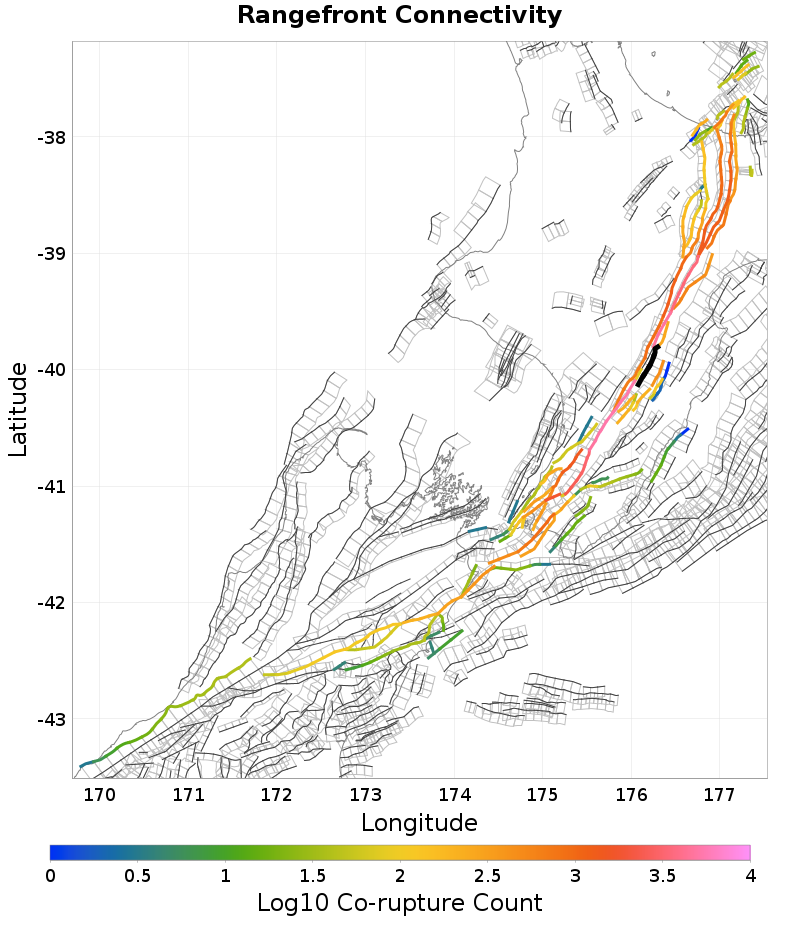

Connectivity

Nearby Sections

Fault Section
Wakarara, 0 km away
Ruahine: Central, 0.14 km away
Mohaka: South, 0.18 km away
Ruahine: South, 0.22 km away
Ruataniwha, 8.95 km away
Pahiatua, 9.78 km away
Maunga, 10.16 km away
Woodville, 10.91 km away
Pohangina, 12.41 km away

Wakarara, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	1.1262672E-5

Ruahine: Central, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	true
Directly Connected?	true
Co-rupture Count	941
Co-rupture Rate	3.6253634E-5

Mohaka: South, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	true
Directly Connected?	true
Co-rupture Count	10,027
Co-rupture Rate	8.494557E-5

Ruahine: South, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	true
Directly Connected?	true
Co-rupture Count	664
Co-rupture Rate	4.033631E-7

Ruataniwha, 8.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	true
Directly Connected?	true
Co-rupture Count	467
Co-rupture Rate	3.0969568E-5

Pahiatua, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	true
Directly Connected?	false
Co-rupture Count	212
Co-rupture Rate	7.442599E-6

Maunga, 10.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	true
Directly Connected?	false
Co-rupture Count	218
Co-rupture Rate	3.0958316E-5

Woodville, 10.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	true
Directly Connected?	false
Co-rupture Count	216
Co-rupture Rate	4.505512E-7

Pohangina, 12.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuME1nWlc3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
