Kahurangi Details
| Property | Value |
|---|---|
| Rupture Count | 1,816 |
| Ruptures Above Sect Min Mag | 1,799 |
| Ruptures w/ Nonzero Rates | 92 |
| Magnitude Range | [6.76, 8.12] |
| Length Range | [21, 453] km |
| Total Rate | 2.67299E-4 /yr |
| Multi-Fault Rate | 1.5870723E-4 /yr (59.37%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

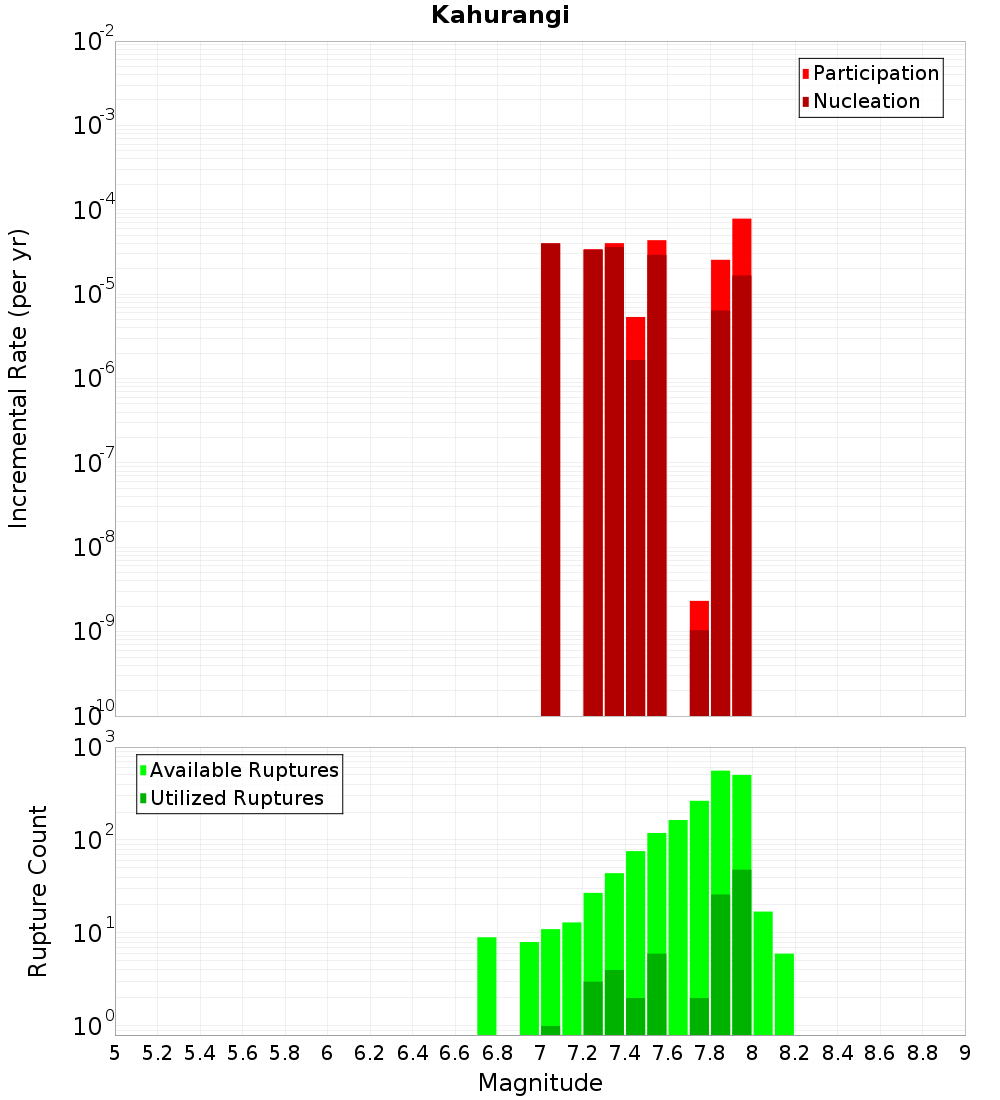

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

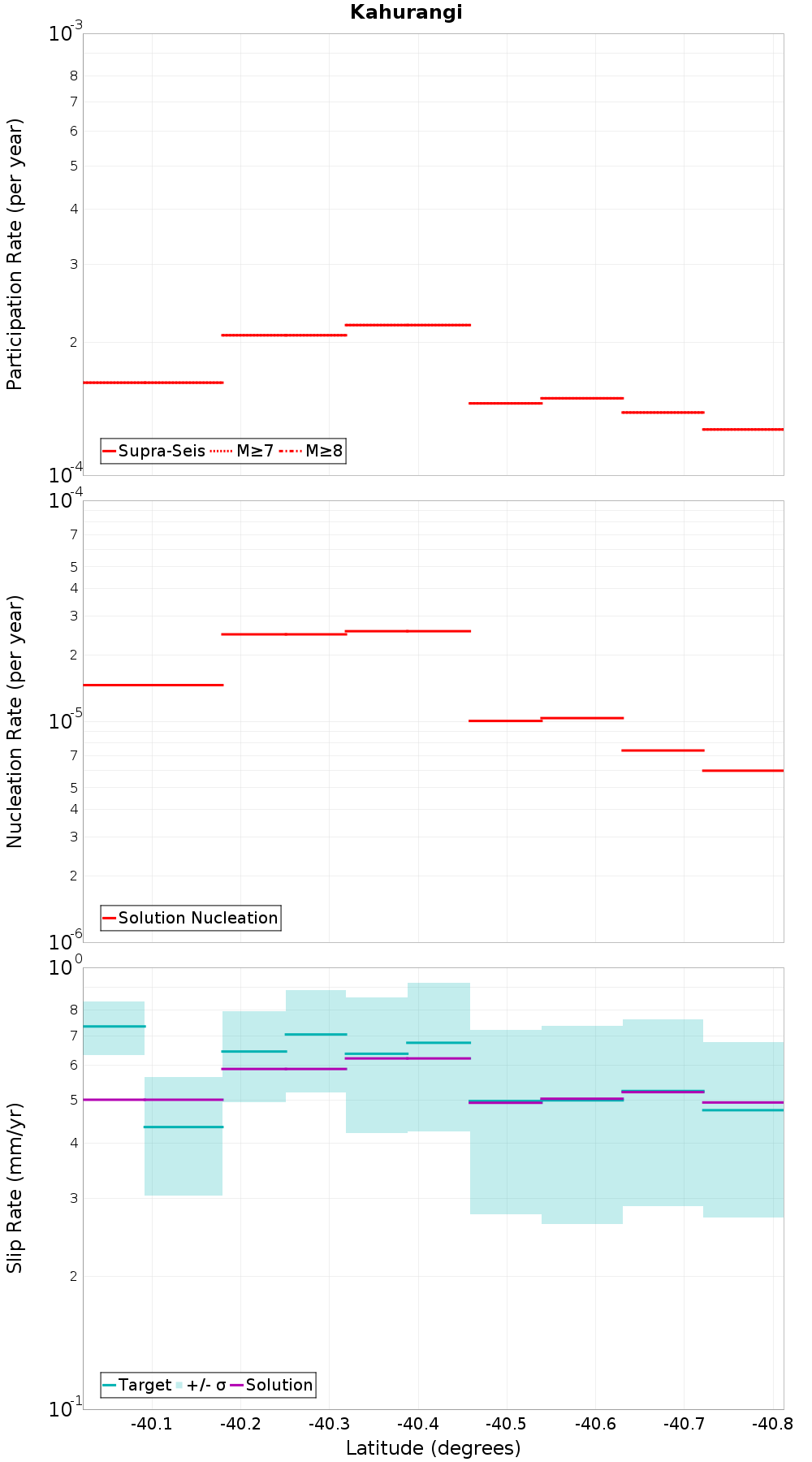

Along-Strike Values

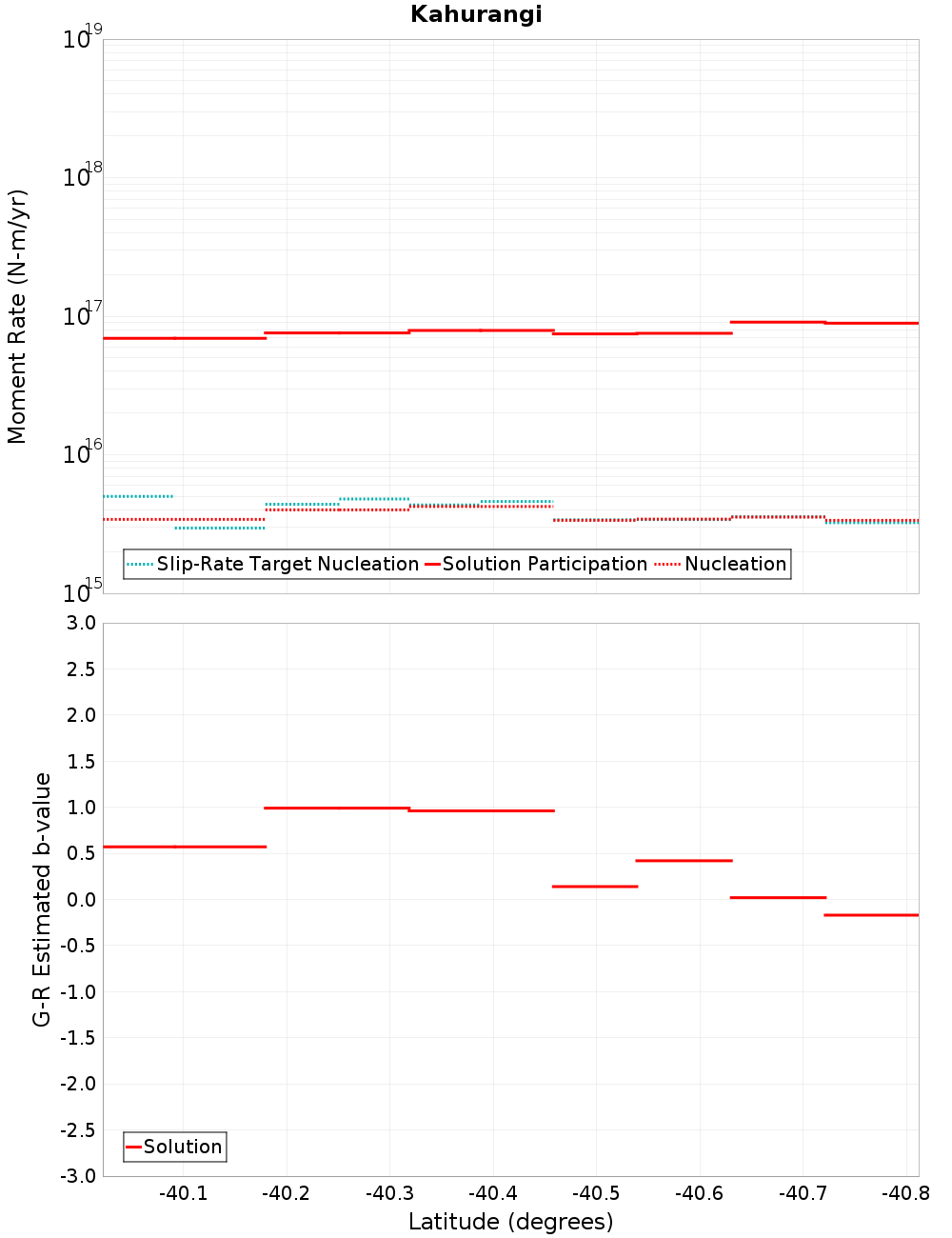

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Farewell, 0.32 km away |
| Cape Foulwind 4, 0.34 km away |
| Wakamarama, 0.36 km away |
| Kongahau, 0.37 km away |
| Kohaihai, 11.99 km away |
Farewell, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 639 |
| Co-rupture Rate | 4.873576E-5 |
Cape Foulwind 4, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,072 |
| Co-rupture Rate | 7.295883E-5 |
Wakamarama, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 86 |
| Co-rupture Rate | 3.7688245E-5 |
Kongahau, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 647 |
| Co-rupture Rate | 3.7021986E-5 |
Kohaihai, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 147 |
| Co-rupture Rate | 2.7077267E-6 |
