Middle Range Details

Property	Value
Rupture Count	741
Ruptures Above Sect Min Mag	736
Ruptures w/ Nonzero Rates	57
Magnitude Range	[6.76, 8.06]
Length Range	[21, 351] km
Total Rate	3.0056498E-4 /yr
Multi-Fault Rate	3.0021957E-4 /yr (99.89%)
Directly-Connected Faults	8
All Co-Rupturing Faults	46

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

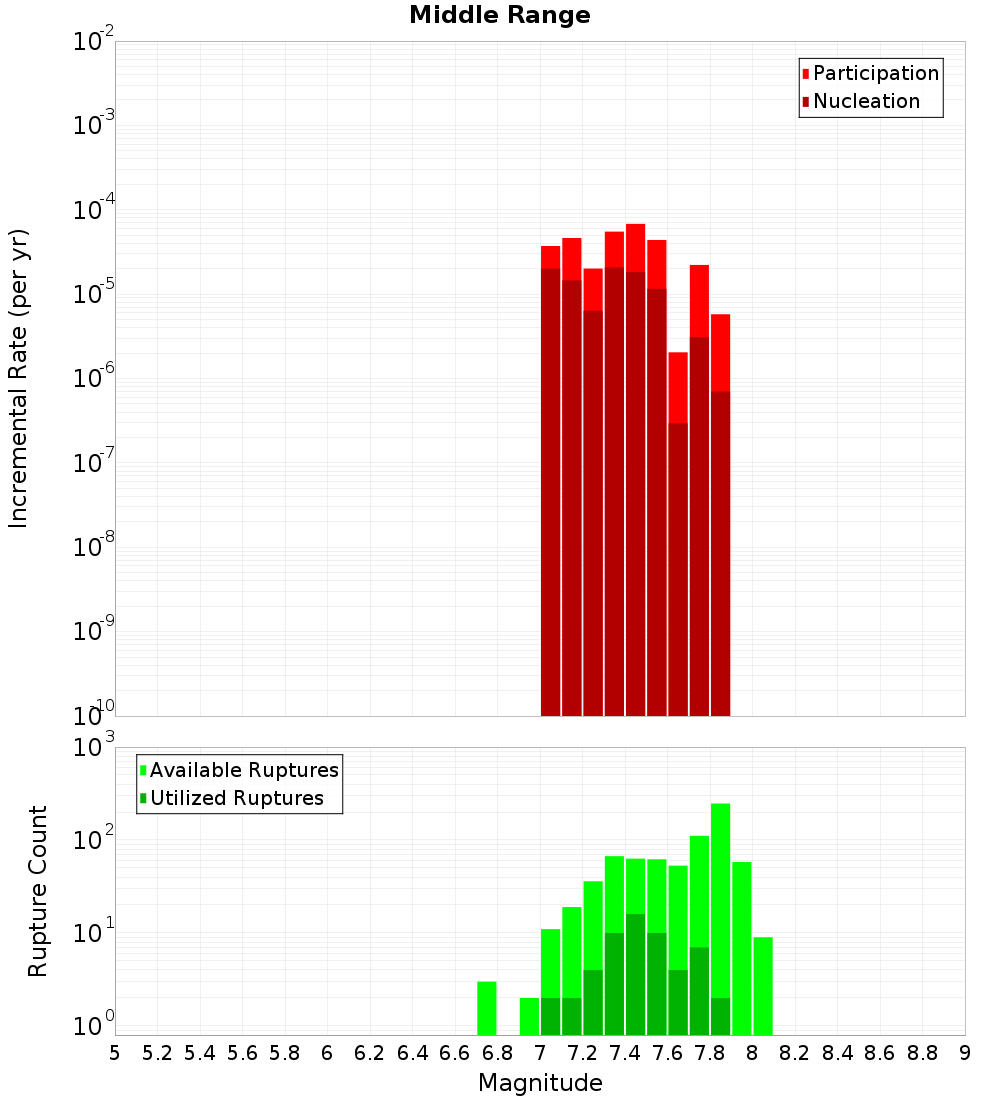

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awahokomo, 0.05 km away
Fern Gully, 0.08 km away
Kirkliston, 0.16 km away
Mt Sutton, 0.17 km away
Waitangi, 0.35 km away
Gibson, 0.38 km away
Falstone, 5.24 km away
Grampian, 6.8 km away
Black Hill, 7.62 km away
Stonewall, 9.97 km away
Waitaki, 13.04 km away
Dryburgh, 14.1 km away
Hawkdun, 14.46 km away

Awahokomo, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	46
Co-rupture Rate	8.7139815E-5

Fern Gully, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	151
Co-rupture Rate	7.7668396E-5

Kirkliston, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	485
Co-rupture Rate	4.9319515E-5

Mt Sutton, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	56
Co-rupture Rate	2.5560128E-5

Waitangi, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	30
Co-rupture Rate	7.142518E-5

Gibson, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	38
Co-rupture Rate	8.567669E-5

Falstone, 5.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	1.5459005E-5

Grampian, 6.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Black Hill, 7.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Stonewall, 9.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	1.2975167E-5

Waitaki, 13.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	true
Co-rupture Count	219
Co-rupture Rate	9.9796205E-5

Dryburgh, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkdun, 14.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyMzcuMEhDc3VZ
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0
